EasySolar 12/1600/70-16 MPPT 100/50 | EasySolar 24/1600/40-16 MPPT 100/50

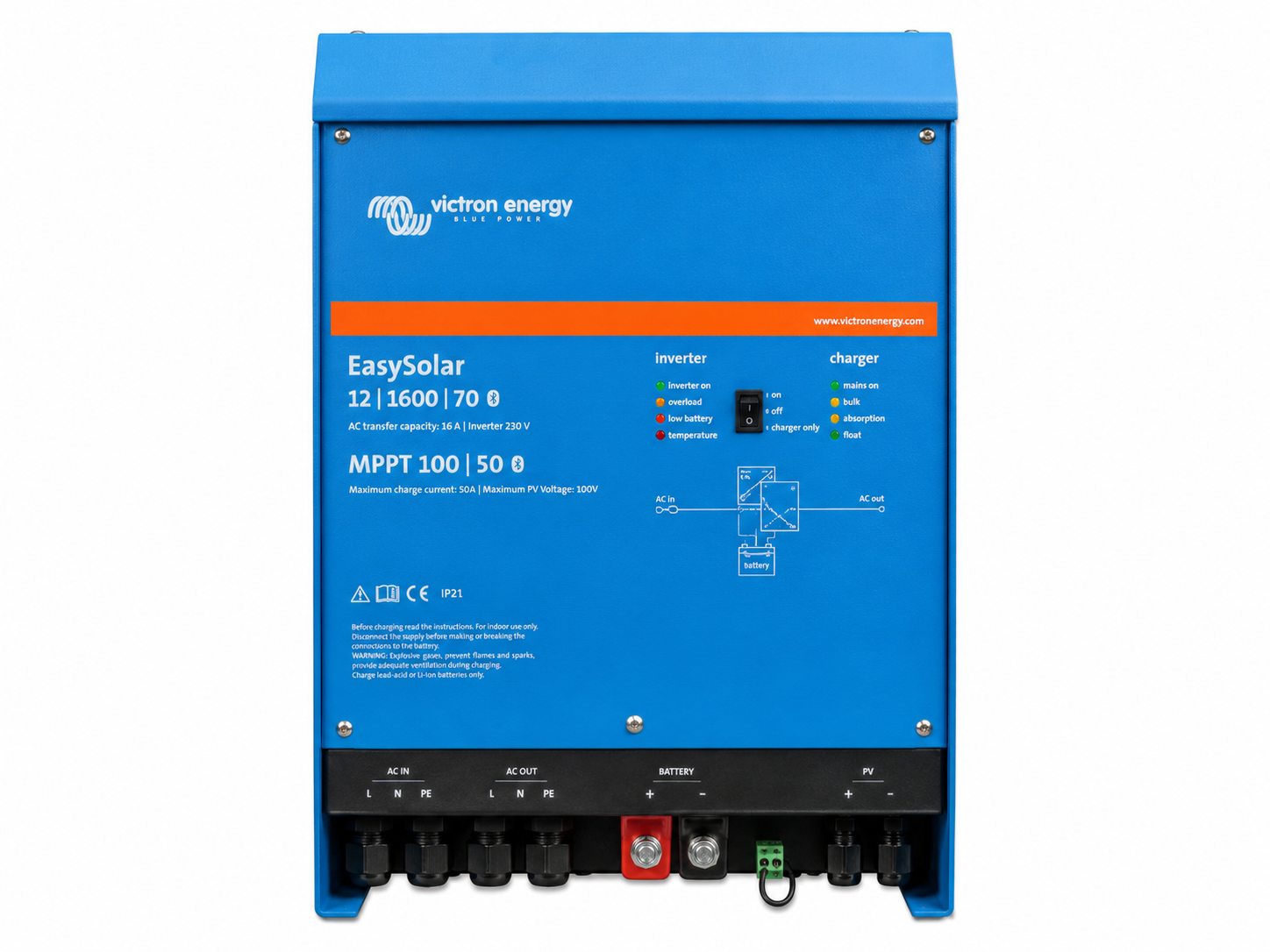

The Victron EasySolar 1600 MPPT 100/50 packs four off-grid components into one wall-mount enclosure: an MPPT 100/50 solar charge controller, a 1600 VA pure sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch with AC distribution. Connect your solar array, battery bank, and shore/generator and you have a complete power system — no separate controller, inverter, or changeover to wire up.

What it does

• Solar (MPPT 100/50): up to 700 W of PV at up to 100 V / 50 A, across up to three MC4 PV strings
• Inverter: 1600 VA / ~1300 W continuous pure sine wave 230 V AC (3000 W peak)
• Charger: adaptive multi-stage charging from shore or generator
• AC distribution: RCD (30 mA / 16 A) plus four outlets on two 10 A and two 16 A breakers
• PowerAssist: tops up a limited shore/generator supply with battery power to avoid tripping

Specifications

• Models: EasySolar 12/1600/70-16 (12 V, 70 A charger) and EasySolar 24/1600/40-16 (24 V, 40 A charger)
• Inverter output: 1600 VA / ~1300 W continuous, 230 V AC, 50/60 Hz, pure sine wave (3000 W peak)
• Solar controller: MPPT 100/50 — 100 V max PV, 50 A, up to 700 W
• Charge current: 70 A (12 V model) / 40 A (24 V model)
• Transfer switch: 16 A
• Dimensions: 20.1″ × 8.4″ × 4.3″ (510 × 214 × 110 mm)

Confirm whether you need the 12 V or 24 V version when ordering. Note: 230/240 V output — intended for export/dual-voltage builds, not US 120 V appliances. Ships from Upland, CA.
