RV electric trailer brake replacement is needed when braking feels weak, uneven, noisy, delayed, or inconsistent, or when brake shoes, magnets, wiring, drums, or hardware are worn or contaminated. The safest approach is to inspect the full brake and hub assembly, replace parts in matched pairs where appropriate, and confirm wiring, brake controller settings, and drum condition before towing.
Electric trailer brakes are one of the most important safety systems on any travel trailer, off-road camper, or overland trailer. When they work correctly, they help the trailer slow in proportion to the tow vehicle. When they are worn, misadjusted, contaminated, or poorly wired, stopping distances increase and the trailer can push, pull, grab, or sway during braking.
How RV Electric Trailer Brakes Work
Most electric trailer brakes use a drum brake assembly. When the driver presses the tow vehicle brake pedal, the brake controller sends electrical current through the trailer brake circuit. That current powers an electromagnet inside each brake assembly.
The magnet is pulled against the inner face of the rotating brake drum. As the drum turns, it moves the actuating arm, which spreads the brake shoes against the drum. Friction between the shoes and drum slows the wheel.
The system depends on several parts working together:
| Component | Job |
|---|---|
| Brake controller | Sends braking current from the tow vehicle |
| Trailer wiring | Carries current to each brake magnet |
| Brake magnet | Activates the brake assembly |
| Brake shoes | Press against the drum to create stopping force |
| Springs and adjuster | Return and position the shoes |
| Brake drum hub | Provides the braking surface and holds bearings |
| Bearings and seals | Support smooth hub rotation |
| Breakaway system | Applies trailer brakes if the trailer separates from the tow vehicle |
A brake problem can come from the brake assembly, the hub, the controller, the wiring, the ground, the battery, or the mechanical adjustment. That is why troubleshooting before replacement matters.
Signs Your RV Electric Trailer Brakes Need Replacement
Weak Braking
If the trailer feels like it is pushing the tow vehicle during stops, the brakes may be worn, misadjusted, underpowered, or not receiving enough current. Weak braking can also come from a brake controller set too low, poor ground, corroded plug, or worn magnets.
Brakes Grab or Lock Up
Grabbing brakes can happen when adjustment is uneven, brake shoes are contaminated, magnets are failing, drums are rough, or the controller gain is too high. If one wheel locks before the others, inspect that brake assembly and wiring first.
Trailer Pulls to One Side
Pulling during braking often means braking force is not equal side to side. One brake may be stronger, weaker, contaminated, disconnected, or adjusted differently.
Grinding, Scraping, or Squealing
Noise can come from worn brake shoes, broken springs, loose hardware, drum damage, or metal-to-metal contact. Do not keep towing if a brake starts making severe grinding sounds.
Brake Controller Shows an Error
Modern brake controllers may report a disconnected trailer, short circuit, overload, or output fault. Do not assume the controller is bad. Inspect the trailer plug, junction box, brake wiring, grounds, magnets, and breakaway wiring.
Hot Wheels or Burning Smell
A hot drum can mean brake drag, bearing problems, poor adjustment, or a stuck magnet. Compare all wheels carefully after a short tow. If one wheel is much hotter than the others, stop and diagnose before continuing.
Grease on Brake Shoes
A failed grease seal can let bearing grease reach the brake shoes and drum. Grease-contaminated brakes may grab, slip, smell, or lose stopping power. Cleaning alone may not be enough if the lining is soaked.
Repair vs Replacement: How to Decide
Some brake problems are simple adjustments. Others call for replacement.
| Condition | Adjustment or Repair May Work | Replacement Is Usually Better |
|---|---|---|
| Brake shoes slightly out of adjustment | Yes | Not required |
| Loose or corroded wire connection | Yes | Not unless damaged |
| Worn brake shoes | No | Yes |
| Weak or worn magnet | No | Yes |
| Broken springs or hardware | Sometimes | Often |
| Grease-soaked lining | Rarely | Usually |
| Damaged backing plate | No | Yes |
| Deeply scored drum | Sometimes machinable | Often hub/drum replacement |
| Unknown brake history before remote travel | Inspect first | Replacement may be safer |
Electric trailer brakes are often replaced as complete backing plate assemblies because the shoes, magnet, springs, adjuster, and hardware are already built into one unit. This can be cleaner and more reliable than rebuilding several worn pieces individually, as long as the replacement assembly matches the trailer.
Fitment Checklist Before Buying Trailer Brakes
Do not order electric brakes by appearance alone. Trailer brake fitment is specific.
Check these points first:
| Fitment Point | What to Verify |
|---|---|
| Trailer model | HQ12, HQ15, HQ17, HQ19, HQ21, HQ22T, or other model |
| Brake size | Match the drum and axle setup |
| Axle rating | Brake assembly must match the axle capacity |
| Left/right side | Electric brake assemblies are side-specific |
| Mounting pattern | Backing plate bolt pattern must match |
| Drum condition | New brakes need a usable drum surface |
| Wiring type | Confirm brake wire routing and ground path |
| Hub bearings and seals | Inspect while the drum is removed |
| Parking brake compatibility | Confirm if your trailer uses a handbrake setup |
RV Parts Giant lists Electric Trailer Brake 1 Pair for compatible Black Series applications. Because the listing is sold as a pair, it is especially relevant when replacing brakes symmetrically across an axle. Always confirm model, brake size, left/right orientation, and axle compatibility before ordering.
Why Brakes Should Be Replaced in Pairs
Trailer brakes should be balanced. If one side has new shoes and a fresh magnet while the other side has worn parts, the trailer may brake unevenly. That can cause pulling, locking, or unstable stops.
A matched pair helps keep braking force consistent across the axle. If only one brake assembly failed due to a clear local issue, such as a damaged wire, you should still inspect the opposite side carefully. On older or unknown systems, replacing both sides is often the better choice.
Electric Trailer Brake Troubleshooting Before Replacement
1. Check the Brake Controller
Start with the tow vehicle. Confirm the controller is powered, properly connected, and set correctly for the trailer weight. Use the manual override at low speed in a safe area to feel whether the trailer brakes respond.
If the controller gain is too low, the trailer may barely brake. If it is too high, the wheels may lock.
2. Inspect the Trailer Plug
Corrosion, dirt, loose pins, or damaged wiring at the plug can interrupt brake current. Clean and inspect the connector. Make sure the plug seats fully in the tow vehicle socket.
3. Check the Breakaway System
The breakaway battery and switch are safety-critical. If the trailer separates, the breakaway system should apply the trailer brakes. Inspect the battery, switch cable, wiring, and mounting. Do not tow with a neglected or disconnected breakaway system.
4. Inspect Wiring at Each Brake
Look for broken wires, chafed insulation, poor splices, loose grounds, and damage from rocks, brush, or road debris. Off-road trailers are especially exposed to vibration and impact.
5. Lift and Spin Each Wheel
With the trailer safely supported, spin each wheel and listen. Adjusted brakes may have light drag, but heavy scraping, grinding, or uneven resistance needs inspection.
6. Pull the Drum
The real story is inside. Inspect shoes, magnets, springs, adjusters, wires, drum surface, grease seals, bearings, and dust buildup.
RV Parts Giant’s RV wheel bearing replacement guide is a useful related read because brake inspection and bearing service are often done together.
What to Inspect Inside the Brake Drum
Brake Shoes
Look at lining thickness, cracks, glazing, uneven wear, grease contamination, and separation from the shoe. Replace shoes or the full assembly if the lining is worn or contaminated.
Brake Magnet
The magnet face should wear evenly. Deep grooves, exposed windings, uneven wear, or damage mean replacement is needed. A weak magnet can reduce braking even if the shoes look acceptable.
Springs and Hardware
Broken or weak springs can prevent proper return. Loose hardware can create noise, drag, or uneven braking.
Adjuster
The adjuster should move and hold position. A seized adjuster makes proper brake setup impossible.
Drum Surface
The inner drum surface should be smooth enough for proper shoe contact. Deep grooves, cracks, heat checking, or severe scoring can ruin new brakes quickly.
Grease Seal Area
If grease is inside the brake drum, inspect the seal and bearings. Replace the seal and address the source before installing new brake parts.
Brake Drum Hub Replacement vs Brake Assembly Replacement
Sometimes the brake assembly is bad. Sometimes the drum hub is the problem. Often, both should be inspected together.
| Problem Found | Likely Repair |
|---|---|
| Worn shoes, good drum | Replace brake assembly or shoes |
| Weak magnet, good drum | Replace brake assembly or magnet |
| Grease contamination | Replace seal, inspect bearings, replace contaminated brake parts |
| Scored or overheated drum | Replace or service drum hub |
| Bad bearings with good brake shoes | Bearing service or hub replacement |
| Damaged studs or drum surface | Hub replacement may be practical |

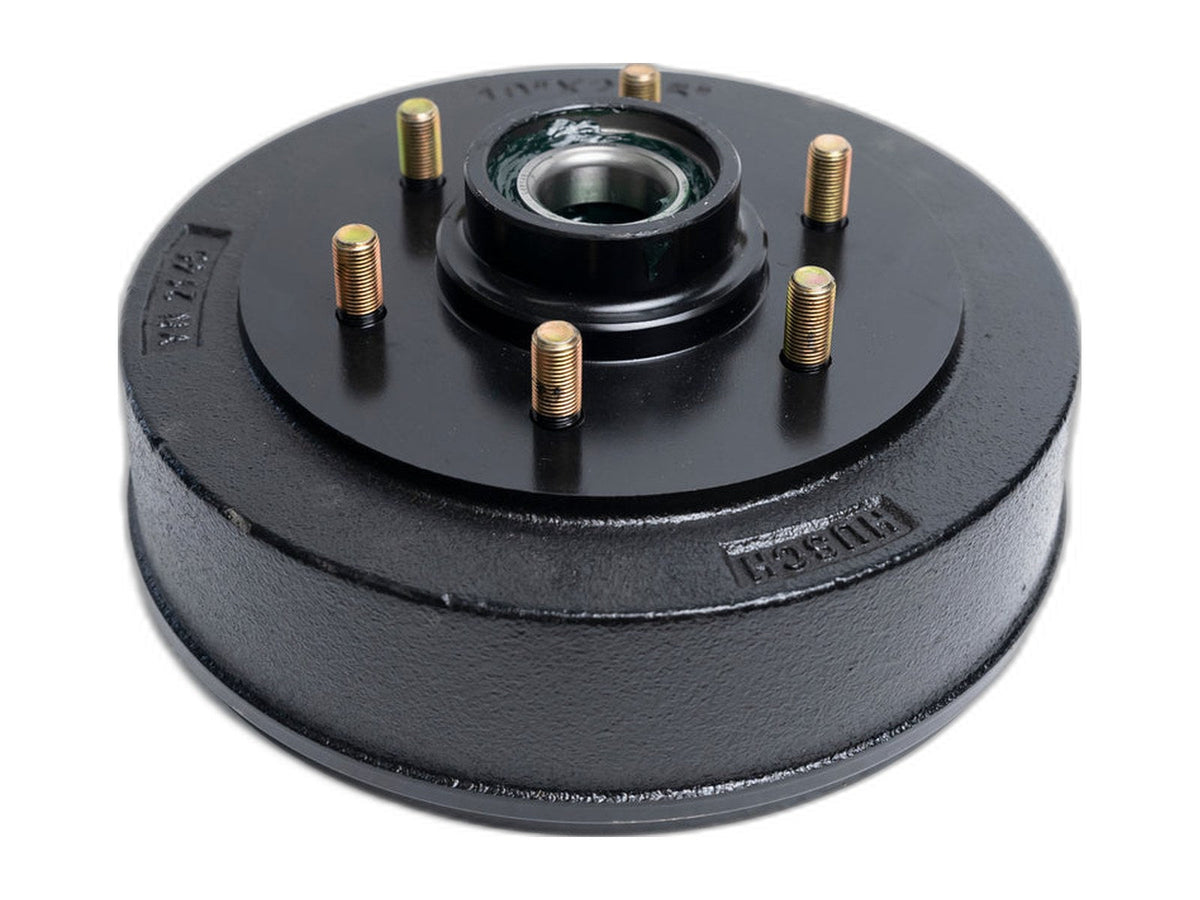

RV Parts Giant carries a Brake Drum Hub that comes fully greased with two bearings, which can be useful when the hub itself is worn, damaged, overheated, or easier to replace as a complete assembly. Confirm brake size, wheel pattern, axle, bearing setup, and trailer compatibility before ordering.
Step-by-Step RV Electric Trailer Brake Replacement Overview
This overview is for planning. Trailer brakes are safety-critical. If you are not comfortable lifting the trailer, inspecting drums, adjusting brakes, or working with electrical circuits, use a qualified trailer or RV technician.
1. Park Safely
Park on level ground. Chock the wheels that will remain on the ground. Disconnect shore power and make sure the trailer cannot move.
2. Lift and Support the Trailer
Use a proper jack point and rated jack stands. Never work under or around a trailer supported only by a jack.
3. Remove the Wheel
Loosen lug nuts before lifting if needed, then remove the wheel. Inspect the tire, wheel, studs, and visible brake wiring.
4. Remove the Dust Cap and Spindle Hardware
Remove the dust cap, cotter pin or retainer, spindle nut, and washer. Keep parts clean and organized.
5. Remove the Drum Hub
Slide the drum hub off carefully. The outer bearing may come out. Do not let the drum drop or damage the spindle.
6. Inspect Bearings and Seal
This is the right time to inspect bearings, races, grease, and seals. If grease is contaminated or bearings are worn, service them before reassembly.
7. Disconnect Brake Wires
Electric brake magnets usually have two wires. Note the routing and connection method before cutting or disconnecting. Support wiring so it cannot rub after installation.
8. Remove the Old Brake Assembly
Unbolt the backing plate from the axle flange. If hardware is rusty or damaged, replace it with correct-grade hardware as required.
9. Install the New Brake Assembly
Install the correct left or right assembly on the proper side. Tighten mounting hardware according to the axle or brake manufacturer’s specification.
10. Connect Wiring
Make secure, protected connections. Use appropriate connectors for the environment. Poor splices are a common cause of weak or intermittent trailer brakes.
11. Reinstall Drum Hub
Reinstall the drum hub with properly packed bearings and a good seal. Set bearing adjustment correctly.
12. Adjust the Brakes
Electric drum brakes usually need mechanical adjustment so the shoes sit close to the drum without dragging excessively. Follow the brake manufacturer’s adjustment procedure.
13. Reinstall the Wheel
Torque lug nuts in a star pattern to the proper specification. Recheck torque after a short tow.
14. Test at Low Speed
Use the brake controller manual override in a safe area. Confirm the trailer brakes respond smoothly and evenly. Adjust controller gain after the brakes are properly bedded and adjusted.
Brake Controller Setup After Replacement
New brakes need proper controller adjustment. Do not assume your old gain setting is still correct.
A basic process:
| Step | Action |
|---|---|
| 1 | Load the trailer as it will be towed |
| 2 | Find a safe, flat test area |
| 3 | Start with moderate controller gain |
| 4 | Apply the manual override at low speed |
| 5 | Increase gain until braking is firm but not locking |
| 6 | Make several controlled stops |
| 7 | Recheck after the brakes bed in |
The goal is smooth, proportional stopping. The trailer should help slow the rig without jerking, locking, or pushing the tow vehicle.
Common RV Electric Trailer Brake Mistakes
Replacing Brakes Without Checking the Drum
New shoes need a good drum surface. A damaged drum can ruin fresh brake parts quickly.
Ignoring Bearings and Seals
Brake service and bearing service overlap. If a seal leaks, grease can contaminate the new brakes.
Mixing Old and New Parts on One Axle
Uneven parts can create uneven braking. Replace in pairs when possible.
Poor Wire Connections
Twisted wires, cheap connectors, and exposed splices do not belong under an off-road camper. Use secure, protected connections.
Skipping Brake Adjustment
Even new brakes may need adjustment. Poor adjustment can cause weak braking or drag.
Setting Controller Gain Too High
High gain can lock wheels, especially on gravel, wet roads, or empty trailers.
Forgetting the Breakaway System
The breakaway system is part of brake safety. Inspect it whenever you service trailer brakes.
Maintenance Tips for Longer Brake Life
Inspect Before Long Trips
Before a major trip, check brake response, wiring, breakaway battery, plug condition, and hub temperature.
Keep Hubs and Brakes Dry When Possible
Water crossings, pressure washing, and deep mud can introduce contamination. Inspect after rough or wet trips.
Service Bearings on Schedule
Bad bearings can overheat drums and affect braking. Bearing service protects the full wheel-end system.
Watch for Brake Drag
If one wheel is hot after towing, check brake adjustment, magnet condition, bearing preload, and drum condition.
Clean Electrical Connections
The trailer plug and brake wiring live in a harsh environment. Corrosion can reduce brake performance.
Record Part Numbers
Keep notes for brake assembly, hub, bearing, seal, and wheel torque specs. This makes future service easier.
For broader pre-trip inspection habits, RV Parts Giant’s off-road camper maintenance checklist is a helpful internal guide.
Electric Trailer Brakes for Off-Road Campers
Off-road campers create extra brake demands. Rough roads shake wiring. Dust works into moving parts. Water crossings affect hubs and seals. Steep descents heat brakes. Heavy gear increases stopping load.
For off-road use, pay special attention to:
| Area | Why It Matters |
|---|---|
| Wiring protection | Prevents chafing and broken brake circuits |
| Brake adjustment | Keeps stopping force balanced |
| Hub temperature | Finds drag or bearing trouble early |
| Breakaway cable routing | Must not snag on brush or coupler parts |
| Brake controller tuning | Gravel and pavement need different braking feel |
| Spare parts | Remote trips leave little room for guessing |
If you are building a more capable off-road camper, RV Parts Giant’s off-road RV upgrades guide is relevant because brakes, suspension, tires, bearings, couplers, and recovery gear all work together.
Buying Advice for RV Parts Giant Customers
If your brake shoes, magnets, springs, or backing plates are worn, review the Electric Trailer Brake 1 Pair. Replacing brakes as a pair helps maintain balanced braking across the axle, provided the assemblies match your trailer.
If your drum hub is damaged, overheated, or worn, the Brake Drum Hub that comes fully greased with two bearings may be a practical replacement for compatible setups.
If your camper uses a manual parking brake system, the Parking Hand Brake is worth reviewing when the handbrake lever or related parking brake setup needs service. Confirm compatibility with your coupler, brake system, and trailer model before ordering.
If bearing service reveals worn parts, RV Parts Giant also lists Big Bearings - 12inch Timken Wheel Bearing and Small Bearings - 10inch Timken Wheel Bearing for compatible applications.
Pros and Cons of Replacing RV Electric Trailer Brakes Yourself
| Pros | Cons |
|---|---|
| Saves labor if you have tools and experience | Mistakes can affect stopping safety |
| Lets you inspect hubs and bearings together | Requires safe lifting and support |
| Helps you understand your trailer | Wiring must be done correctly |
| Useful skill for remote travel | Brake adjustment takes care |
| Easier to carry correct spares later | Drum and bearing issues can complicate the job |
DIY brake replacement is realistic for experienced owners. If you are unsure about electrical testing, drum inspection, bearing adjustment, or brake controller setup, professional service is the smarter choice.
Expert Recommendation
For most RV owners, the best brake replacement plan is not just “swap the shoes.” Inspect the complete wheel-end system: brake assembly, magnet, drum hub, bearings, seal, wiring, breakaway system, and controller settings.
Replace worn brakes in matched pairs, correct the cause of any grease contamination, and test braking carefully before highway travel. For off-road campers, add brake wiring and hub temperature checks to every serious pre-trip inspection.
A trailer that stops smoothly is easier on the tow vehicle, safer in traffic, and far more confidence-inspiring on mountain roads, gravel tracks, and long remote trips.
FAQs
How do I know if my RV electric trailer brakes need replacement?
Replace RV electric trailer brakes when shoes are worn, magnets are damaged, hardware is broken, braking is weak or uneven, grease has contaminated the lining, or the assembly shows heat or mechanical damage.
Should trailer brakes be replaced in pairs?
Yes, replacing brakes in pairs on the same axle helps maintain balanced braking. Uneven old and new brake parts can cause pulling, grabbing, or inconsistent stops.
Why are my electric trailer brakes weak?
Weak brakes can come from low controller gain, poor adjustment, worn shoes, weak magnets, corroded wiring, bad grounds, damaged drums, or low voltage reaching the brake assemblies.
Can bad wheel bearings affect trailer brakes?
Yes. Bad bearings can create hub heat, wheel play, seal failure, and drum alignment problems. Bearing grease can also contaminate brake shoes if the seal fails.
Do new electric trailer brakes need adjustment?
Many electric drum brakes need mechanical adjustment after installation. Proper adjustment helps the shoes contact the drum correctly and improves braking response.
Why does one trailer brake get hotter than the others?
A hot brake may be dragging, over-adjusted, contaminated, wired incorrectly, or paired with a bearing problem. Compare all wheels and inspect the hot side before towing farther.
Final Takeaway
RV electric trailer brake replacement is a safety job that deserves careful diagnosis and correct fitment. Weak braking, grabbing, noise, heat, grease contamination, and controller errors all point to a brake system that needs inspection before the next trip.
Check the controller, wiring, brake assemblies, magnets, drums, bearings, seals, and breakaway system together. For compatible Black Series and off-road camper applications, RV Parts Giant’s electric trailer brake pair, brake drum hub, parking hand brake, and Timken bearing options can support a complete brake system refresh that is ready for safer towing on pavement, gravel, and remote trails.
