RV Water Tank Level Sensor Guide: Diagnosis and Replacement Tips

Accurate tank readings make RV travel easier. When the fresh water gauge shows empty after filling, the gray tank appears full too soon, or the waste tank reading never changes, the problem may be the tank level sensor rather than the display panel.

The tank sender is installed at the water tank and provides the information used by the RV gauge or control panel. Over time, the sensor can be affected by corrosion, sediment, wiring damage, residue, or general wear.

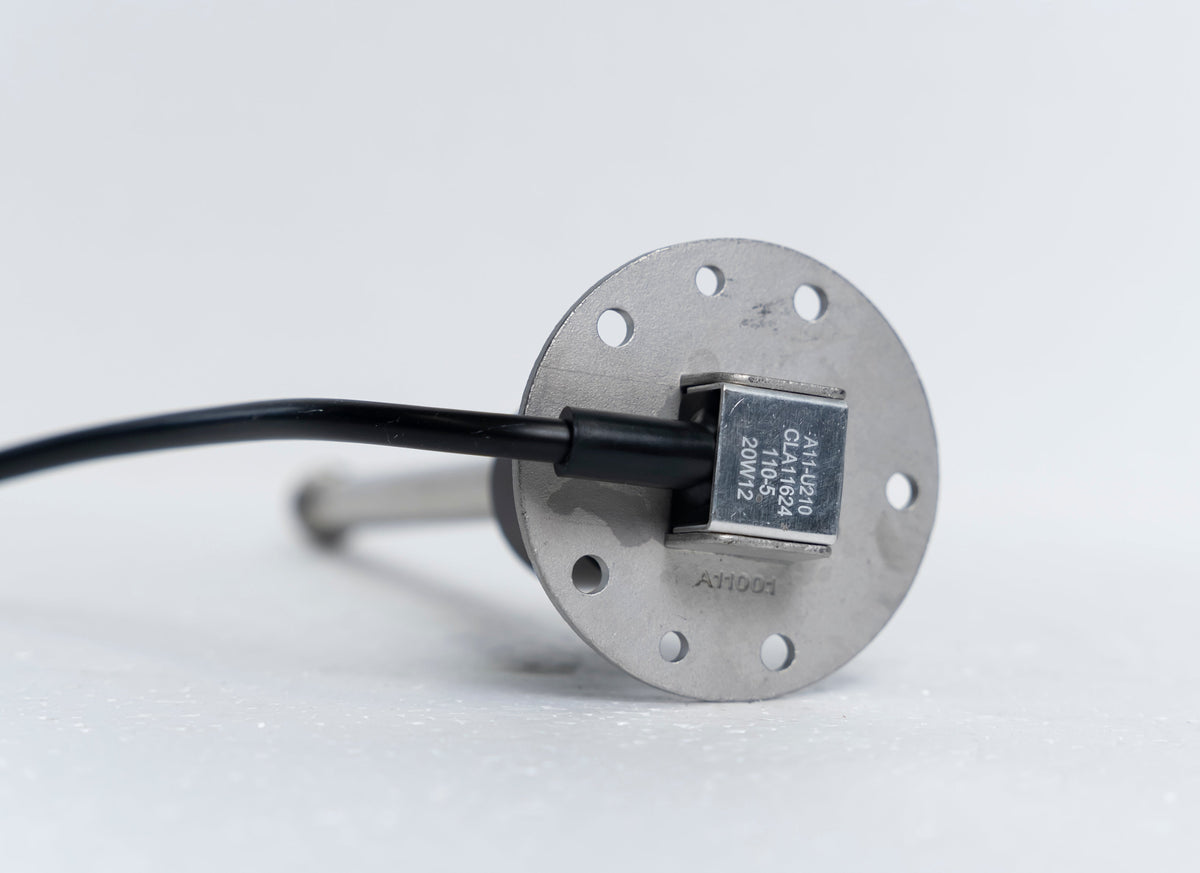

The Water Tank Level Sensor, SAE 5-Bolt Flange Sender for RV Tanks is designed as a replacement sender for fresh or waste water tanks. The product listing identifies stainless-steel construction, an SAE 5-bolt flange mount, and compatibility with Black Series HQ-series factory applications and many tanks using the common SAE 5-hole pattern.

What Is an RV Water Tank Level Sensor?

An RV water tank level sensor, also called a tank sender, is the component that detects the approximate level inside a fresh, gray, or black water tank.

The sender connects to the RV’s gauge, display, or central control panel. When the sensor or its wiring develops a fault, the displayed reading may become inaccurate even when the control panel itself is working properly.

A tank sensor does not pump water, control a valve, or measure water quality. Its primary role is to provide a level signal so you can monitor available capacity.

Which RV Tanks Use Level Sensors?

Depending on the RV design, level sensors may be installed in:

• Fresh water tanks

• Gray water tanks

• Black water tanks

• General-purpose utility tanks

• Auxiliary water storage tanks

Fresh water readings help you plan refilling. Gray tank readings help prevent sink and shower backups. Black tank readings help you decide when to dump and rinse.

A faulty sensor can create unnecessary stops, unexpected overflow, or poor water management during extended off-grid travel.

Common Symptoms of a Faulty RV Tank Sensor

The Gauge Always Shows Empty

If the tank is full but the display remains at empty, possible causes include:

• A disconnected sensor wire

• A failed sender

• A poor ground or terminal connection

• Incorrect sensor compatibility

• A damaged gauge or control panel

• A broken connector near the tank

Do not assume the sender is defective until the wiring and display have been checked.

The Gauge Always Shows Full

A constant full reading can result from a stuck or damaged sensor, a wiring issue, residue inside a waste tank, or a problem with the display circuit.

If the issue affects only a black tank, buildup and residue should be considered before ordering a replacement.

The Reading Changes Randomly

A reading that jumps between levels while the RV is stationary may indicate:

• Loose wiring

• Corroded terminals

• A damaged sender

• Poor electrical contact

• A failing gauge circuit

• Movement inside a partially filled tank

If the reading changes mainly while driving, vibration may be exposing a loose connection.

Only One Tank Reads Incorrectly

If the fresh tank works normally but the gray tank does not, the problem is likely localized to that tank’s sender, wiring, or connector. Replacing the entire control panel may not solve the issue.

All Tank Readings Are Wrong

When several tank readings fail simultaneously, inspect the common wiring, power supply, ground, and control panel before replacing individual senders.

The Black Series RV Control Panel Troubleshooting Guide explains why a faulty reading does not always mean the control panel itself needs to be replaced.

Why the SAE 5-Bolt Flange Matters

The mounting pattern is one of the most important fitment details when replacing an RV water tank sensor.

The product uses an SAE 5-bolt flange. This means the sensor is designed to mount to a tank opening using a five-bolt pattern commonly found on many RV and marine-style tanks.

Before ordering, confirm:

• The tank has an SAE 5-hole mounting pattern

• The bolt spacing matches

• The replacement flange fits the existing opening

• The tank material and access area are suitable

• The sender length matches the tank depth

• The wiring connector can be adapted safely if necessary

A five-bolt appearance alone is not enough. Measure the existing opening and compare it with the replacement part.

Why Sender Length Is Important

The product listing specifically recommends matching the sender length to the tank depth. This is an important step that is easy to overlook.

If the sender is too short:

• The gauge may not reflect the actual upper tank level

• The reading may reach full too early

• Available capacity may be underestimated

If the sender is too long:

• It may contact the bottom of the tank

• The flange may not sit correctly

• The sensor may become damaged during installation

• The tank interior may interfere with the sender

Measure the old sensor from the mounting surface to its lowest point. If the old sensor is unavailable, measure the usable internal depth of the tank through the existing opening.

Stainless Steel Construction for Wet Tank Environments

The replacement sender uses stainless-steel construction, according to the product listing. Stainless steel is suitable for components exposed to water and damp tank environments, but it does not eliminate the need for proper installation and maintenance.

Inspect the following during installation:

• Flange surface

• Mounting screws

• Gasket or sealing surface

• Wire connection

• Corrosion around the tank opening

• Signs of tank deformation

• Residue on the old sensor

Never reuse a damaged gasket or force a flange into an opening that does not match.

How to Diagnose the Sensor Before Replacing It

A few basic checks can help determine whether the sensor is actually the source of the problem.

Step 1: Confirm the Actual Tank Level

Use a known amount of water or compare the gauge with the tank’s recent fill or dump activity. Remember that the RV’s angle can affect how the water sits inside the tank.

Step 2: Inspect the Wiring

Look for:

• Loose terminals

• Broken wires

• Pinched insulation

• Corrosion

• Water intrusion

• Damaged connectors

• Wires pulled tight against the tank

Off-road travel creates vibration that can loosen or fatigue electrical connections over time.

Step 3: Check the Ground and Common Connections

A poor ground or shared connection can create inaccurate readings. Clean and secure terminals only after disconnecting power and following safe electrical procedures.

Step 4: Compare One Tank With Another

If the fresh water gauge works but the gray tank gauge does not, compare the wiring path and connector condition where practical.

Step 5: Inspect the Sensor Mounting Area

A leak, damaged flange, loose bolt, or distorted gasket can affect the installation. Do not remove the sender until the tank is drained and the surrounding area is clean.

Step 6: Verify Gauge or Control Panel Operation

If wiring and the sender appear normal, the problem may be at the gauge, display, or control panel. Test the system according to the RV manufacturer’s instructions.

When Should You Replace the RV Water Tank Sensor?

Replacement may be appropriate when:

• The sender is physically damaged

• The stainless body is badly corroded

• The wiring connection is broken at the sensor

• The reading remains incorrect after wiring checks

• The sensor is the wrong length

• The flange or mounting area leaks

• The sensor no longer responds to changes in tank level

• The existing part matches the SAE 5-bolt pattern but has reached the end of its service life

If the sensor is contaminated by tank residue, clean the tank and inspect the part before deciding. Waste tank buildup can sometimes create false readings without an electrical sensor failure.

RV Water Tank Sensor Replacement Checklist

Replacing a tank sender involves water, electrical wiring, and a sealed tank opening. Work carefully and consult a qualified technician if access is difficult or the wiring is unclear.

Before Removal

• Drain the tank completely

• Turn off the water pump

• Disconnect shore power if working near connected wiring

• Isolate relevant 12V power

• Clean the area around the flange

• Photograph the existing wiring

• Measure the old sender length

• Confirm the replacement bolt pattern

During Removal

• Label the wires

• Remove mounting hardware carefully

• Avoid dropping screws into the tank

• Inspect the old gasket

• Keep dirt out of the tank opening

• Check the flange for cracks or distortion

During Installation

• Compare the old and new sender side by side

• Confirm the sensor is not too long

• Use a suitable replacement gasket

• Tighten bolts evenly

• Avoid over-tightening plastic tank fittings

• Route wires away from sharp edges

• Protect connections from moisture

• Follow the product instructions for sealing and wiring

After Installation

• Restore power

• Confirm there are no leaks

• Add water gradually

• Check the gauge response

• Compare the reading with the actual tank level

• Inspect the flange again after pressurizing the water system

Fresh Water vs. Waste Tank Sensor Replacement

The same general sensor style may be used in different tanks, but the service conditions are not identical.

For a fresh water system, cleanliness and potable-water practices are especially important. For gray and black tanks, cleaning and flushing may be necessary before replacing the sender.

The RV Maintenance Checklist and DIY Repair Tips includes tank sensor accuracy checks as part of broader seasonal RV maintenance.

Preventing Future Tank Reading Problems

Keep Electrical Connections Dry

Water intrusion around the tank wiring can lead to corrosion and unstable readings. Use suitable protection for exposed connections without trapping moisture inside.

Inspect After Rough Travel

Check tank wiring, mounting hardware, and connectors after long off-road trips or heavy vibration.

Clean Waste Tanks Properly

A black tank sensor may appear faulty when the tank surface or sensor area is covered with residue. Use RV-approved cleaning procedures before replacing components.

Avoid Running the Pump With an Empty Tank

This does not directly repair a faulty sender, but it helps protect the water system and makes tank-level management more predictable.

Check the Gauge After Winter Storage

A seasonal check can identify wiring problems, corrosion, or inaccurate readings before the first major trip.

Keep Fitment Records

Record the tank type, flange pattern, sender length, wiring arrangement, and RV model. This information makes future replacement faster.

Product Fitment Guide

This water tank level sensor is a strong candidate when your existing sender meets the following requirements:

Do not order based only on the RV brand. Tank design can vary by model, production year, and previous modifications.

Frequently Asked Questions

What is an RV water tank level sensor?

It is a sender installed in the water tank that provides level information to the RV gauge, display, or control panel.

Can this sensor be used for fresh and waste tanks?

The product listing identifies it for fresh or waste water tanks. Confirm the tank opening, wiring, and sender length before installation.

What does SAE 5-bolt flange mean?

It refers to a five-bolt mounting pattern used to secure the sensor to the tank opening. The exact spacing and opening should still be measured before ordering.

Why does the product length need to match the tank depth?

A sender that is too short or too long may provide inaccurate readings or interfere with the tank interior.

Can a new sensor fix an inaccurate control panel?

Only if the problem originates with the sensor. If the fault is in the wiring, display, ground, or control panel, replacing the sender alone may not solve it.

Why does my black tank always show full?

Residue on the tank or sensor area is a common possibility, but wiring, the sender, and the gauge circuit should also be checked.

Should I replace the gasket when installing a new tank sensor?

A damaged, flattened, or hardened gasket should be replaced. Use a seal compatible with the tank and product installation requirements.

Final Takeaway

An inaccurate RV tank gauge can make water management frustrating, but the control panel is not always the problem. The sender, flange, wiring, tank residue, and sender length should all be checked before replacing major components.

The Water Tank Level Sensor, SAE 5-Bolt Flange Sender is designed for compatible fresh and waste water tanks, including Black Series HQ-series factory replacement applications. Its stainless-steel construction and common SAE 5-bolt mounting pattern make it a practical option for many RV tank repairs.

Before ordering, measure the existing flange and sender length, confirm the wiring arrangement, and compare the replacement with the original part. A careful fitment check can prevent leaks, inaccurate readings, and unnecessary modifications.
