If you're upgrading to Victron lithium, one question trips up almost everyone: do I need a BMS, a BatteryProtect, or both? Victron sells several devices with confusingly similar names — smallBMS, VE.Bus BMS, Smart BMS, BatteryProtect — and they protect your system in completely different ways. This guide clears it up so you buy exactly what your build needs.
First: what a BMS actually does

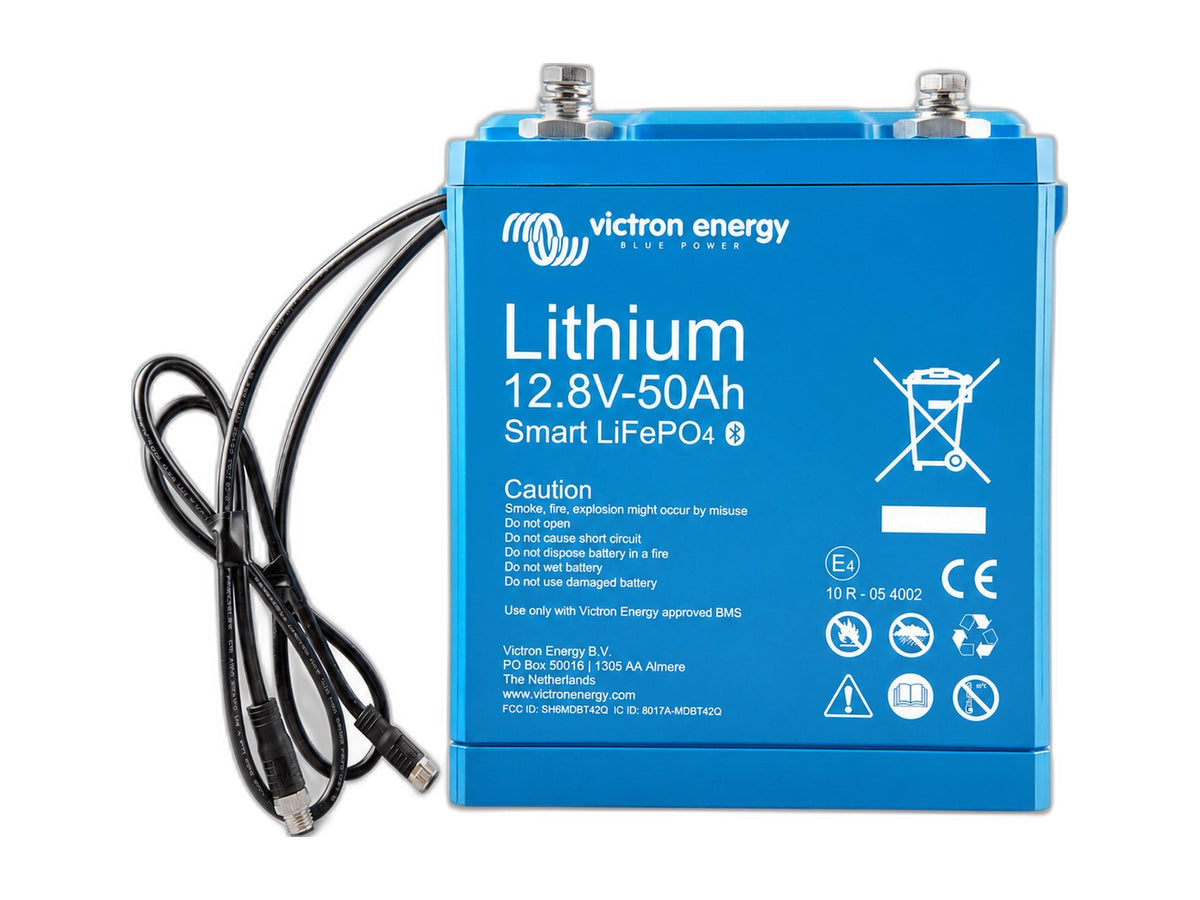

A Battery Management System (BMS) protects the battery itself. It watches each individual cell and disconnects charging or loads if it detects an unsafe condition — over-voltage, under-voltage, or over/under temperature. Victron's LiFePO4 Smart batteries require an external BMS, while the drop-in SuperPack and newer NG lines have protection built in.
What a BatteryProtect does (and why it's not a BMS)
A Victron BatteryProtect protects your loads and your usable charge, not the cells. It disconnects non-essential loads when battery voltage drops to a level you set, so you don't flatten the bank and you keep enough power to start your engine. Think of the BMS as protecting the battery, and the BatteryProtect as protecting you from running it dead. Many lithium builds use both.
Which Victron BMS is right for your system?
| Device | Best for |
|---|---|
| smallBMS / smallBMS NG | Simple, low-cost protection for Smart (or NG) lithium banks without a Victron inverter/charger |
| VE.Bus BMS / VE.Bus BMS NG | Systems with a Victron MultiPlus or Quattro that communicate over VE.Bus |
| Smart BMS 12-200 / Smart BMS CL 12-100 | 12V vehicles and boats that charge lithium from a 12V alternator |
Browse the full range on our Victron BMS & Protection page.
Charging lithium from your alternator
This is where the Smart BMS 12-200 shines. It combines a current limiter, battery combiner, and battery protector in one unit, so you can safely connect any size 12V alternator to a lithium bank without cooking the alternator — a common worry when switching from lead-acid. For larger combiner needs, the Cyrix-ct battery combiner is a simple alternative.
A typical lithium RV protection setup
For a common 12V Victron build with Smart lithium batteries and a MultiPlus, you'd use a VE.Bus BMS to protect the cells and talk to the inverter/charger, plus a BatteryProtect on the load side to guard against deep discharge. Add a Smart BMS 12-200 if you're also charging from the alternator. Not sure how big a bank you need first? Start with our Victron lithium battery guide.
Frequently asked questions
Do I need a BMS and a BatteryProtect?
Often, yes. The BMS protects the battery cells from over/under-voltage and temperature extremes, while the BatteryProtect stops your loads from deep-discharging the bank. They solve different problems and work well together in a lithium system.
Does the Victron SuperPack need an external BMS?
No. The Lithium SuperPack and the NG batteries have a BMS built in. The Victron LiFePO4 Smart batteries do require an external BMS such as the smallBMS, VE.Bus BMS, or Smart BMS.
Which BMS do I need to charge lithium from my alternator?
The Smart BMS 12-200 (or Smart BMS CL 12-100) is designed for 12V alternator charging — it limits current and protects both the alternator and the lithium battery.
