Upgrading an RV to lithium power can make camping dramatically easier. A well-designed lithium system can deliver more usable energy, faster charging, lower weight, and better off-grid performance than a traditional lead-acid setup. But lithium batteries need the right control system to work safely.
That is where the Victron Energy Smart BMS CL 12-100 fits in. It is a battery management system designed for Victron Lithium Battery Smart batteries in 12V systems with a 12V alternator. For RVs, vans, marine systems, and off-grid trailers, it helps protect the lithium battery bank while controlling alternator charging current.
If your RV build uses Victron Smart LiFePO4 batteries and you want alternator charging, the Smart BMS CL 12-100 is one of the key components to understand before designing the system.

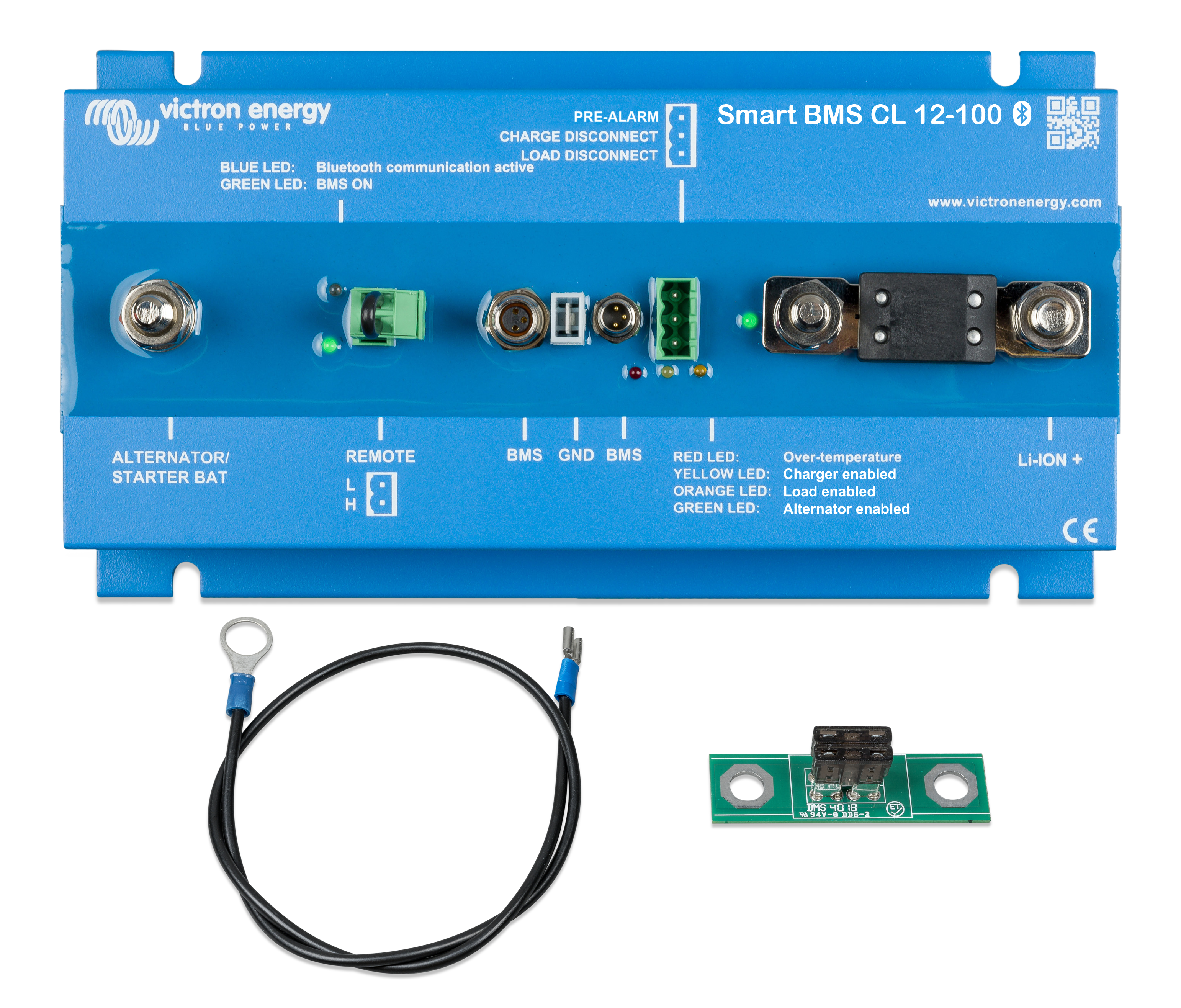

What Is the Victron Smart BMS CL 12-100?
The Victron Smart BMS CL 12-100 is a battery management system with built-in current limiting for compatible Victron lithium batteries. According to Victron, it is designed for 12V systems with a 12V alternator.
In simple terms, it does three important jobs:
- Monitors and protects each battery cell in a compatible Victron lithium battery bank
- Limits alternator charging current into the lithium battery
- Sends control signals to disconnect loads or chargers when needed
The “CL” in the product name refers to current limiting. That matters because lithium batteries can accept high charging current, which can overload an alternator if the system is not designed correctly.
Why RV Lithium Batteries Need Battery Management
Lithium batteries behave differently from lead-acid batteries. They can charge faster and discharge more deeply, but they also need protection from unsafe operating conditions.
A battery management system helps protect against:
- Low cell voltage
- High cell voltage
- High battery temperature
- Low temperature charging concerns
- Excessive discharge
- Unsafe charge conditions
- Uncontrolled DC loads
- Alternator overload risk
Victron Lithium Battery Smart batteries require an external BMS. The Smart BMS CL 12-100 is one of Victron’s BMS options for 12V alternator-based systems.
Key Features of the Smart BMS CL 12-100
The Victron Smart BMS CL 12-100 is compact, but it performs several important control functions.
Key features include:
- Designed for Victron Lithium Battery Smart batteries
- Built for 12V systems with a 12V alternator
- Dedicated alternator input
- Alternator current limiting up to 100A
- One-way charging traffic from alternator to lithium battery
- Load disconnect output
- Charge disconnect output
- Pre-alarm contact
- Remote on/off connector
- Bluetooth support through VictronConnect
- Installed in the system positive line
These features make it useful for mobile power systems where a vehicle alternator, starter battery, lithium house battery, DC loads, and chargers all need to work together safely.
How Alternator Current Limiting Helps
Alternator charging is one of the most common design challenges in RV lithium upgrades. Lead-acid batteries naturally limit charging current more than lithium batteries do. Lithium batteries can accept current aggressively, especially when they are low.
That can create two problems:
- The alternator may be asked to deliver too much current for too long
- The lithium battery system may charge without the right protection signals
The Smart BMS CL 12-100 helps solve this with a dedicated alternator port that current-limits alternator charging. Victron notes that this port provides one-way traffic from the alternator into the battery, helping protect the starter battery and alternator connection.
For RV owners, this is useful when driving is part of the charging strategy. It allows the alternator to contribute energy to the lithium battery bank without treating the alternator like an unlimited charger.
Smart BMS CL 12-100 vs Smart BMS 12-200
RV owners often compare the Smart BMS CL 12-100 with the Smart BMS 12-200. Both are Victron BMS options for 12V systems with alternators, but they are not the same.
The Smart BMS CL 12-100 is designed for relatively small systems with an alternator. It includes a 100A dedicated alternator port and controls loads and chargers through on/off signals.
The Smart BMS 12-200 is also designed for 12V systems with alternator charging, but it includes a dedicated DC system port rated for higher current use. This can make it better suited for systems with heavier DC loads.
A simple way to compare:
Smart BMS CL 12-100:
- Good for smaller 12V alternator-based systems
- Dedicated alternator current limiting up to 100A
- Load and charge disconnect signaling
- Bluetooth monitoring
- Installed in system positive
Smart BMS 12-200:
- Better suited to systems with alternator charging and larger DC load handling
- Dedicated alternator port
- Dedicated 200A DC system port
- Load and charge disconnect signaling
- Bluetooth monitoring
The right choice depends on battery bank size, alternator charging plan, DC load requirements, inverter use, and overall system architecture.
Who Should Use the Smart BMS CL 12-100?
The Smart BMS CL 12-100 is a strong fit for RV and mobile power users who are building a controlled Victron lithium system around 12V alternator charging.
It is especially useful for:
- Camper vans with alternator charging
- Small RV lithium systems
- Off-road trailers charged from a tow vehicle
- Marine 12V systems
- Overland rigs using Victron Smart LiFePO4 batteries
- Owners who want Bluetooth visibility through VictronConnect
- Systems where charger and load disconnect signals can be wired correctly
It is not a universal BMS for every lithium battery. If your battery has an internal BMS, or if you are using a different lithium battery brand, confirm compatibility before buying.
Compatibility Checklist Before Buying
Before ordering the Victron Smart BMS CL 12-100, check the full electrical system. Battery management parts must be matched carefully.
Confirm these points:
- Your system is 12V
- You are using Victron Lithium Battery Smart batteries
- You need alternator charging support
- Your alternator charging plan fits within the current-limited design
- Your loads can be controlled by the BMS
- Your chargers can respond to charge disconnect signals
- You have the right remote on/off wiring plan
- Your cable size and fuse ratings are correct
- Bluetooth monitoring through VictronConnect is desired
- Your installation space allows safe wiring access
If the system includes an inverter/charger, solar charge controller, DC-DC charger, battery monitor, or GX device, plan the whole system together.
How It Fits Into an RV Electrical System
A Victron lithium system is usually built from multiple connected parts. The Smart BMS CL 12-100 is the battery protection and alternator current limiting layer, but it does not replace the rest of the system.
A complete RV system may include:
- Victron Lithium Battery Smart batteries
- Victron Smart BMS CL 12-100
- Solar charge controller
- Inverter or inverter/charger
- Battery monitor
- DC fuse block
- Busbars
- Starter battery connection
- Alternator charging wiring
- Shore power charger
- DC loads
- Remote on/off switch
RV Parts Giant also has useful planning resources for larger Victron systems, including the Victron Lithium Battery Guide for RV & Off-Grid, the Victron 12V System Guide, and the Victron RV Inverter Sizing and Installation Guide.
Load Disconnect and Charge Disconnect Explained
A BMS protects the lithium battery by telling other parts of the system when to stop.
Load Disconnect is used when the battery cells are approaching an unsafe low-voltage condition. The BMS sends a signal so connected loads can be turned off before the battery is discharged too deeply.
Charge Disconnect is used when charging should stop. This can happen in high cell voltage conditions or when battery temperature is outside a safe range.
These outputs are important because they let the BMS communicate with compatible devices instead of relying only on a manual switch or fuse.
Why the Pre-Alarm Contact Matters
A sudden power shutdown can be frustrating in an RV. The pre-alarm contact gives an early warning before the BMS disconnects the batteries from the system due to low cell voltage.
This matters when running:
- Lights
- Fans
- Refrigeration
- Water pumps
- Communications equipment
- Inverters
- CPAP machines
- Navigation or monitoring electronics
An early warning gives the owner a chance to reduce loads, start charging, or shut down equipment properly.
Bluetooth Monitoring with VictronConnect
The Smart BMS CL 12-100 includes Bluetooth support through VictronConnect. This gives owners easier access to system status and settings from a phone or tablet.
For RV owners, Bluetooth is more than a convenience. Many electrical components are installed inside cabinets, under seats, in storage compartments, or near battery bays. VictronConnect helps reduce the need to physically access the device every time you want to check status.
If you already use Victron SmartSolar controllers, SmartShunt, or other Victron Smart products, the app experience will feel familiar.
Installation Planning and Safety
The Smart BMS CL 12-100 is part of the protective layer of the electrical system, so installation should be handled carefully.
Before installation, plan:
- Battery bank layout
- Alternator connection
- Cable routing
- Fuse locations
- Fuse ratings
- Cable gauge
- Charger compatibility
- Load disconnect wiring
- Charge disconnect wiring
- Remote on/off switching
- Mounting location
- Access for service
- Protection from moisture and abrasion
Do not treat the BMS as a shortcut around proper electrical design. The system still needs correct fusing, correct cables, secure connections, and careful routing.
If you are not comfortable working with RV DC power systems, use a qualified RV, marine, or off-grid electrical technician.
Common Mistakes to Avoid
A Victron lithium system can be very reliable when designed properly. Most issues come from mismatched parts or incomplete planning.
Avoid these mistakes:
- Using the BMS with incompatible batteries
- Assuming all lithium batteries use the same BMS
- Ignoring alternator output limits
- Skipping proper fuse protection
- Undersizing cables
- Leaving chargers without charge disconnect control
- Leaving loads without load disconnect control
- Installing without reading Victron documentation
- Treating Bluetooth monitoring as a replacement for safe wiring
- Choosing the CL 12-100 when the system needs a different BMS
The best approach is to design the full system before buying individual components.
Smart BMS CL 12-100 for Towable Campers
Towable campers and off-road trailers often need a way to charge from the tow vehicle. This is where alternator charging becomes tempting, but it must be managed carefully.
The Smart BMS CL 12-100 can be useful in towable setups where the trailer’s lithium batteries are part of a Victron Smart battery system and the alternator charging path is designed correctly.
However, tow vehicle wiring, connector ratings, voltage drop, fuse placement, and cable gauge all matter. A long cable run between tow vehicle and trailer can reduce charging performance if not properly sized.
For off-road trailers, vibration protection is also important. Cables should be supported, protected from rubbing, and inspected after rough travel.
Smart BMS CL 12-100 for Camper Vans
Camper vans are one of the most natural use cases for the Smart BMS CL 12-100. The alternator is already part of the vehicle, and many van owners want charging while driving.
In a van, the BMS can help manage the connection between the starter battery, alternator, and Victron lithium house battery bank. It can also support a cleaner control strategy for DC loads and chargers.
This makes it a useful part for van owners who want a Victron-based 12V lithium architecture rather than a basic drop-in battery setup.
Maintenance and System Checks
Once installed, the Smart BMS CL 12-100 does not need constant attention, but it should be inspected as part of regular RV electrical maintenance.
Use this checklist:
- Check VictronConnect for warnings
- Inspect cables and terminals
- Confirm fuses are intact
- Look for heat marks near connections
- Keep the device area dry
- Check wiring after rough roads
- Confirm remote on/off works
- Review settings after system changes
- Watch for unexpected load shutdowns
- Keep Victron manuals with your RV records
If you add a new inverter, charger, battery, or major DC load later, review the BMS setup again.
Who Should Not Buy This Product?
The Smart BMS CL 12-100 is not right for every RV lithium upgrade.
You may need another solution if:
- Your lithium battery already has a built-in BMS
- You are not using Victron Lithium Battery Smart batteries
- Your system is not 12V
- You need higher DC system current handling
- Your system requires a different Victron BMS
- You are using Victron NG batteries instead of Smart batteries
- You do not need alternator charging
- Your loads and chargers cannot be controlled properly
When in doubt, compare the Smart BMS CL 12-100 with the Smart BMS 12-200, smallBMS, VE.Bus BMS, VE.Bus BMS NG, and Lynx Smart BMS options.
Related RV Parts Giant Resources
These RV Parts Giant pages can help with system planning:
- Victron Energy Smart BMS CL 12-100 Product Page
- Victron Lithium Battery Guide for RV & Off-Grid
- How to Build a Victron 12V System for Your RV, Van, or Off-Road Trailer
- Victron RV Inverter Sizing and Installation Guide
- How to Install a Victron SmartShunt Battery Monitor
- Victron VRM Portal Setup Guide
FAQ
What does the Victron Smart BMS CL 12-100 do?
The Victron Smart BMS CL 12-100 protects compatible Victron Lithium Battery Smart batteries, limits alternator charging current, and sends load disconnect, charge disconnect, and pre-alarm signals.
Is the Smart BMS CL 12-100 compatible with all lithium batteries?
No. It is designed for Victron Lithium Battery Smart batteries. Always confirm battery compatibility before ordering.
What does the alternator current limiter do?
The dedicated alternator input limits charging current from the alternator into the lithium battery bank. This helps manage alternator load and supports safer charging in mobile 12V systems.
Does it work with VictronConnect?
Yes. The Smart BMS CL 12-100 supports Bluetooth monitoring and configuration through the VictronConnect app.
Is the Smart BMS CL 12-100 better than the Smart BMS 12-200?
Not always. The Smart BMS CL 12-100 is suitable for relatively small 12V systems with an alternator. The Smart BMS 12-200 adds a dedicated higher-current DC system port, which may be better for systems with larger DC loads.
Can I use it in a camper van?
Yes, if the van uses compatible Victron Lithium Battery Smart batteries and the 12V alternator charging system is designed correctly.
Do I still need fuses and correct cable sizing?
Yes. The BMS does not replace proper electrical design. Correct fusing, cable size, secure connections, and safe routing are still required.
Final Takeaway
The Victron Energy Smart BMS CL 12-100 is a smart choice for 12V RV, van, boat, and off-grid systems built around Victron Lithium Battery Smart batteries and alternator charging.
Its value comes from combining lithium battery protection with alternator current limiting, load disconnect control, charge disconnect control, pre-alarm signaling, and Bluetooth visibility through VictronConnect. For smaller Victron 12V lithium systems where alternator charging matters, it can be a central part of a safer and more organized electrical upgrade.
Before buying, confirm battery compatibility, system voltage, charging sources, load requirements, fuse ratings, and cable sizing. When installed as part of a properly designed Victron system, the Smart BMS CL 12-100 can help make your RV lithium upgrade more reliable, more protected, and better prepared for off-grid travel.
