Victron RV Inverter Sizing and Installation Guide

A Victron RV inverter converts battery power from a 12V, 24V, or 48V DC system into 120V AC power so you can run household-style devices while camping away from shore power. The Victron Energy Inverter VE.Direct NEMA 5-15R 120VAC/60Hz Sinewave is a practical fit for RV owners who want clean pure sine wave AC power, VE.Direct monitoring, configurable low-voltage protection, and multiple model sizes for different battery systems. If you also need battery charging from shore power, consider the Victron MultiPlus Inverter/Charger instead.

If you camp off-grid, travel in a Black Series trailer, work from the road, or simply want to charge a laptop without running a generator, the inverter becomes one of the most important pieces of your electrical system. It does not create power by itself. It draws energy from your battery bank and changes it into the kind of AC power many home appliances expect.

That distinction matters. Choosing the right inverter is not just about picking the biggest wattage number. You need to match the inverter to your battery voltage, your real appliance loads, your wiring, your fusing, and the way you actually camp.

What the Victron VE.Direct Inverter Does

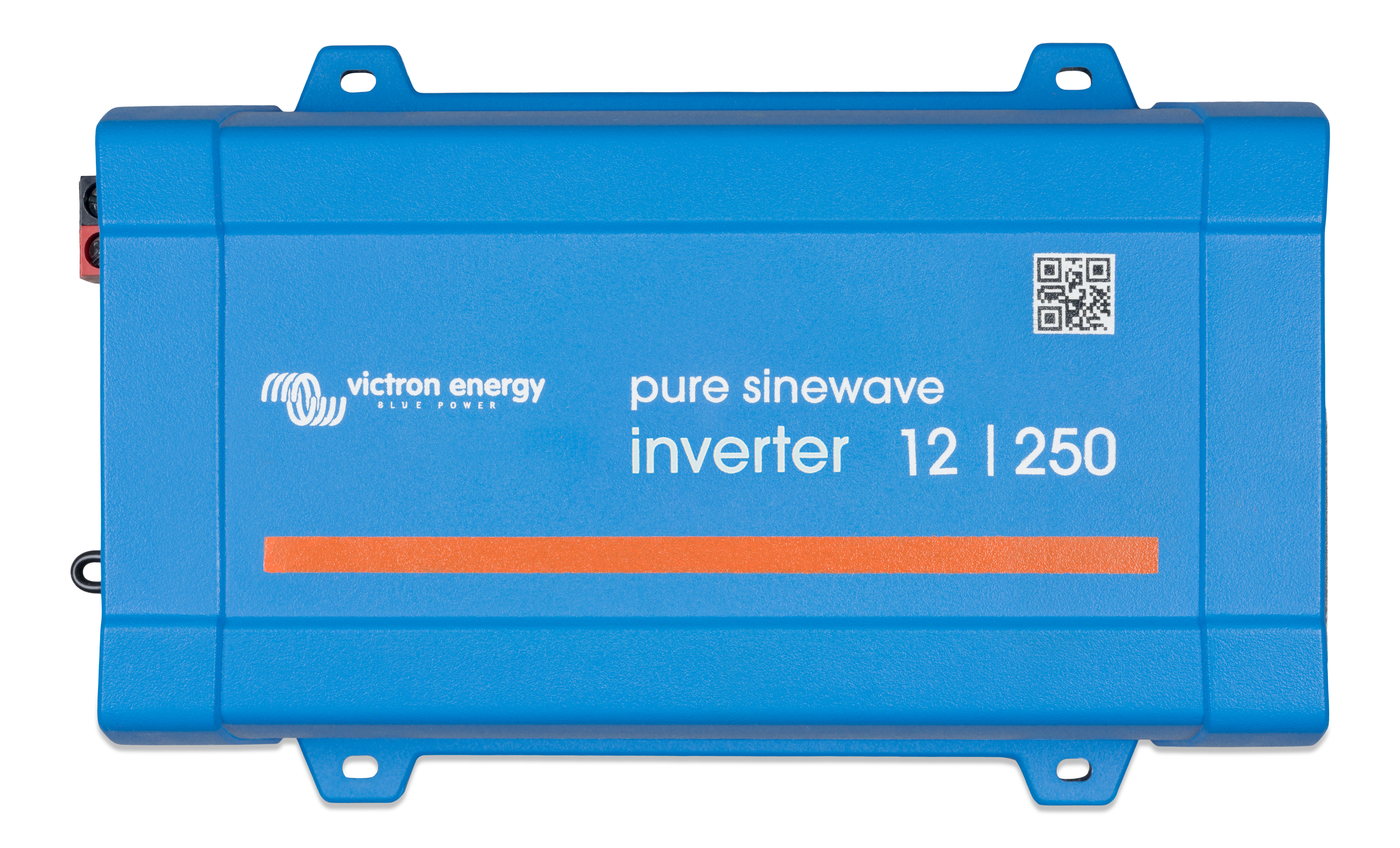

The Victron Energy Inverter VE.Direct NEMA 5-15R is designed to power domestic equipment that requires 120V AC from leisure or automotive batteries rated at 12V, 24V, or 48V DC. It is a 120VAC/60Hz sine wave inverter with a NEMA 5-15R outlet and multiple model options.

The key benefit is clean AC output. A pure sine wave inverter produces power that is closer to utility power than a modified sine wave inverter. That makes it the preferred choice for sensitive electronics, chargers, audio equipment, medical devices approved for inverter use, and appliances that may run poorly on rougher AC waveforms.

This Victron inverter also includes a VE.Direct communication port that can connect to a computer with a VE.Direct to USB interface cable, or to Apple and Android phones, tablets, MacBooks, and other devices with the VE.Direct Bluetooth Smart dongle. That connectivity allows monitoring and configuration instead of leaving the inverter as a sealed black box.

Configurable settings include low battery voltage alarm levels, low battery voltage cut-off and restart levels, dynamic load-dependent cut-off, frequency, ECO mode, and ECO mode sense level. Monitoring includes input voltage, output voltage, percentage load, and alarms.

For RV owners, those features are not just technical extras. Low-voltage protection helps prevent excessive battery discharge. Monitoring helps you understand why an appliance is failing to start. ECO mode can reduce idle draw when the inverter is waiting for a load.

Standalone Inverter vs Inverter/Charger: Which Do You Need?

A standalone inverter like the VE.Direct converts DC to AC only. If you also want to charge your batteries from shore power or a generator, you need an inverter/charger. The Victron MultiPlus Inverter/Charger combines both functions in one unit and is the more popular choice for full off-grid RV builds. The MultiPlus-II adds PowerAssist and is ideal for larger systems. For the most demanding builds, the MultiPlus 12/3000 & 24/3000 handles heavy loads like air conditioners and induction cooktops.

If your list is really laptops, a Starlink dish and the occasional blender, a wired inverter of either kind may be more installation than the job needs. A portable station is the third route: the BLUETTI Elite 100 V2 gives 1,800W of AC from a 1,024Wh LiFePO4 pack, recharges from a wall outlet to 80% in about 45 minutes, and lives wherever you work rather than where the inverter was mounted.

Why RV Owners Choose a Pure Sine Wave Inverter

A pure sine wave RV inverter is the better choice when you want reliable AC power for mixed loads. Modern RVs often carry laptops, camera batteries, Starlink equipment, small kitchen appliances, CPAP machines, power tool chargers, entertainment systems, and USB-C charging stations. Many of those devices are more comfortable with clean AC power.

A modified sine wave inverter can be cheaper, but it may create buzzing, extra heat, inefficient charging, or compatibility problems with some electronics. For an RV electrical system you plan to rely on, pure sine wave is usually the smarter baseline.

If you are still comparing brands and ecosystems, our guide to Victron vs Renogy solar for RV use explains why many expandable off-grid systems are built around Victron monitoring and communication.

Which Victron Inverter Size Should You Choose?

The right inverter size depends on the devices you want to run at the same time, not just the largest appliance you own.

Start by listing every AC load you realistically expect to use from battery power. Include laptop chargers, camera chargers, TV, blender, coffee maker, induction cooktop, microwave, fan, router, or tool charger. Then write down the running watts for each device and note whether it has a startup surge.

A good rule is to size for your expected simultaneous load, then leave a margin. If you need 300 watts for normal use, a small inverter may be enough. If you want to run a coffee maker, microwave, or multiple AC loads together, you need a larger model and a battery bank that can support the DC current.

The Victron VE.Direct NEMA 5-15R inverter is available in 12V, 24V, and 48V model families, including 250, 375, 500, 800, 1200, and 1600 variants.

Victron VE.Direct Inverter Model Dimensions

How to Size an RV Inverter Without Guessing

Step 1: Make a Load List

Write down the AC devices you want to run off-grid. Use the label on the device, the manual, or a watt meter when available.

Step 2: Separate Continuous Loads From Short Loads

A laptop charger may run for hours. A coffee maker may run for only a few minutes. A microwave may draw heavily but briefly. The battery impact is different, and so is the inverter stress.

Step 3: Account for Surge

Motors, compressors, pumps, and some appliances need extra startup power. If an appliance starts and the inverter shuts down immediately, the issue may not be running watts; it may be startup surge or DC voltage sag.

Step 4: Match Battery Voltage

Choose the inverter input voltage that matches the RV battery system. A 12V inverter belongs on a 12V battery system. Do not mix these.

Step 5: Check Battery Capacity

A large inverter on a small battery bank can disappoint quickly. Lithium batteries can often deliver more usable capacity than lead-acid, but they still need correct system design and protection. Our Victron lithium battery guide is a helpful next read if your inverter upgrade is part of a lithium conversion.

Installation Considerations

Mount the inverter in a dry, protected location with ventilation and access for service. Keep DC cable runs as short as practical. Use properly sized cable, overcurrent protection, and secure terminations.

The Victron Energy VE.Direct inverter includes a NEMA 5-15R outlet. If you want inverter power distributed through existing RV outlets, transfer switching, shore power isolation, and code-compliant wiring become important. For many owners, a dedicated inverter outlet is simpler and safer than tying into the whole RV AC panel. If you need automatic shore-power transfer, the Victron MultiPlus Inverter/Charger handles this automatically.

Why VE.Direct Monitoring Matters

Many inverter problems are really system problems. The VE.Direct port helps make the system more transparent by connecting to a computer or mobile device for monitoring and configuration. For a larger Victron ecosystem, inverter data can become part of a broader monitoring strategy. Our guide to setting up the Victron VRM Portal explains how remote monitoring fits into a more complete off-grid system.

Pairing an Inverter With Solar and Battery Monitoring

A balanced off-grid setup often includes a lithium or deep-cycle battery bank, a solar charge controller, a battery monitor, suitable DC distribution, and the inverter. For solar planning, our Victron SmartSolar MPPT review and MPPT charge controller sizing guide are useful if you want solar to replenish the energy your inverter uses.

Battery monitoring is just as important. Our Victron BMV-712 vs SmartShunt guide can help you decide whether you want a physical display or a hidden Bluetooth-based monitor.

Common Mistakes to Avoid

The first mistake is oversizing the inverter without upgrading the rest of the system. The second is trying to run heating appliances for long periods — electric kettles, space heaters, hair dryers, and induction cooktops can drain batteries quickly. The third is ignoring standby draw. The fourth is installing the inverter too far from the batteries. The fifth is skipping monitoring.

Frequently Asked Questions

What size Victron RV inverter do I need?

Choose based on the AC devices you plan to run at the same time, their running watts, their startup surge, and your battery system voltage.

Is a pure sine wave inverter necessary for an RV?

Strongly recommended for modern RVs because it provides cleaner AC power for laptops, chargers, electronics, and entertainment equipment.

Can I use the Victron VE.Direct inverter with lithium batteries?

Yes, when the model, voltage, wiring, battery capacity, BMS, and low-voltage settings are correctly matched.

Does an RV inverter charge the batteries?

A standalone inverter does not charge batteries. If you need battery charging from shore power as well, compare with the Victron MultiPlus Inverter/Charger before designing your setup.

Final Takeaway

The Victron Energy Inverter VE.Direct NEMA 5-15R is a strong choice for RV owners who want clean 120V AC power from a 12V, 24V, or 48V battery system. Its pure sine wave output, VE.Direct communication, configurable low-voltage behavior, ECO mode settings, and multiple model sizes make it especially useful for off-grid camping and expandable RV power systems. If you also need shore power charging, step up to the Victron MultiPlus Inverter/Charger.
