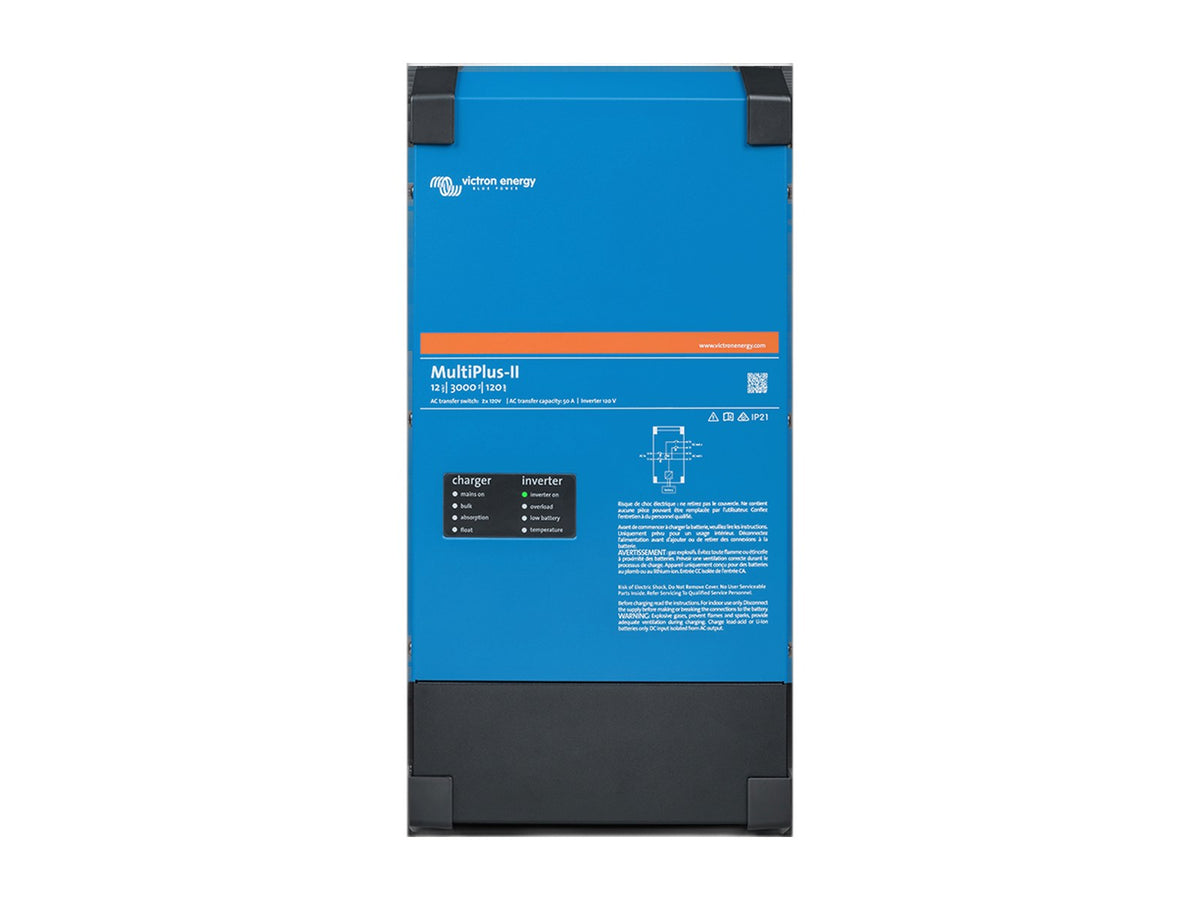

Victron MultiPlus-II Inverter/Charger | 120VAC Pure Sine Wave
- Regular price
- $779.84
- Sale price
- $779.84
- Regular price
-
$1,176.00
Victron list $1,176.00 · you save $396.16
Add a protection plan
Provided and serviced by Mulberry. What's covered
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships from Upland in 3–7 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty
MultiPlus-II | 120VAC/60Hz Sinewave
Not sure which model fits your rig? Read our MultiPlus-II sizing guide (12V vs 24V vs 48V).
Which MultiPlus-II fits your RV?
- Read the model code: 12/3000/120-50 means a 12V battery bank, 3000VA output, 120A charger, 50A transfer switch. Pick the first number to match your battery bank.
- 120V models take and deliver a single 120V supply, the usual fit for a 30A RV.
- 2x120V models accept split-phase 120/240V shore power, the usual fit for a 50A RV, and pass both legs through. When inverting from the battery they output 120V, not 240V (per Victron's 2x120V manual).
- Weight (Victron datasheet): 3000VA 120V models about 42 lb; 12/4000 (160A charger) about 49 lb; 24/5000 about 64 lb; 48/5000 about 71 lb.
Specs: MultiPlus-II 120V datasheet (PDF) · MultiPlus-II 2x120V manual
Does it come set up for lithium?
It ships with Victron's default charge settings. To set the lithium profile for your battery, use the free VictronConnect app with a VE.Bus Smart dongle (Bluetooth) or an MK3-USB interface, or configure it through a GX device such as the Cerbo GX. Want it done for you? We commission Victron systems at our Upland, CA shop: see our installation service, or contact us with your battery details.
The MultiPlus-II is a multifunctional inverter/charger with two AC outputs. Suitable for professional marine, yachting, vehicle, and land-based off-grid systems, it also provides the isolation and redundancy required for ESS setups. PowerControl allows the MultiPlus-II to prevent grid or generator overload, while PowerAssist boosts AC power during peak demand. In the event of an outage, the inverter switches over in milliseconds, keeping computers and sensitive electronics running without interruption. The battery charger combines speed with efficiency through a smart adaptive algorithm that extends battery life. Ready for expansion, the MultiPlus-II supports parallel and three-phase configurations when a system needs to scale.
Note: for a short period of time this product was called MultiGrid-II.
PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.
| MultiPlus-II 12/3000/120-50 120V (UL458) | PMP122305122 | 22.5 x 10.8 x 8.6 |

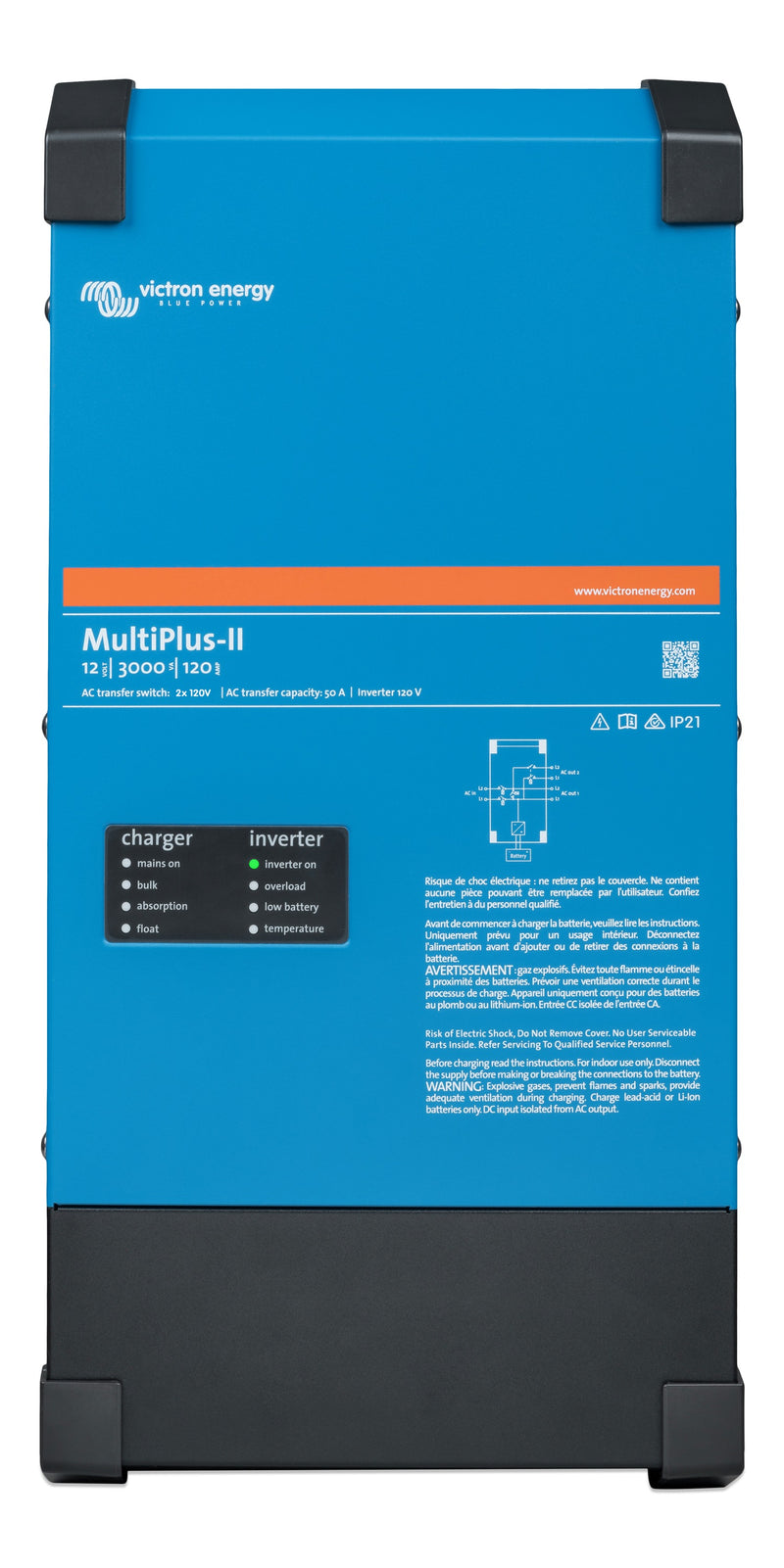

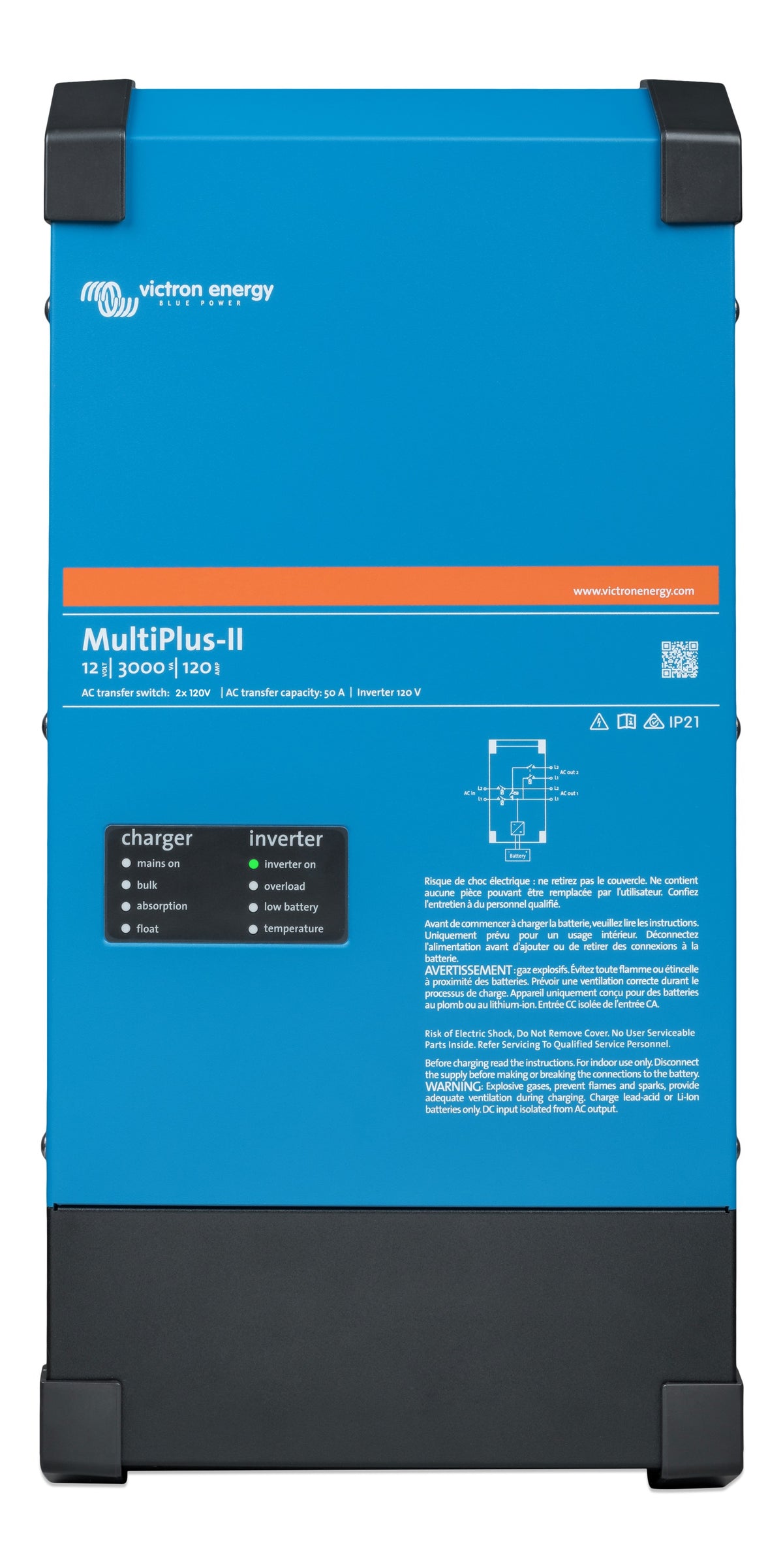

| MultiPlus-II 12/3000/120-50 2x120V (UL 458) | PMP122305102 | 22.5 x 10.8 x 8.6 |

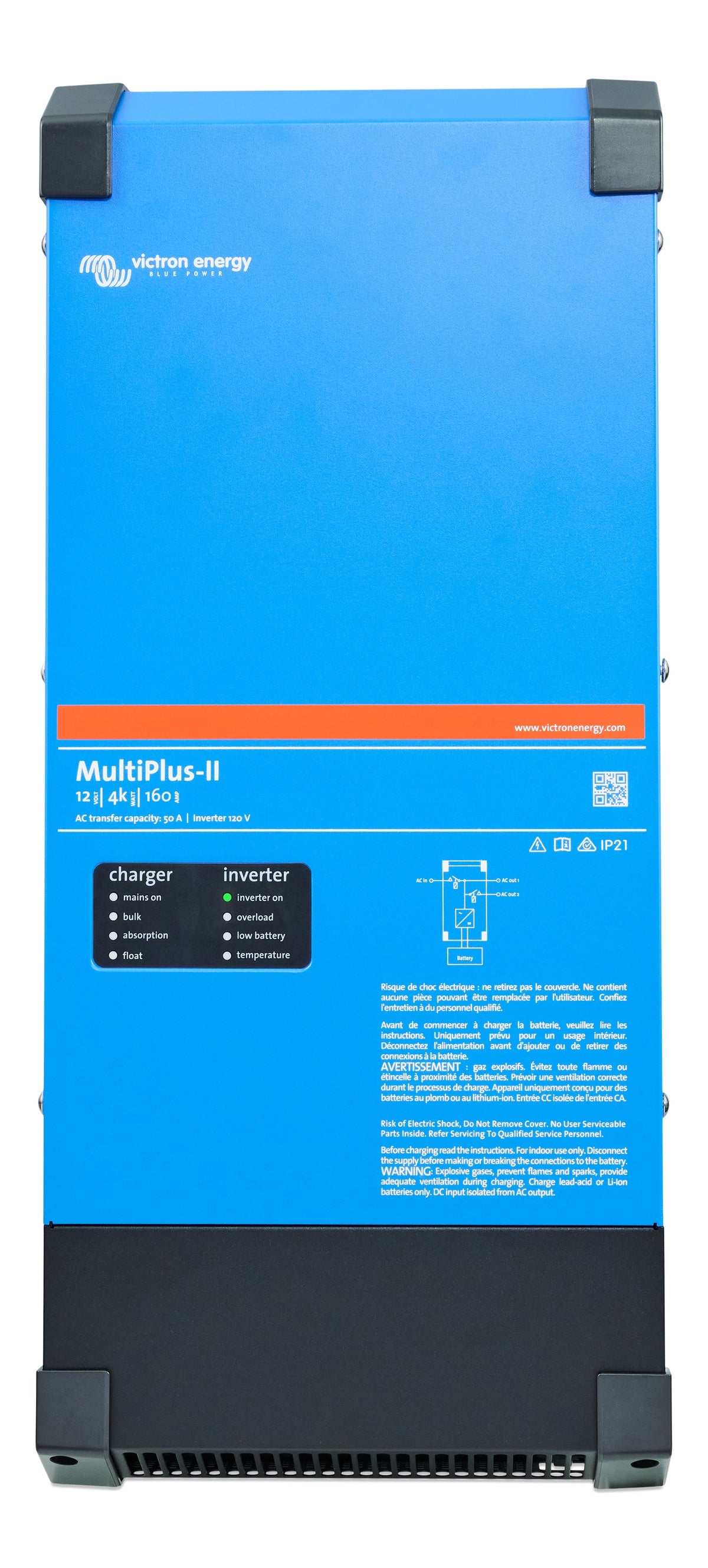

| MultiPlus-II 12/4000/160-50 120V (UL 458) | PMP122405100 | see datasheet |

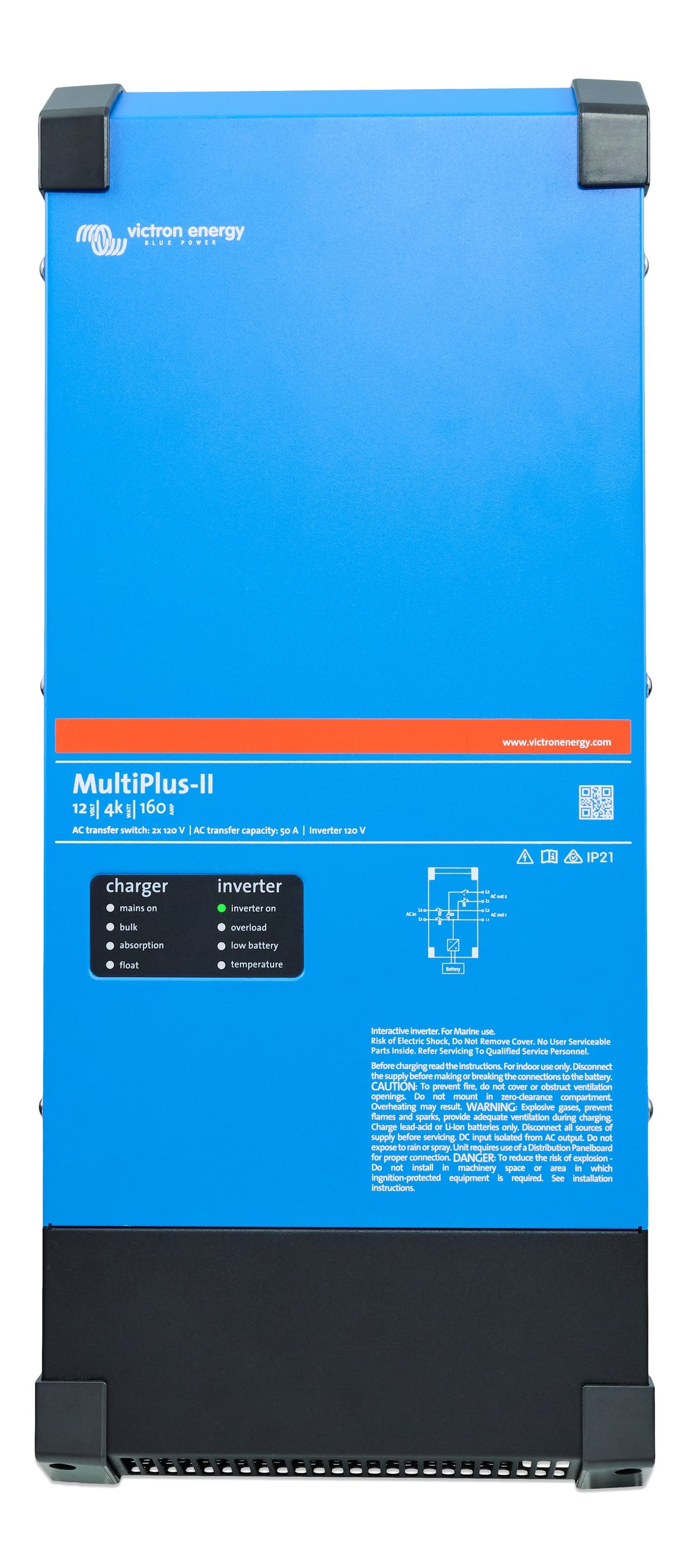

| MultiPlus-II 12/4000/160-50 2x120V (UL 458) | PMP122405200 | see datasheet |
| MultiPlus-II 24/3000/70-50 120V | PMP242305100 | 21.1 x 10.9 x 5.8 |
| MultiPlus-II 24/3000/70-50 120V (UL 485) | PMP242305102 | 21.1 x 10.8 x 8.6 |
| MultiPlus-II 24/3000/70-50 2x120V | PMP242305130 | 21.1 x 10.8 x 8.6 |
| MultiPlus-II 24/3000/70-50 2x120V (UL458) | PMP242305132 | 21.1 x 10.8 x 8.6 |

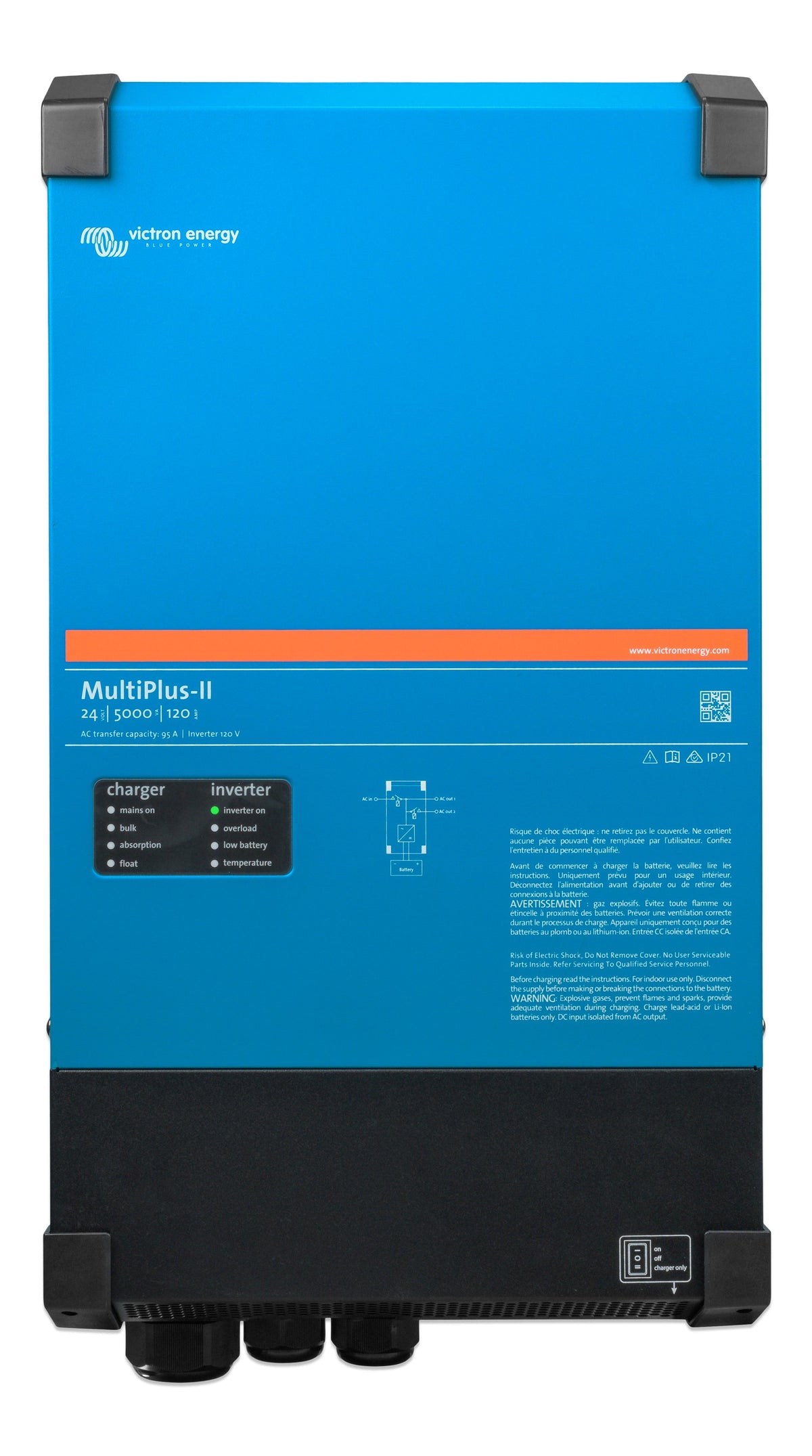

| MultiPlus-II 24/5000/120-95 120V | PMP242505110 | 23.9 x 13.0 x 5.8 |
| MultiPlus-II 48/3000/35-50 120V | PMP482305100 | 22.5 x 10.8 x 8.6 |
| MultiPlus-II 48/3000/35-50 120V (UL 1741) | PMP482305102 | 22.5 x 10.8 x 8.6 |
| MultiPlus-II 48/5000/70-95 120V | PMP482505110 | 26.6 x 13.0 x 6.5 |
