Choosing the right Victron MPPT solar charge controller is the single most important decision in an RV or van solar build. Pick one that's too small and you'll throttle your panels on a sunny day; oversize it and you waste money. This guide breaks down Victron's lineup, explains the model numbers, and helps you size the right controller for your rig.
What the Victron model numbers mean
Every Victron MPPT model uses two numbers separated by a slash, like 100/30. The first number is the maximum solar (PV) input voltage the controller accepts. The second is the maximum charge current in amps it can deliver to your battery. So a 100/30 handles up to 100V of panels and outputs up to 30A of charge.
How to size your charge controller
Use this simple three-step method:
- Add up your panel wattage. Example: 3 x 200W panels = 600W.
- Divide watts by battery voltage to estimate charge amps. 600W ÷ 12V = 50A. (Use a small safety margin.)
- Match the second number in the Victron model to that amp figure, and make sure your panel array's voltage stays under the first number.
Tip: higher-voltage battery banks (24V or 48V) need fewer charge amps for the same wattage, so you can often use a smaller, cheaper controller.
Victron MPPT lineup by build size
| Your solar array | Battery | Recommended Victron MPPT |
|---|---|---|
| Up to ~220W | 12V | SmartSolar MPPT 75/15 or 100/20 |
| ~250–400W | 12V | SmartSolar MPPT 100/30 |

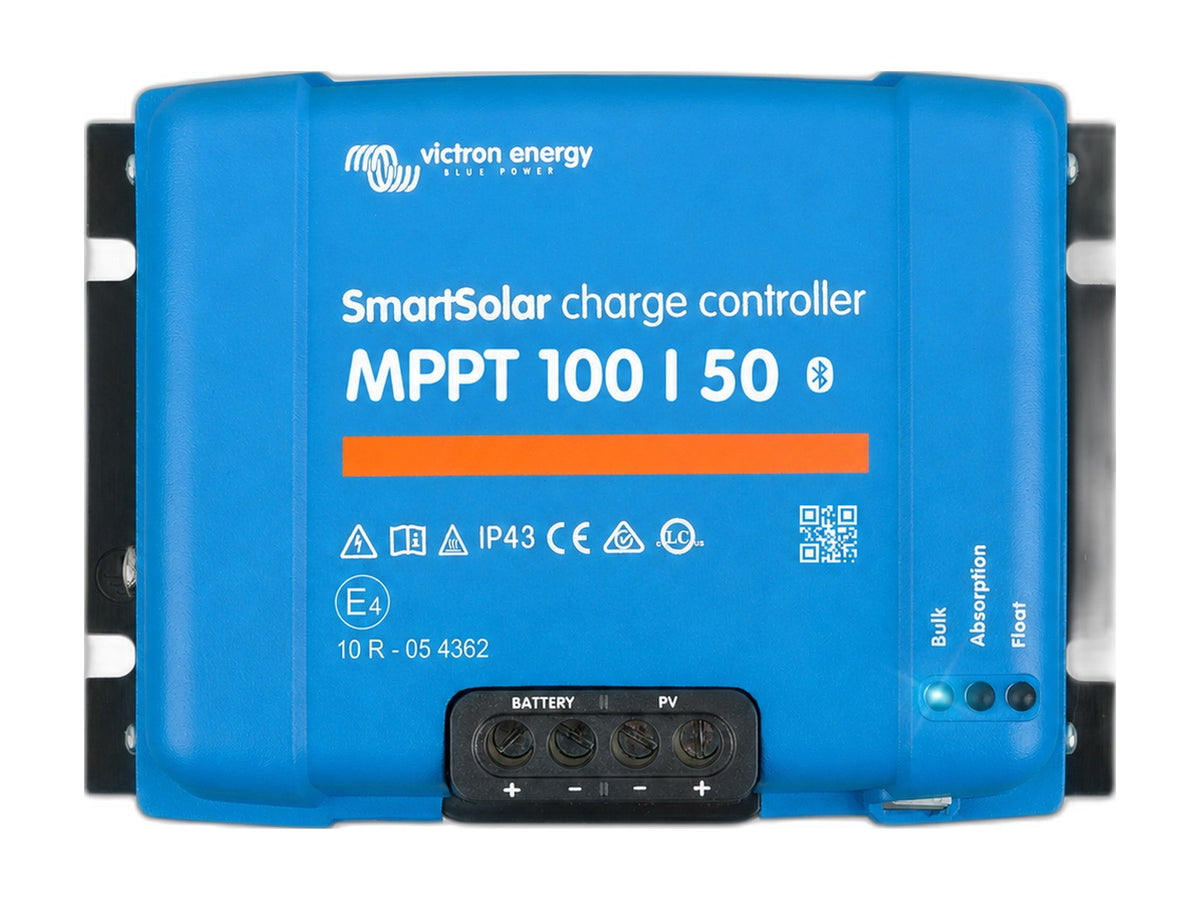

| ~400–700W | 12V | SmartSolar MPPT 100/50 |
| ~600–900W (higher PV voltage) | 12/24V | SmartSolar MPPT 150/35 or 150/45 |
| 1,000W and up | 12/24/48V | SmartSolar MPPT 150/70 to 250/100 |
| Large off-grid arrays (3kW+) | 48V | SmartSolar MPPT RS 450/100 or 450/200 |
SmartSolar vs BlueSolar: what's the difference?
SmartSolar controllers have built-in Bluetooth, so you can monitor and configure charging from the free VictronConnect app on your phone — ideal for RVers who want to check production from inside the rig. BlueSolar MPPT controllers offer the same proven charging performance at a lower price but require a separate display or dongle for monitoring. If budget is tight and you don't need phone monitoring, BlueSolar is a smart way to save.
Don't forget the wiring box
For a clean, code-friendly installation, add a Victron MPPT WireBox. It shields the terminals and gives your solar wiring a finished, professional look.
Why MPPT beats PWM for RV solar
MPPT (Maximum Power Point Tracking) controllers harvest 10–30% more energy than cheaper PWM units, especially in cold weather and partial shade. On an RV roof where space is limited, that extra efficiency means more usable amp-hours from the same panels — which is why Victron MPPT is the standard for serious off-grid and van builds.
Frequently asked questions
Can I use one Victron MPPT for two batteries?
Yes. The controller charges a single battery bank, but that bank can be multiple batteries wired in parallel or series. Size the controller to the total bank voltage and your panel output.
What size MPPT do I need for 400 watts of solar?
On a 12V system, 400W is roughly 33A of charge current, so a SmartSolar MPPT 100/30 works for a tight install, while a 100/50 gives you headroom to expand.
Is Bluetooth worth it on a charge controller?
For most RVers, yes. SmartSolar's built-in Bluetooth lets you see real-time solar production and adjust charge settings without extra hardware.
Ready to build? Browse all Victron SmartSolar MPPT charge controllers at RV Parts Giant.
