Renogy 4 to 1 Solar Branch Connectors, MMMMF + FFFFM Pair
- Regular price
- $37.00
- Sale price
- $37.00
- Regular price
-
$39.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability

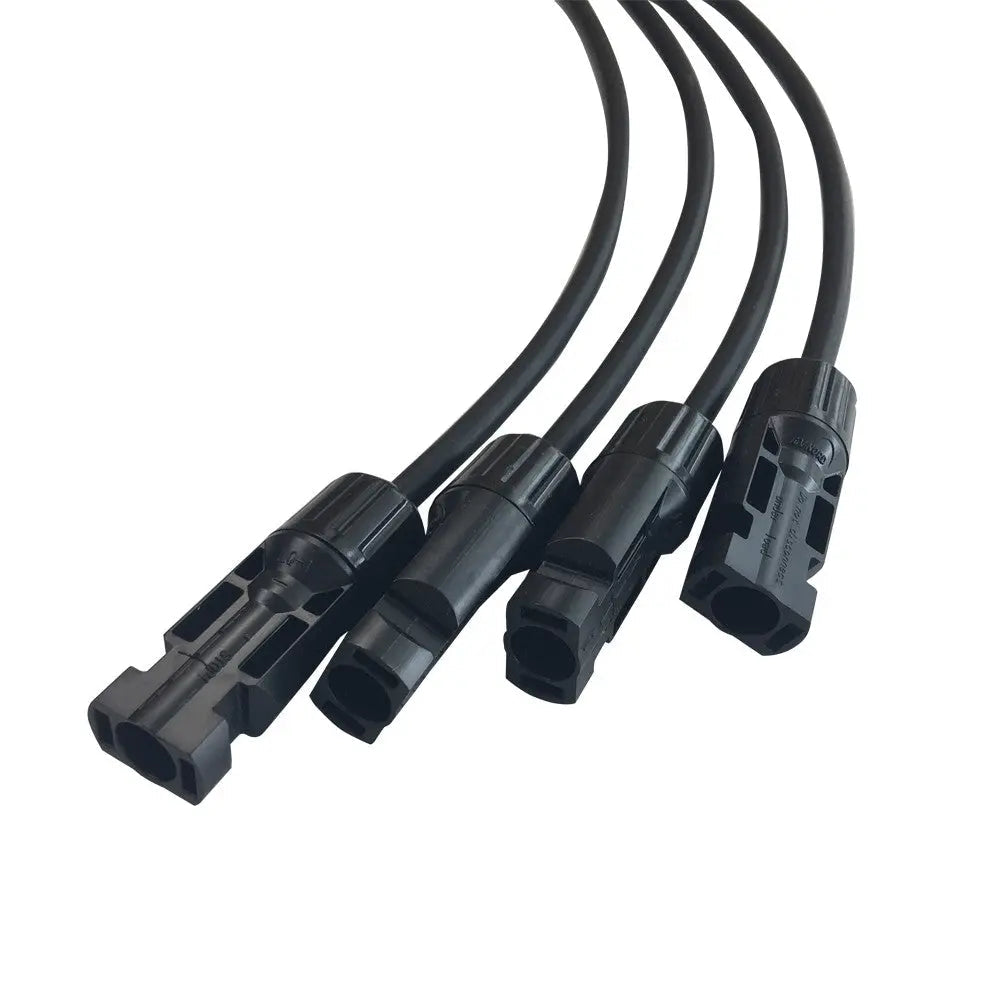

These Renogy 4 to 1 solar branch connectors tie four panels into a single parallel run without a nest of loose cable across the roof of an RV, trailer or van. Renogy lists them as primarily suited to 400W kits, and the extended branch legs mean panels can go up in portrait or landscape without fighting the wiring.
Specifications

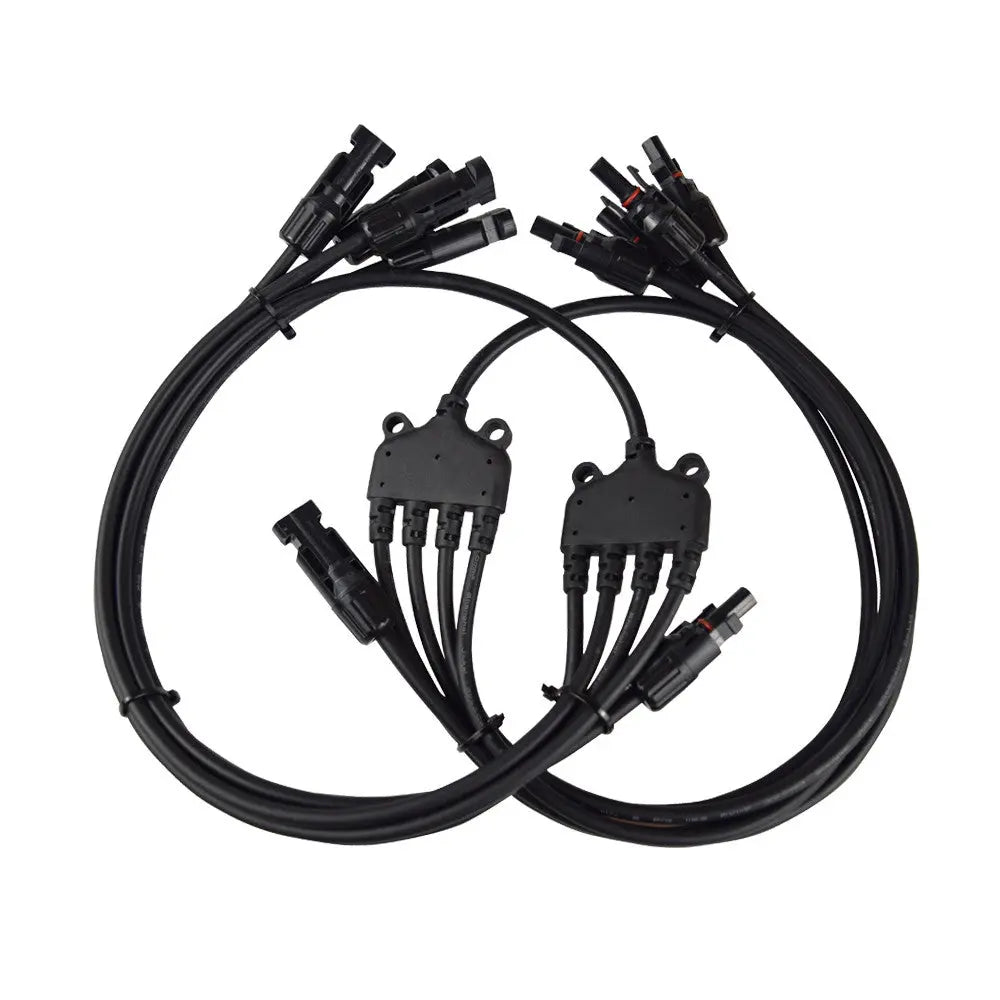

- Configuration: one male to four female plus one female to four male, sold as a pair
- Rated current: 30A
- Withstanding voltage: 1000V DC (TUV), 600V (UL)
- Test voltage: 6500V, 50Hz, 5 minutes
- Wiring size: main 10AWG, branch 12AWG
- Length: 3.5 ft overall, 1.5 ft per branch
- Protection degree: IP67
- Insulation material: PC/PA
- Contact material: silver-plated copper
- Temperature range: -40°F to 194°F
- Weight: 0.32 lb
- Renogy part number: RNG-CNCT-MC4BC-US
Assembly is a push fit and the plugs pull apart again without a special tool, so a roof layout can be revised later without cutting cable. Remember that parallel wiring adds current rather than voltage, so confirm your charge controller and fuse sizing can take the combined output of all four panels. This is a genuine Renogy product and it ships from our warehouse in Upland, CA.
