Renogy DC Circuit Breaker Box with DIN Rail
- Regular price
- $216.00
- Sale price
- $216.00
- Regular price
-
$227.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability

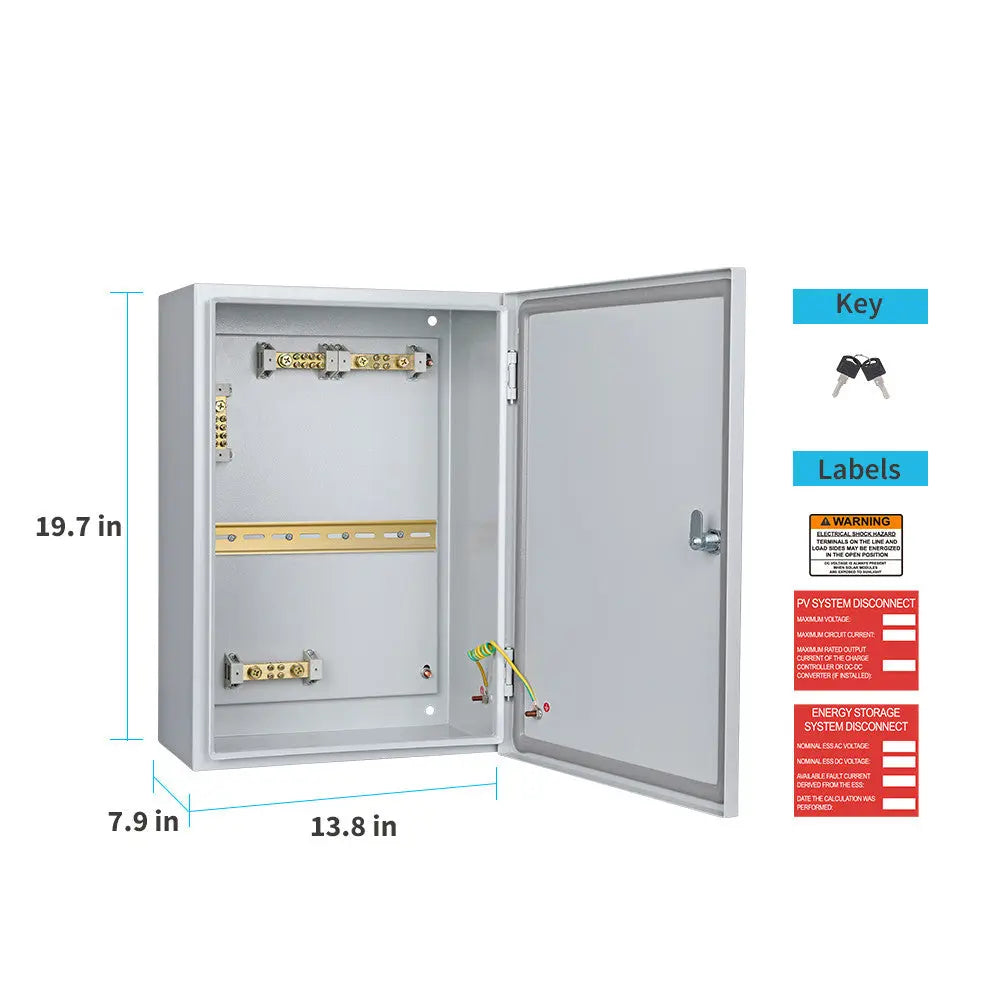

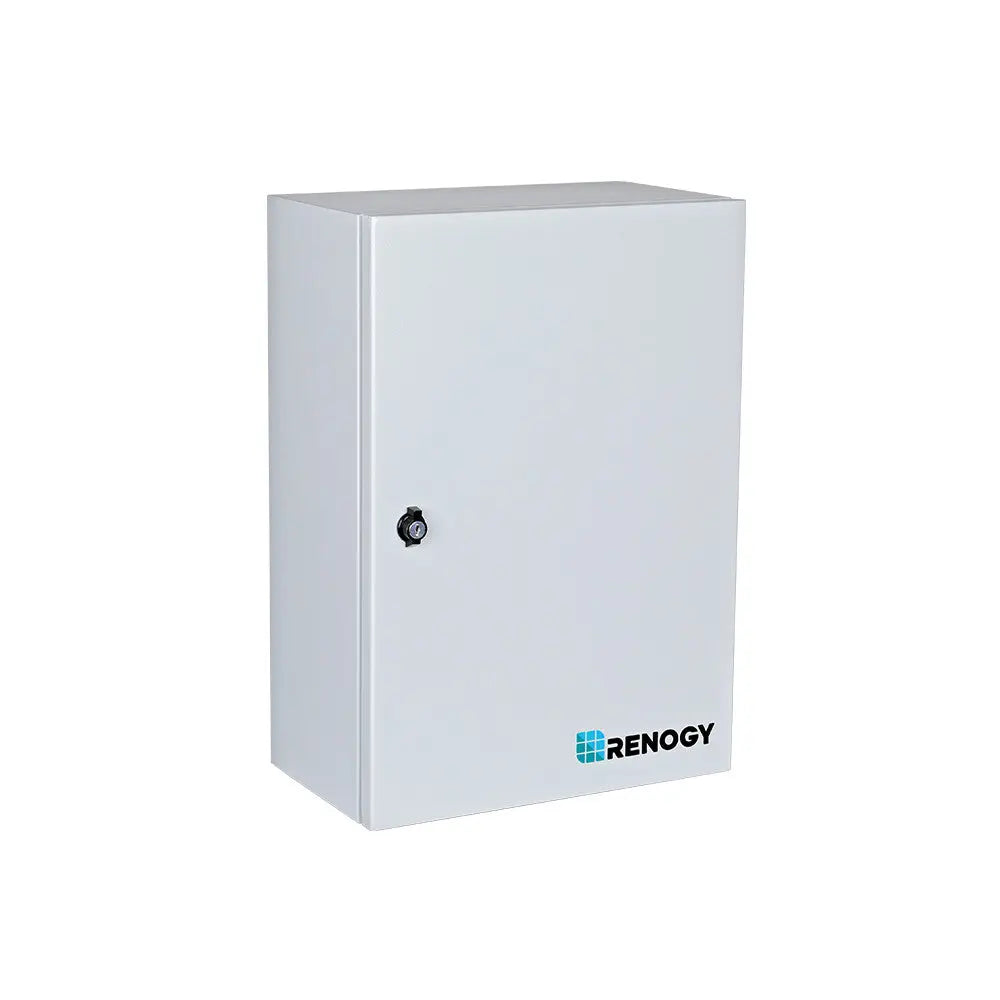

The Renogy DC Circuit Breaker Box is an indoor-rated enclosure that centralizes the protection and disconnect devices for a solar system, which suits a cabin, a garage bank or a stationary off-grid install more than a moving vehicle.
Specifications

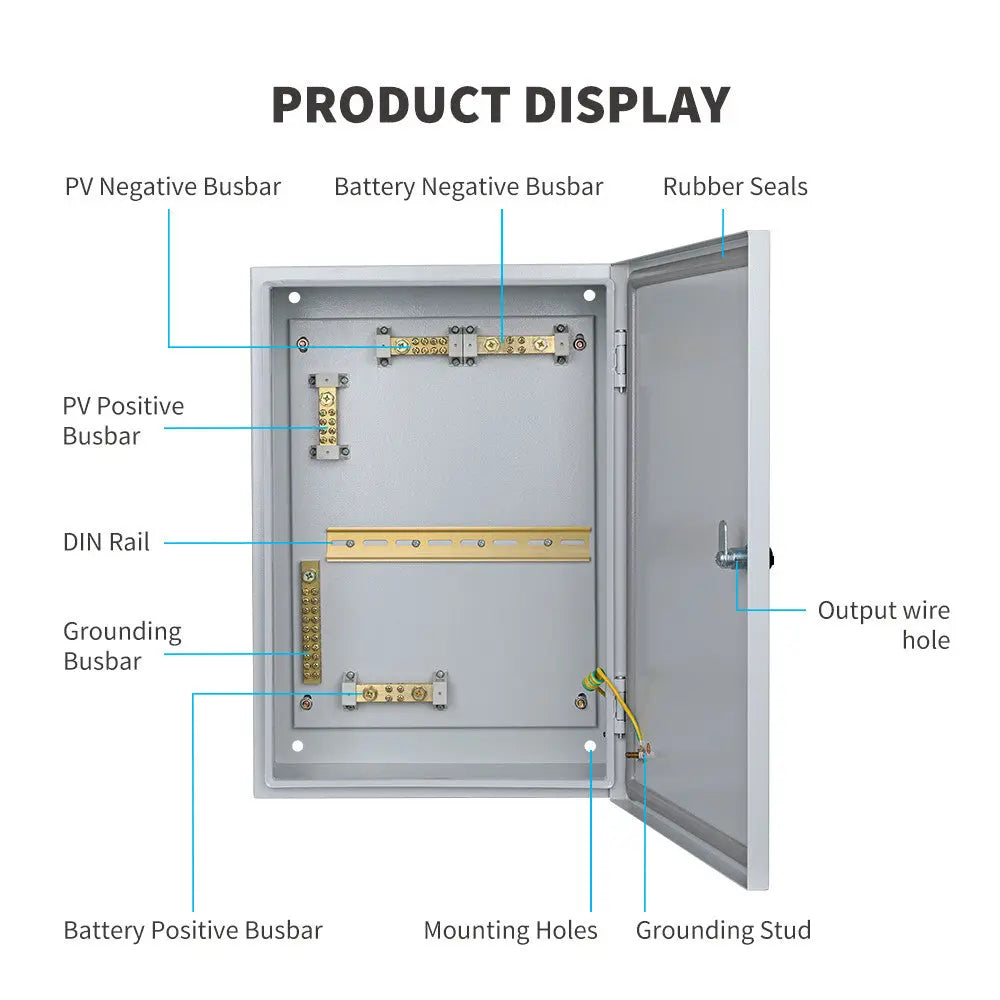

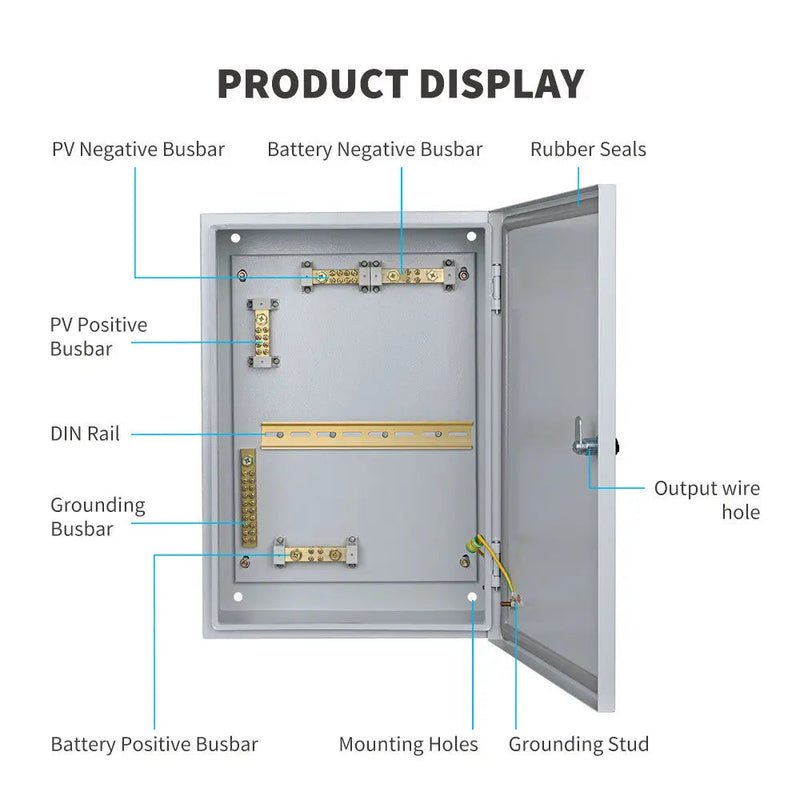

- Enclosure: cold-formed steel, IP54 rated, lockable

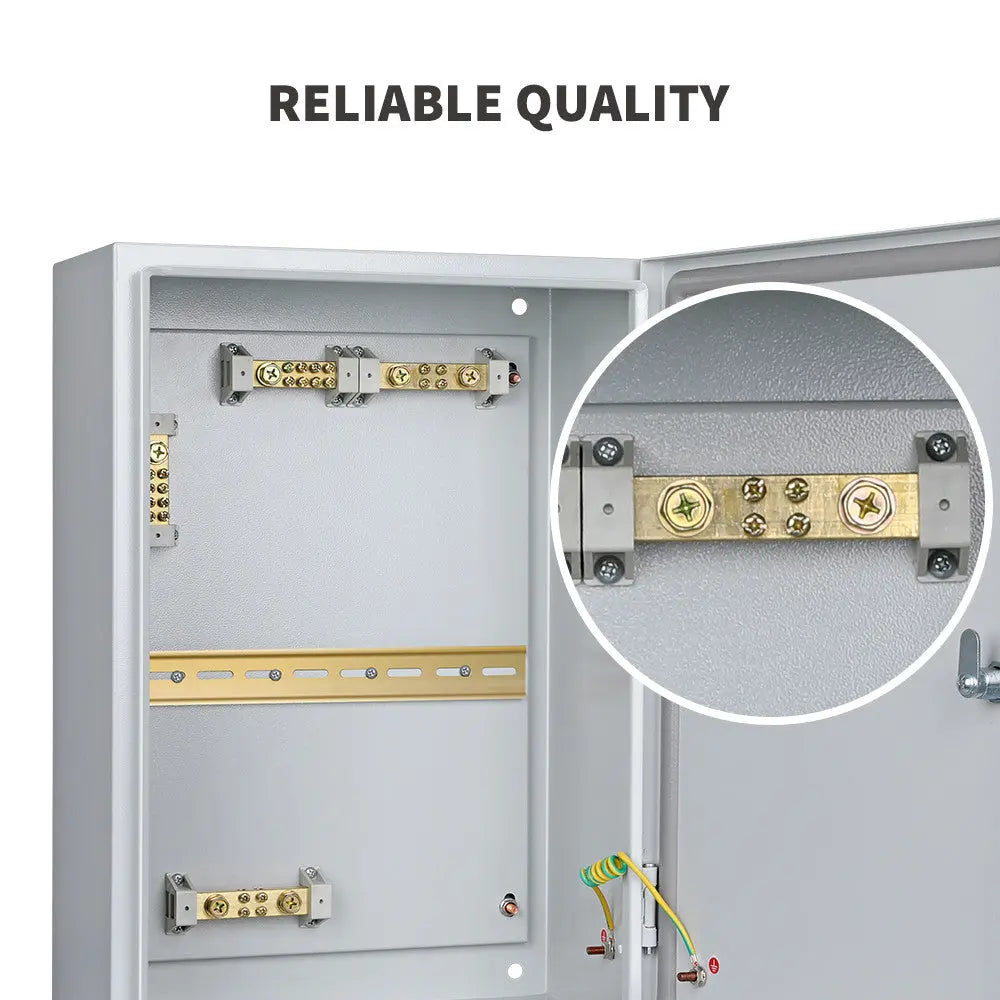

- Busbars: copper
- Mounting: built-in DIN rail plus mounting holes on the back
- Weight: 23.15 lb
- Renogy part number: RDCCBBMN5PMC2P-US

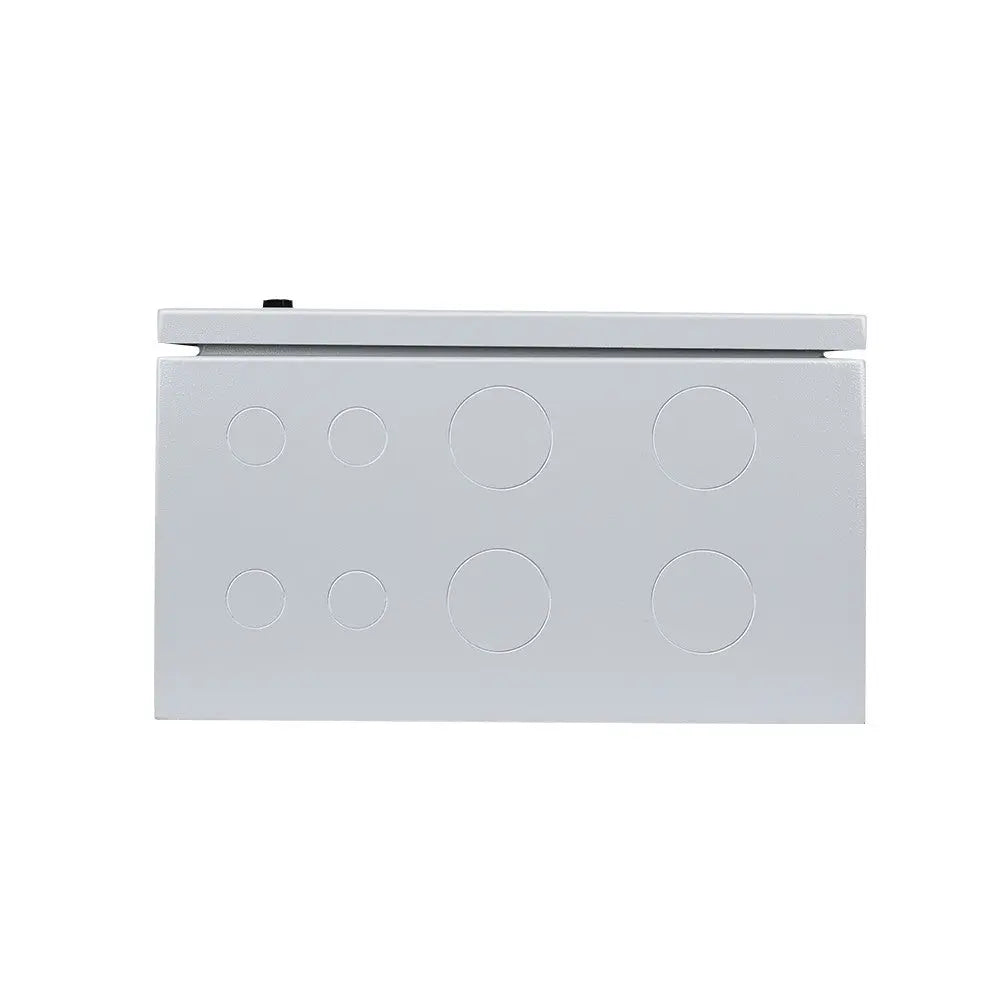

Renogy's suggested fit-out for a solar system is two 1P miniature circuit breakers, one 2P molded case circuit breaker, one 2P surge protection device and one 2P ground fault circuit interrupter. None of those breakers, interrupters or surge devices are included, so budget for them separately. Sectioning a system this way means a single circuit can be isolated for maintenance without shutting the whole array down, and the surge and ground fault devices add lightning and fault protection the rest of the system does not have. Waterproof strain reliefs or conduits are reserved for installation. To open the box, use the key first and then twist the black ring; to lock it, screw the ring first and then turn the key. This is a genuine Renogy product and it ships from our warehouse in Upland, CA.
