If you tow an off-road camper trailer, the coupling is the single most safety-critical part between your truck and your trailer. Get it wrong and you'll bind up on the first steep washout — or worse. This guide compares the four ways people actually connect an off-road trailer in the U.S.: the Cruisemaster DO35/DO45 articulating pin couplings, the Lock N Roll articulating hitch system, the Max Coupler, and a standard ball coupler.
Why articulation matters off-road
A conventional ball coupler was designed for pavement. It articulates enough for driveways and campground ramps, but on off-camber terrain it can reach the limit of its travel and bind — transferring enormous twisting loads into your drawbar and hitch. A true off-road coupling articulates on multiple axes (rotation plus pitch and yaw), so the trailer can lean and twist independently of the tow vehicle. That's the whole game.

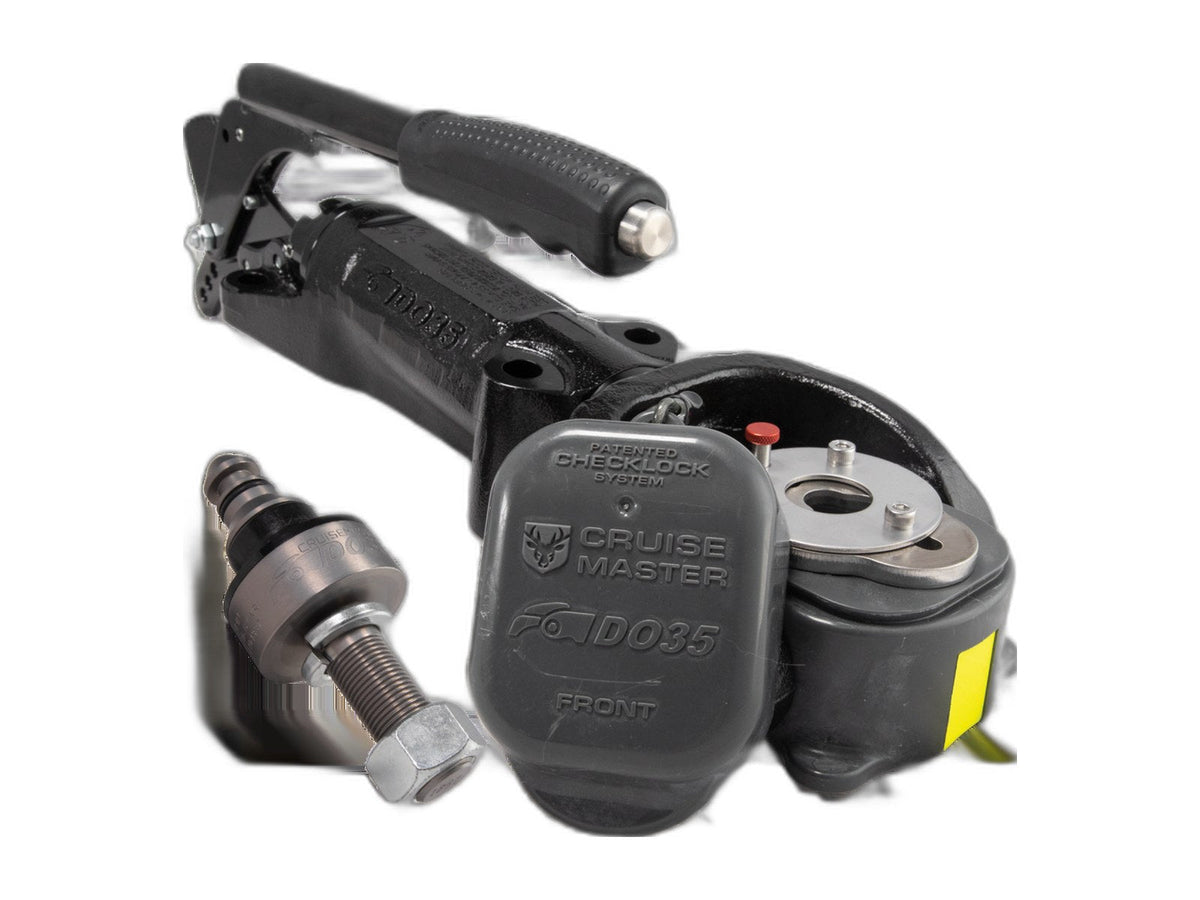

Cruisemaster DO35 & DO45 — the caravan-industry standard
Cruisemaster's DO series is the coupling fitted from the factory by most serious off-road caravan and hybrid trailer builders. The DO35 is rated to 3,500 kg (7,716 lb) and the DO45 to 4,500 kg (9,921 lb). Both are drop-on pin couplings with dual-axis articulation, a two-stage positive interlock, and Cruisemaster's Checklock dust cap — the cap physically cannot fit unless the lock is fully engaged, which gives you a foolproof visual check before every tow. We stock both in with-handbrake and no-handbrake versions, and the tow pin ships in every box.
Strengths: factory-fit compatibility with Black Series, MDC, Patriot, and most Australian-designed trailers already running a DO pin; one-person drop-on hookup; greaseable bushes that survive corrugations; ADR compliance; and the only option here with an integrated handbrake version. If your trailer came with a DO35 and the coupling is worn or damaged, the replacement decision is simple — fit the same unit. Priced below the big U.S. towing retailers here — check the live price on the product page.
Lock N Roll — the American teardrop favorite
The Lock N Roll is a well-regarded American-made articulating hitch that works as a two-part system: a vehicle-side unit (available for 2" receivers) and a trailer-side coupler that pin together. It offers 360-degree rotation with side-to-side and up-and-down pivot, and it's rated to 11,000 lb gross trailer weight with 1,100 lb tongue weight. Teardrop and overland-trailer builders in the U.S. love it, and owners consistently report flawless performance in rough terrain.
Where Lock N Roll is the right buy: if your trailer doesn't already have a DO-series pin and you want to convert both the tow vehicle and trailer to a matched articulating system — especially on a home-built or American teardrop — the Lock N Roll two-part system is an excellent choice, and it carries the highest weight rating here. The trade-offs: you must buy and fit both halves (the full set typically costs more than a DO35), hookup requires aligning three pin holes rather than dropping onto a pin, there's no handbrake option, and it isn't a drop-in replacement on trailers engineered for a Cruisemaster pin.
Max Coupler — the quiet retrofit
The Max Coupler is the other American-made favorite, best known as the “silent hitch”: its tri-axis articulating design isolates shock loads through a polyurethane bushing, so there's no clunk and rattle on gravel. It's SAE J684-compliant and rated at 6,000 or 8,000 lb depending on model, and it comes in three mounting styles — a 2" receiver-tube version, a bolt-on for trailers with an existing 2" drawbar tube, and an A-frame version that directly replaces a standard ball coupler. That last one makes it the easiest articulating retrofit for a typical American-built trailer.
Where Max Coupler is the right buy: you're upgrading a U.S.-built trailer from a ball coupler, noise is one of your complaints, and your loaded trailer weight sits comfortably under its rating. Trade-offs: the lowest capacity ceiling of the articulating options here, no handbrake version, and — like the Lock N Roll — it's a platform change, not a replacement part, on trailers engineered around a Cruisemaster pin.
Standard ball couplers — fine until they aren't
A quality 2" or 2-5/16" ball coupler is cheap, universal, and perfectly adequate for highway towing. Off-road, its limited articulation range is the problem: on ditch crossings and off-camber tracks the coupler can bind at full articulation. If your trailer never leaves graded roads, keep the ball and spend the money elsewhere. If you tow into real terrain, upgrade.
Bottom line
- Trailer already has a DO pin (Black Series, MDC, Patriot, most off-road hybrids): replace or upgrade with the genuine Cruisemaster DO35 — or the DO45 if your rig pushes past 7,700 lb.
- American teardrop or custom build, converting both ends — or maximum capacity: the Lock N Roll set is the right buy.
- Retrofitting a U.S.-built trailer and hitch noise drives you crazy: the Max Coupler's bolt-on and A-frame mounts make it the easiest swap.
- Pavement-only towing: a standard ball coupler is honestly fine.
FAQ
Will the DO35 fit my existing drawbar?
The DO35 uses the standard 4-bolt mounting pattern shared with ball and poly-block couplings, so it's a direct bolt-up on most drawbars. The DO45 uses a wider pattern — check your plate before ordering.
With handbrake or without?
If your trailer's park-brake cable runs to a lever on the coupling (standard on many Australian-built vans), order the DO35 with handbrake or DO45 with handbrake. If your trailer uses a separate park-brake lever (or breakaway-only parking), the no-handbrake version saves you money.
Do I need anything on the truck side for a Cruisemaster coupling?
A tow pin mounted to your hitch — and it's included in every DO35 and DO45 box we sell (1" US pin with the DO35, 1-1/4" with the DO45). Need a spare pin for a second tow vehicle? We stock the genuine DO35 tow pin kit and DO45 tow pin kit.
DO35 or DO45?
Match the coupling to your trailer's ATM/GVWR. Up to 3,500 kg (7,716 lb) the DO35 is the standard; heavier rigs need the DO45.
