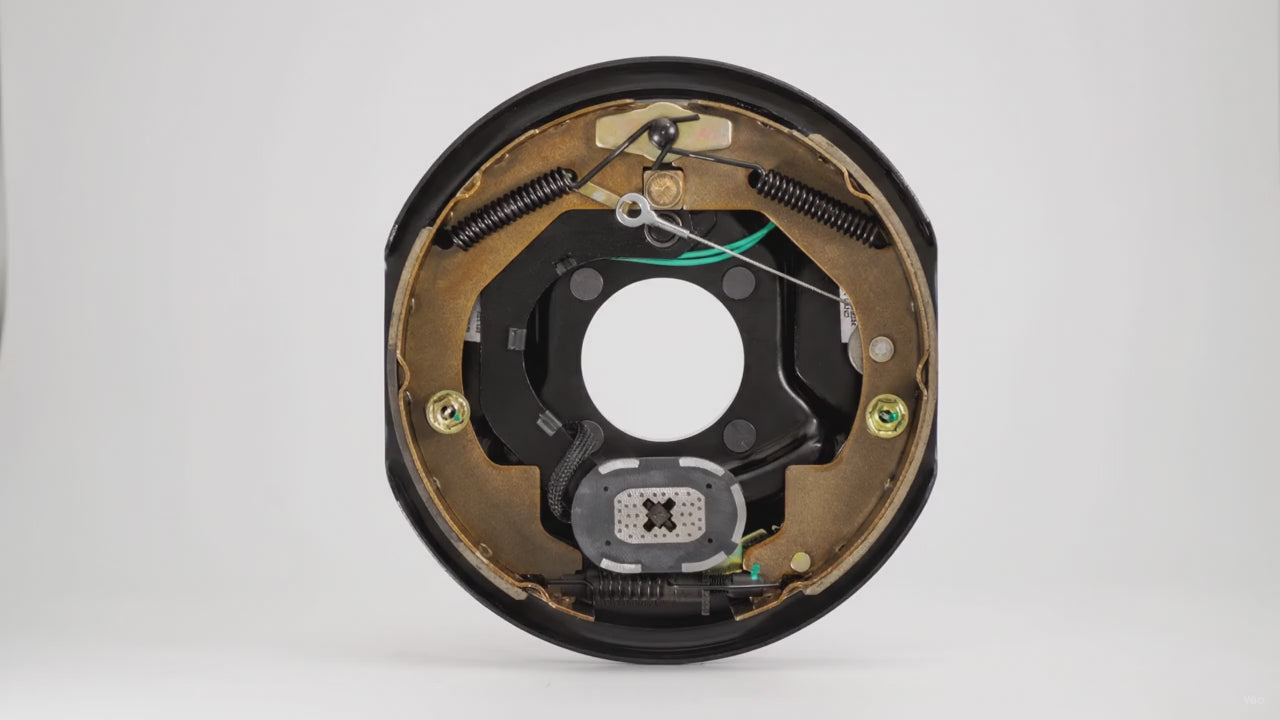

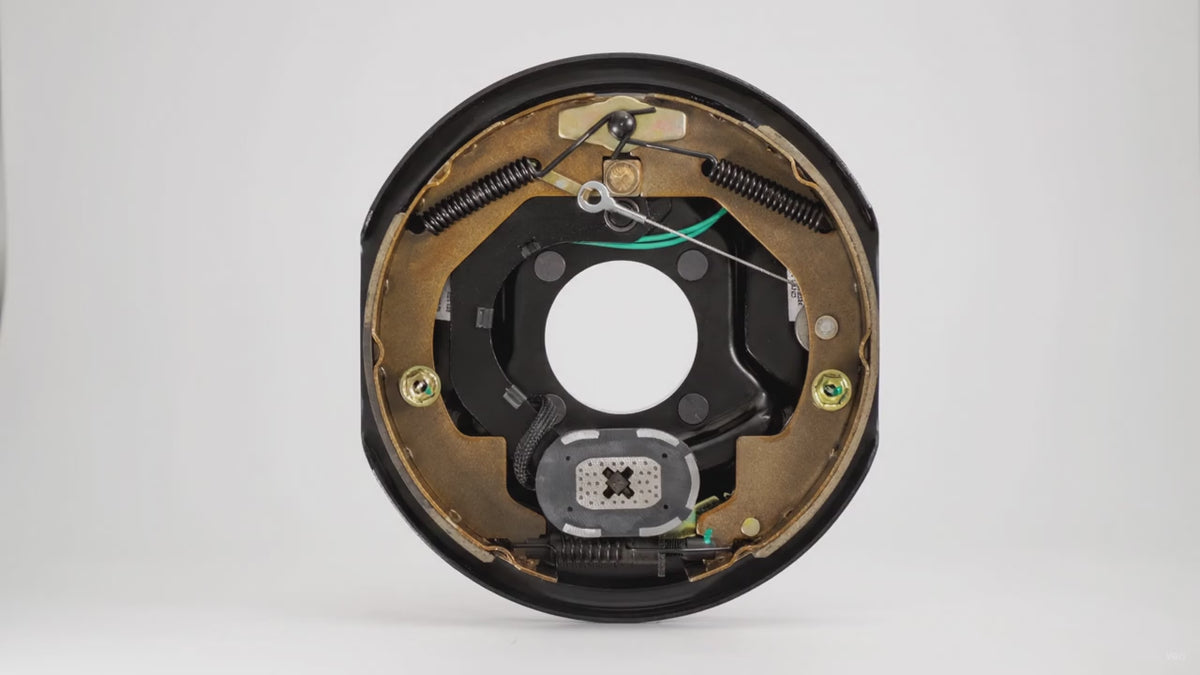

Lippert Forward Self-Adjusting Electric Trailer Brake Assembly, 10" x 2-1/4", 3,500 lb | 296649
- Regular price
- $82.00
- Sale price
- $82.00
- Regular price
-
$109.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Our replacement self-adjusting electric brake assemblies are easier to install than hydraulic brakes, and you never have to manually adjust them after the initial adjustment. These brakes self-adjust during every forward stop, providing up to 50% shorter stopping distance and preventing premature brake lining and magnet wear.
Genuine Lippert part, sold new by RV Parts Giant. Ships free to the lower 48 states. Covered by the manufacturer's warranty (1 Year).
Key features
- Replacement self-adjusting electric brake assembly
- 10" x 2-1/4" brake is compatible with the left-hand (driver) side of the vehicle
- Compatible with 3,500-lb. axles
- Universal 4-bolt mounting pattern for quick, easy installation
- Brakes self-adjust during every forward stop, providing up to 50% shorter stopping distance
- Helps prevent premature brake lining and magnet wear for safer travel
- Self-adjustment feature ensures reliable contact between the brake shoes and drums
- Maintains brake-to-drum clearance for more consistent performance over brake’s lifespan
- Easy, DIY installation with pre-installed studs
- Linings fully bonded to shoes for longer life and excellent braking torque
- Durable magnets ensure consistent braking power
- Shoes feature automotive-grade friction material to ensure superior stopping performance and durability
- Included adjuster plugs protect internal components from dirt, grime, and road debris
- E-coat finish on backing plates resists rust and corrosion
- Requires only an electric brake controller (sold separately) — no actuator or hydraulic lines needed
- Brakes are compatible with all standard or aftermarket brake controllers
- Certified to QAI and CSA standards, ensuring exceptional quality and performance
- SAE-N certified for adherence to California and Washington state environmental regulations
- 3.5-7K brakes and drums compatible with competitor self-adjust electric brake assemblies
- Limited 1-year warranty on materials or workmanship defects
- Lippert genuine replacement part ensures the perfect fit every time
- Mounting hardware included
- Informative, full-color retail packaging
Specifications
- Weight Capacity: 3,500 lbs.
- Brake Type: Forward Self Adjusting Electric
- Axle Brake Mounting Bolt Size: 7/16"
- Axle Capacity: 3,500 lbs.
- Brake Size: 10" x 2.25"
- Brake Flange Count: 4-Bolt
- Hardware Type: Brake Assembly
- Side: Driver (Left)
- Warranty Term: 1 Year
- Package Type: Retail Box
- Dexter Compatible Part Number: K23-468-00

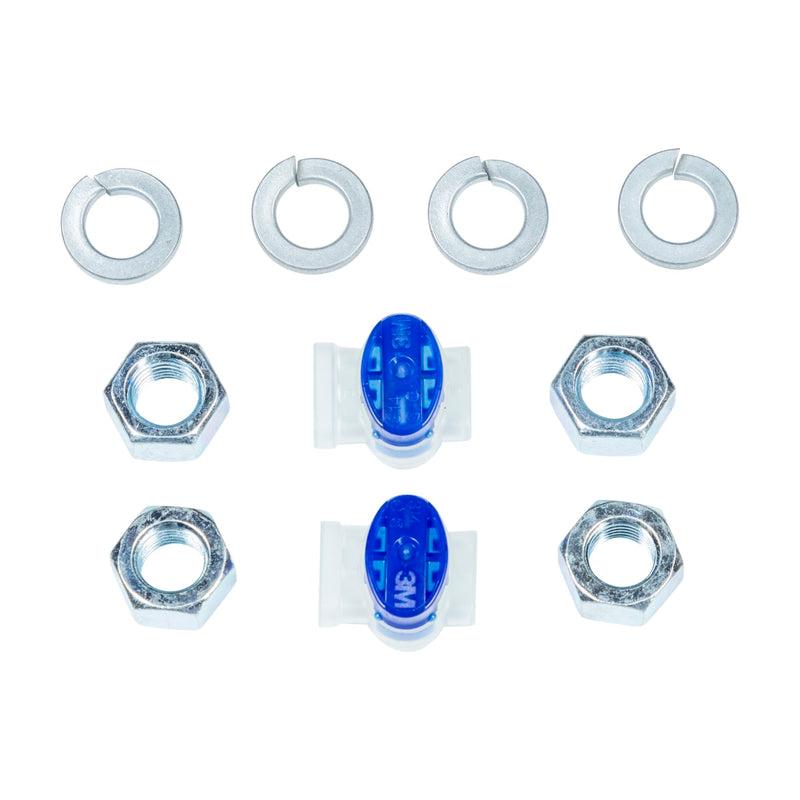

What's included
- Brake Assembly
- Lock Nut (4)
- Washer (4)
- Sealed Wire Connector (2)
Part numbers: 296649 (supersedes 2023067983, 1222583); UPC 848150002280
