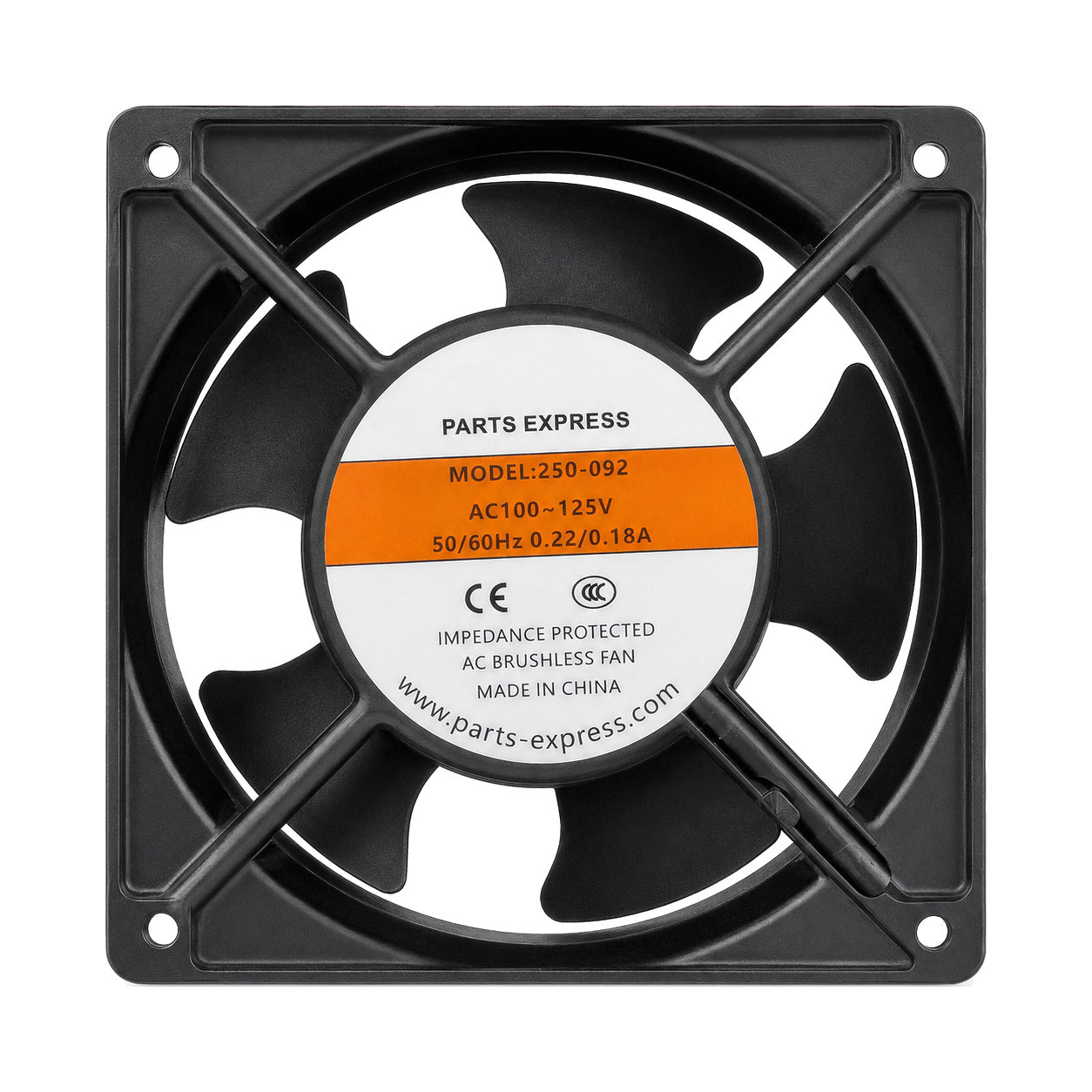

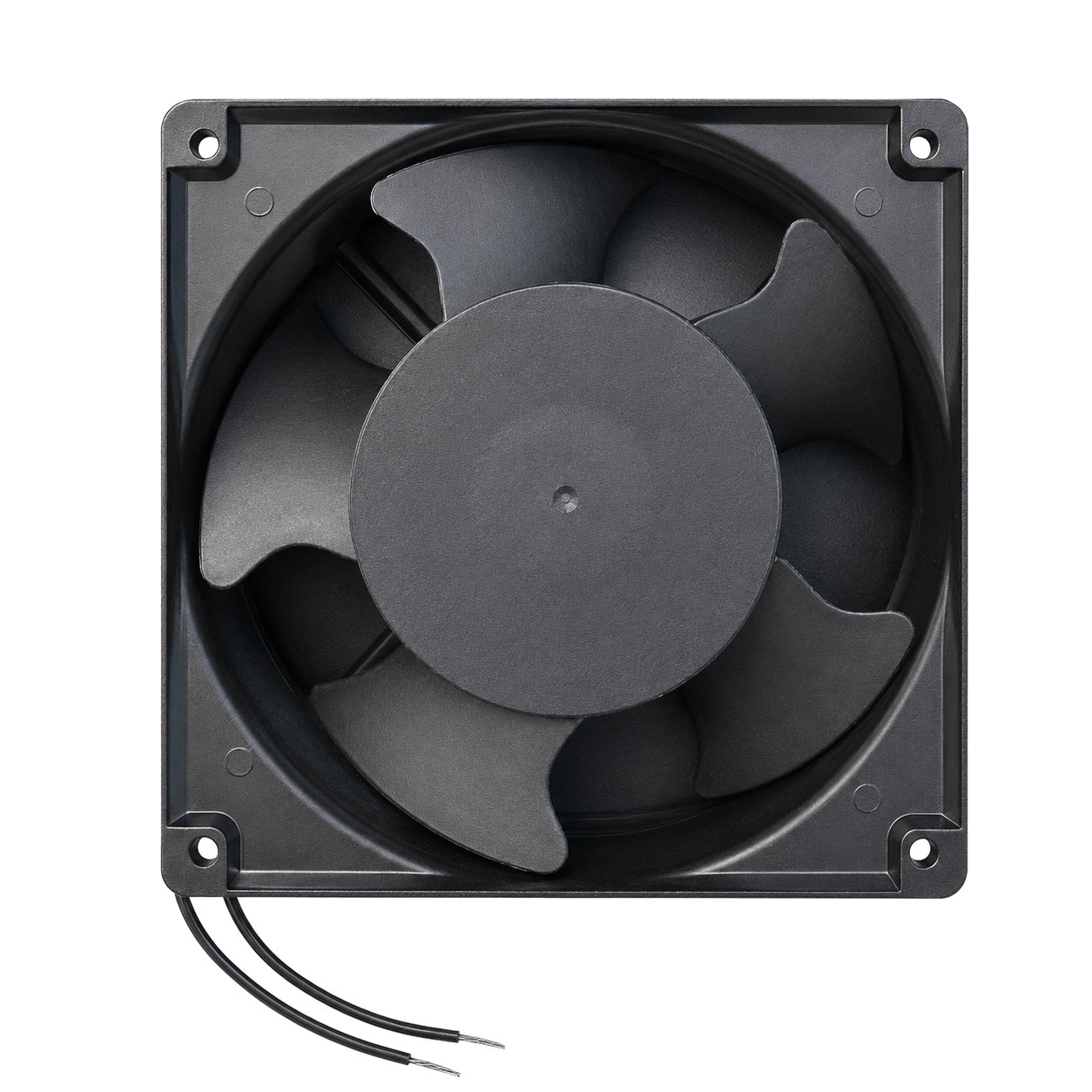

Parts Express 250-092 120V AC Brushless Cooling Fan, 120mm, 100 CFM

Improve airflow and protect heat-generating equipment with the Parts Express 250-092 AC Brushless Cooling Fan. Operating from standard 100–125V AC power, this 120mm axial fan delivers approximately 100 CFM of airflow for cooling RV electrical cabinets, power supplies, inverters, amplifiers, control panels, and other equipment enclosures.

Its compact 120 × 120 × 38mm frame fits many standard replacement-fan openings. Impedance-protected construction, low power consumption, and preinstalled tinned wire leads make it a practical choice for equipment repairs, upgrades, and custom ventilation projects.

Key Features

• Operates from 100–125V AC power

• Compatible with 50Hz and 60Hz electrical systems

• Delivers approximately 100 CFM of airflow

• 2800 RPM operating speed

• 23W power consumption

• Approximately 46 dB operating noise

• Impedance-protected AC brushless motor

• Standard 120 × 120 × 38mm axial-fan dimensions

• Sleeve-bearing construction

• Includes 9-inch tinned 24 AWG wire leads

• Suitable for RV electrical compartments and equipment enclosures

Specifications

• Brand: Parts Express

• Model/Part Number: 250-092

• UPC: 848864058436

• Product Type: AC Brushless Axial Cooling Fan

• Input Voltage: 100–125V AC

• Frequency: 50/60Hz

• Rated Current: 0.22A at 50Hz / 0.18A at 60Hz

• Power Consumption: 23W

• Airflow: 100 CFM

• Speed: 2800 RPM

• Noise Level: 46 dB

• Bearing Type: Sleeve Bearing

• Dimensions: 4.72 × 4.72 × 1.50 in (120 × 120 × 38mm)

• Lead Length: Approximately 9 in

• Product Weight: 0.95 lb

• Color: Black

Important Compatibility Note

This is a 100–125V AC fan. It cannot be connected directly to a 12V DC RV battery circuit. Installation should be completed by a qualified person using the correct AC wiring, enclosure, grounding, and circuit-protection practices.
