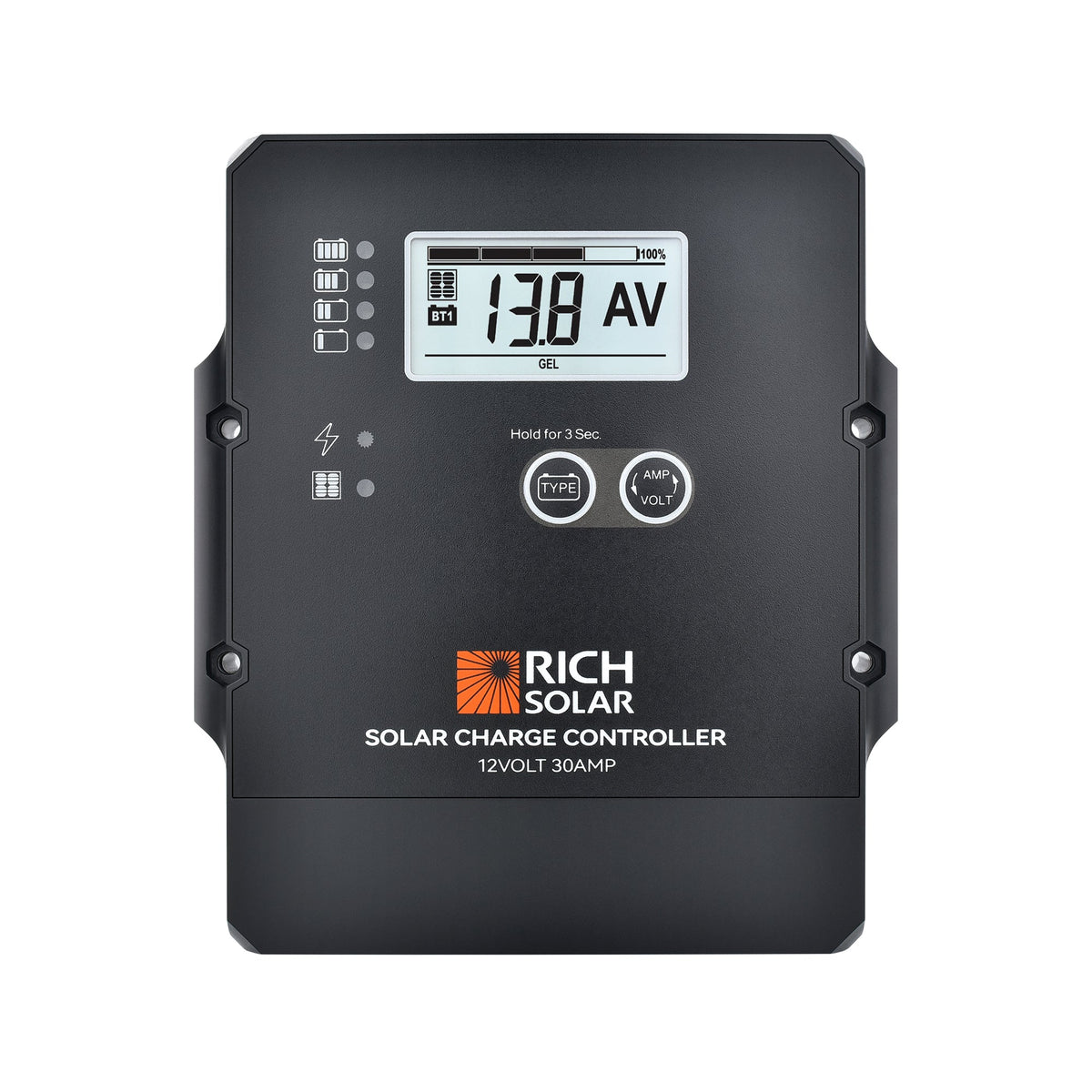

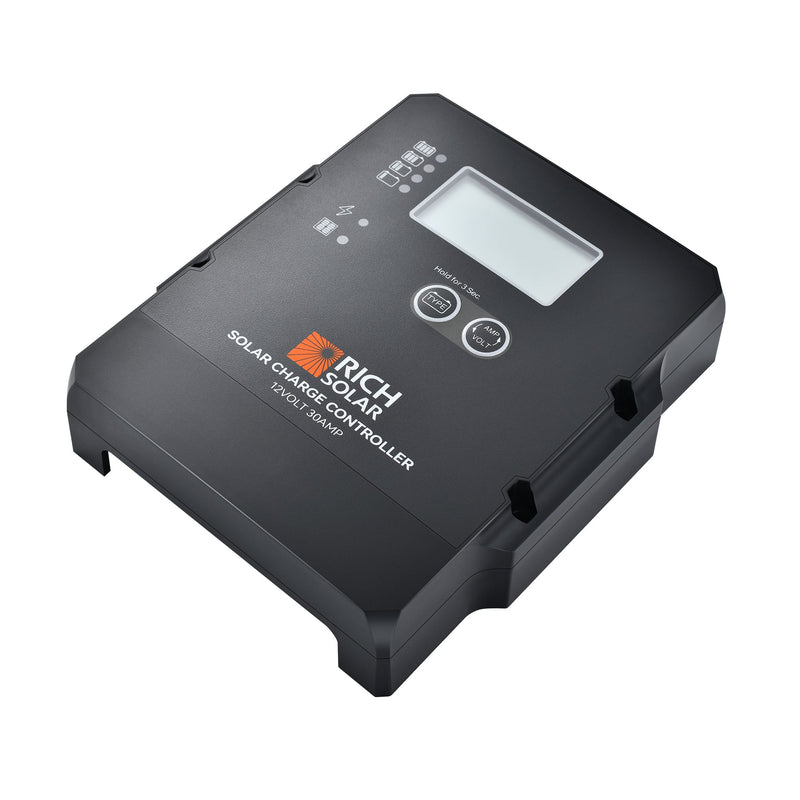

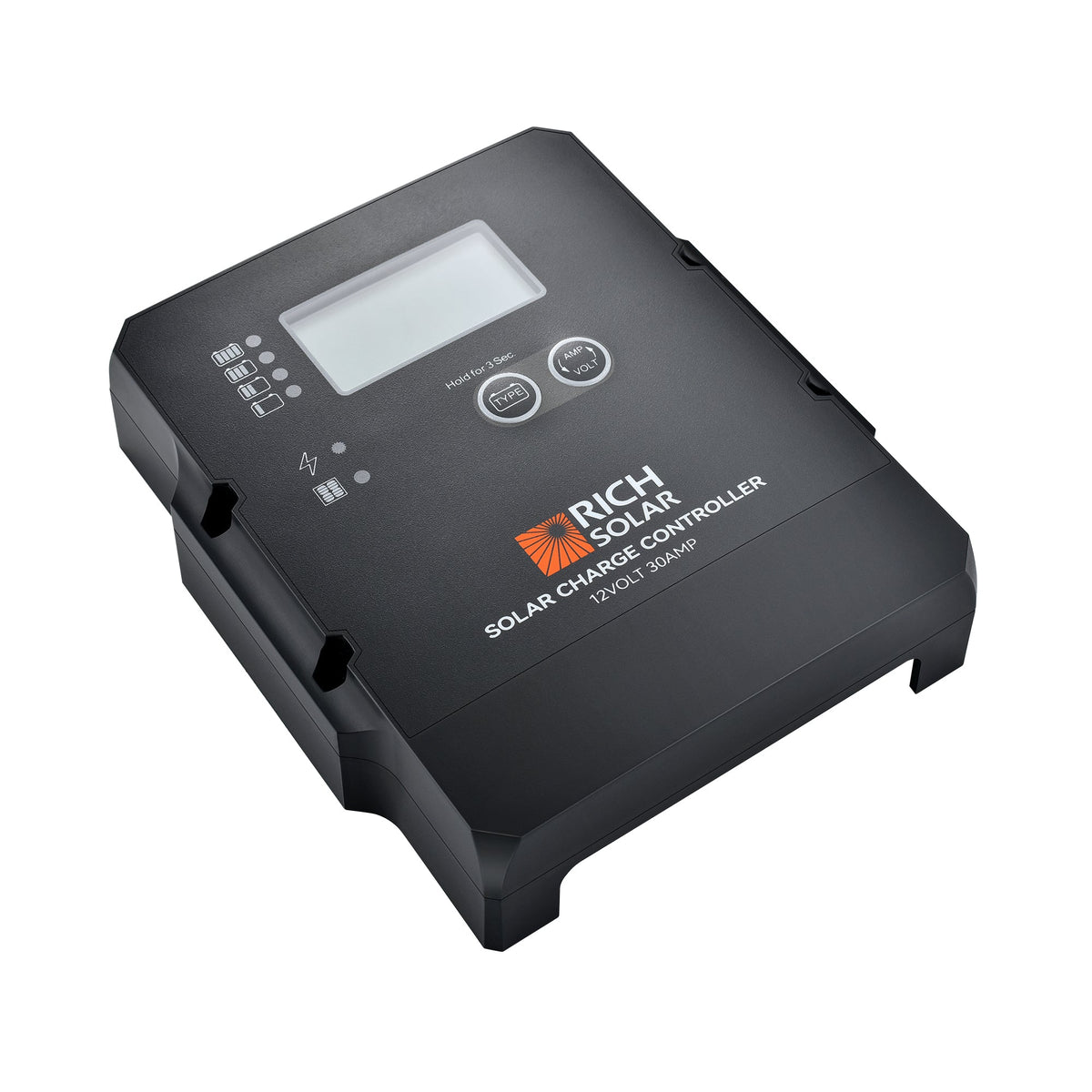

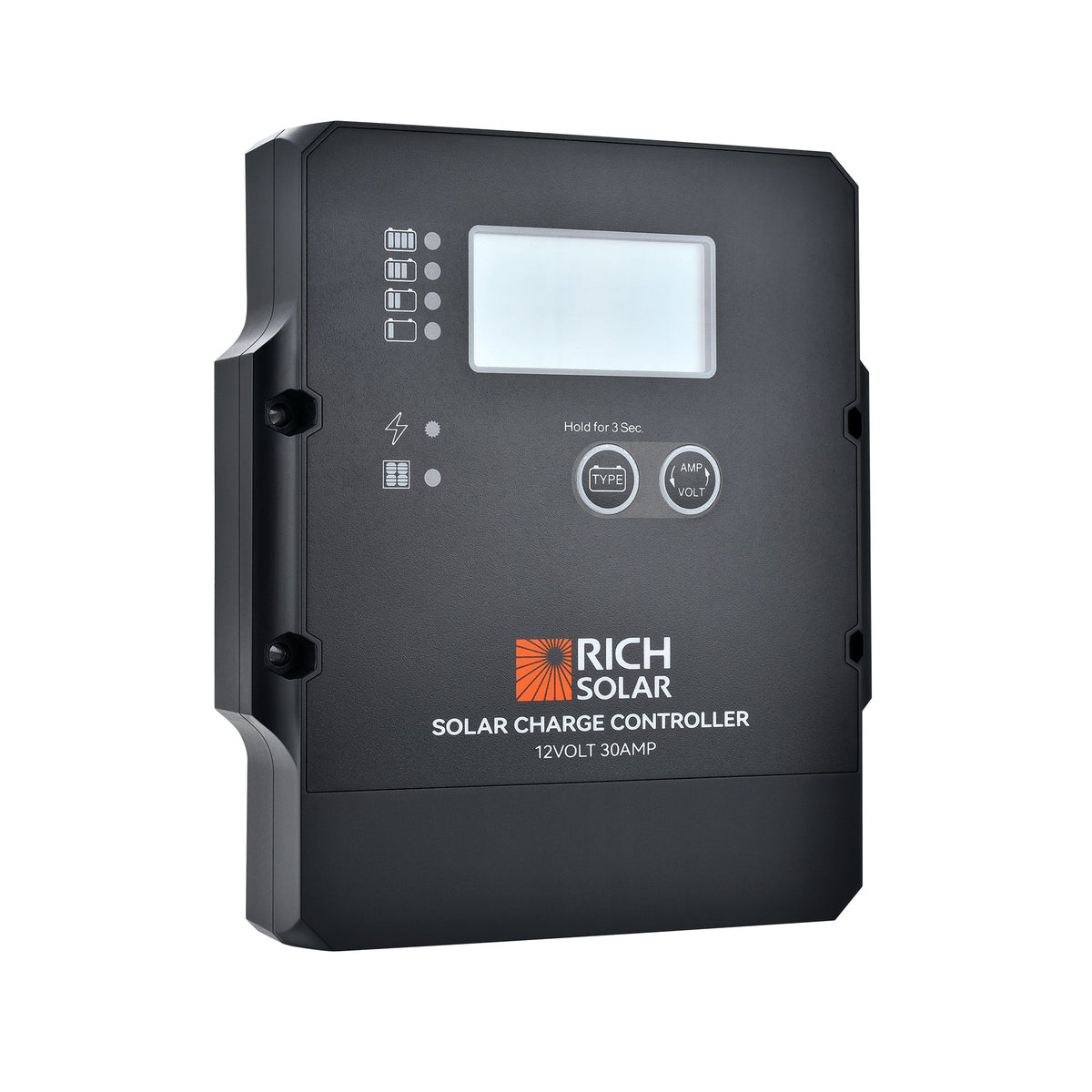

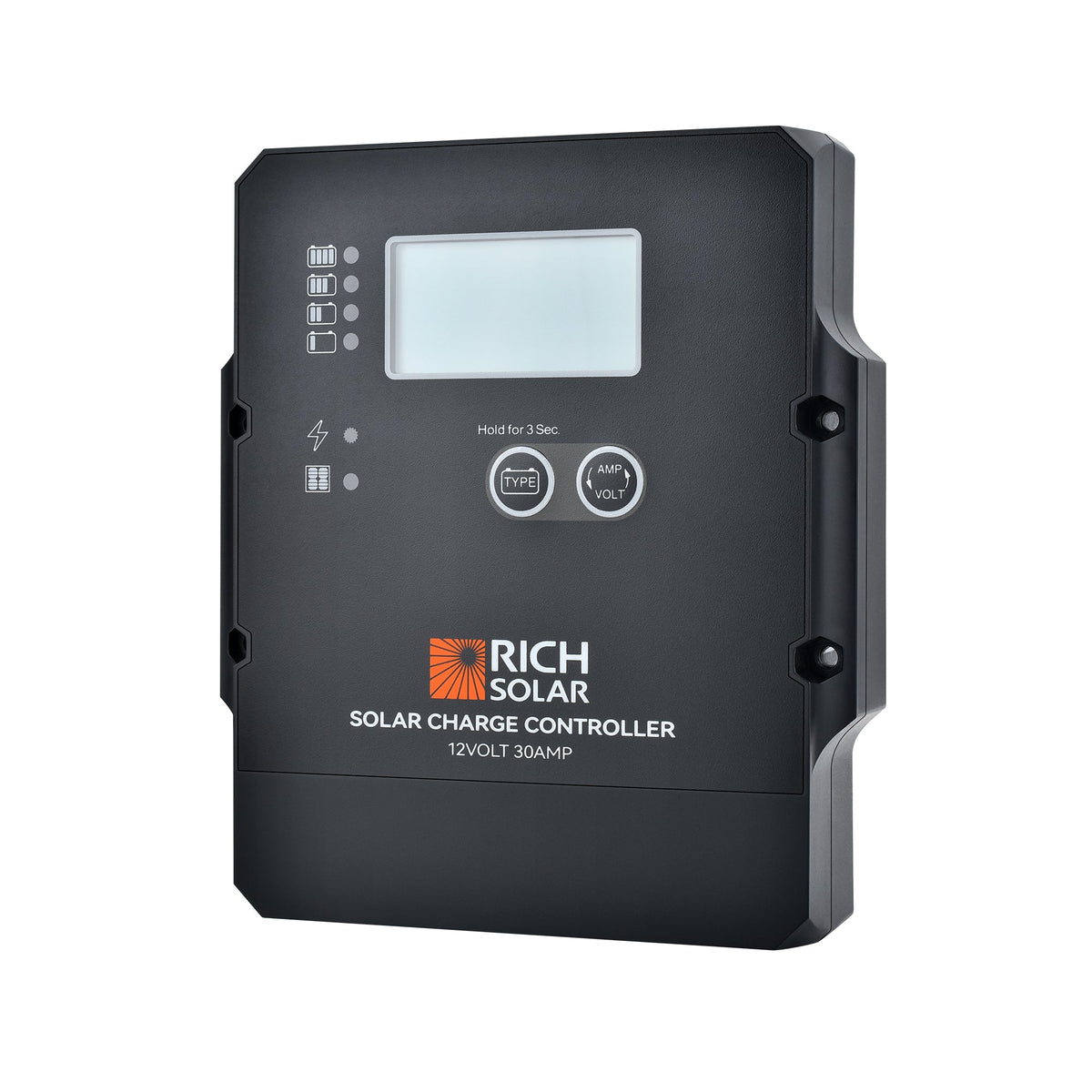

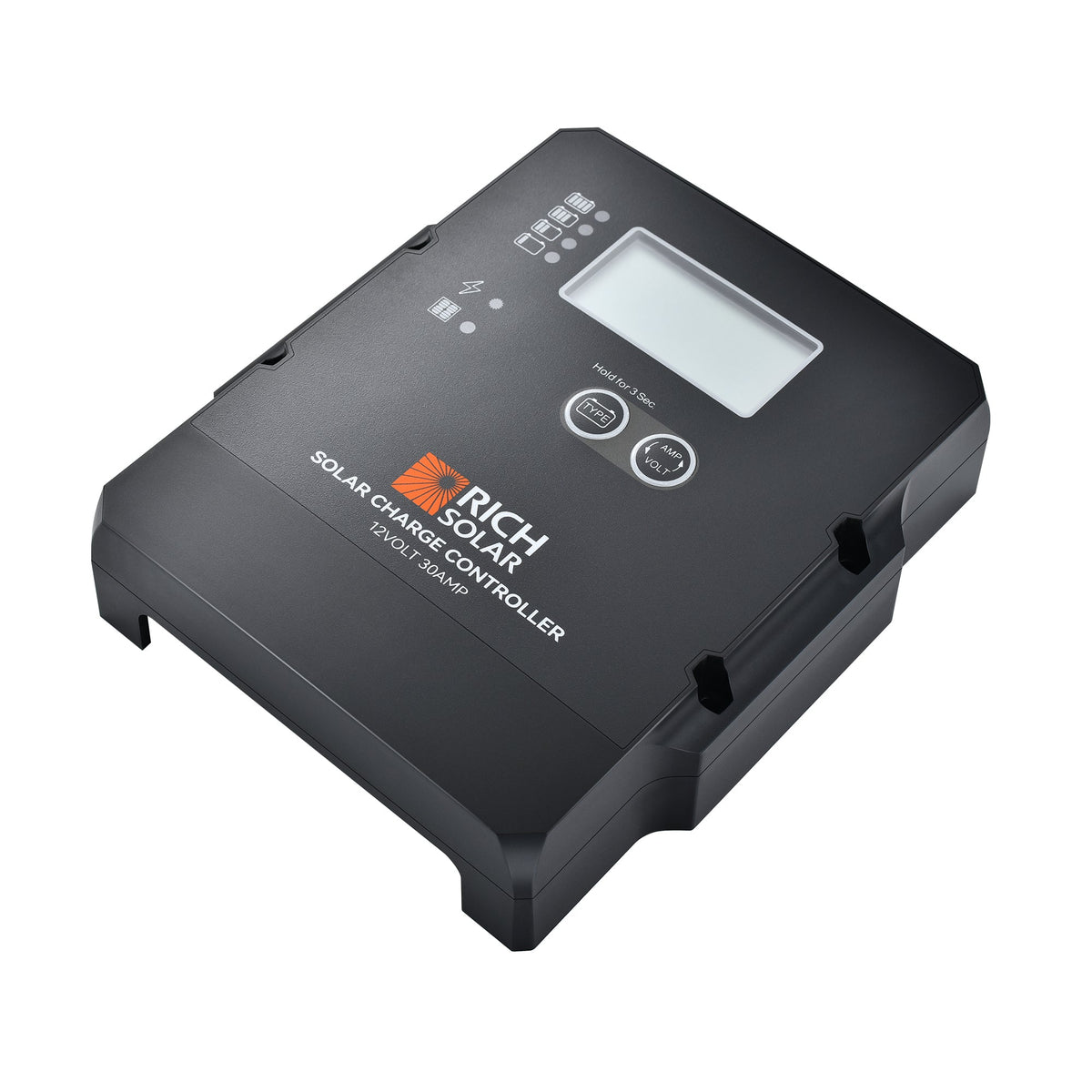

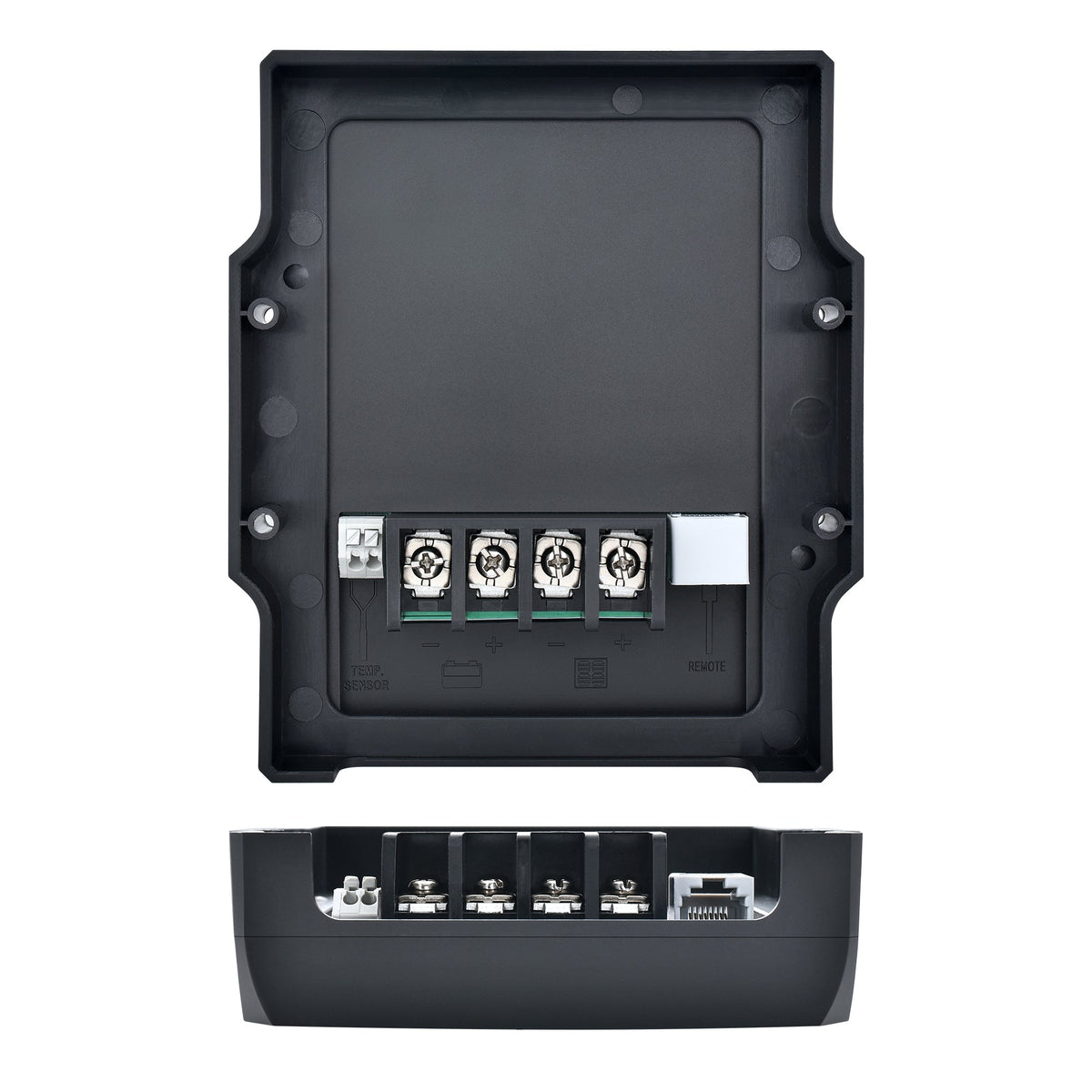

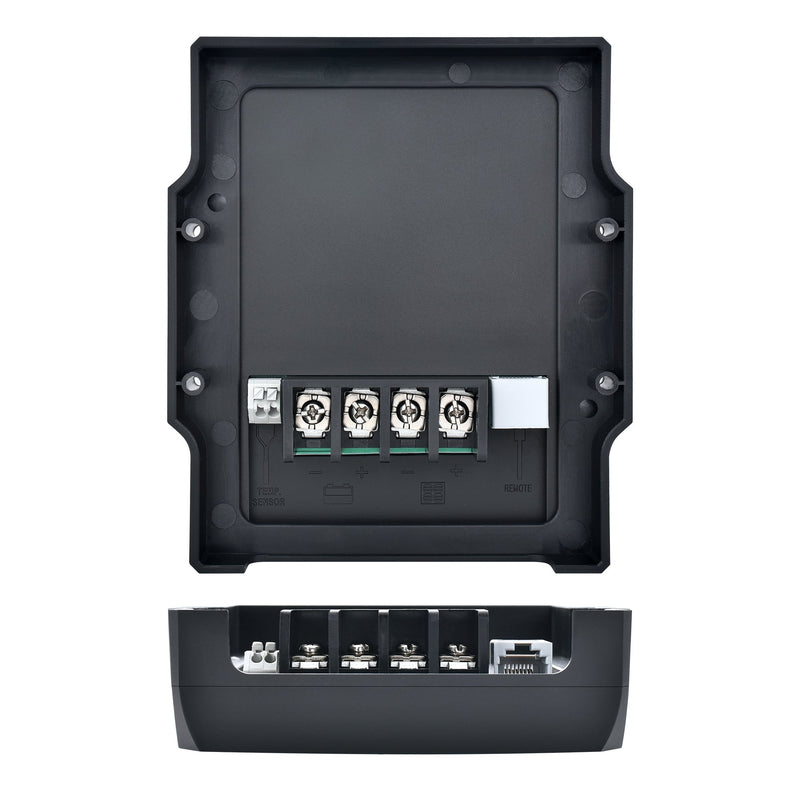

Rich Solar 30 Amp PWM Solar Charge Controller 12V 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
- Regular price
- $121.00
- Sale price
- $121.00
- Regular price
-
$128.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features
Intelligent Battery Charging
- PWM + MOSFET Charging Technology: Delivers efficient and stable battery charging.
- Intelligent Multi-Stage Charging: Smart charging control for optimized battery performance and longer battery life.
- Automatic BMS Activation: Reactivates protected lithium batteries automatically.
- External Temperature Sensor Ready: Supports an optional BTS for automatic temperature compensation.
Flexible System Compatibility
- 12V Battery System: Designed for 12V battery systems.
- Supports Multiple Battery Types: Compatible with Flooded, AGM, GEL, Calcium, and Lithium batteries.
- 25V Max Solar Input Voltage: Supports solar panel configurations with up to 25V PV input.
- Common Positive Grounding: Compatible with common positive grounding systems.
User-Friendly Operation

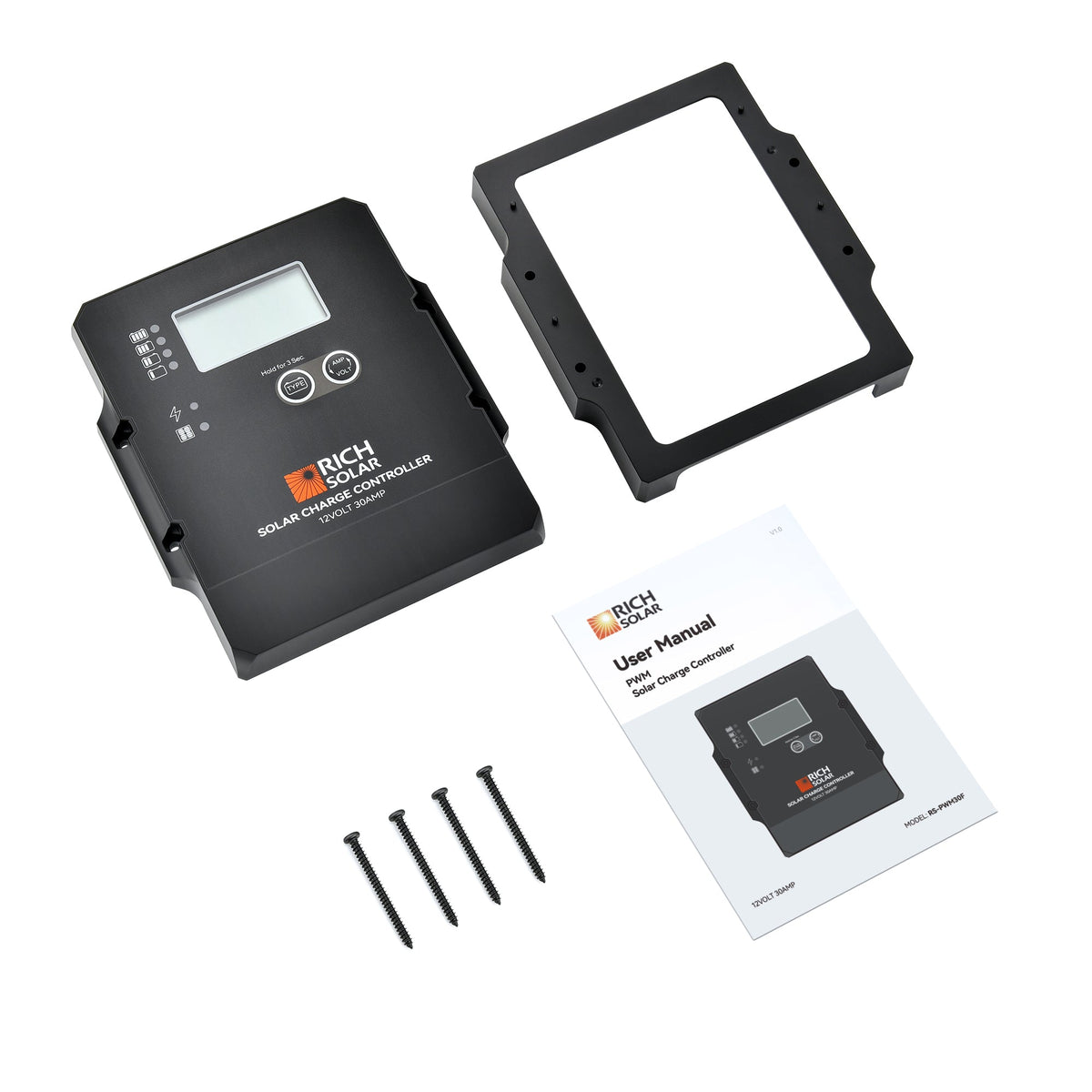

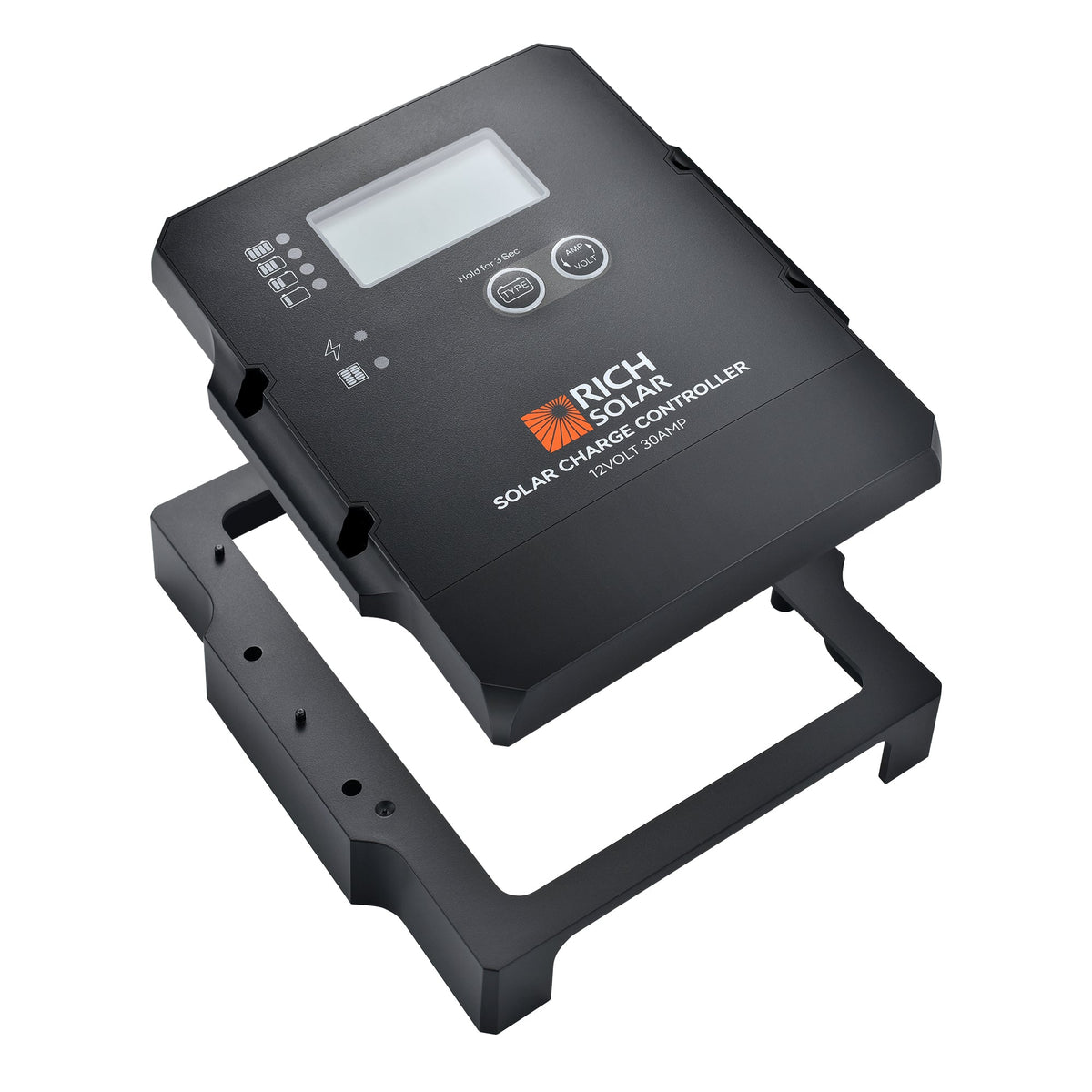

- Flush-Mount Compact Design: Flush-mount, space-saving design for a clean, professional installation.
- Digital Display & LED Indicators: Displays charging parameters, battery settings, and system status.
- Battery Status Indication: Clearly indicates battery condition and charging status.
Reliable Performance
- Advanced Electronic Protection: Protects against over-voltage, short circuit, reverse polarity, and overheating.
- Spark-Free Connection: Prevents sparks during battery connection for safer installation.
- Conformal Coated Circuit Board: Protects internal electronics against moisture and corrosion.
- UL 1741 Certified: Certified for trusted safety and reliable performance.
Specifications
Electrical Parameters
- Rated Solar Panel Amps: Max. 30 AMP
- Normal Input Solar Cell Array Voltage: 15~22 VDC
- Maximum Solar Cell Array Voltage (output has no load): Max. 25 VDC
- The Controller Lowest Operating Voltage at Solar or Battery Side: Min. 8 VDC
- Standby Current Consumption at Night: Max. 5 mA
- Maximum Voltage Drop - Solar Panel to Battery: Max. 0.25 VDC
- Grounding: Positive Ground
Physical Parameters
- Controller Material: Plastic, Standard ABS
- Power Terminal Maximum Stranded Wire Size: #8 AWG stranded - 0.2in²
- Power Terminal Torque: Up to 17 in-lb (1.92 N·m)
- Mounting: Vertical wall mounting
- IP Grade: IP22
- Net Weight: Approx. 10.6oz / 300g
-
Package Dimensions: 8 × 7 × 3 in
- Gross Weight: 1 lb
Part numbers: RS-PWM30F (UPC 650380713450)
