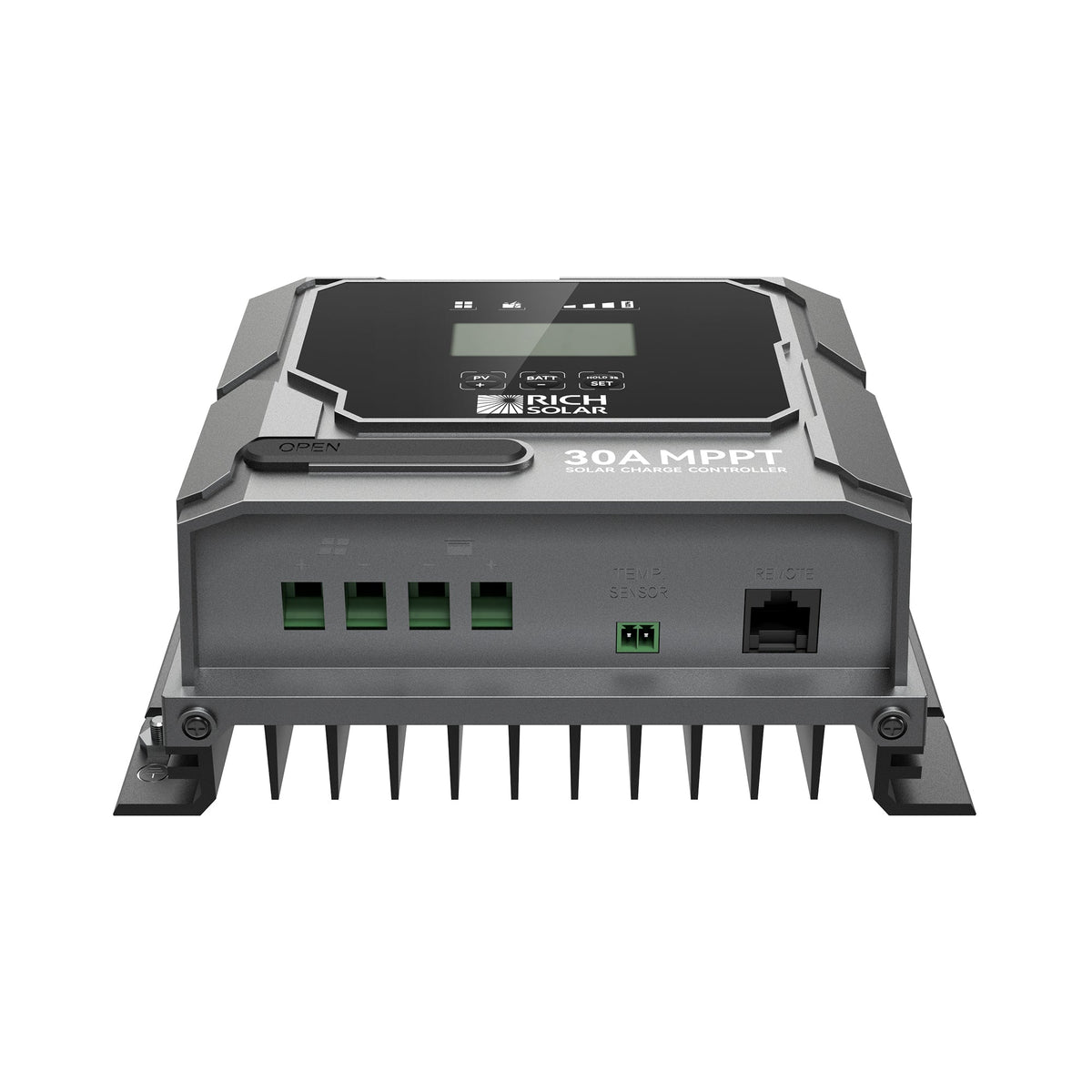

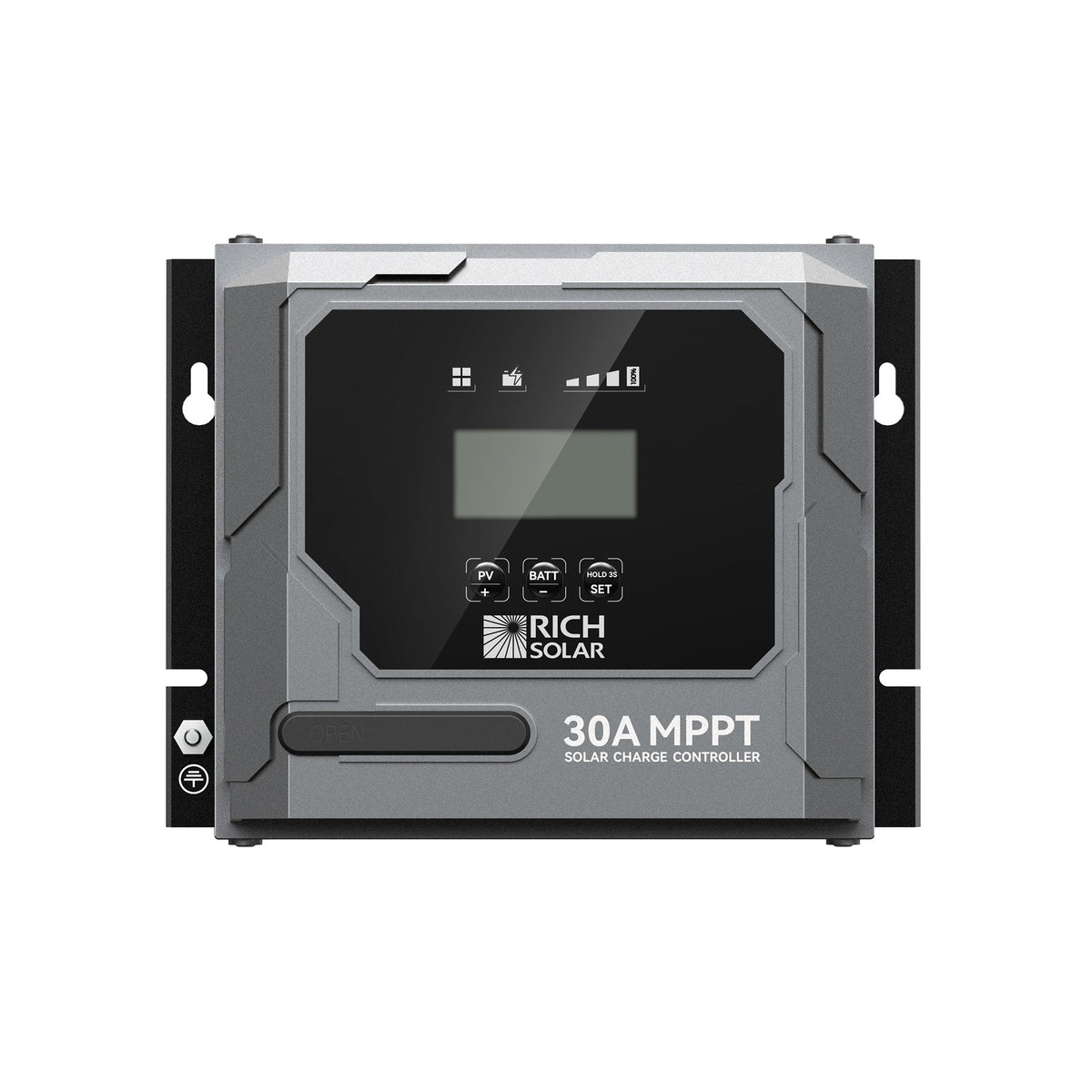

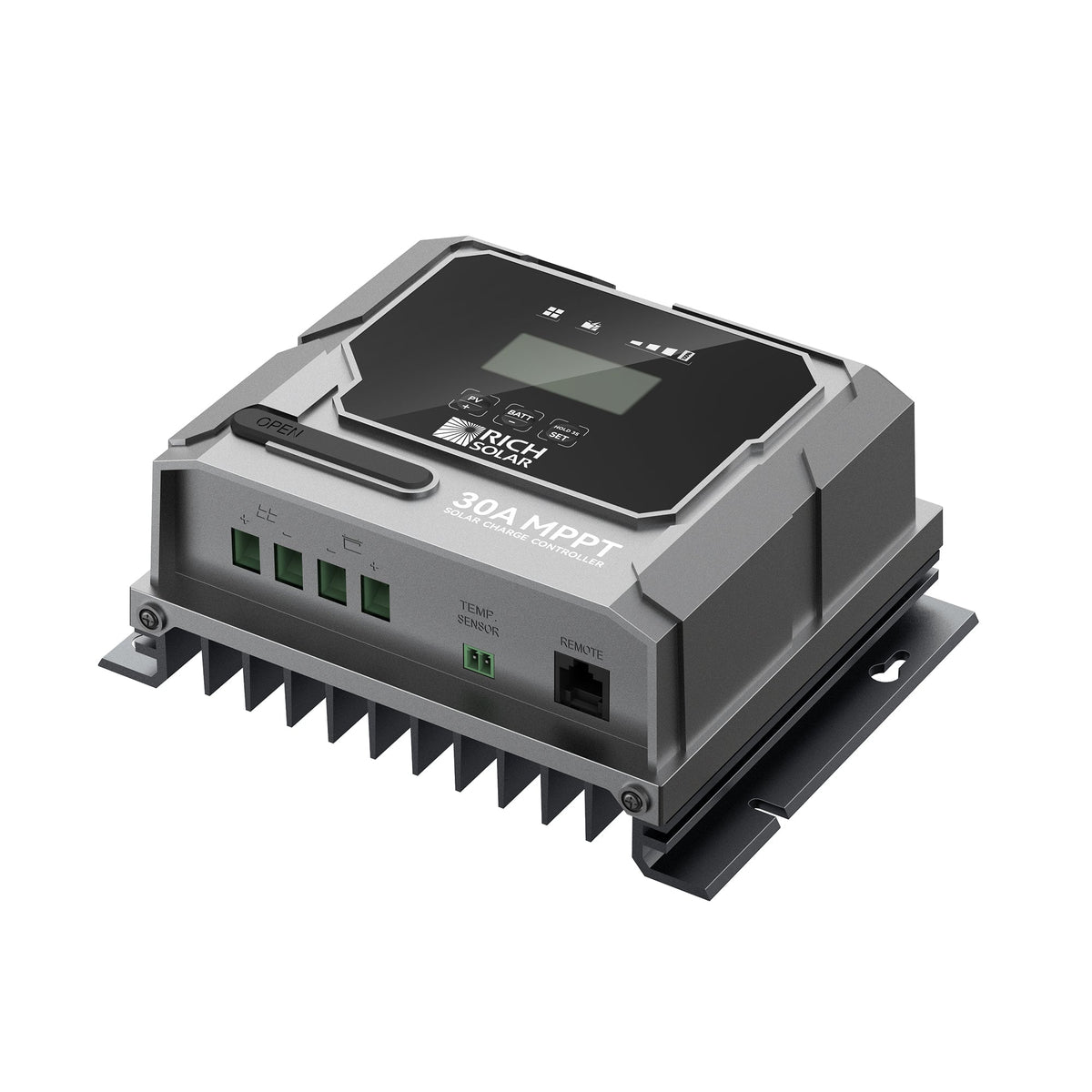

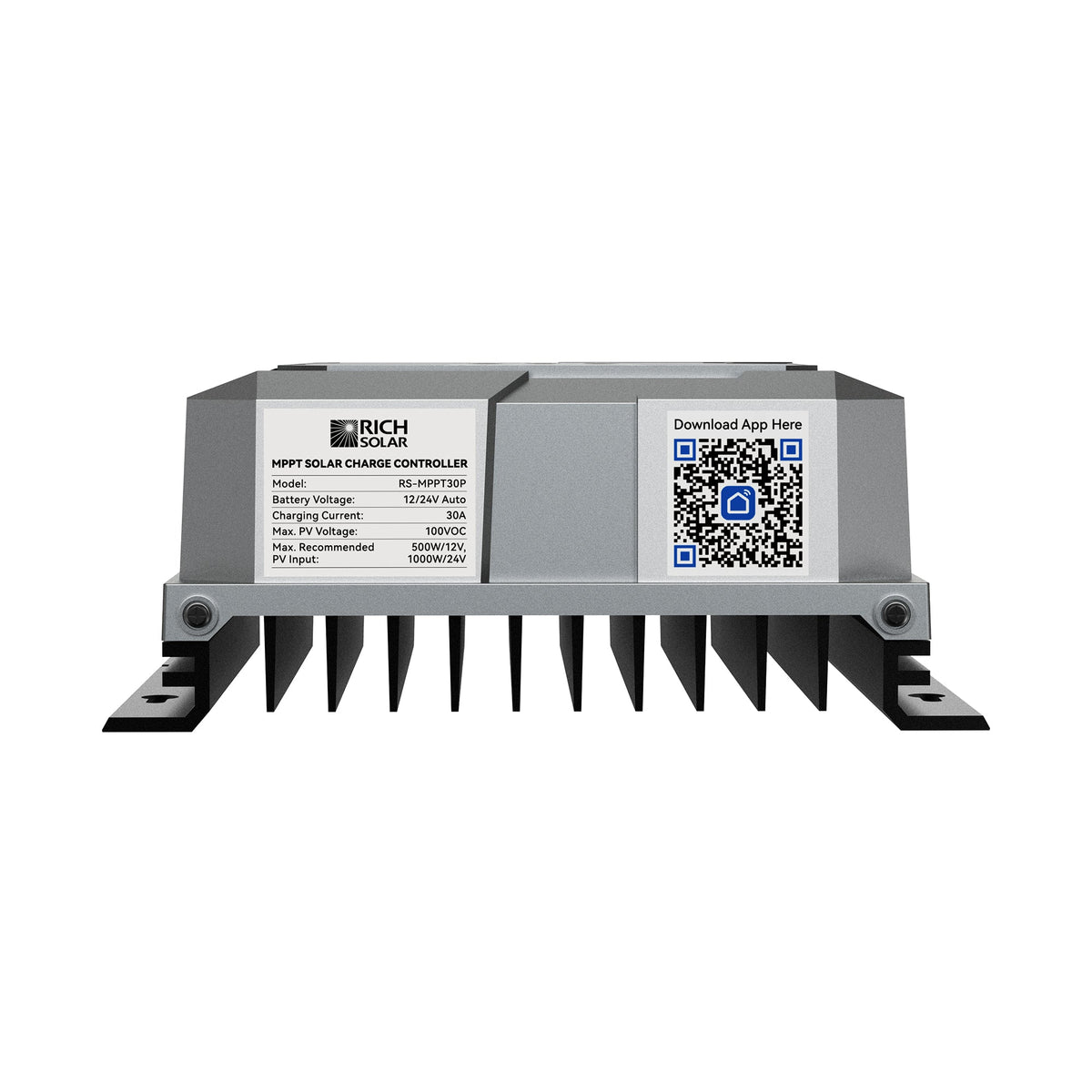

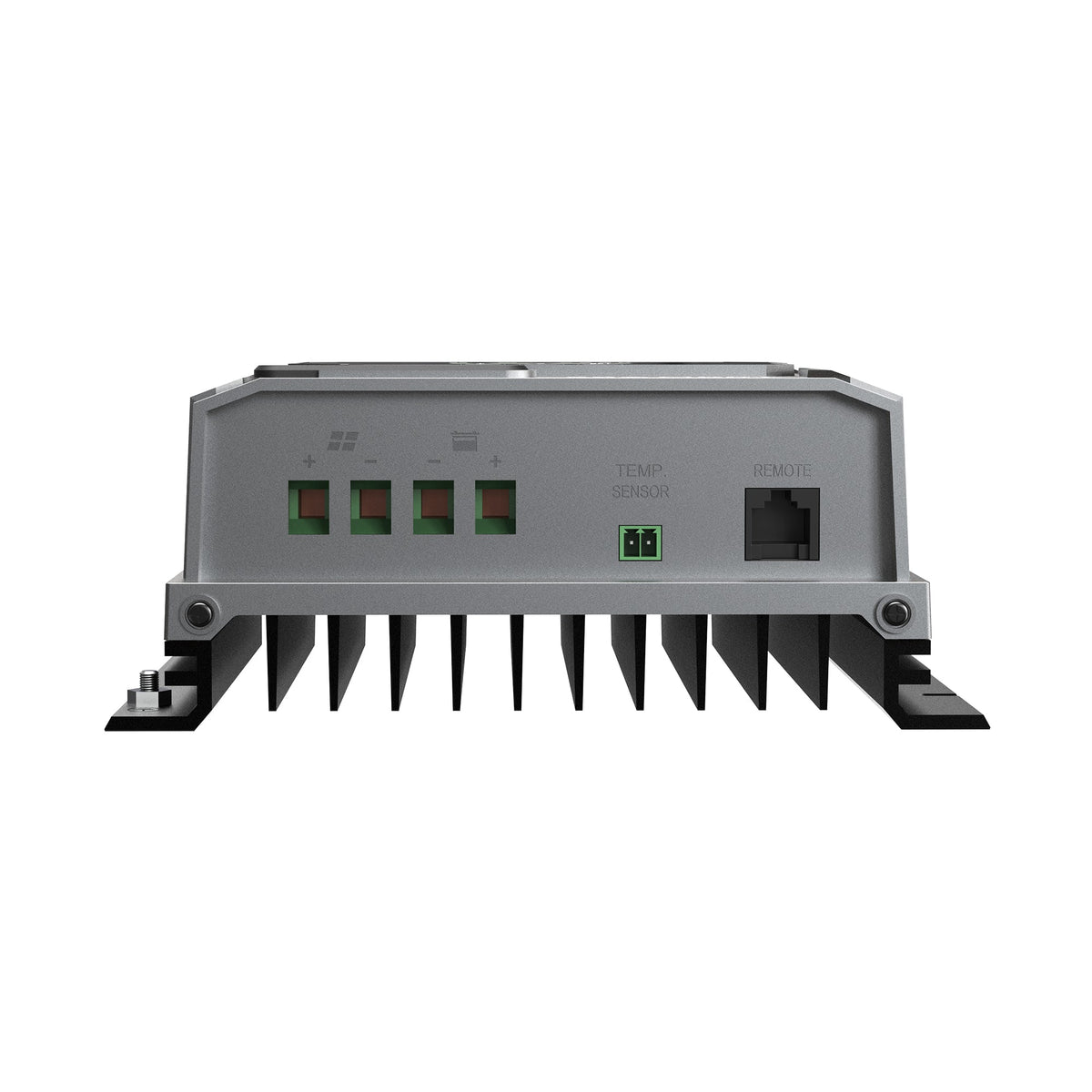

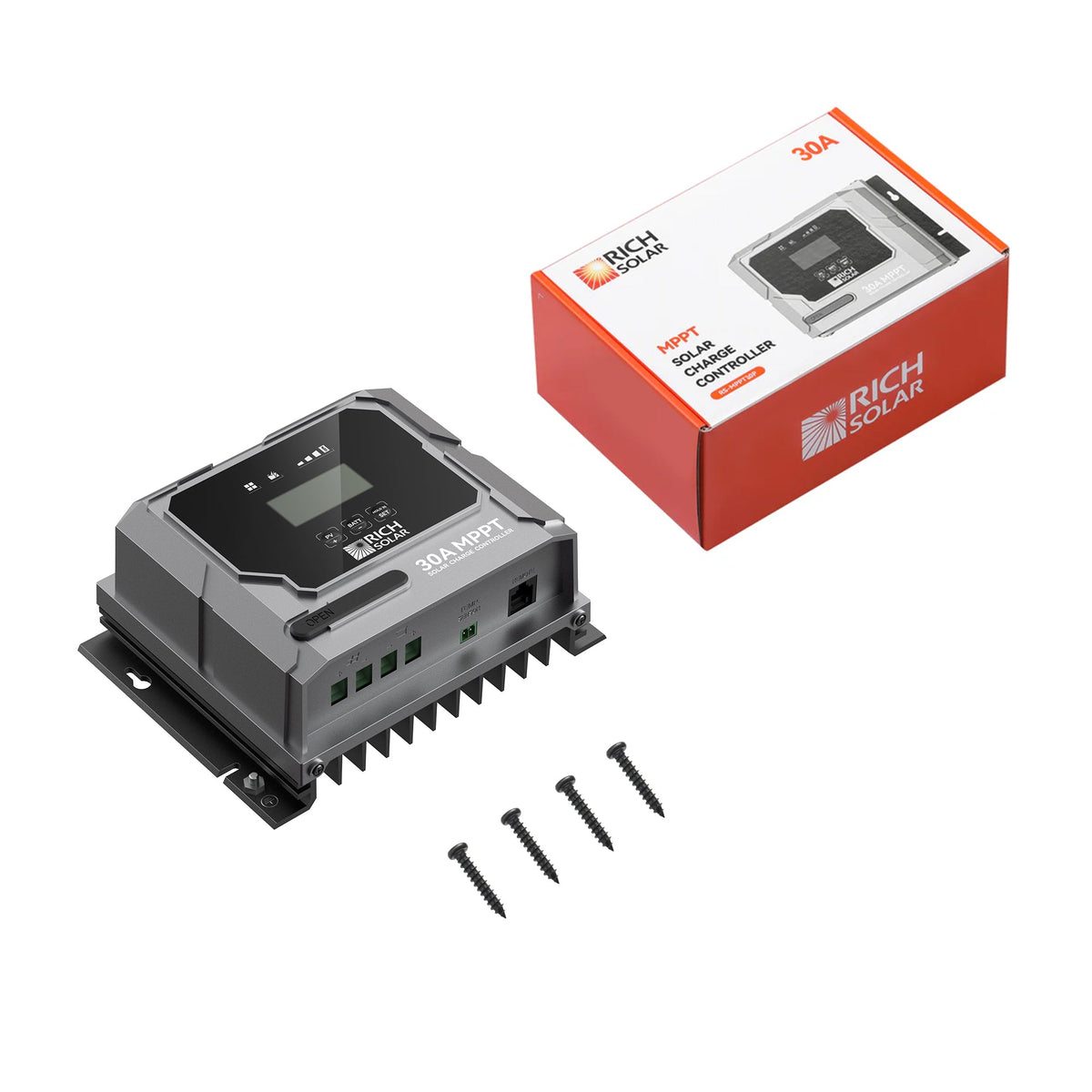

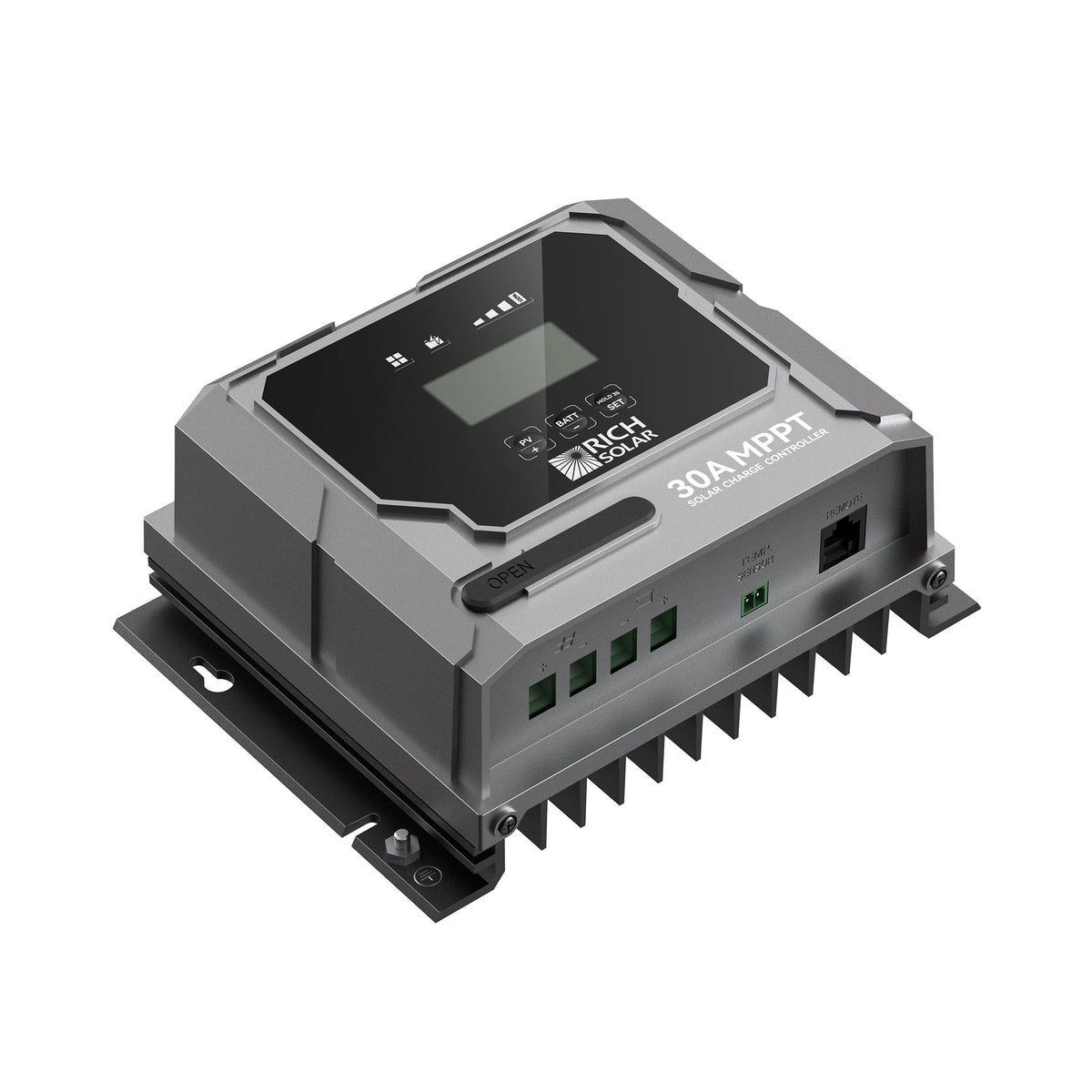

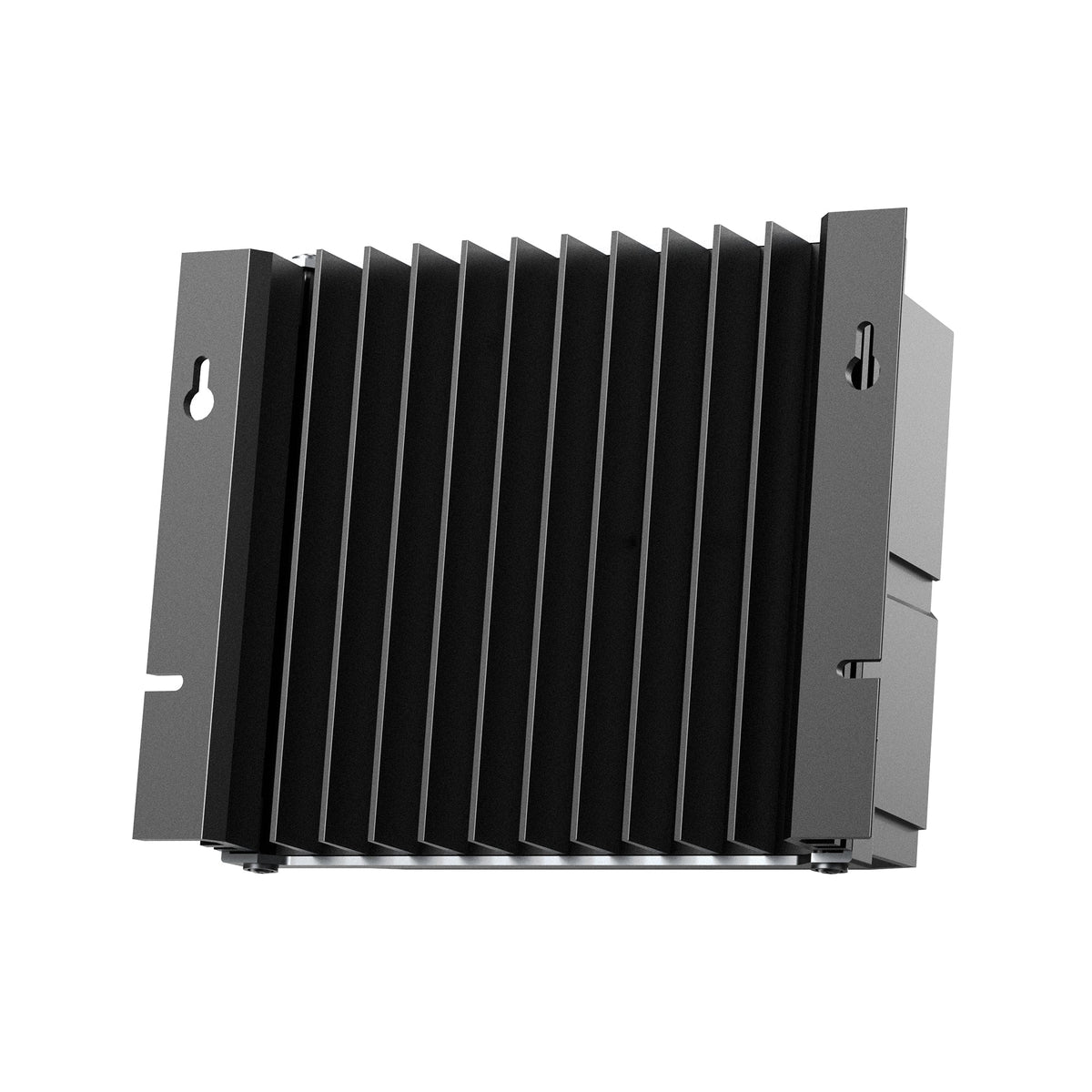

Rich Solar BRAVO 30 30A MPPT Solar Charge Controller
- Regular price
- $168.00
- Sale price
- $168.00
- Regular price
-
$199.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features
Efficient Solar Charging
- Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
- Up to 98% Charge Conversion Efficiency: Converts more solar power into usable battery charging energy.
- Supports up to 1000W PV Input: Handles larger solar arrays for faster battery charging.
Flexible System Compatibility
- 12V/24V Auto Detection: Automatically identifies the system voltage during installation.
- 100V Max PV Open Circuit Voltage: Supports flexible solar panel configurations and system expansion.
- Supports Multiple Battery Types: Compatible with Crystal, GEL, AGM, Flooded (WET), Calcium, LCO, LFP, and LTO batteries.
Smart Monitoring
- Built-In Bluetooth Monitoring: View real-time charging status through the RICH SOLAR App.
- LCD Display: View solar input, battery status, and charging information.
- Optional Accessories: Compatible with an optional remote meter and battery temperature sensor.
Comprehensive Reliability
- Certified to UL 1741, FCC, CE, and RoHS standards.
- Advanced Electronic Protection: Protects against over-voltage, reverse discharge, and circuit faults.
- Conformal Coated Circuit Board: Improves long-term durability in demanding environments.
Specifications
- Maximum Solar Input Current: 30A
- Maximum Charging Current: 30A
- Recommended Solar Power: 500W (12V) / 1000W (24V)
- Nominal System Voltage: 12V/24V Auto-Detect
- Solar Input Voltage Range: 8V-100V
- MPPT Voltage Range: 15V-72V
- Maximum Conversion Efficiency: 98%
- Maximum MPPT Tracking Efficiency: 99.5%
- Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
- Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
- Protection Rating: IP43 PCBA, IP22 Connection
- Net Weight: 1.8 lb
- Dimensions (L×W×H): 7.0 × 5.5 × 2.9 in
-
Package Dimensions: 10 × 7 × 5 in
- Gross Weight: 4 lb
Part numbers: RS-MPPT30PB, RS-MPPT30P (UPC 650380714952)
Ships from our Upland, CA warehouse to the lower 48 states.
How much solar it takes
- Array size: Rich Solar recommends up to 500W on a 12V battery and 1,000W on 24V.
- Panel voltage: up to 100V, so 24V panels and series strings work. Leave margin for cold-weather voltage rise.
- Examples: two MEGA 200 or four MEGA 100 SLIM ONYX panels on a 12V battery. That is how Rich Solar builds its Basic 400W and 400W Slim kits.
