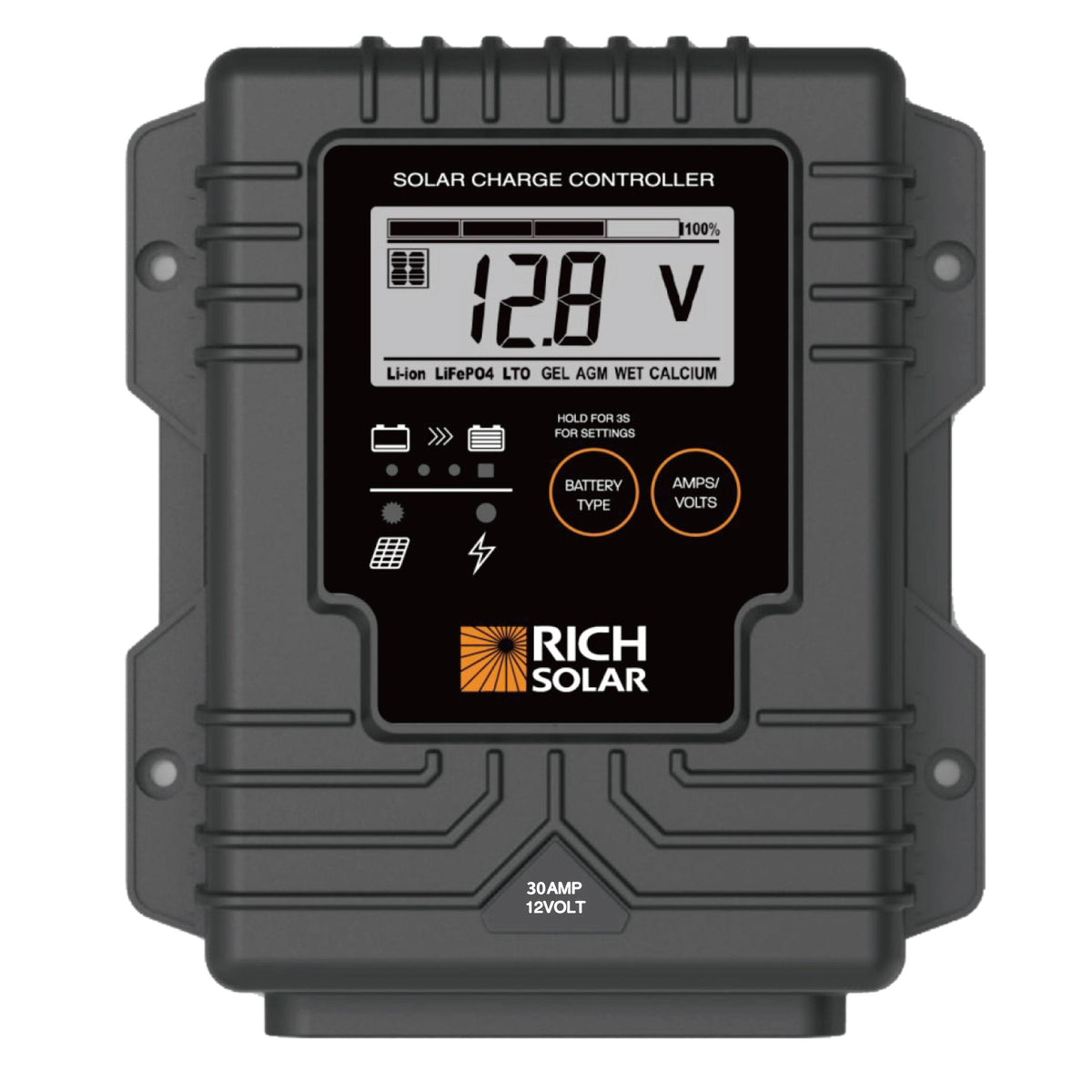

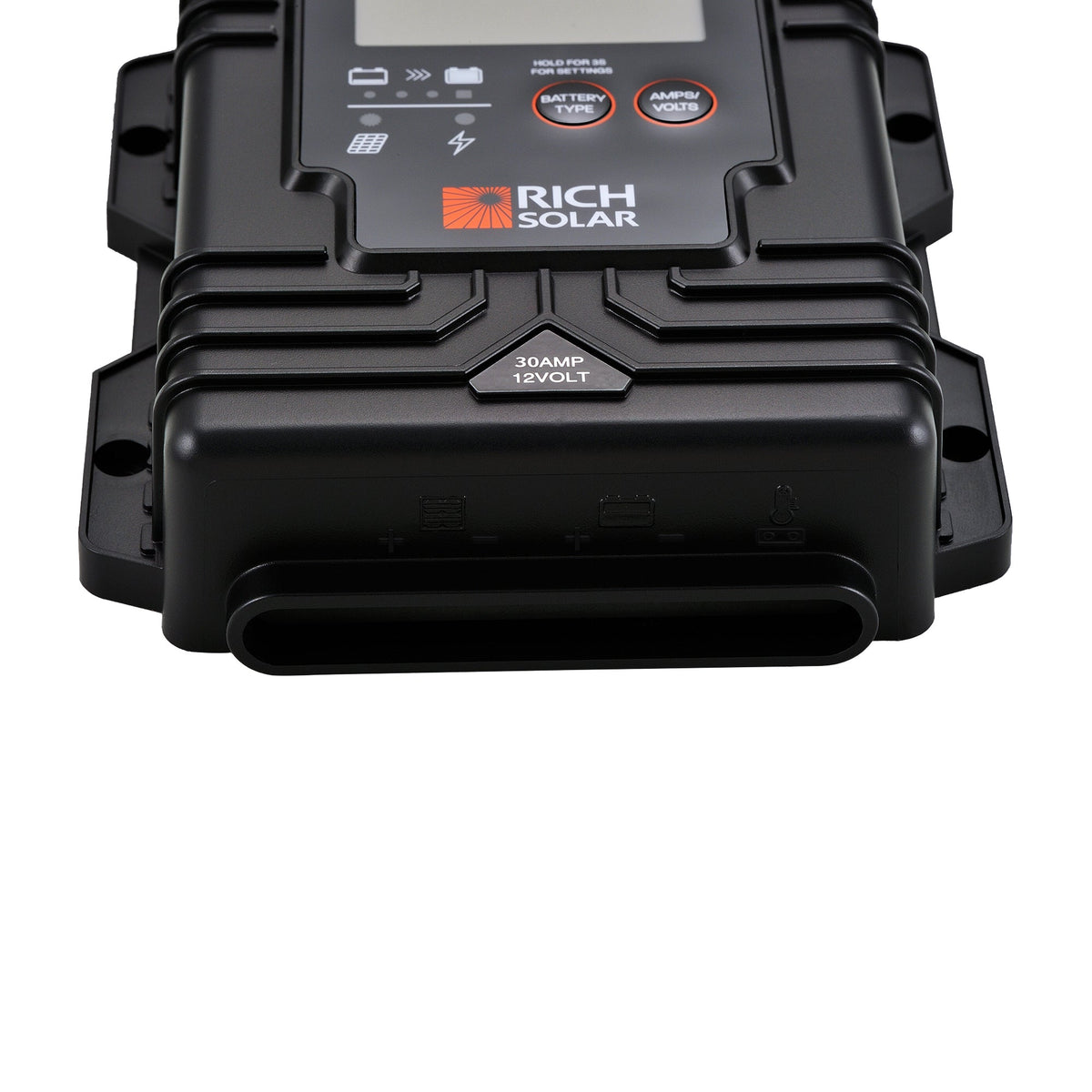

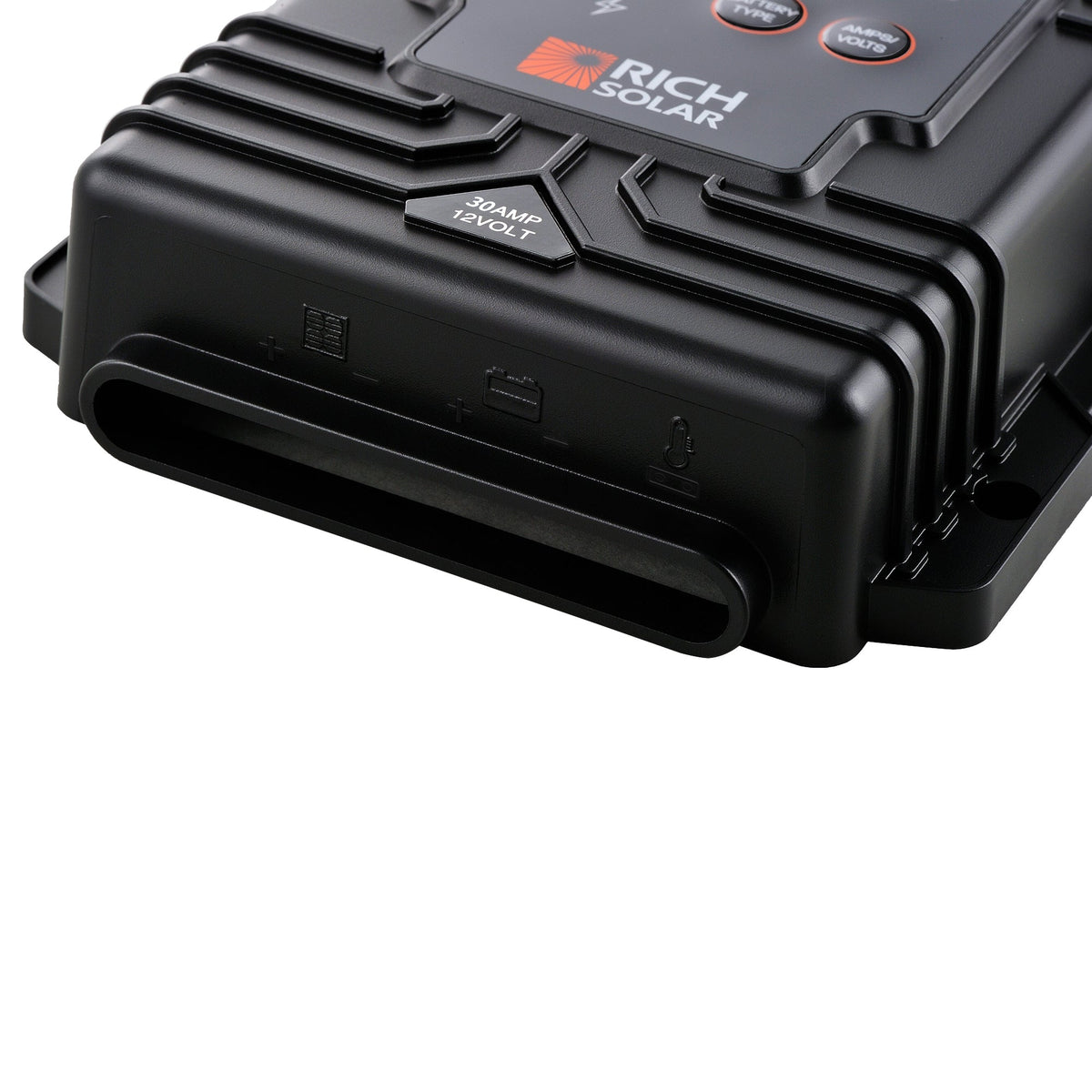

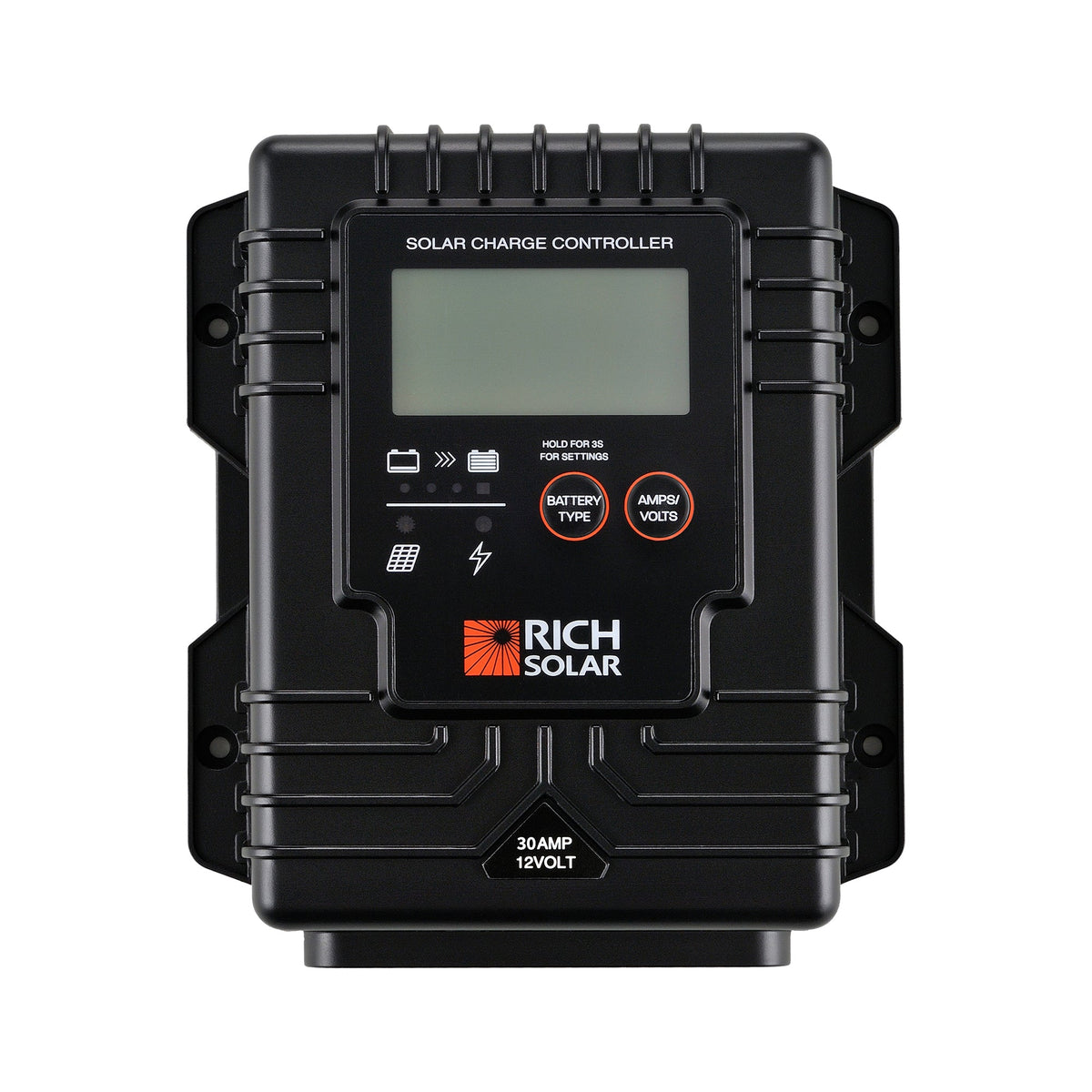

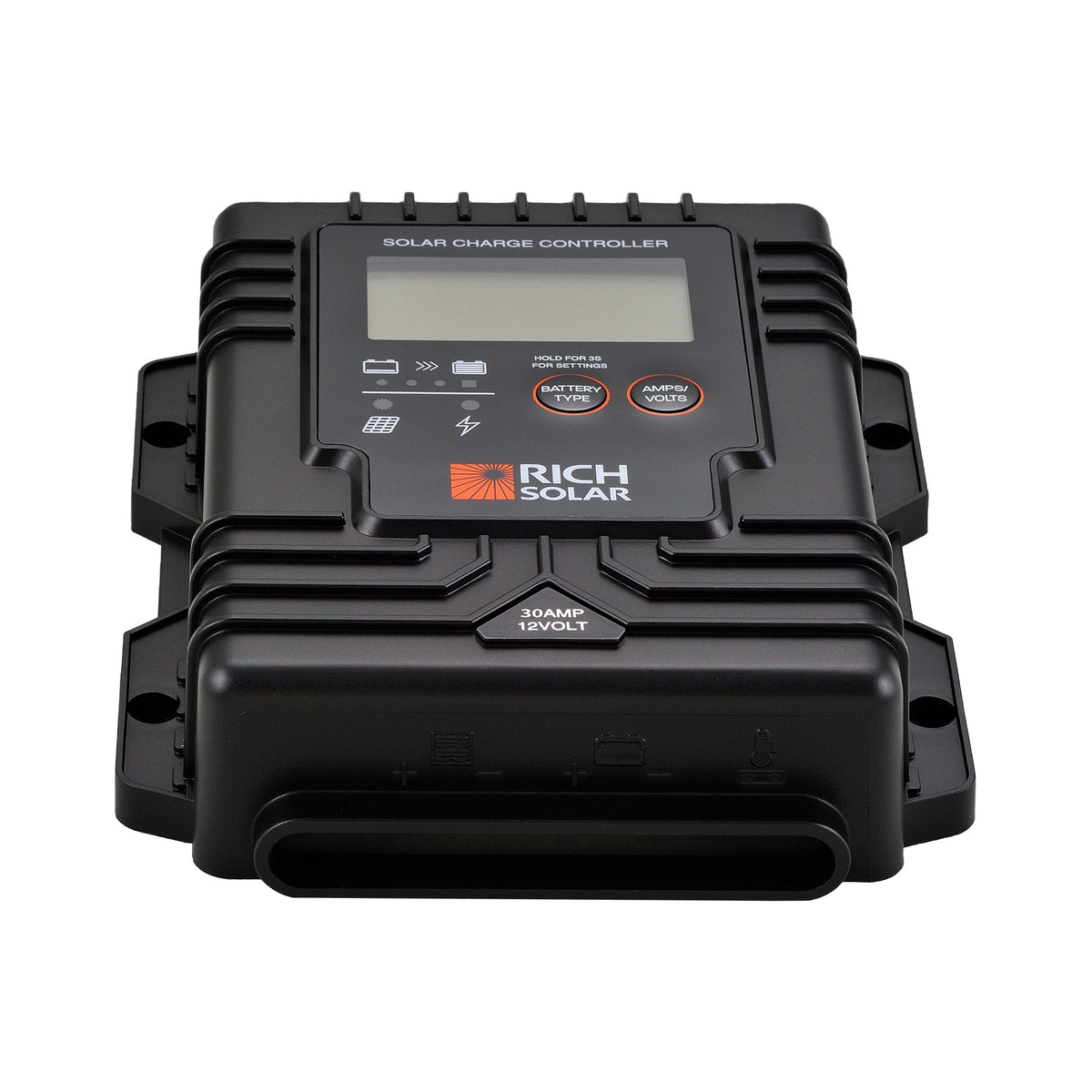

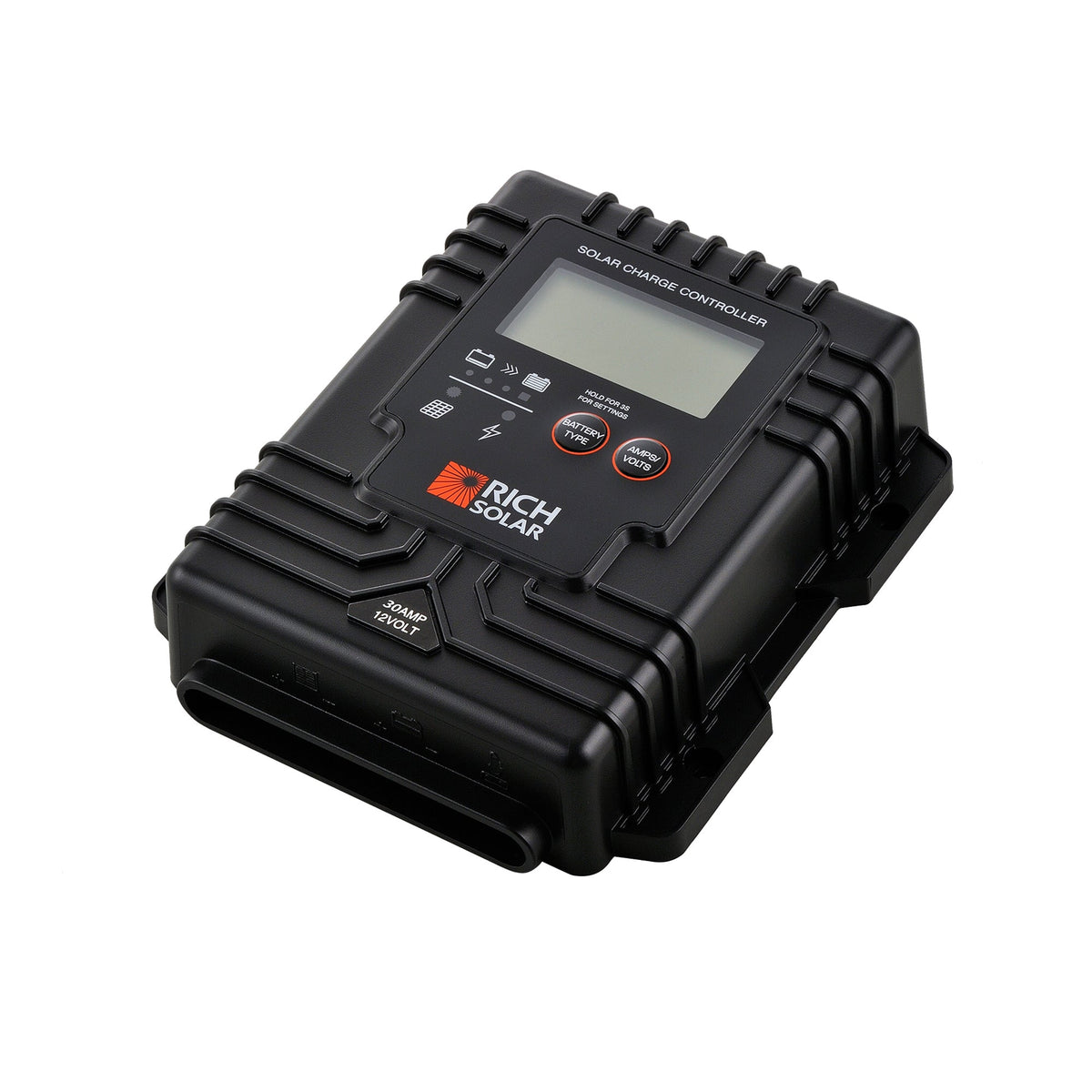

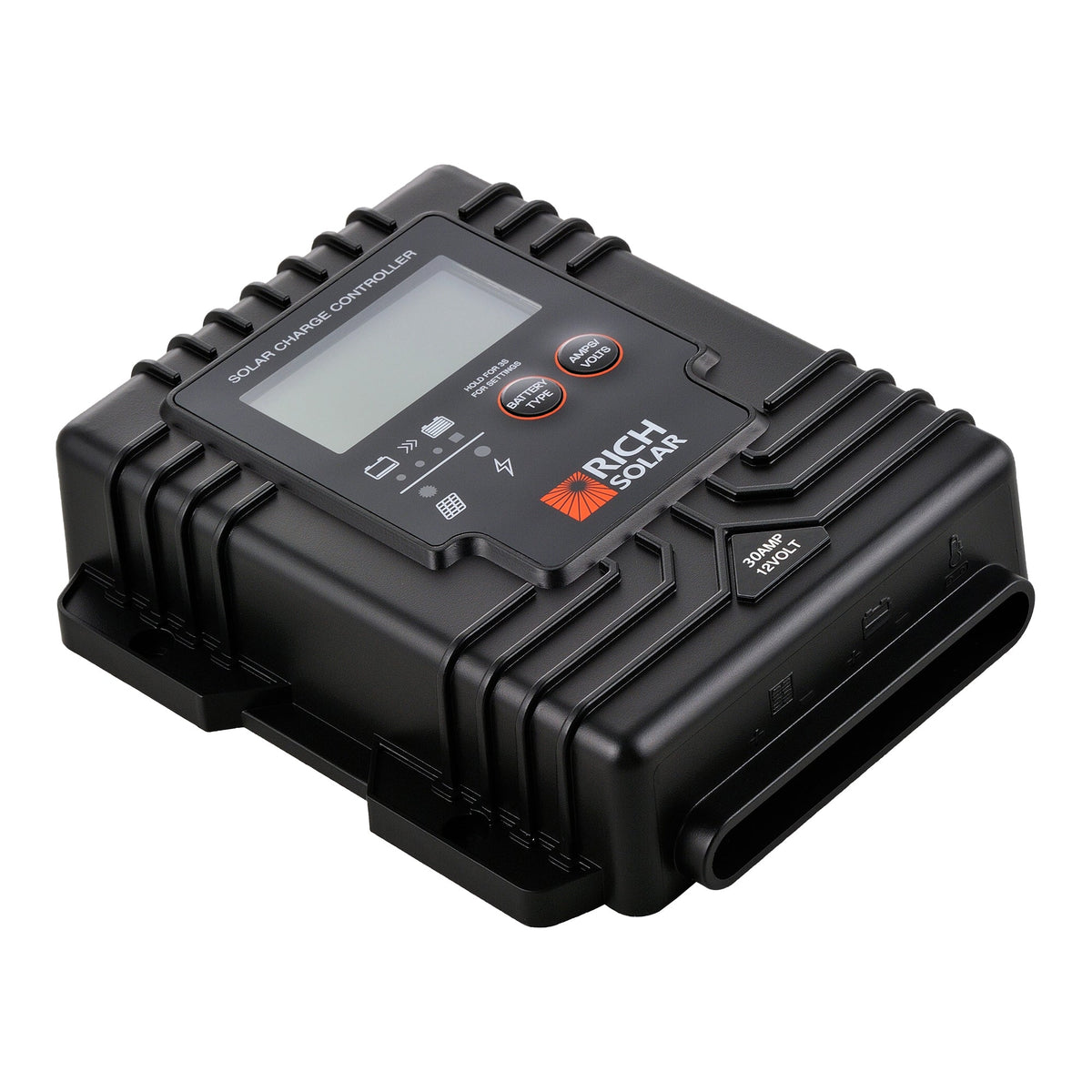

Rich Solar BRAVO Waterproof 30 30 Amp Waterproof PWM Solar Charge Controller
- Regular price
- $53.00
- Sale price
- $53.00
- Regular price
-
$57.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features
Intelligent Battery Charging
- PWM + MOSFET Charging Technology: Delivers efficient and stable battery charging.
- Intelligent Multi-Stage Charging: Smart charging control for optimized battery performance.
- External Temperature Sensor Ready: Supports an optional BTS for automatic temperature compensation.
- Automatic BMS Activation: Reactivates protected lithium batteries automatically.
Flexible System Compatibility
- 12V Battery System: Designed for 12V battery systems.
- Supports Multiple Battery Types: Compatible with Flooded (WET), AGM, GEL, Calcium, and lithium batteries.
- 25V Max Solar Input Voltage: Supports solar panel configurations with up to 25V PV input.
- Common Positive Grounding: Compatible with common positive grounding systems.
Built for Outdoor Use
- IP65 Waterproof Design: Built for reliable outdoor operation in harsh environments.
- Conformal Coated Circuit Board: Protects internal electronics against moisture and corrosion.
- Spark-Free Connection: Prevents sparks during battery connection for safer installation.
Reliable Performance
- Advanced Electronic Protection: Protects against over-voltage, short circuit, reverse polarity, and over-temperature.
- Thermal Protection: Helps prevent overheating during operation.
- CE, EMC & FCC Compliant: Meets recognized safety and electromagnetic compatibility standards.
Mounting the Device
- The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.
Specifications
Electrical Parameters
- Rated solar panel amps: Max. 30AMP
- Normal input Solar cell array voltage: 15-22VDC
- Max. solar cell array voltage (output has no load): 25VDC
- The controller's lowest operating voltage (at solar or battery side): 8VDC
- Standby current consumption at night: 5mA
- Maximum voltage drop-Solar panel to battery: 0.25VDC
- Grounding: Positive Ground
Charging Characteristics
- Minimum battery start charging voltage: 3VDC
- Soft start charging voltage: 3-10±0.2VDC
- Soft start charging current (50% PWM duty): Up to 15AMP
- Equalization charging voltage at 25 ℃: 15.5±0.2VDC
- Equalization charging timer timed out: 2 Hours
- Battery temperature compensation coefficient: -24mV/°C
- Temperature compensation range: -20~+50°C (-4°F to 122°F)
Protection
- Over temperature protection during charging: 65°C (149℉)
Electrical Parts
- Input-output terminal: M5 terminals
Environmental Characteristics
- Operating temperature: -25~50°C(-13～122℉)
- Storage temperature: -40~85°C(-40～185℉)
- Operating Humidity range: 100% no condensation
Physical Parameters
- Controller material: Plastic, Standard ABS
- Power terminal maximum stranded wire size: #10AWG stranded-5mm²
- Power Terminal Torque: Up to 17 in-lb (1.92N·m)
- Mounting: Vertical wall mounting
- IP grade: IP65
- Net weight: Approx. 0.3kg/0.66lb
-
Package Dimensions: 7 × 6 × 3 in
- Gross Weight: 1 lb
Part numbers: RS-PWM30WP (UPC 650380715584)
Ships from our Upland, CA warehouse to the lower 48 states.
Shop the full Rich Solar range at RV Parts Giant.
Eligible unused and uninstalled physical products may be returned
within 30 days after delivery.
Regular sale and discounted products are eligible for return.
Only products clearly marked “Final Sale” before purchase are
non-returnable.
Conditions and exclusions apply. See our Return and Refund Policy.
Free standard shipping is available on eligible physical-product orders delivered within the contiguous United States, with no minimum order amount.
Black Series generic replacement parts and products or orders that are oversized, require freight shipping, are special-order, contain hazardous materials, or are delivered to remote or limited-access areas are excluded. Any applicable shipping charge will be displayed at checkout before you submit your order.
In-stock products are generally processed within 1–2 business days. Estimated delivery is approximately 4–12 business days, depending on the product, destination, carrier, and delivery method.
Alaska, Hawaii, U.S. territories, and international destinations are not included in the contiguous United States free-shipping offer. See our Shipping Policy for complete details.
Frequently Bought Together

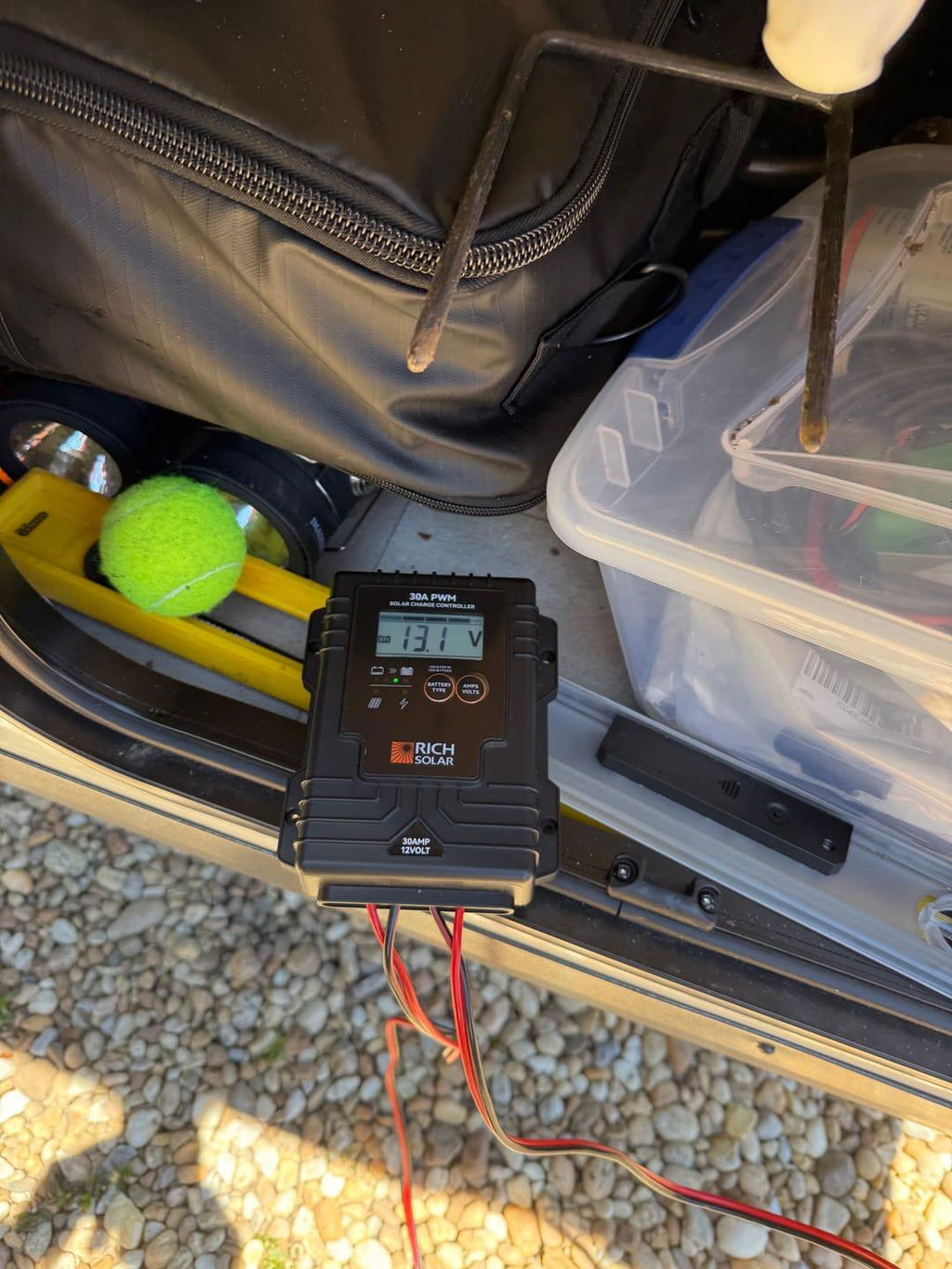

Shop AllUnit works great! It‘s to great to add solar panels to the SOS port on our trailer.
Originally posted on richsolar.com, Rich Solar's official store, and shared here by RV Parts Giant, a Rich Solar dealer.

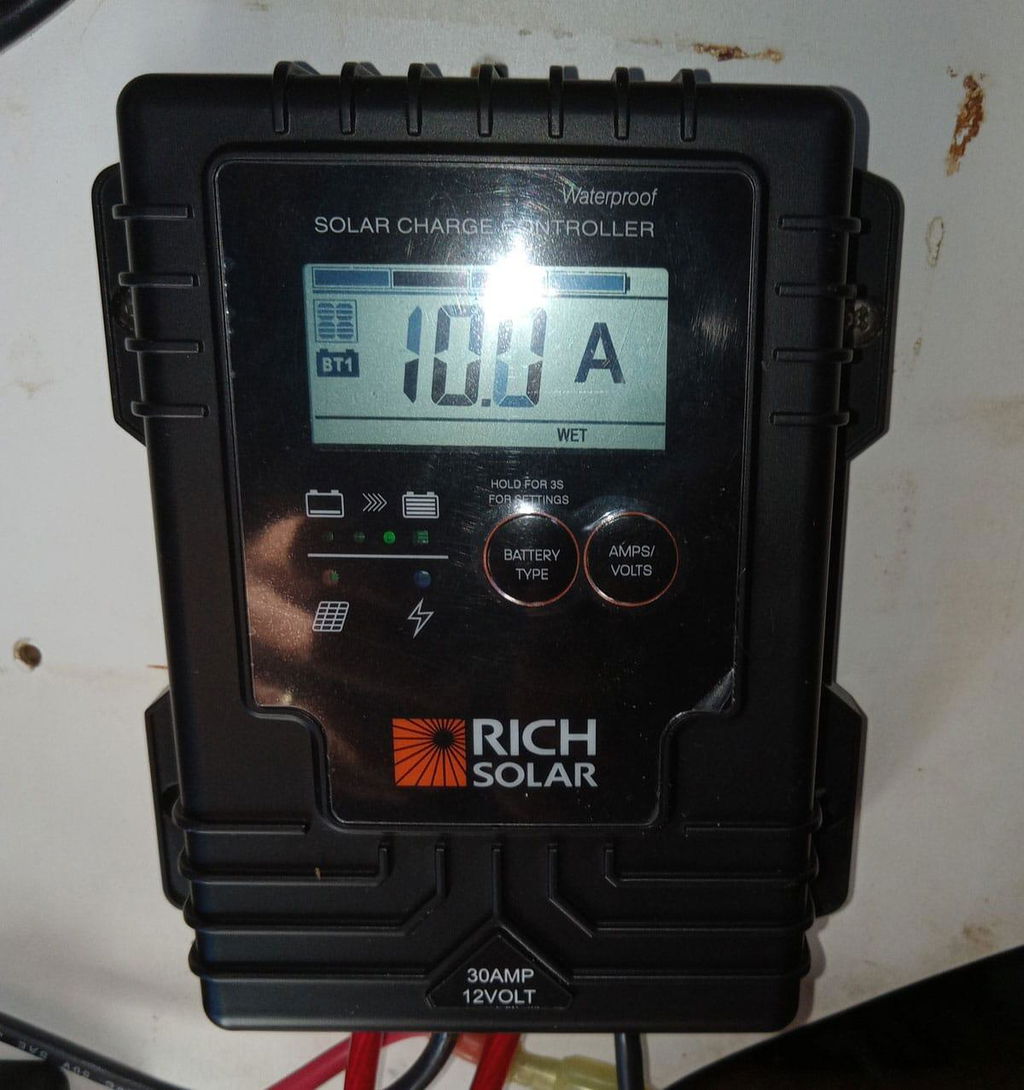

We are very happy with our 2 Rich Solar controllers (BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller). Because of their intelligent display showing volts, amps & amphours, we were able to tell that one of our panels was not working correctly. Much nicer than our Renogy Wanderer that only has flashing LEDs. We can now properly manage our solar system. Thanks!
Originally posted on richsolar.com, Rich Solar's official store, and shared here by RV Parts Giant, a Rich Solar dealer.
I would give the Bravo 30 5 stars if the design allowed for wire connections to be made after mounting the unit. As designed the screw connections are made from the back of the unit. In my situation the controller is located in a storage area under the RV and difficult to access. Having said that, the unit was easy to set up following the enclosed instructions.
Originally posted on richsolar.com, Rich Solar's official store, and shared here by RV Parts Giant, a Rich Solar dealer.
