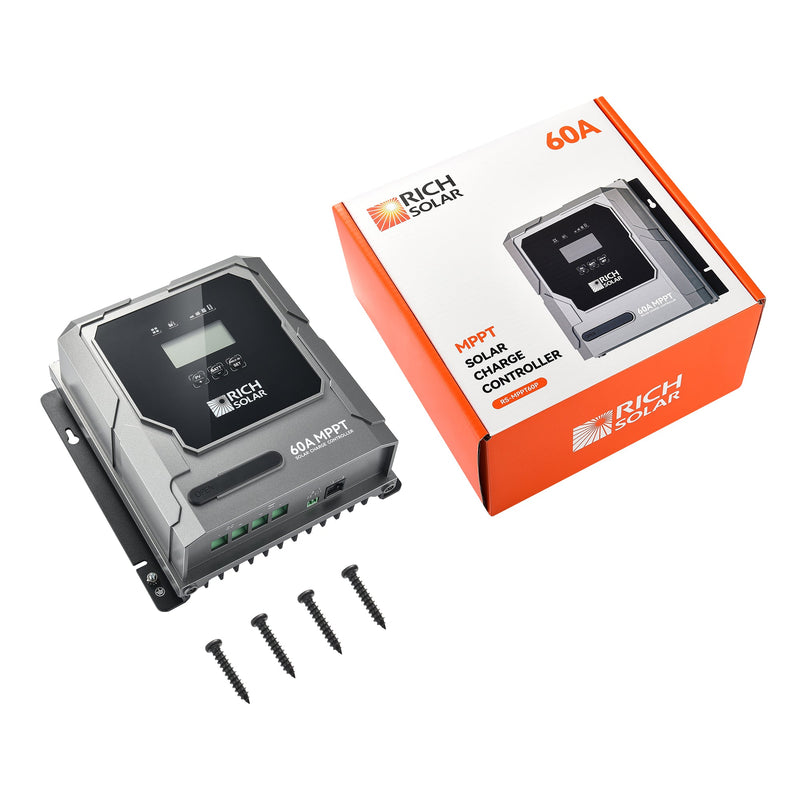

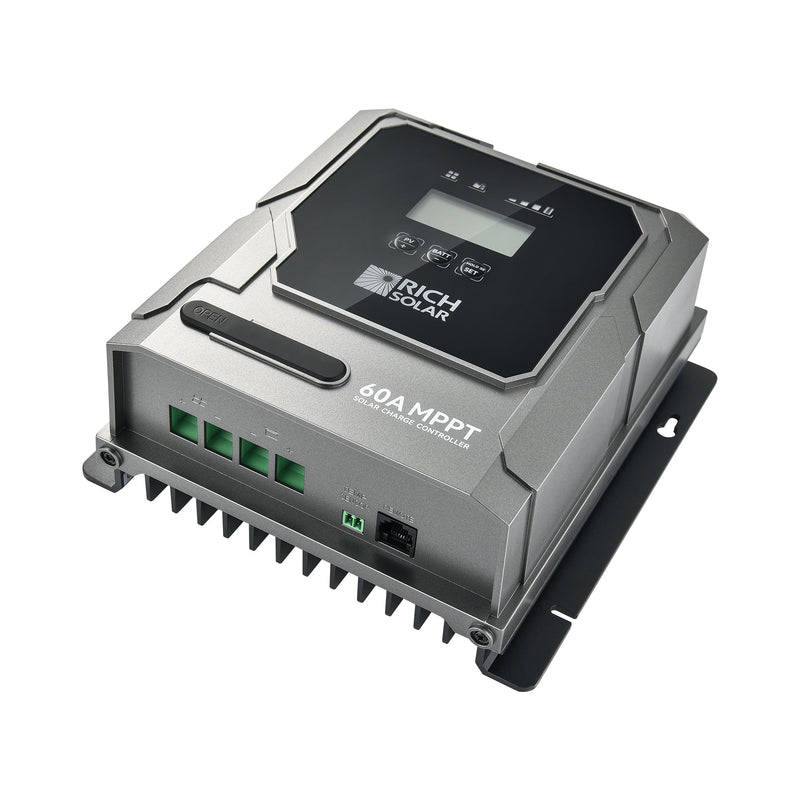

Rich Solar BRAVO 60 60A MPPT Solar Charge Controller

Features

Efficient Solar Charging

• Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest in changing sunlight conditions.

• Up to 98% Conversion Efficiency: Converts more solar power into usable battery charging energy.

• Supports up to 1800W PV Input: Handles larger solar arrays for faster battery charging.

Flexible System Compatibility

• 12V/24V Auto Detection: Automatically identifies the system voltage during installation.

• Supports Multiple Battery Types: Compatible with LiFePO₄, LTO, LCO, AGM, GEL, Flooded, Crystal, and Calcium batteries.

• 100V Max PV Input: Supports flexible solar panel configurations and system expansion.

Smart Monitoring

• Built-In Bluetooth Monitoring: Monitor real-time charging status on your smartphone via the Smart Life App.

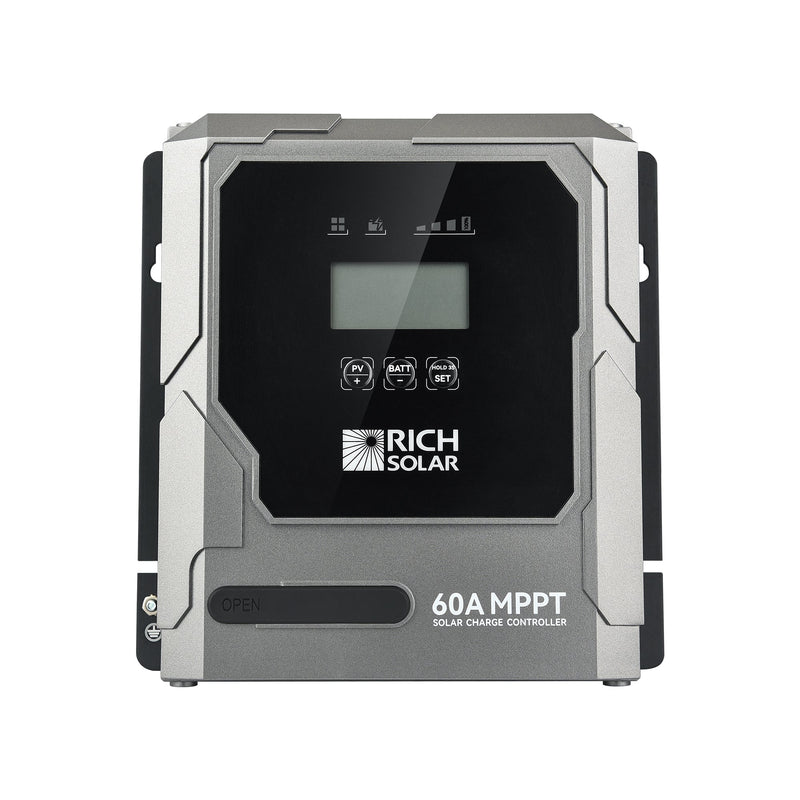

• LCD Display: View solar input, battery status, and charging information.

• Optional Accessories: Compatible with an optional remote meter and battery temperature sensor.

Comprehensive Reliability

• Advanced Electronic Protection: Protects against over-voltage, reverse discharge, and circuit faults.

• Common Negative Ground Design: Supports reliable system integration.

• Conformal Coated Circuit Board: Improves long-term durability in demanding environments.

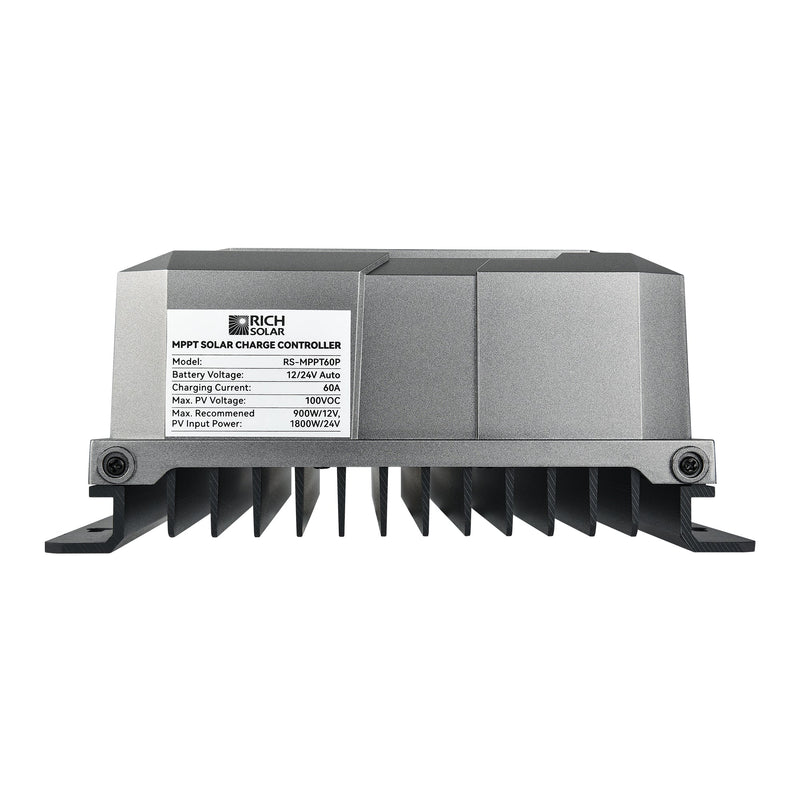

Specifications

• System Nominal Voltage: 12/24V Auto

• Max PV Charging Current: 60A

• Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)

• Max PV Open Circuit Voltage: 100V DC

• MPPT Tracking Efficiency: >99.5%

• Charge Conversion Efficiency: ≤98%

• Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO

• IP Grade: IP43 for Inside PCBA, IP22 for Connection Area

• Housing Case Color: Black / Grey

• Dimensions (L × W × H): 201 × 195 × 85 mm (7.9 × 7.7 × 3.3 in)

• Net Weight: 1.90 kg / 4.18 lb

Part numbers: RS-MPPT60P (UPC 650380713436)
