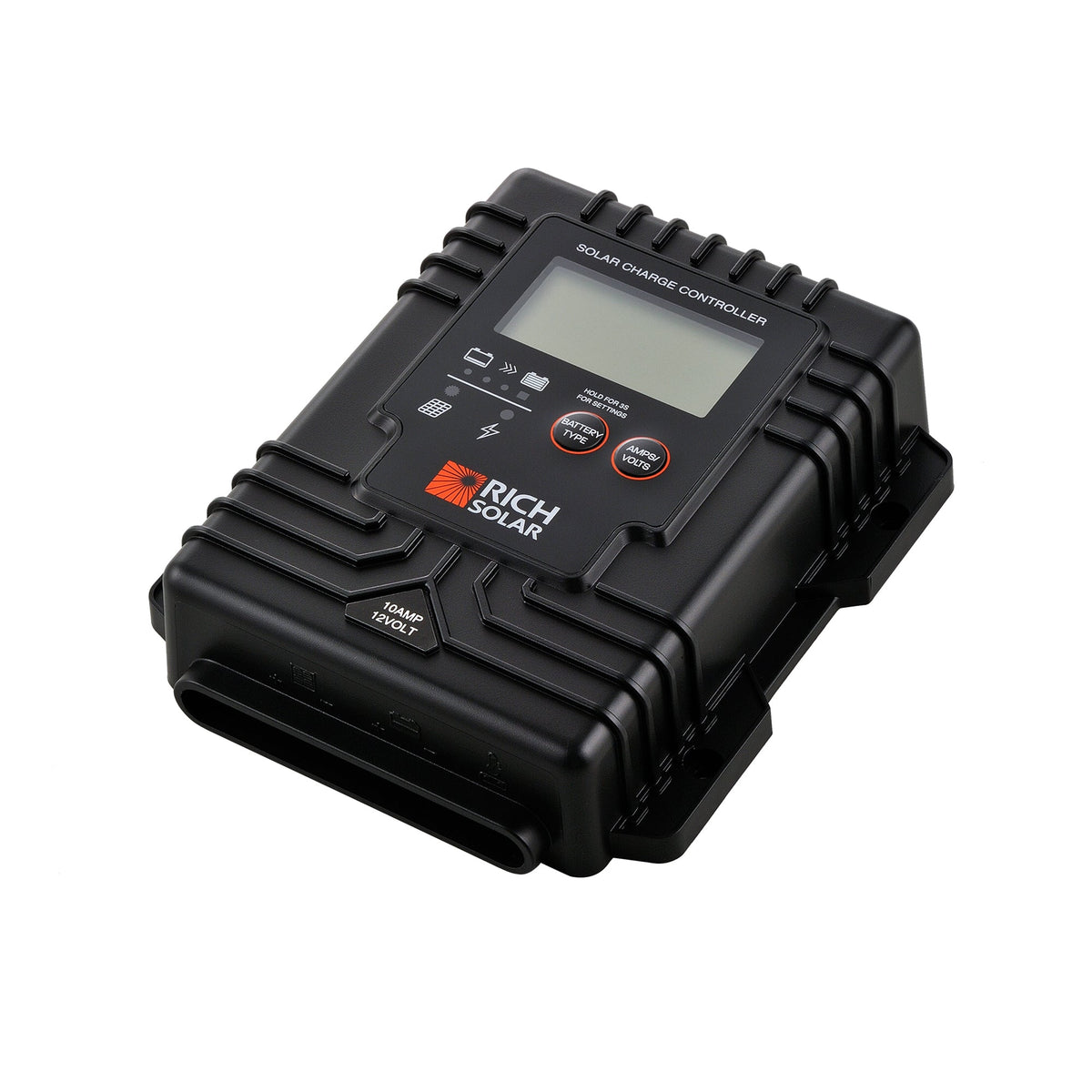

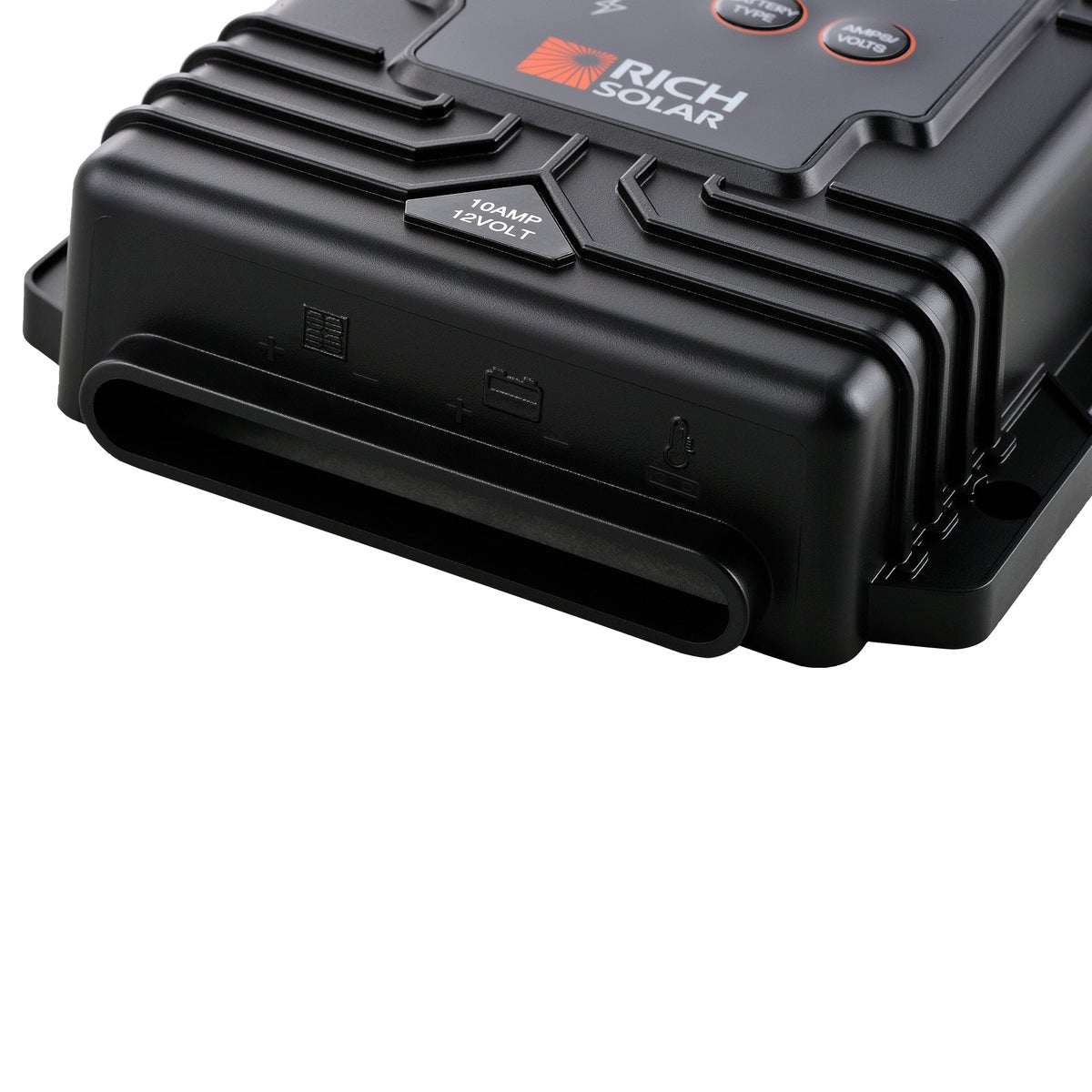

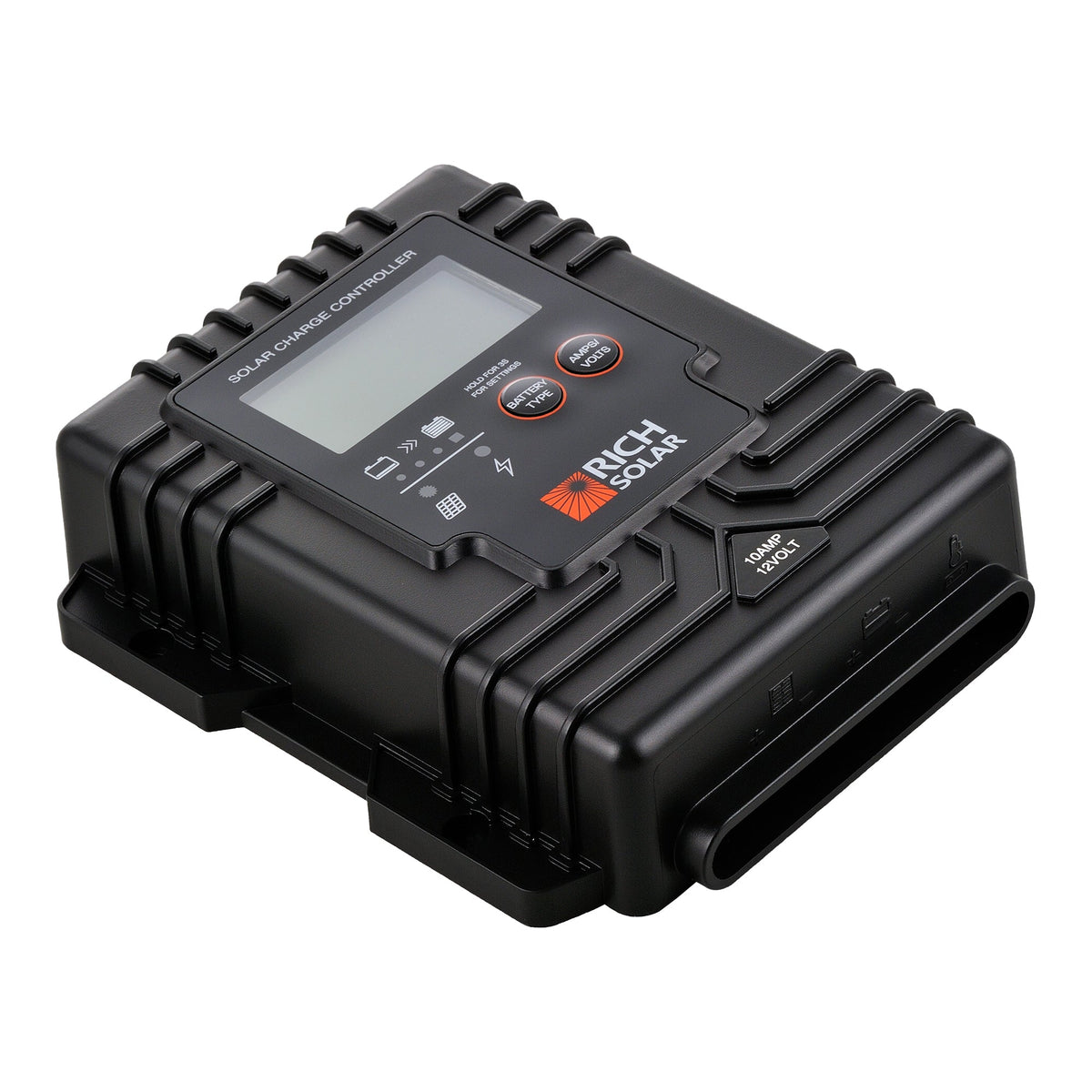

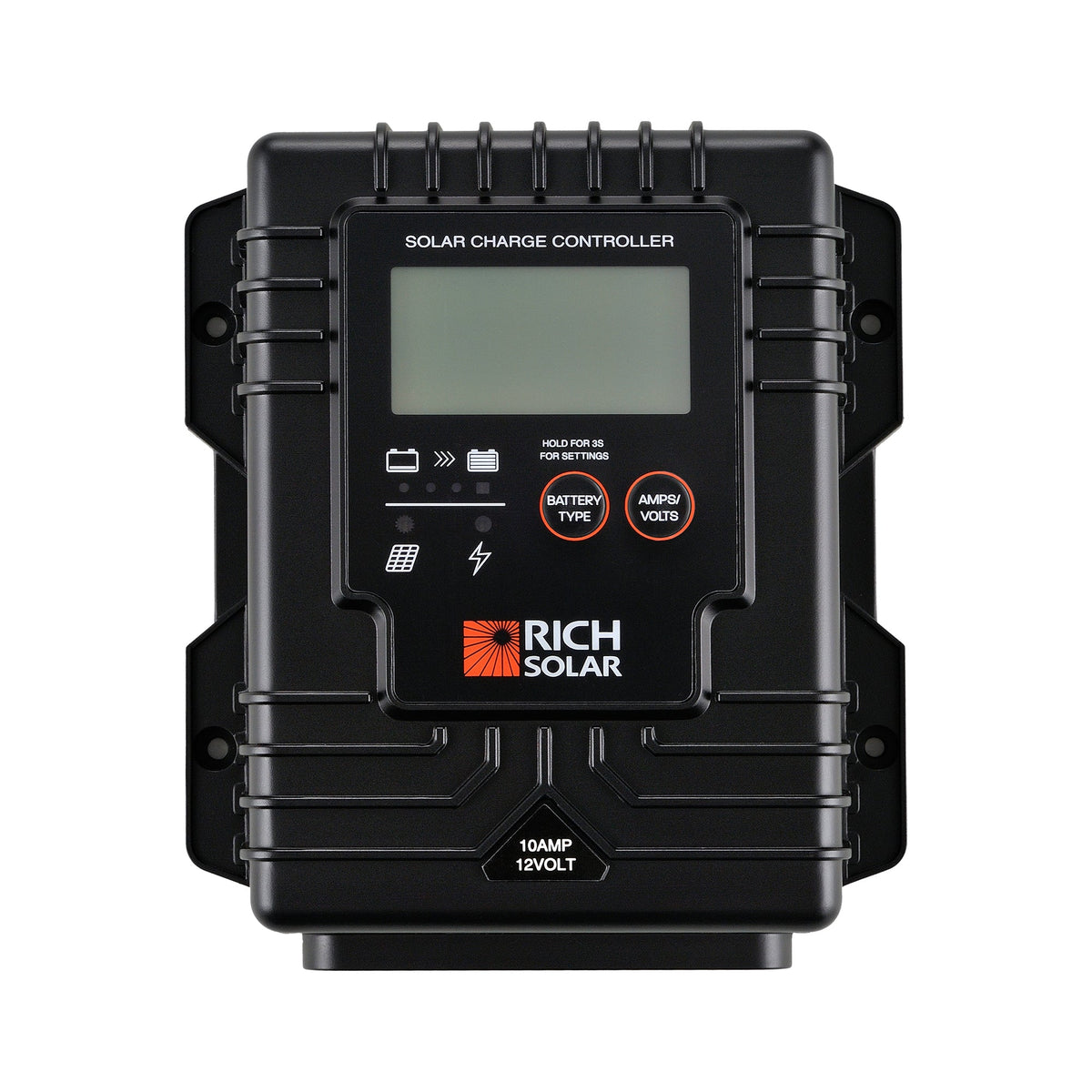

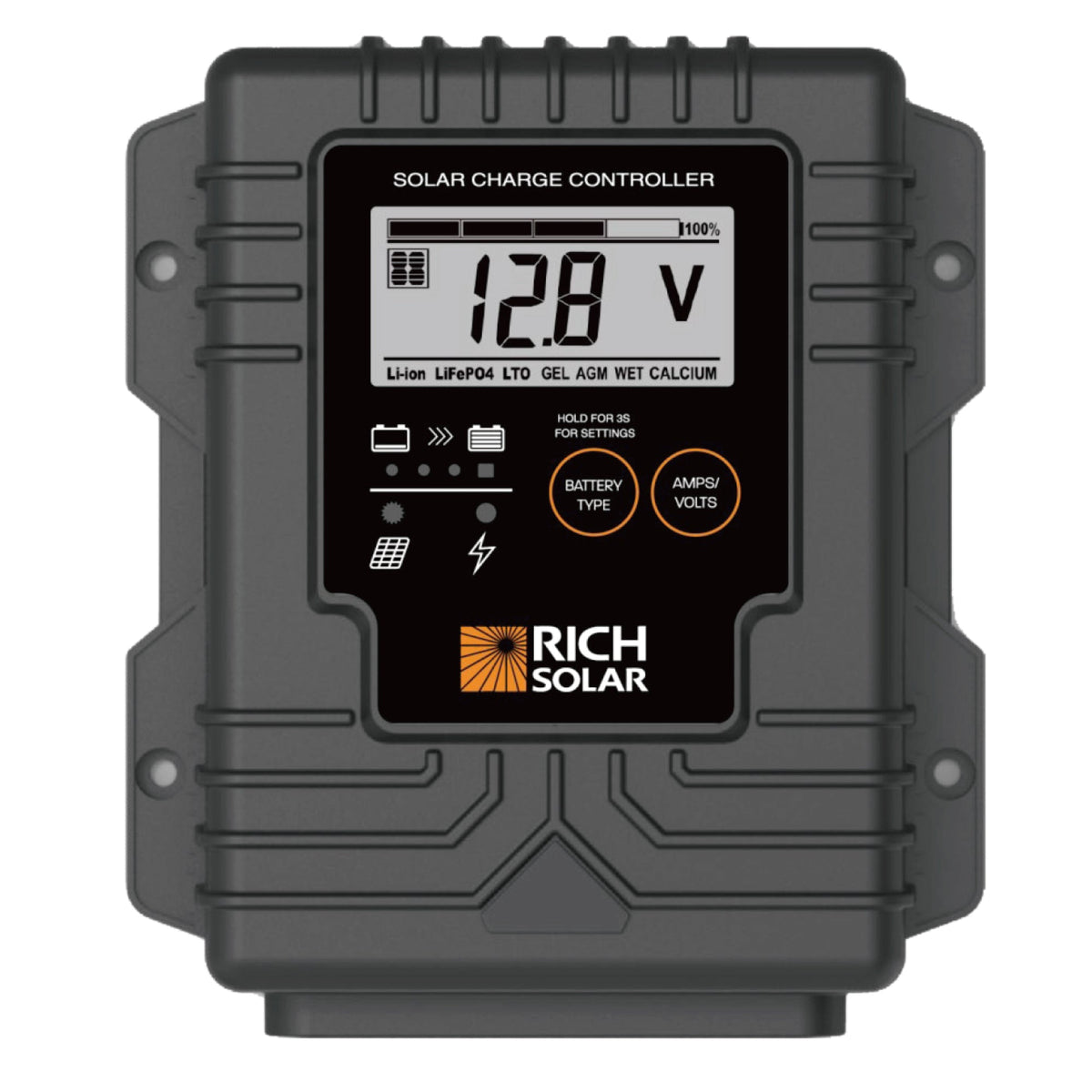

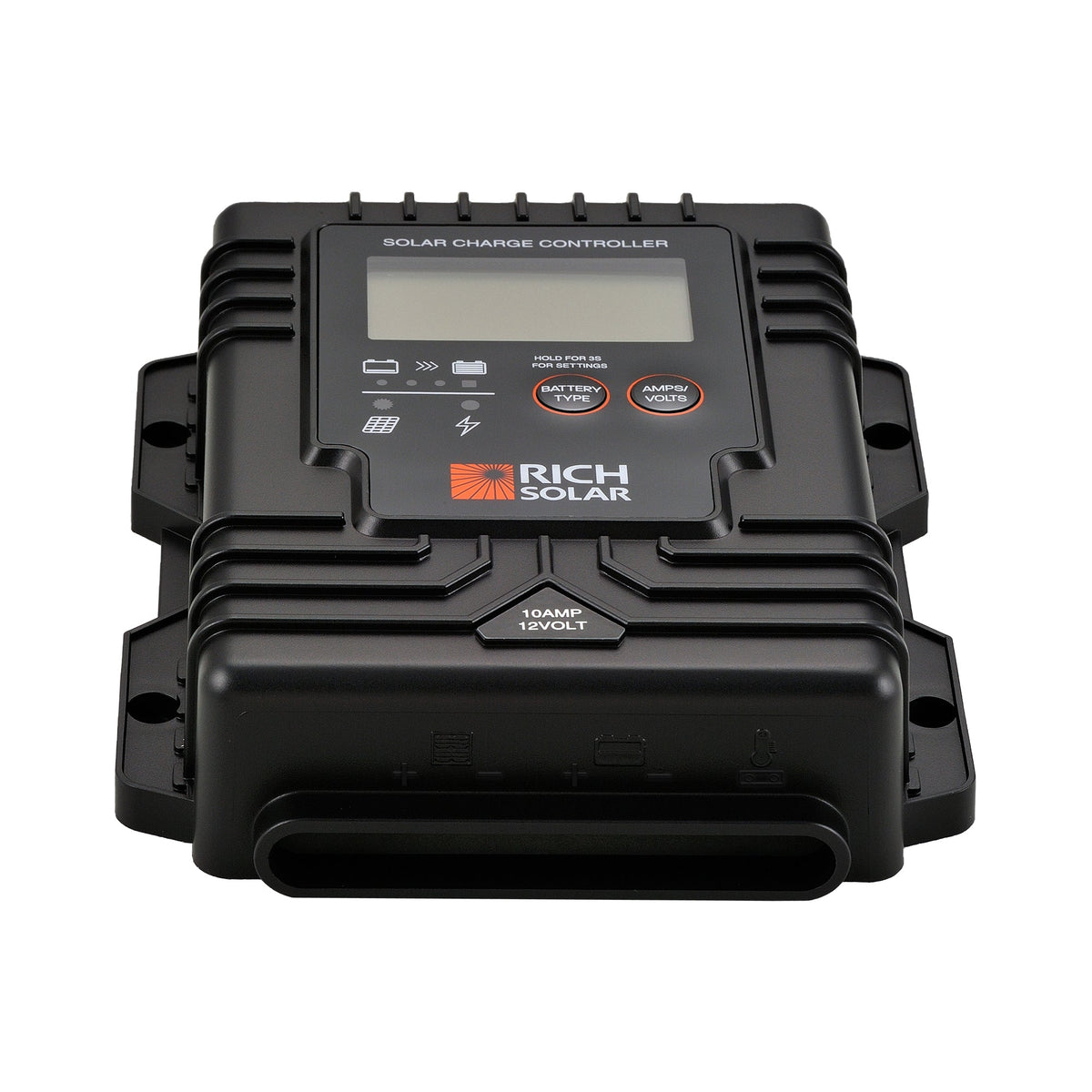

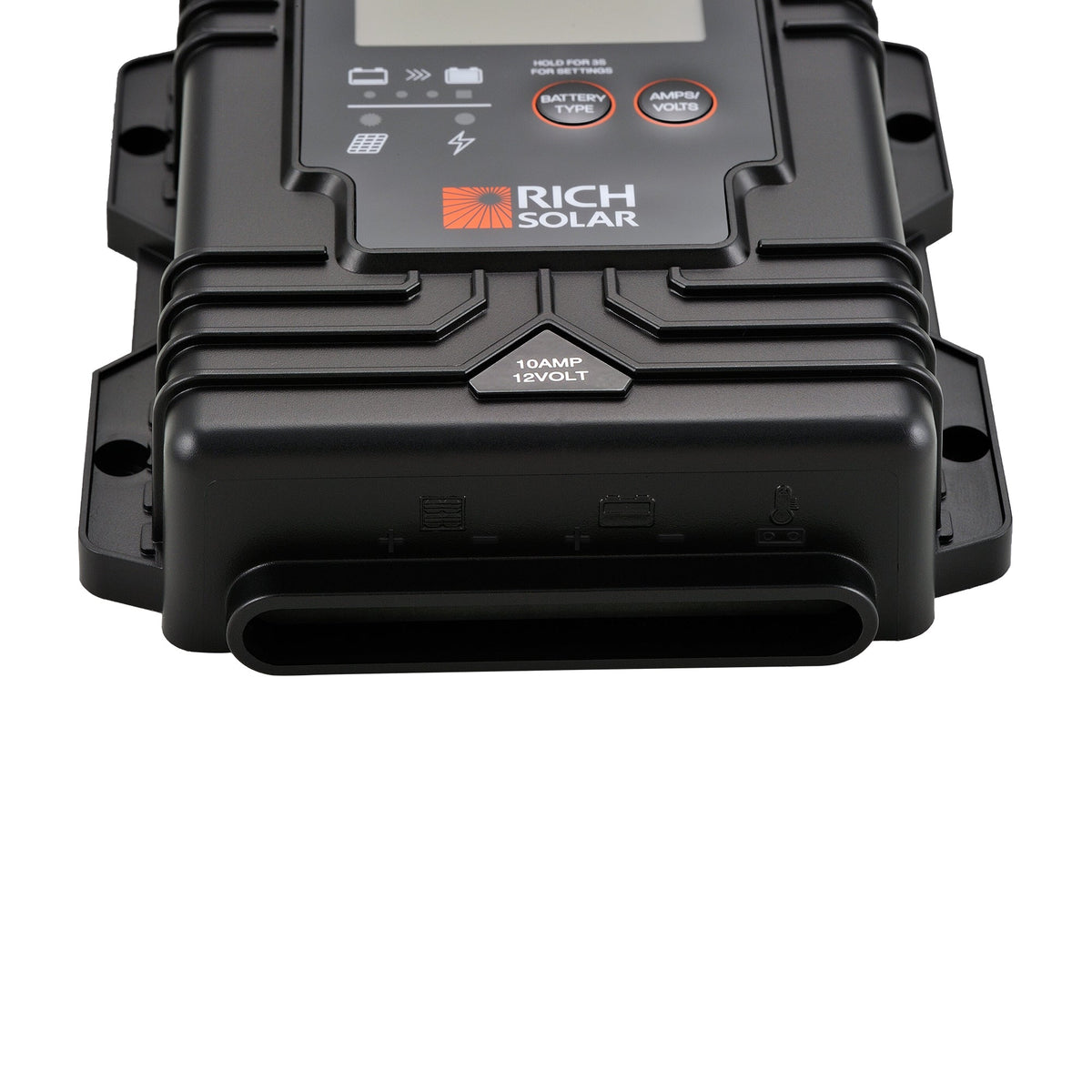

Rich Solar BRAVO Waterproof 10 10 Amp Waterproof PWM Solar Charge Controller
- Regular price
- $37.00
- Sale price
- $37.00
- Regular price
-
$39.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features
Intelligent Battery Charging
- PWM + MOSFET Charging Technology: Delivers efficient and stable battery charging.
- Intelligent Multi-Stage Charging: Smart charging control for optimized battery performance.
- External Temperature Sensor Ready: Supports an optional BTS for automatic temperature compensation.
- Automatic BMS Activation: Reactivates protected lithium batteries automatically.
Flexible System Compatibility
- 12V Battery System: Designed for 12V battery systems.
- Supports Multiple Battery Types: Compatible with Flooded (WET), AGM, GEL, Calcium, and lithium batteries.
- 25V Max Solar Input Voltage: Supports solar panel configurations with up to 25V PV input.
- Common Positive Grounding: Compatible with common positive grounding systems.
Built for Outdoor Use
- IP65 Waterproof Design: Built for reliable outdoor operation in harsh environments.
- Conformal Coated Circuit Board: Protects internal electronics against moisture and corrosion.
- Spark-Free Connection: Prevents sparks during battery connection for safer installation.
Reliable Performance
- Advanced Electronic Protection: Protects against over-voltage, short circuit, reverse polarity, and over-temperature.
- Thermal Protection: Helps prevent overheating during operation.
- CE, EMC & FCC Compliant: Meets recognized safety and electromagnetic compatibility standards.

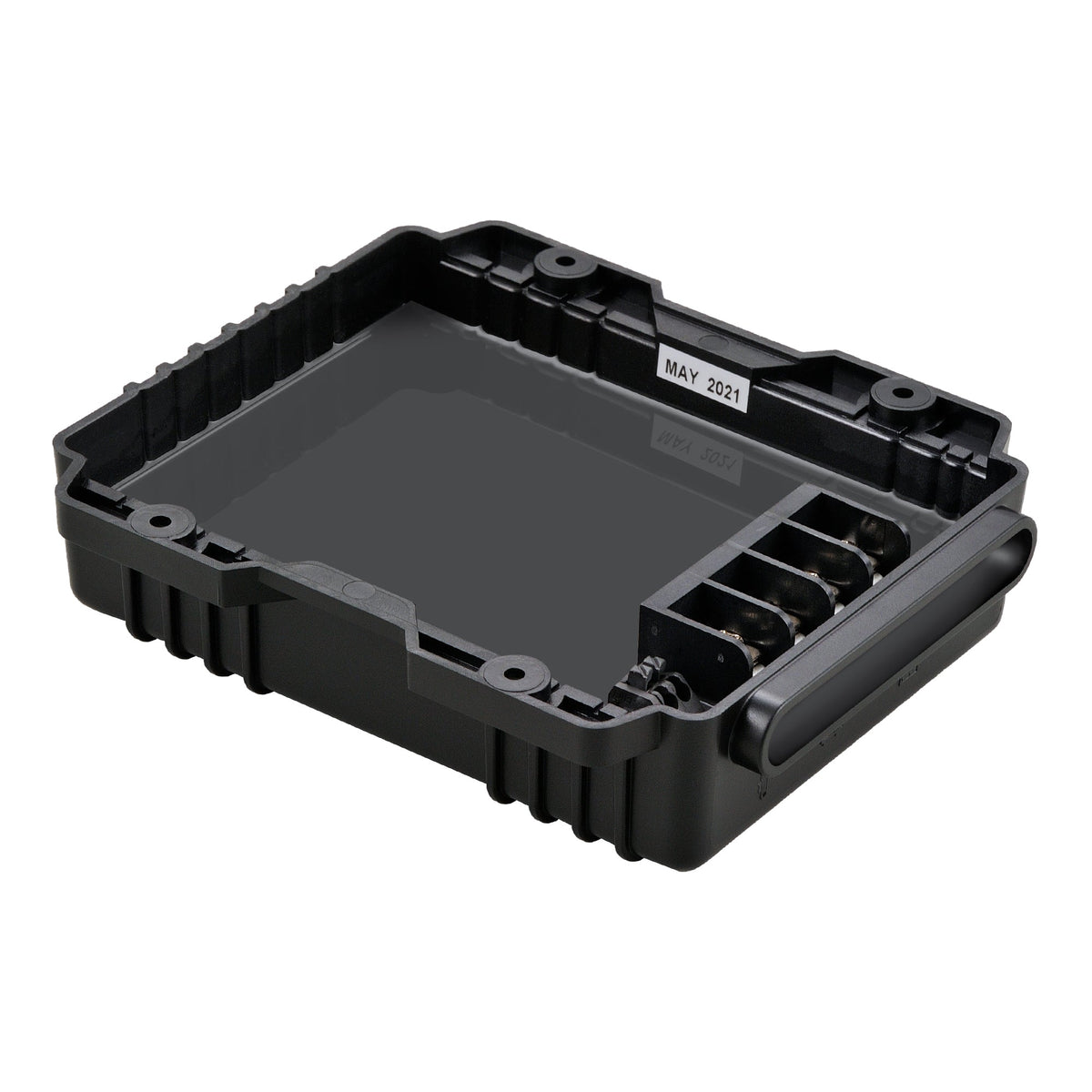

Mounting the Device
- The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.
Specifications
Electrical Parameters
- Rated solar panel amps: Max. 10AMP
- Normal input Solar cell array voltage: 15-22VDC
- Max. solar cell array voltage (output has no load): 25VDC
- The controller's lowest operating voltage (at solar or battery side): 8VDC
- Standby current consumption at night: 5mA
- Maximum voltage drop-Solar panel to battery: 0.25VDC
- Grounding: Positive Ground
Charging Characters
- Minimum battery start charging voltage: 3VDC
- Soft start charging voltage: 3-10±0.2VDC
- Soft start charging current (50% PWM duty): Up to 5AMP
- Equalization charging voltage at 25 ℃: 15.5±0.2VDC
- Equalization charging timer timed out: 2 Hours
- Battery temperature compensation coefficient: -24mV/°C
- Temperature compensation range: -20~+50°C (-4°F to 122°F)
Protection
- Over temperature protection during charging: 65°C (149℉)
Electrical Parts

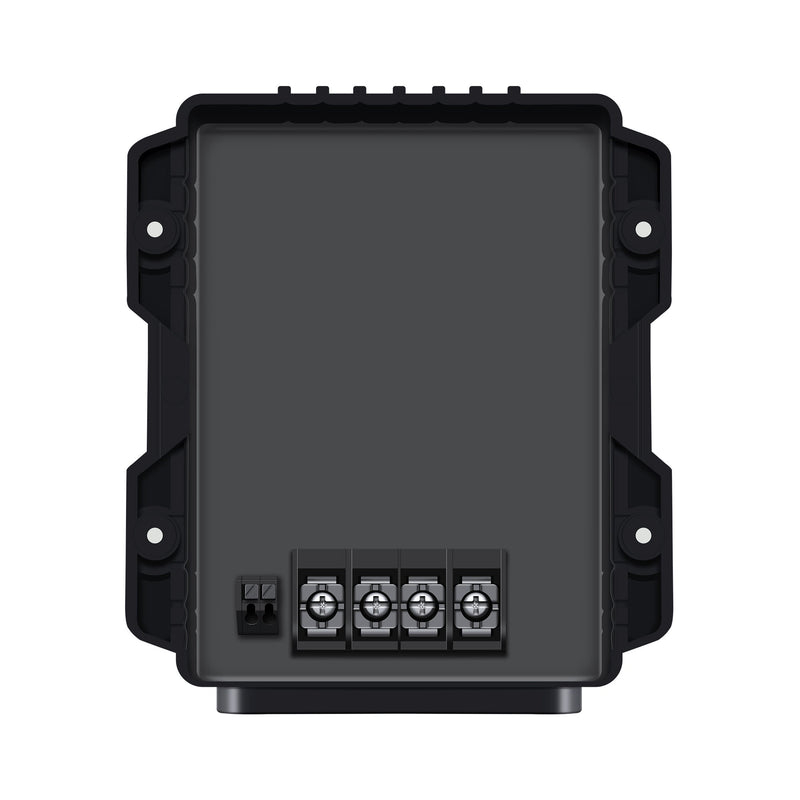

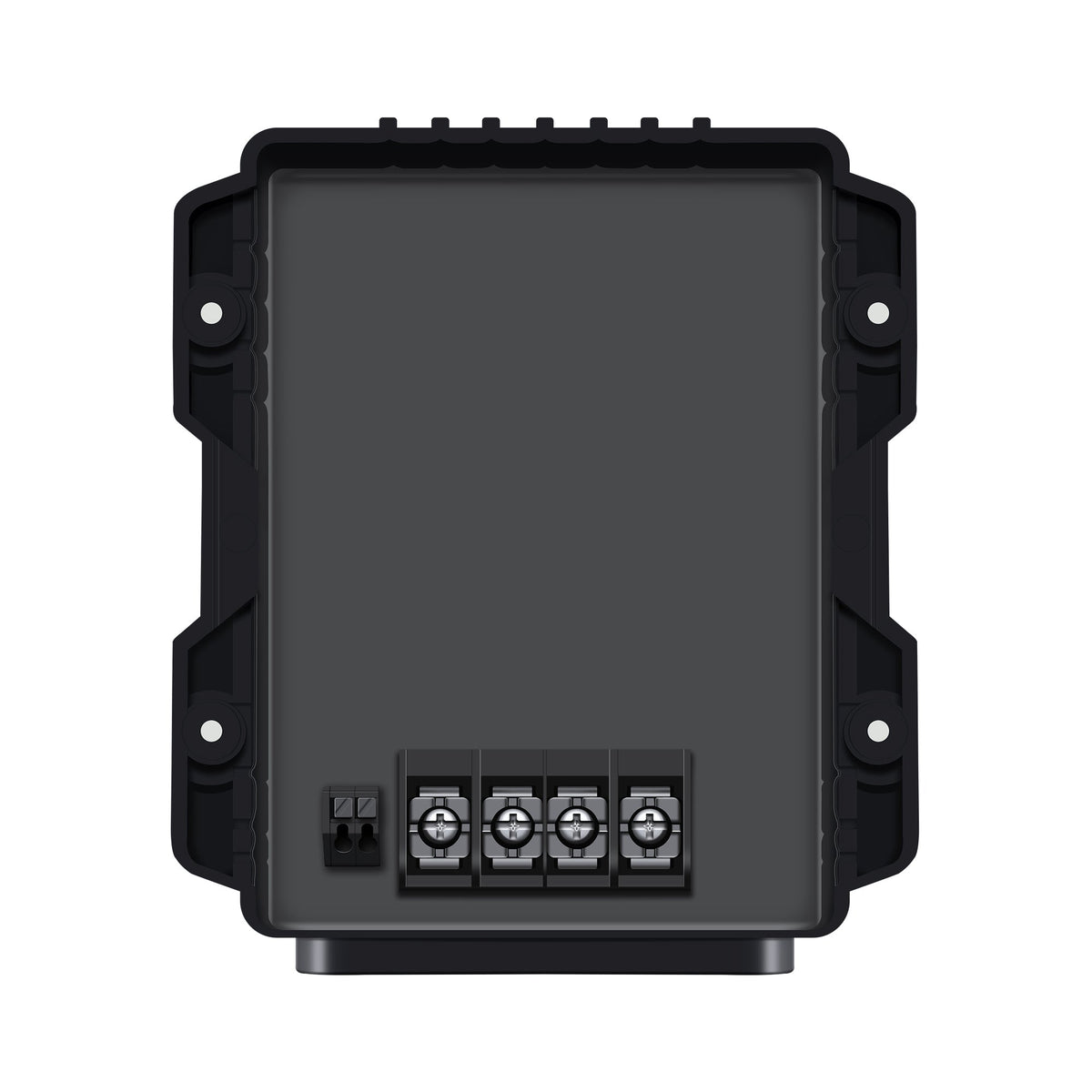

- Input-output terminal: M5 terminals
Physical Parameters
- Controller material: Plastic, Standard ABS
- Power terminal maximum stranded wire size: #10AWG stranded-5mm²
- Mounting: Vertical wall mounting
- IP grade: IP65
- Net weight: Approx. 0.3kg/0.66lb
Environmental Characteristics
- Operating temperature: -25~50°C(-13～122℉)
- Storage temperature: -40~85°C(-40～185℉)
- Operating Humidity range: 100% no condensation
Part numbers: RS-PWM10WP (UPC 650380715867)
