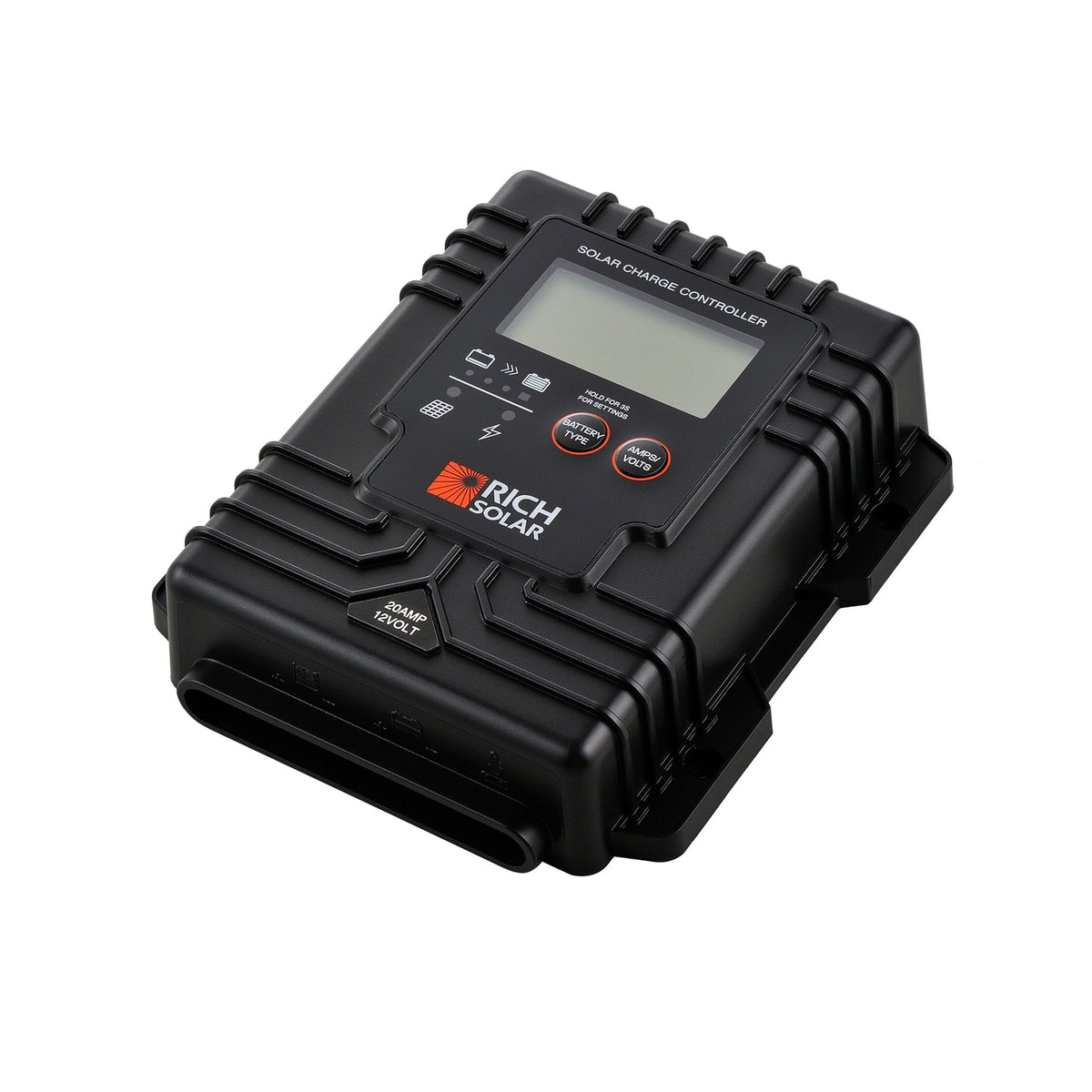

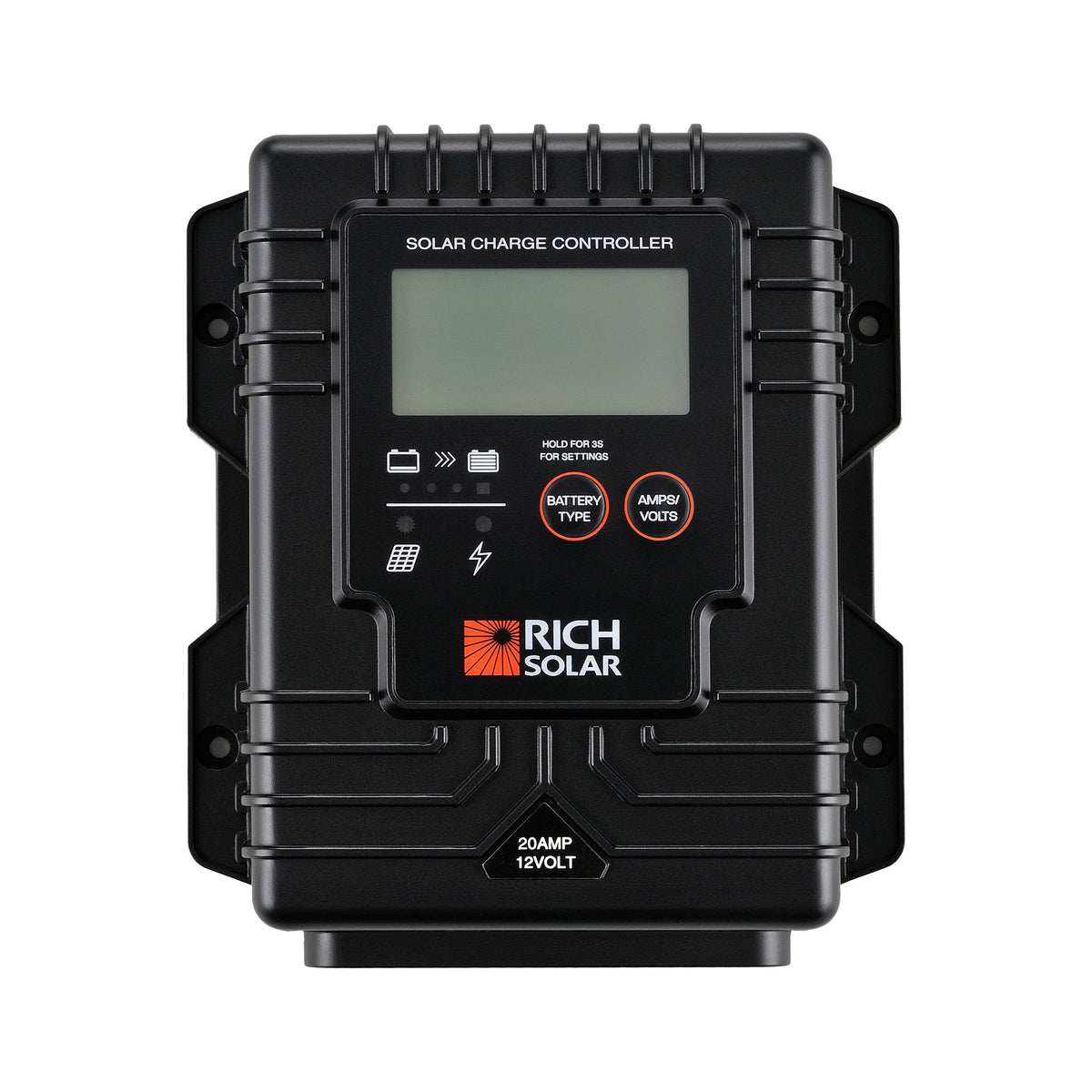

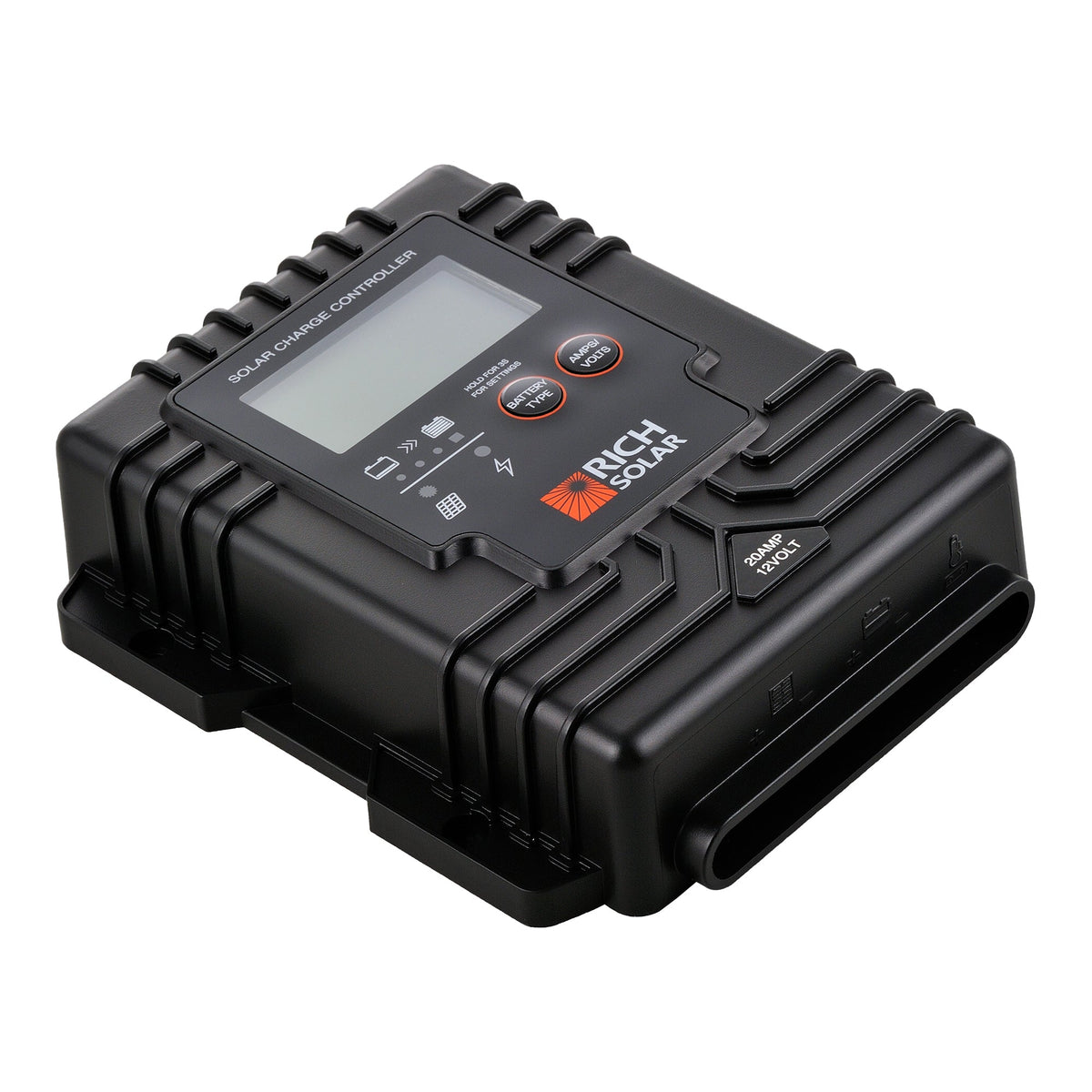

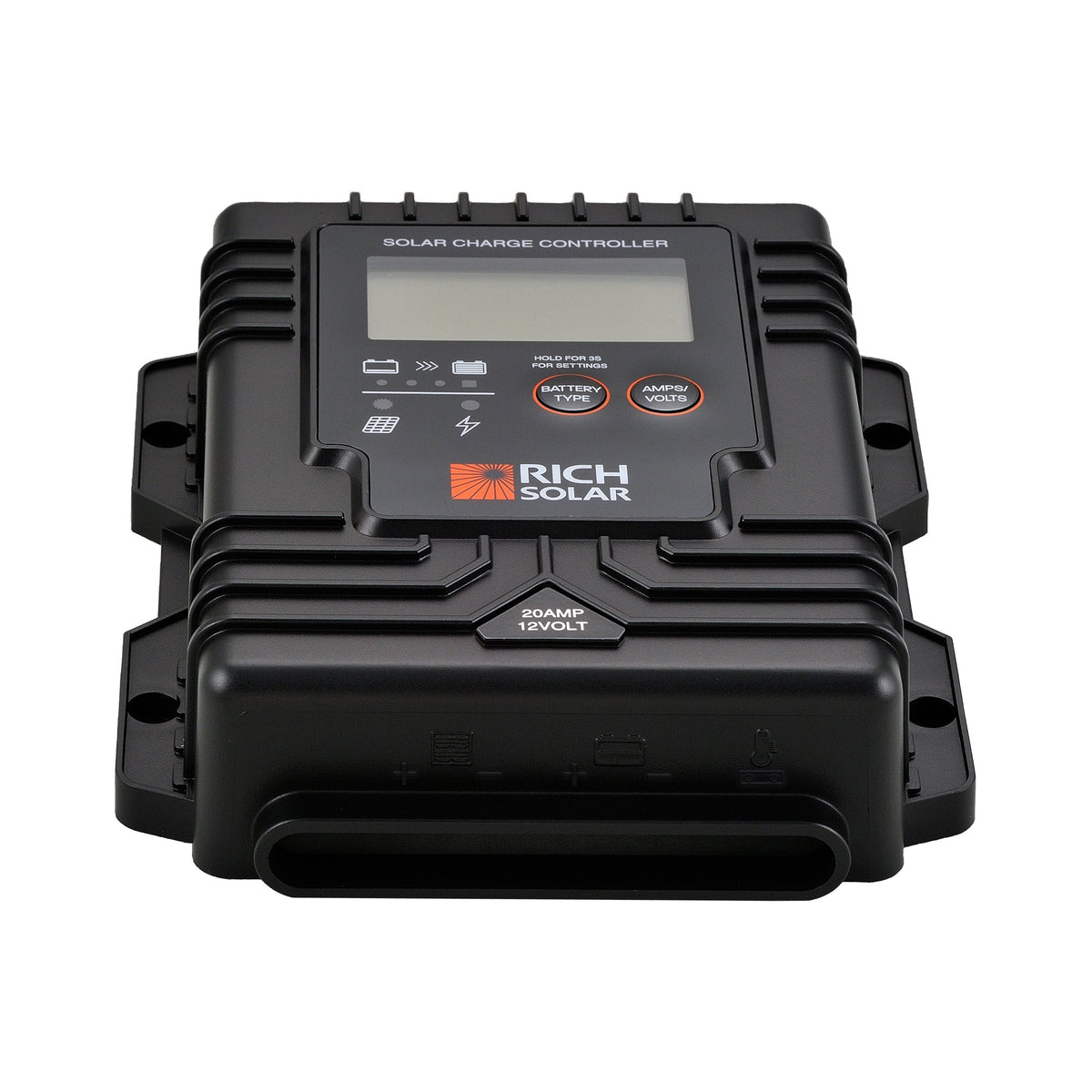

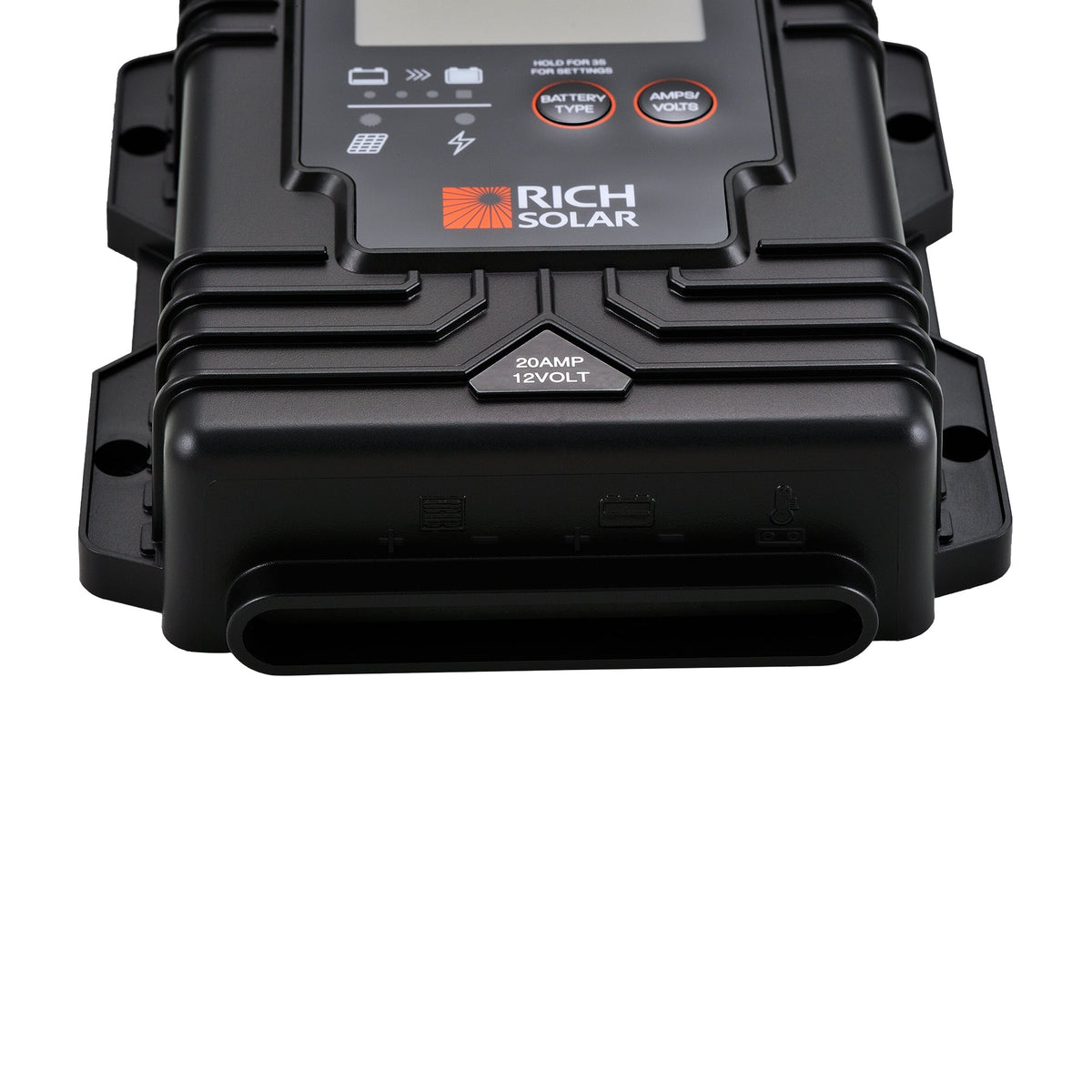

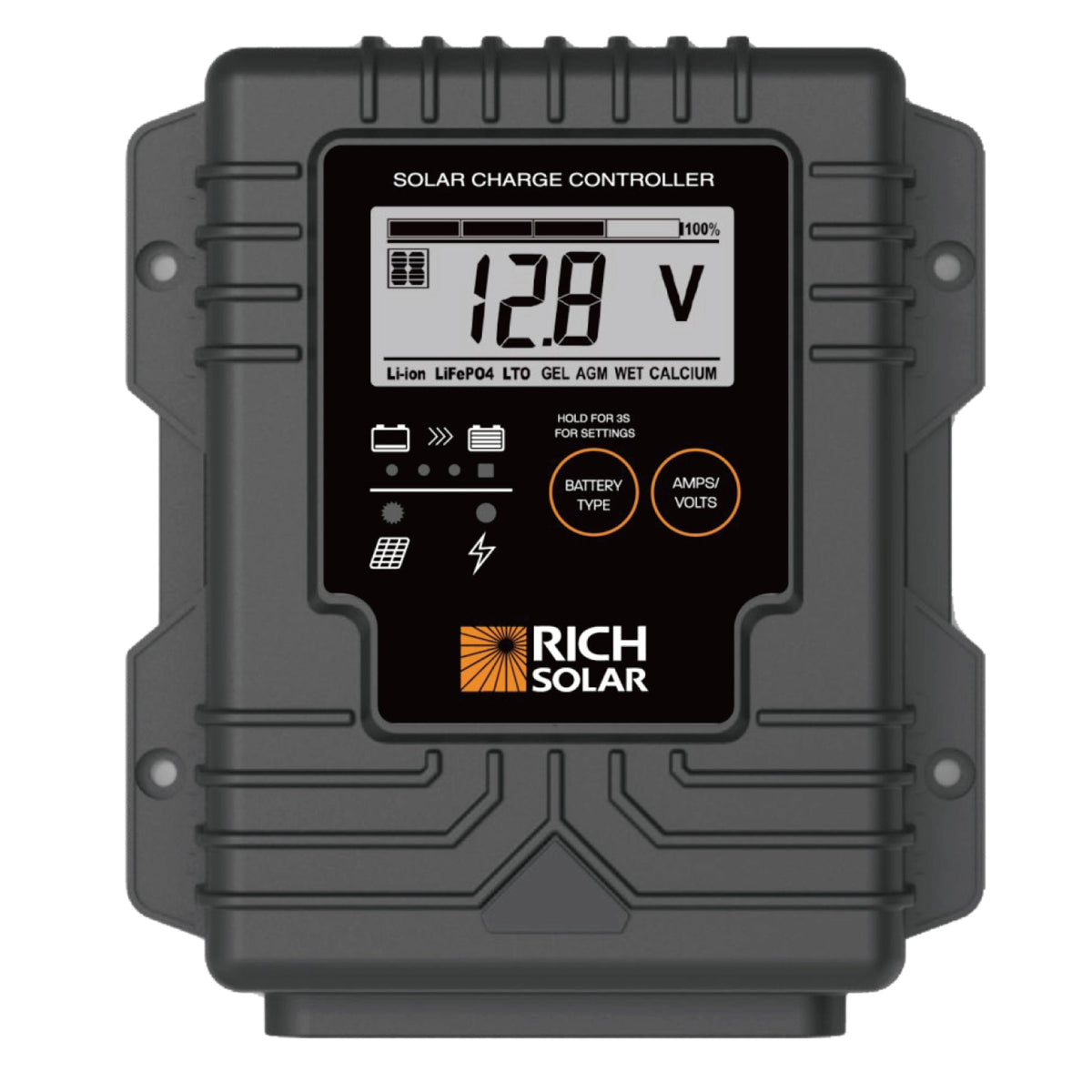

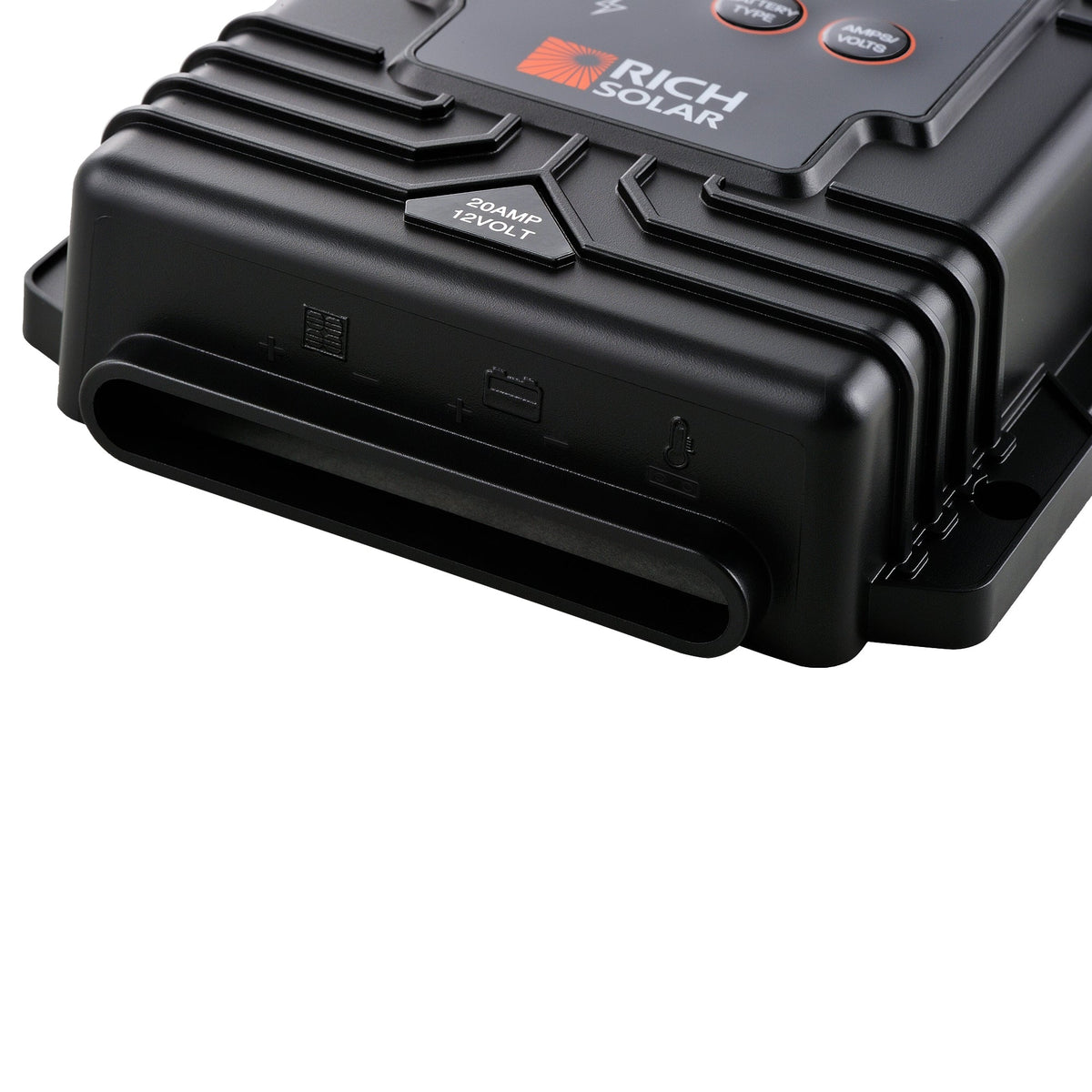

Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller

Rich Solar BRAVO Waterproof 20 20 Amp Waterproof PWM Solar Charge Controller

$48.00
$48.00
$50.00
✓ Lowest Price Guaranteed  ·  We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.
↻ 30-day price protection  ·  If our price drops after you buy, we email you the difference as store credit. Details
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.
✓ Free Shipping  ·  ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Features

    Intelligent Battery Charging

    • PWM + MOSFET Charging Technology: Delivers efficient and stable battery charging.
    • Intelligent Multi-Stage Charging: Smart charging control for optimized battery performance.
    • External Temperature Sensor Ready: Supports an optional BTS for automatic temperature compensation.
    • Automatic BMS Activation: Reactivates protected lithium batteries automatically.

    Flexible System Compatibility

    • 12V Battery System: Designed for 12V battery systems.
    • Supports Multiple Battery Types: Compatible with Flooded (WET), AGM, GEL, Calcium, and lithium batteries.
    • 25V Max Solar Input Voltage: Supports solar panel configurations with up to 25V PV input.
    • Common Positive Grounding: Compatible with common positive grounding systems.

    Built for Outdoor Use

    • IP65 Waterproof Design: Built for reliable outdoor operation in harsh environments.
    • Conformal Coated Circuit Board: Protects internal electronics against moisture and corrosion.
    • Spark-Free Connection: Prevents sparks during battery connection for safer installation.

    Reliable Performance

    • Advanced Electronic Protection: Protects against over-voltage, short circuit, reverse polarity, and over-temperature.
    • Thermal Protection: Helps prevent overheating during operation.
    • CE, EMC & FCC Compliant: Meets recognized safety and electromagnetic compatibility standards.

    Mounting the Device

    • The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.



    Specifications

    Electrical Parameters

    • Rated solar panel amps: Max. 20AMP
    • Normal input solar cell array voltage: 15-22VDC
    • Max. solar cell array voltage (output has no load): 25VDC
    • Lowest operating voltage (at solar or battery side): 8VDC
    • Standby current consumption at night: 5mA
    • Maximum voltage drop-solar panel to battery: 0.25VDC
    • Grounding: Positive Ground

    Charging Characteristics

    • Minimum battery start charging voltage: 3VDC
    • Soft start charging voltage: 3-10±0.2VDC
    • Soft start charging current (50% PWM duty): Up to 10AMP
    • Equalization charging voltage at 25 ℃: 15.5±0.2VDC
    • Equalization charging timer timeout: 2 Hours
    • Battery temperature compensation coefficient: -24mV/°C
    • Temperature compensation range: -4°F~+122°F

    Protection

    • Over temperature protection during charging: 149°F

    Electrical Parts

    • Input-output terminal: M5 terminals

    Physical Parameters

    • Controller material: Plastic, Standard ABS
    • Power terminal maximum stranded wire size: #10AWG stranded-5mm²
    • Mounting: Vertical wall mounting
    • IP grade: IP65
    • Net weight: Approx. 0.3kg/0.66lb

    Environmental Characteristics

    • Operating temperature: -25~50°C (-13～122℉)
    • Storage temperature: -40~85°C (-40～185℉)
    • Operating Humidity range: 100% no condensation

    Part numbers: RS-PWM20WP (UPC 650380715850)
