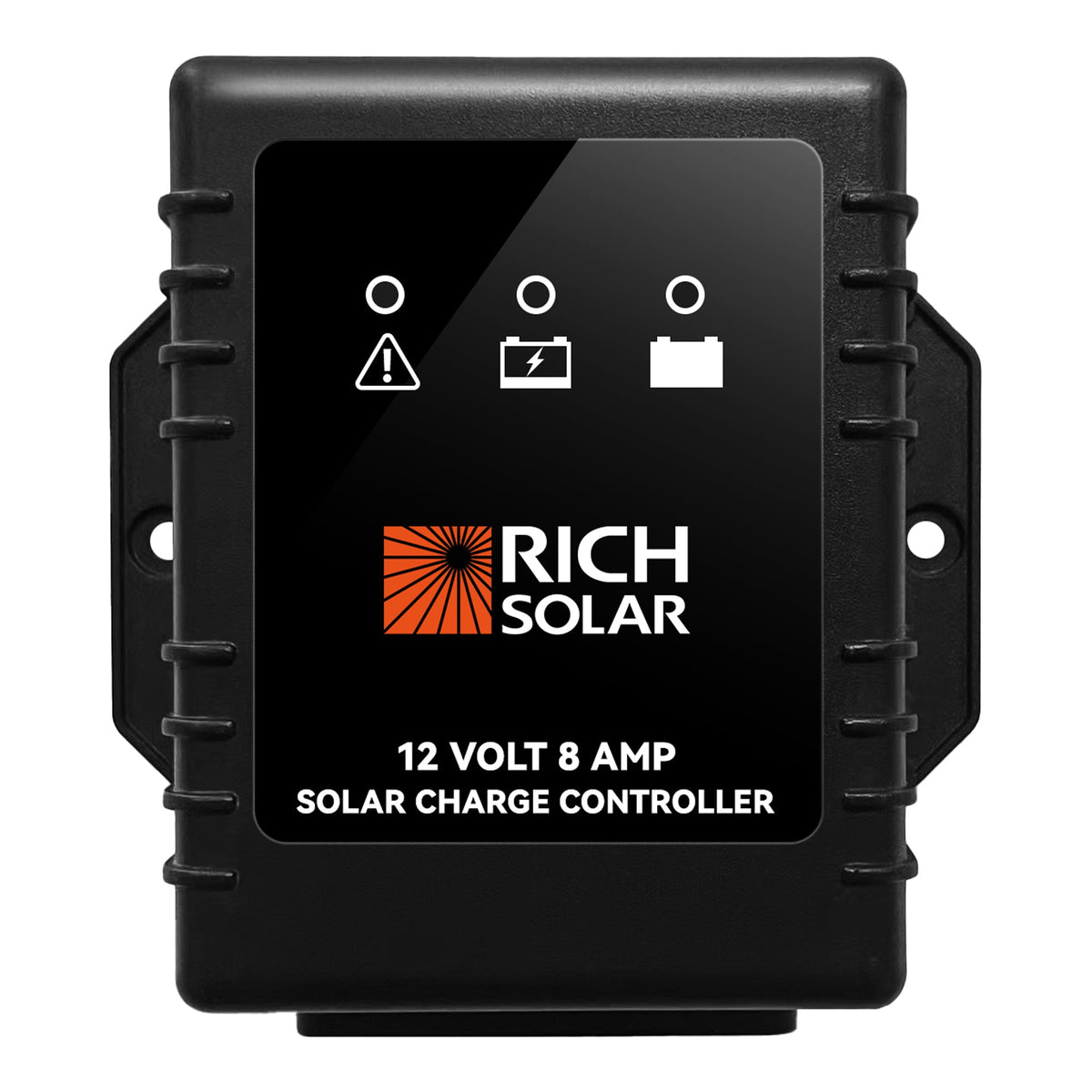

Rich Solar BRAVO Waterproof 8 8 Amp Waterproof PWM Solar Charge Controller
    Rich Solar BRAVO Waterproof 8 8 Amp Waterproof PWM Solar Charge Controller
Rich Solar BRAVO Waterproof 8 8 Amp Waterproof PWM Solar Charge Controller

Rich Solar BRAVO Waterproof 8 8 Amp Waterproof PWM Solar Charge Controller

$18.00
$18.00
$19.00
✓ Lowest Price Guaranteed  ·  We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.
↻ 30-day price protection  ·  If our price drops after you buy, we email you the difference as store credit. Details
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.
✓ Free Shipping  ·  ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Features

Intelligent Battery Charging

  • PWM + MOSFET Charging Technology: Delivers efficient and stable battery charging.
  • Intelligent Multi-Stage Charging: Smart charging control for optimized battery performance.
  • Battery Type Selection: Easily select the battery type via the built-in DIP switch.
  • Charging Time Management: Optimizes charging based on battery condition.

Flexible System Compatibility

  • 12V Battery System: Designed for 12V battery systems.
  • Supports Multiple Battery Types: Compatible with Flooded (WET), AGM, GEL, and LiFePO₄ batteries.
  • 25V Max Solar Input Voltage: Supports solar panel configurations with up to 25V PV input.
  • Common Positive Grounding: Compatible with common positive grounding systems.

Built for Outdoor Use

  • IP65 Waterproof Design: Built for reliable outdoor operation in harsh environments.
  • Conformal Coated Circuit Board: Protects internal electronics against moisture and corrosion.
  • Spark-Free Connection: Prevents sparks during battery connection for safer installation.

Reliable Performance

  • Advanced Electronic Protection: Protects against over-voltage, short circuit, reverse polarity, and over-temperature.
  • Thermal Protection: Helps prevent overheating during operation.
  • CE, EMC & FCC Compliant: Meets recognized safety and electromagnetic compatibility standards.

Mounting the Device

  • The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.


Specifications

Electrical Parameters

  • Rated Solar Panel Amps: Max. 8AMP
  • Normal Input Solar Cell Array Voltage: 15-22VDC
  • Max. Solar Cell Array Voltage (Output Has No Load): 25VDC
  • Lowest Operating Voltage (At Solar or Battery Side): 9VDC
  • Standby Current Consumption At Night: 2mA
  • Maximum Voltage Drop - Solar Panel to Battery: 0.25VDC
  • Grounding: Positive Ground

Charging Characteristics

  • Minimum Battery Starting Charging Voltage: 3VDC
  • Soft Start Charging Voltage: 3-10±0.2VDC
  • Soft Start Charging Current (50% PWM Duty): Up to 4AMP
  • Bulk Charge Voltage: 10-14±0.2VDC
  • Equalization Charging Voltage at 25℃: 15.5±0.2VDC
  • Equalization Charging Timer Timeout: 2 Hours
  • Battery Temperature Compensation Coefficient: -24mV/°C
  • Temperature Compensation Range: -4°F~+122°F

Protection

  • Over Temperature Protection During Charging: 149°F

Electrical Parts

  • Input/Output Terminal: M4 terminals

Physical Parameters

  • Controller Material: Plastic, Standard ABS
  • Power Terminal Maximum Stranded Wire Size: #12AWG stranded-3mm²
  • Mounting: Vertical wall mounting
  • IP Grade: IP65
  • Net Weight: Approx. 0.2kg/0.44lb

Environmental Characteristics

  • Operating Temperature: -25~50°C (-13～122℉)
  • Storage Temperature: -40~85°C (-40～185℉)
  • Operating Humidity Range: 100% no condensation

Part numbers: RS-PWM8WP, RS-PWM8 (UPC 650380715829)
