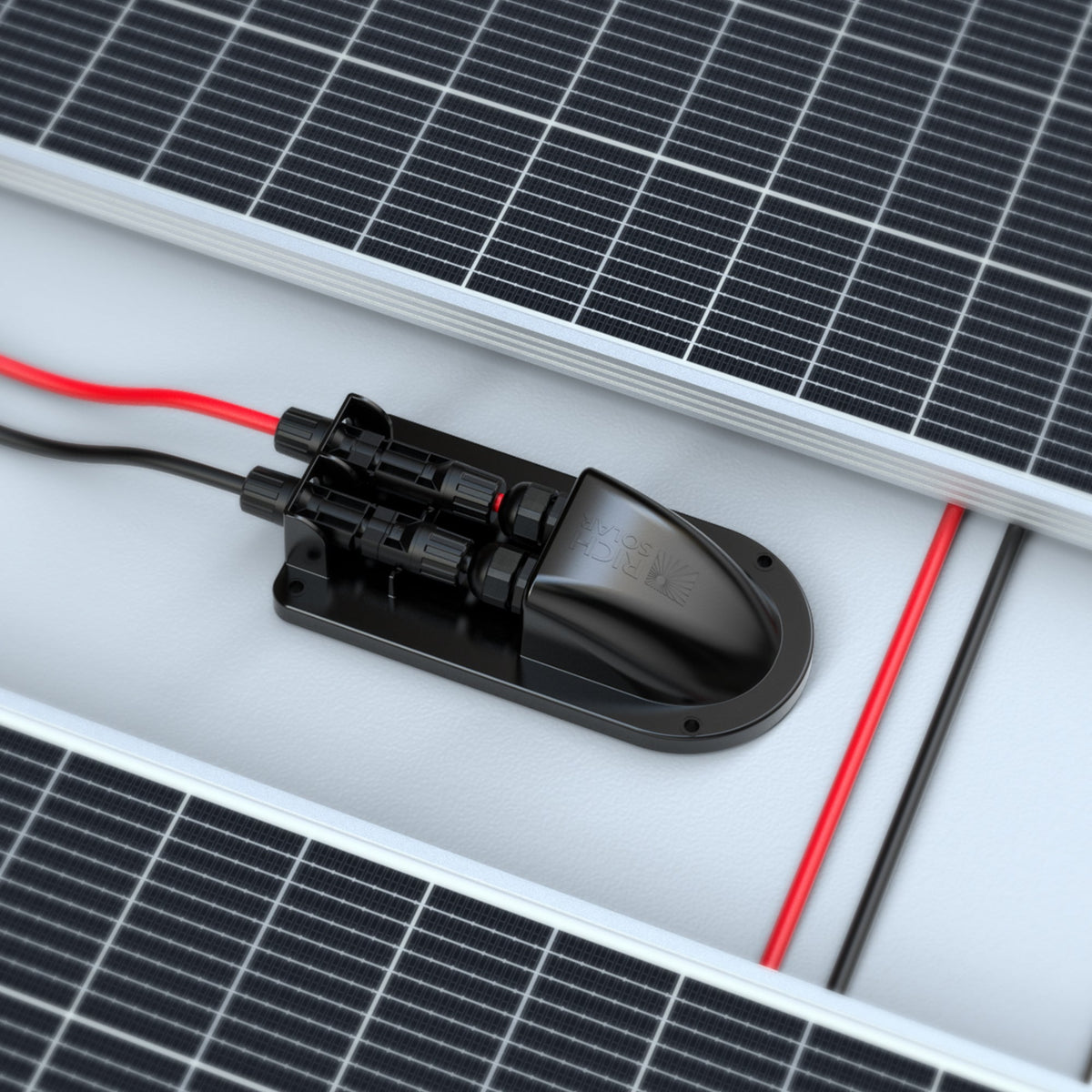

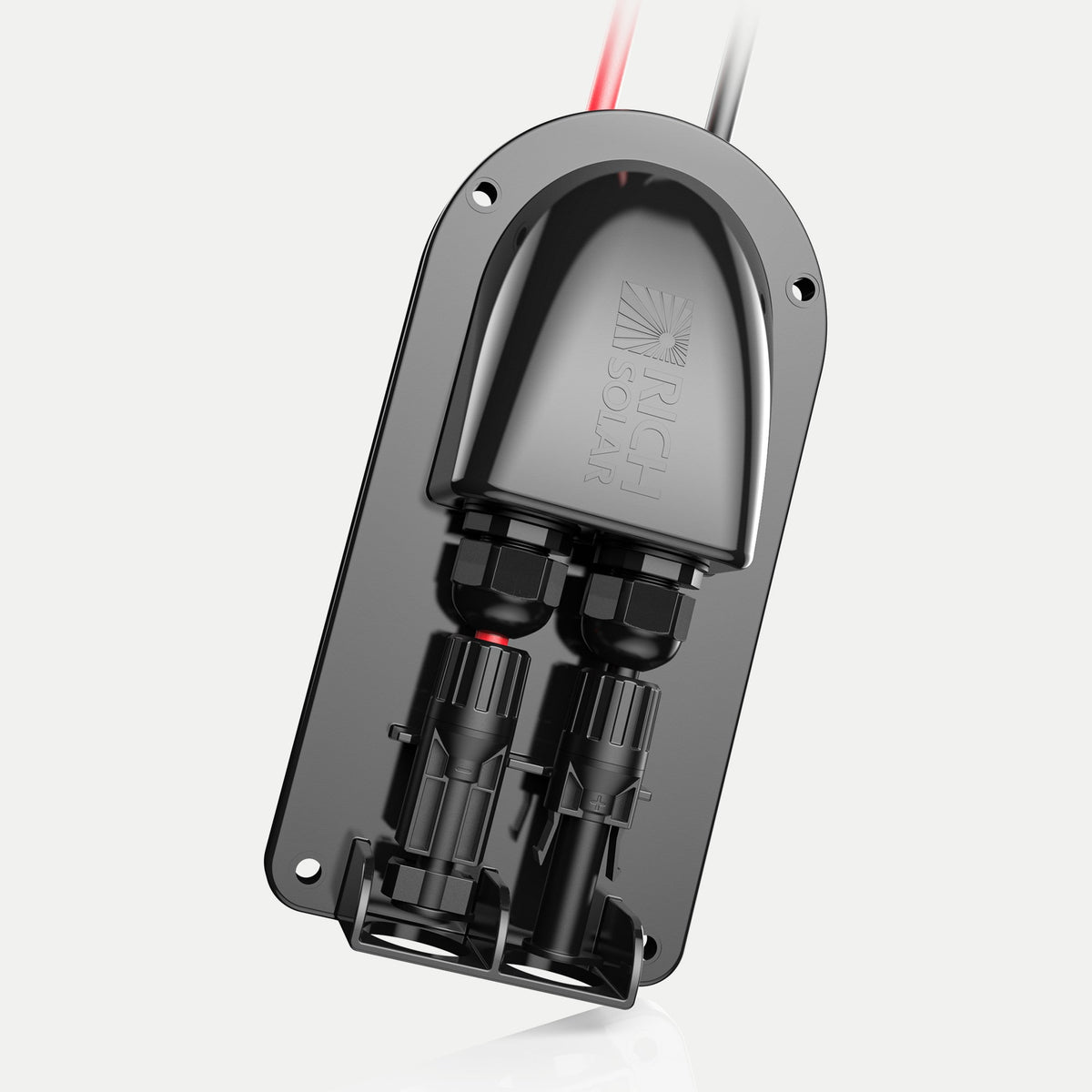

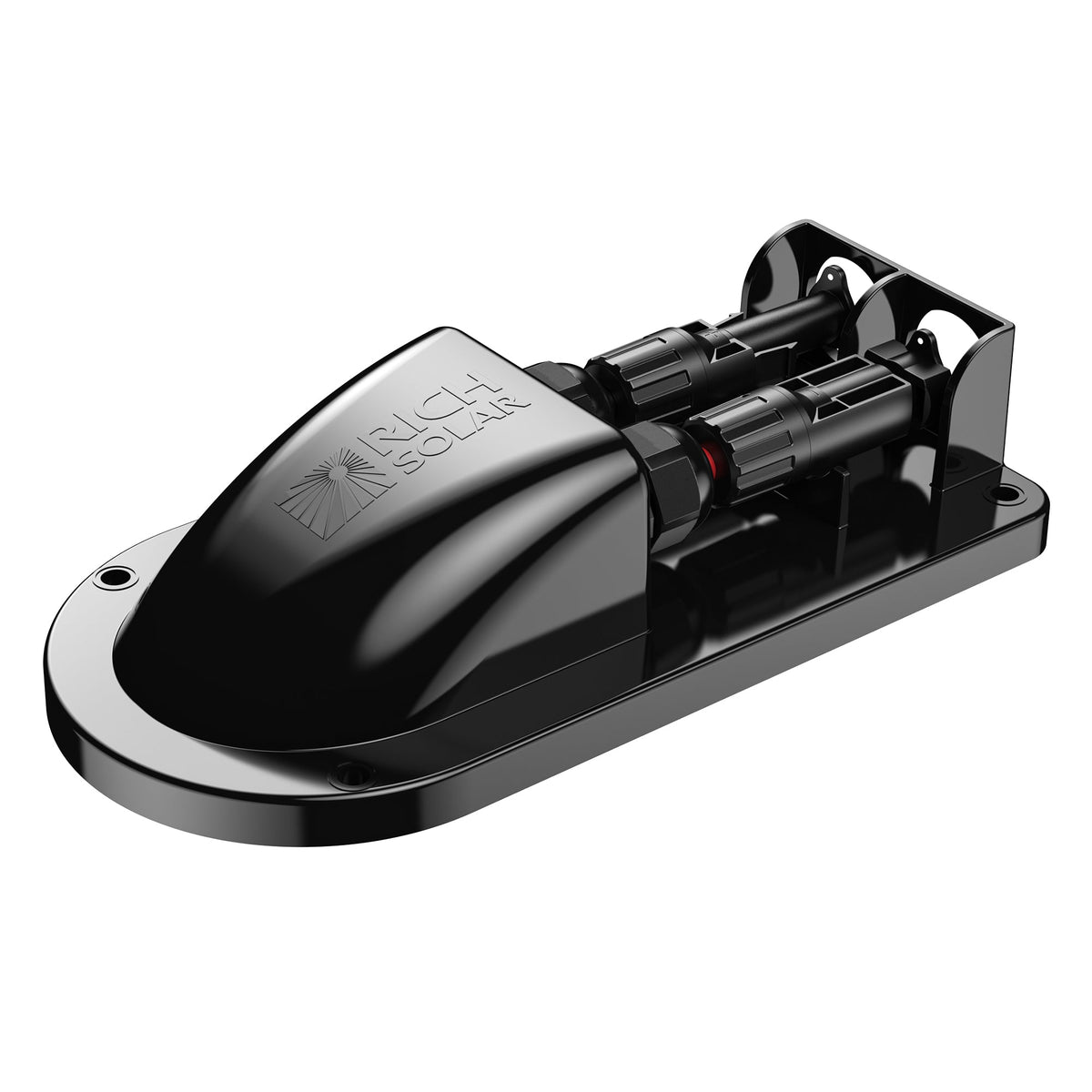

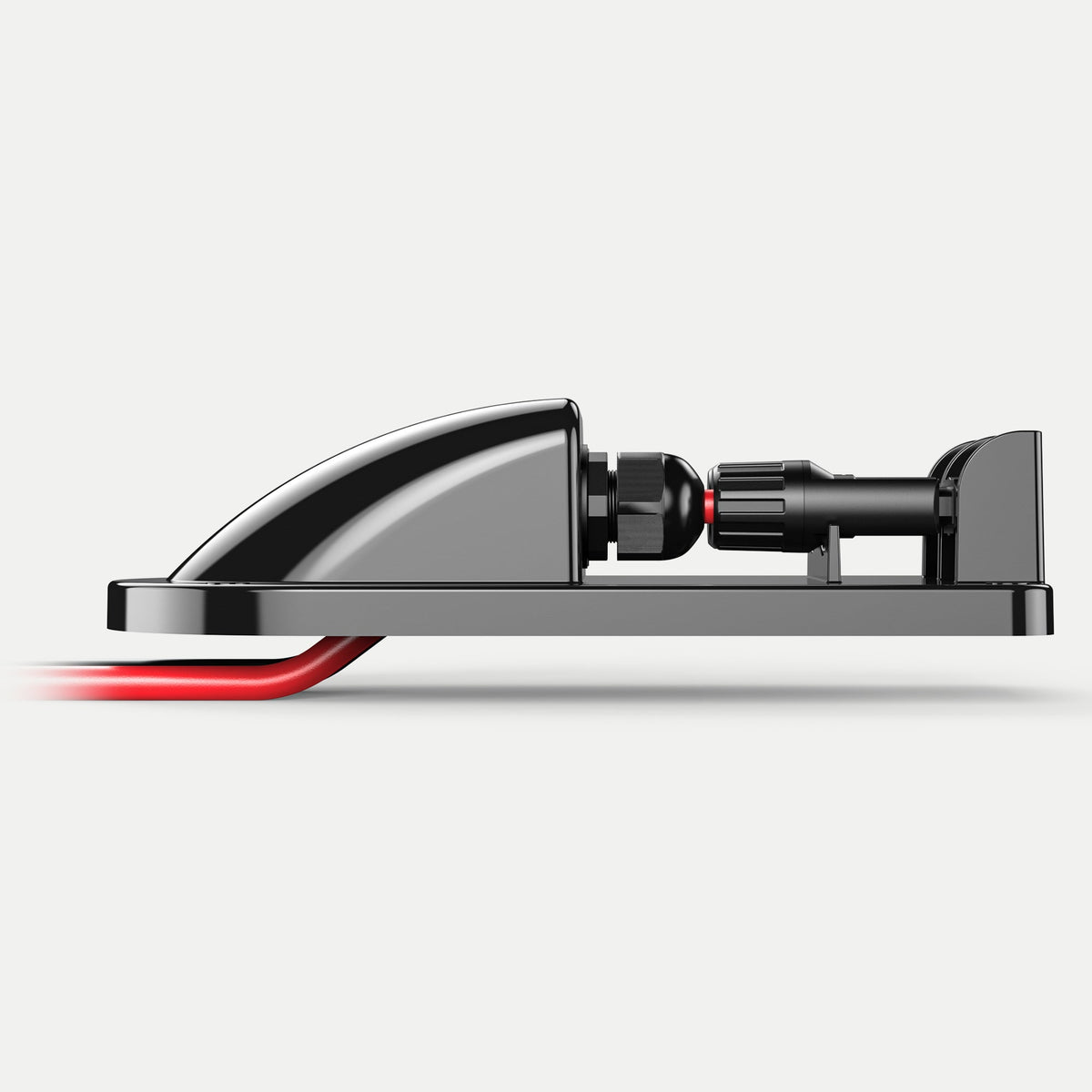

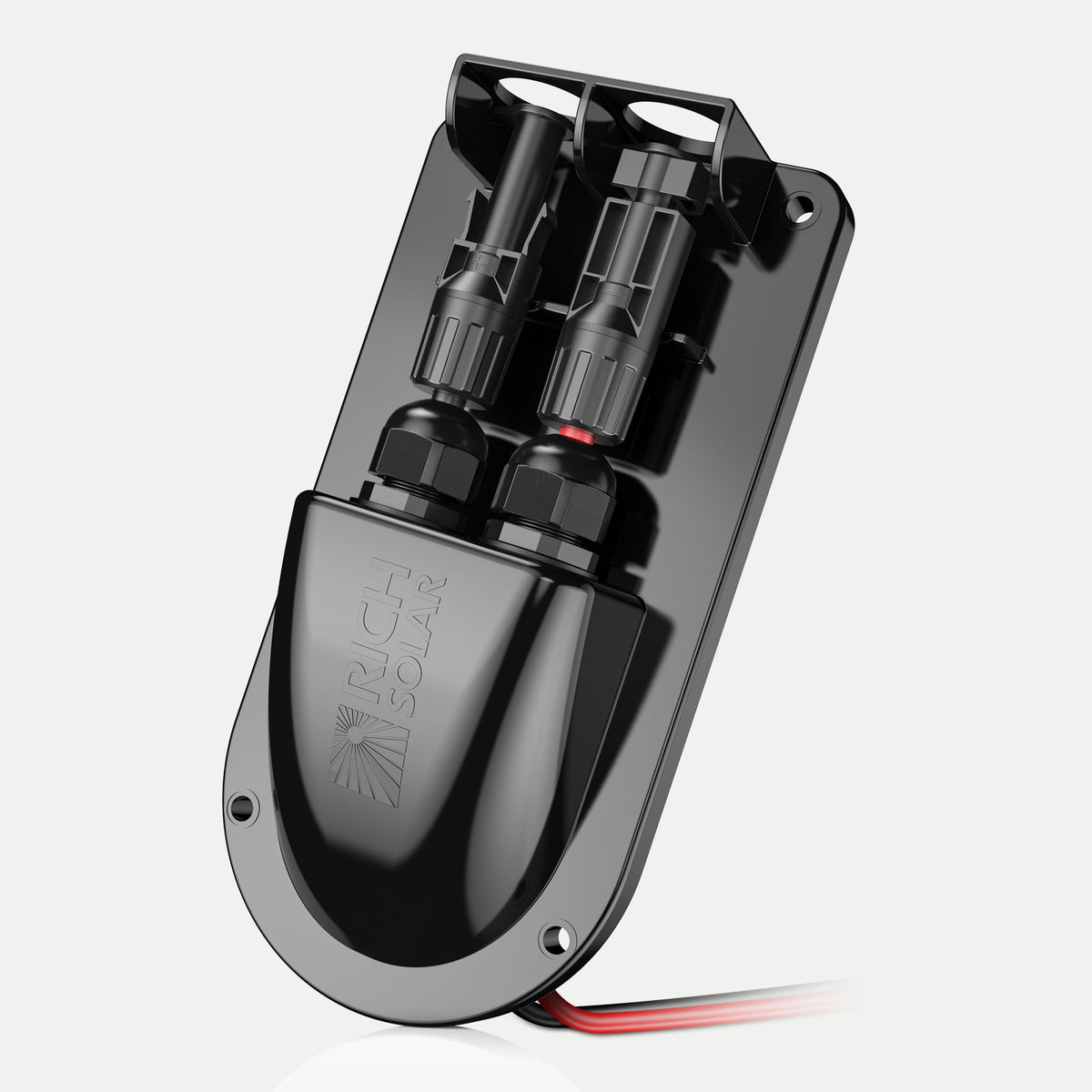

Rich Solar Cable Entry Plate IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors
- Regular price
- $36.00
- Sale price
- $36.00
- Regular price
-
$37.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features
- Pre-Wired Design: Pre-assembled with UL 1015 10AWG tin-plated copper wires and solar connectors for faster installation.
- High Current Capacity: Supports up to 42A maximum and 30A continuous current.
- Heat-Resistant Insulation: VW-1 rated PVC insulation resists heat up to 221°F (105°C) for enhanced safety and durability.
- Flame-Retardant Housing: Durable PP construction provides reliable outdoor performance from -40°F to 185°F.
- Weatherproof Design: IP68 cable gland helps protect against water and dust in outdoor environments.
- Quality Components: UL-certified wiring and waterproof solar connectors ensure safe and reliable performance.
- Easy Installation: Low-profile design installs easily with adhesive, sealant, or screws (not included).
Specifications
General
-
Material: Flame-Retardant Polypropylene (PP)
-
Operating Temperature: -40°F to 185°F
-
Dimensions: 7.2 × 3.8 × 2.0 in
-
Weight: 0.34 lb
-
Color: Black
-
Package Dimensions: 8 × 4 × 3 in
- Gross Weight: 1 lb
Electrical
-
Maximum Current: 42A
-
Continuous Current: 30A
-
Maximum Voltage: 600V
-
Wire Type: UL 1015 10AWG
-
Conductor Material: Tin-Plated Copper
-
Wire Insulation: PVC (VW-1 Flame Rated)
- Wire Temperature Rating: 5°F to 221°F

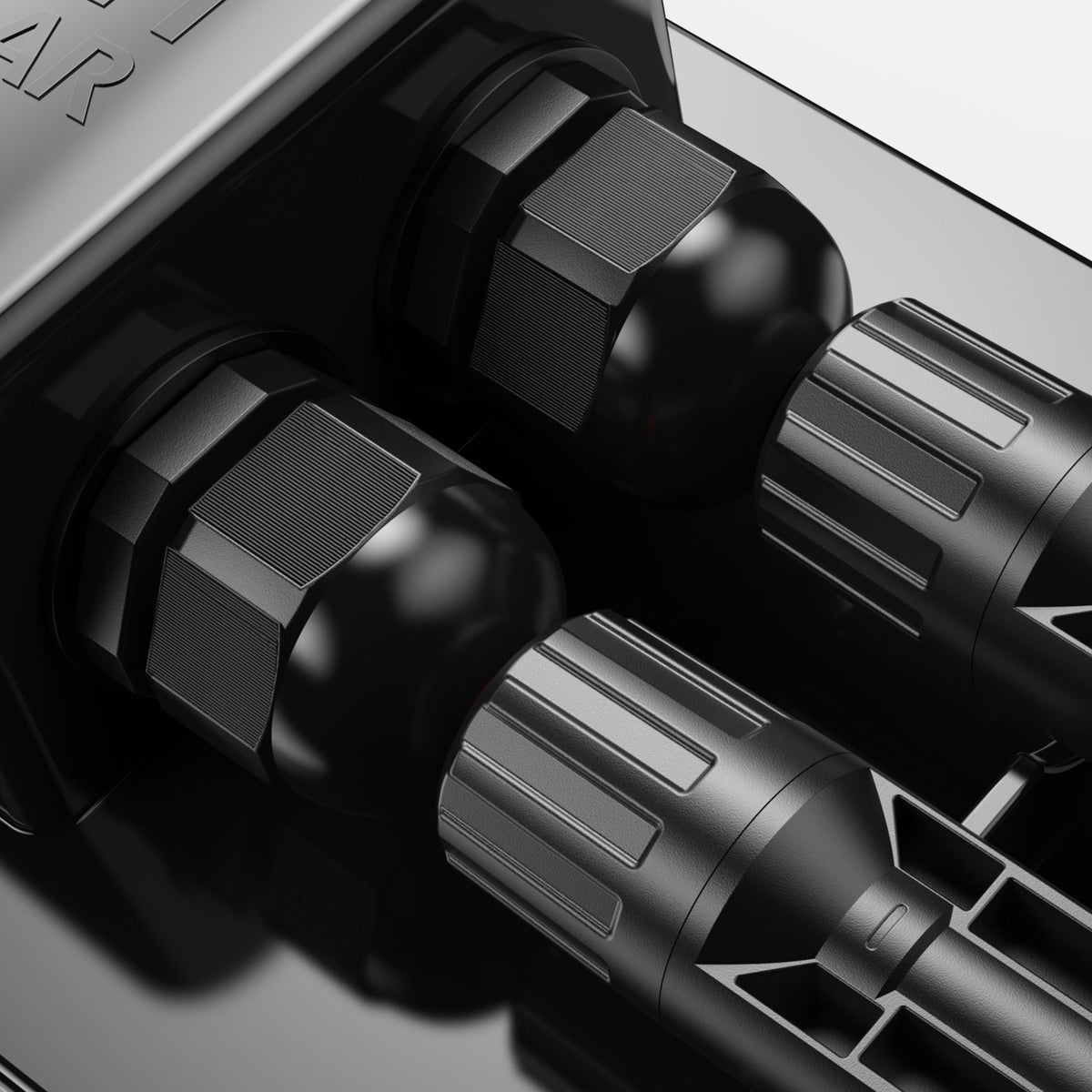

Cable Gland
-
Type: PG9
-
Material: PA6
-
Protection Rating: IP68
-
Flame Class: UL94 V-2
- Certification: CE
Solar Connectors
-
Connector Material: PC
- Certification: TÜV
Part numbers: RS-G02 (UPC 650380713672)
