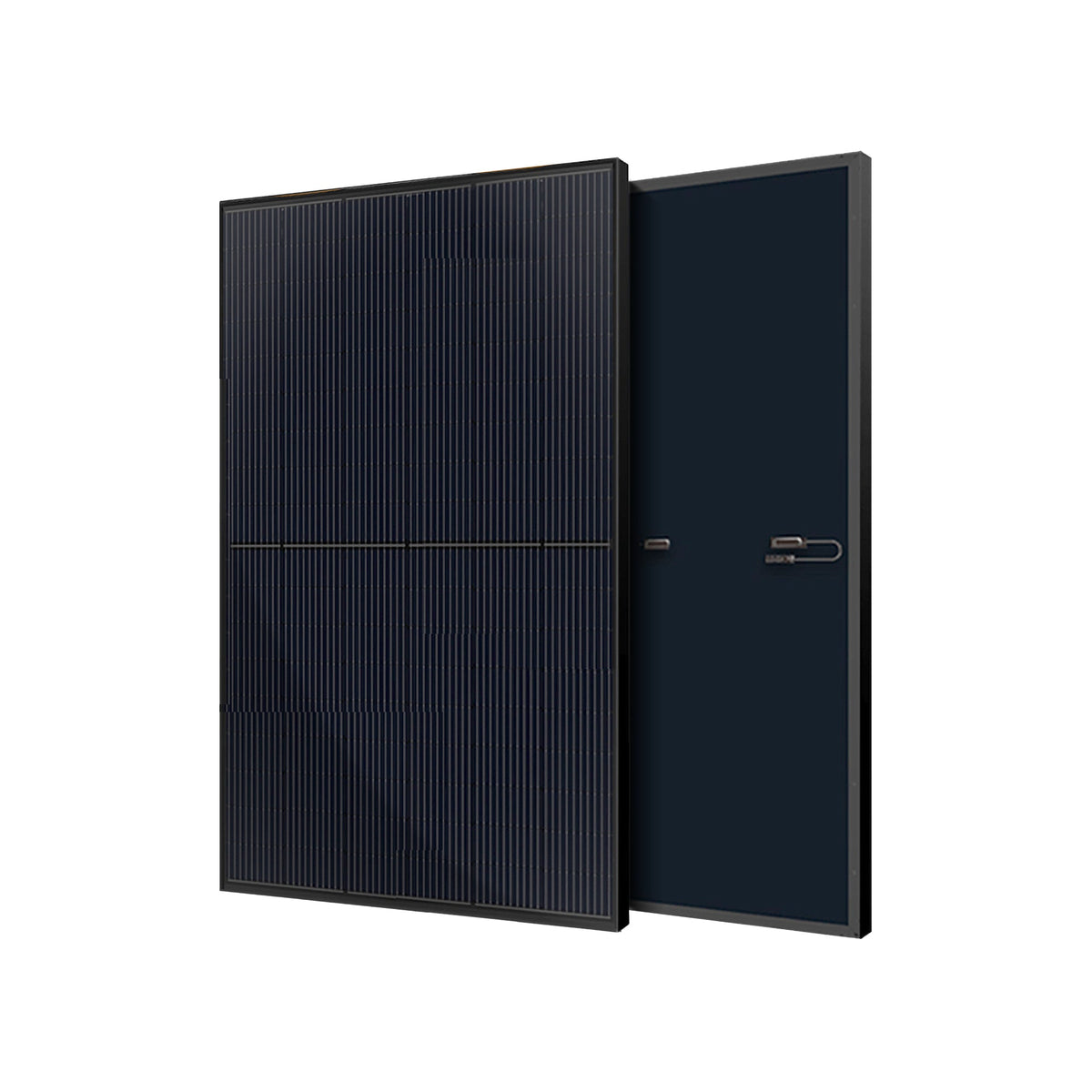

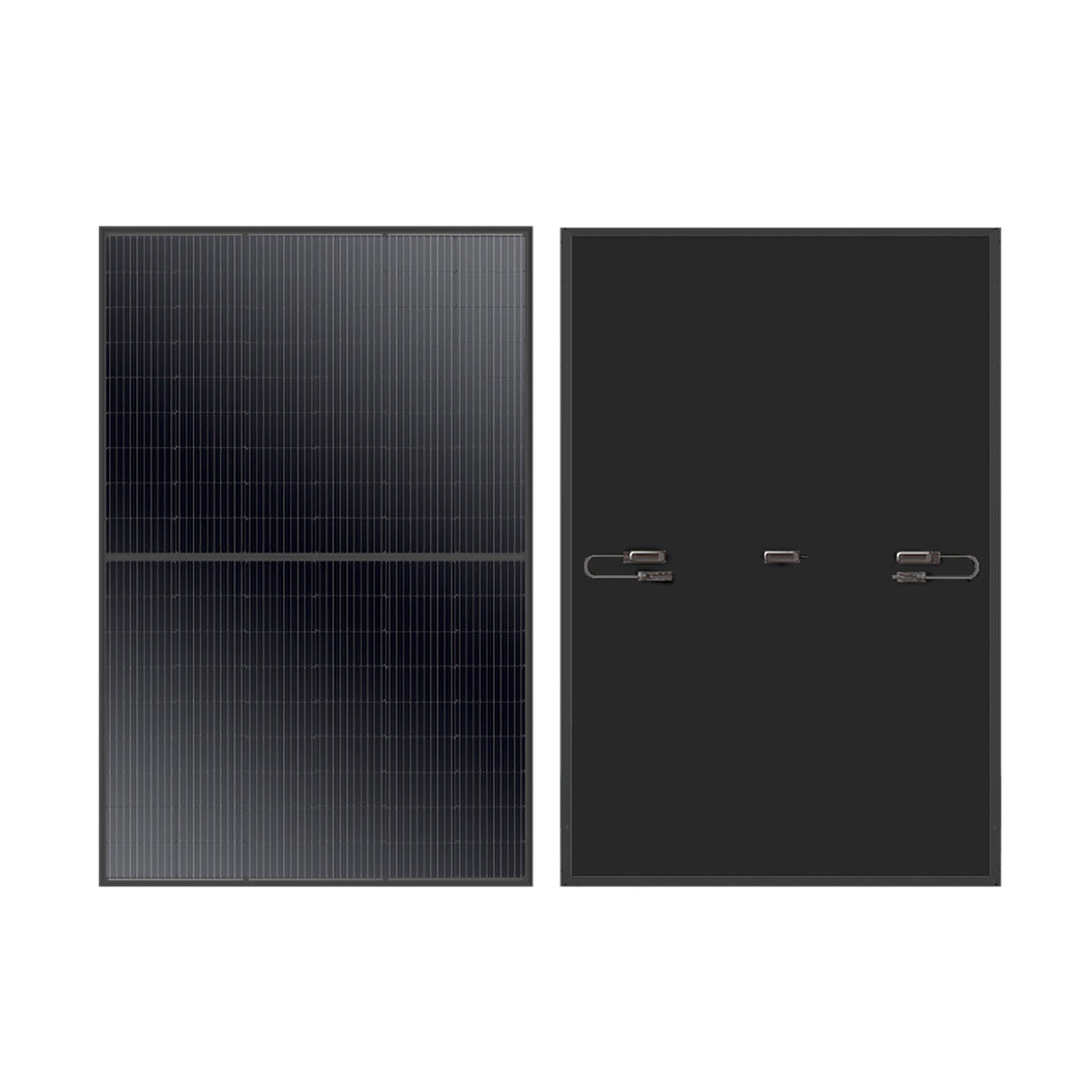

Rich Solar MEGA 400 400 Watt Solar Panel
- Regular price
- $3,142.00
- Sale price
- $3,142.00
- Regular price
-
$3,838.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
PALLET SHIPPING ONLY!
For any other quantities, please call our sales team at 1-800-831-9889 or email us at sales@richsolar.com.
Features
- 24V off-grid solar panel.
- 10-busbar monocrystalline cells with up to 23.2% efficiency.
- 108-cell configuration delivers a reliable 400W output.
- 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
- Power tolerance 0 to +5W ensures at least the rated output.
- Excellent low-light performance on cloudy days and at dawn/dusk.
- PID-resistant and 100% EL-inspected to help prevent microcracks.
- Tested for UV exposure, thermal cycling, humidity freeze, and more.
- Rated for 5400 Pa snow loads and 2400 Pa wind loads.
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
- Ideal for residential, agricultural, and commercial off-grid.
Installation
- Anodized aluminum frame – lightweight, strong, and corrosion-resistant
- 8 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
- MC4 connectors with 4 ft pre-attached cables for quick and easy installation
- Compatible with both on-grid and off-grid inverters
Warranty
- 25-year limited power output warranty
- 10-year workmanship warranty
Built-in Components
- Panel Leads (Pair): 12 AWG, 4 ft each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
- Maximum Power (PMAX): 400W
- Maximum Power Voltage (VMP): 31.0V
- Maximum Power Current (IMP): 12.9A
- Open Circuit Voltage (VOC): 37.1V
- Short Circuit Current (ISC): 13.7A
- Maximum System Voltage (VMAX): 1500VDC
- Temperature Range: -40 ~ +185°F
- Maximum Series Fuse Rating: 25A
- Dimensions: 67.8 x 44.7 x 1.2 in
- Weight: 45.2 lbs

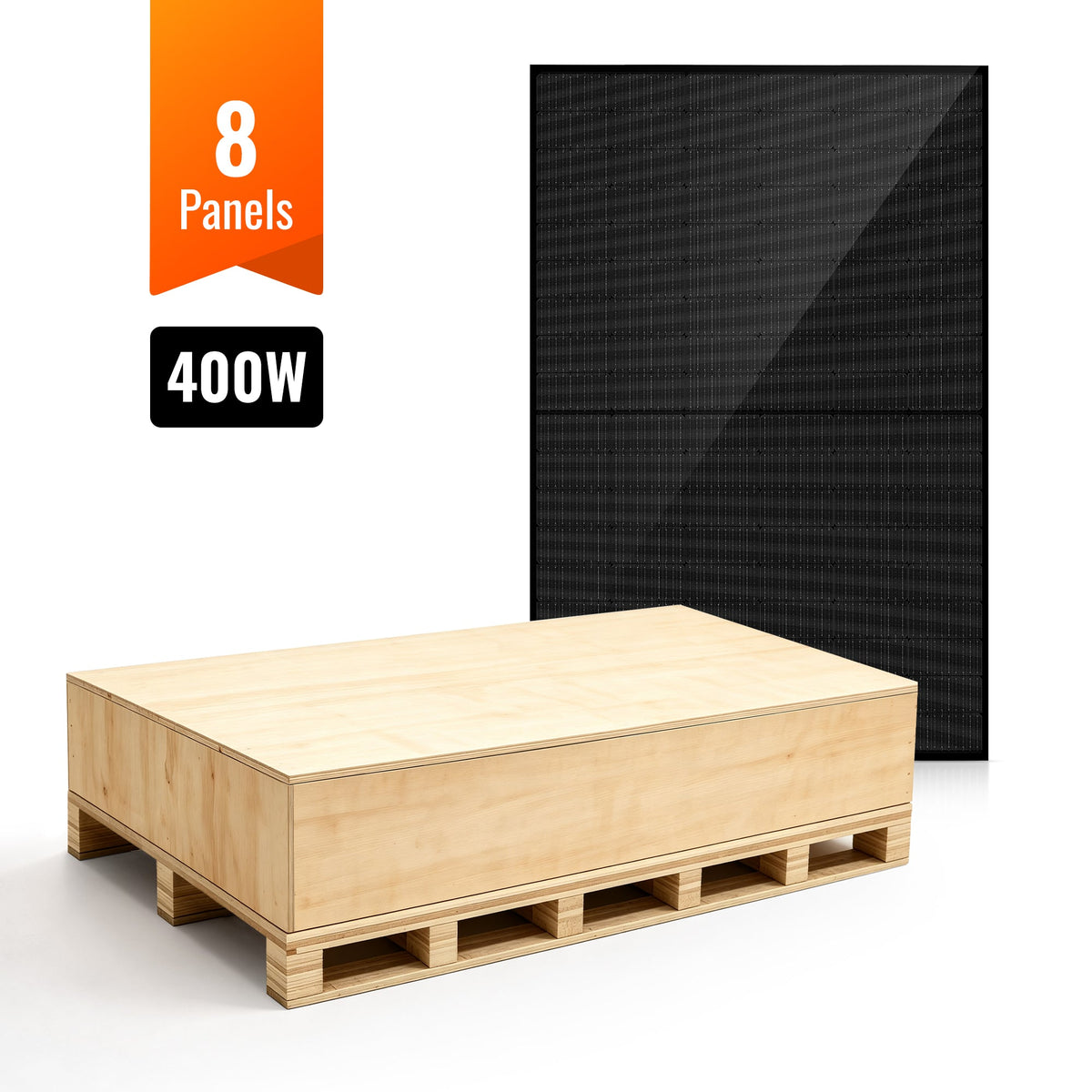

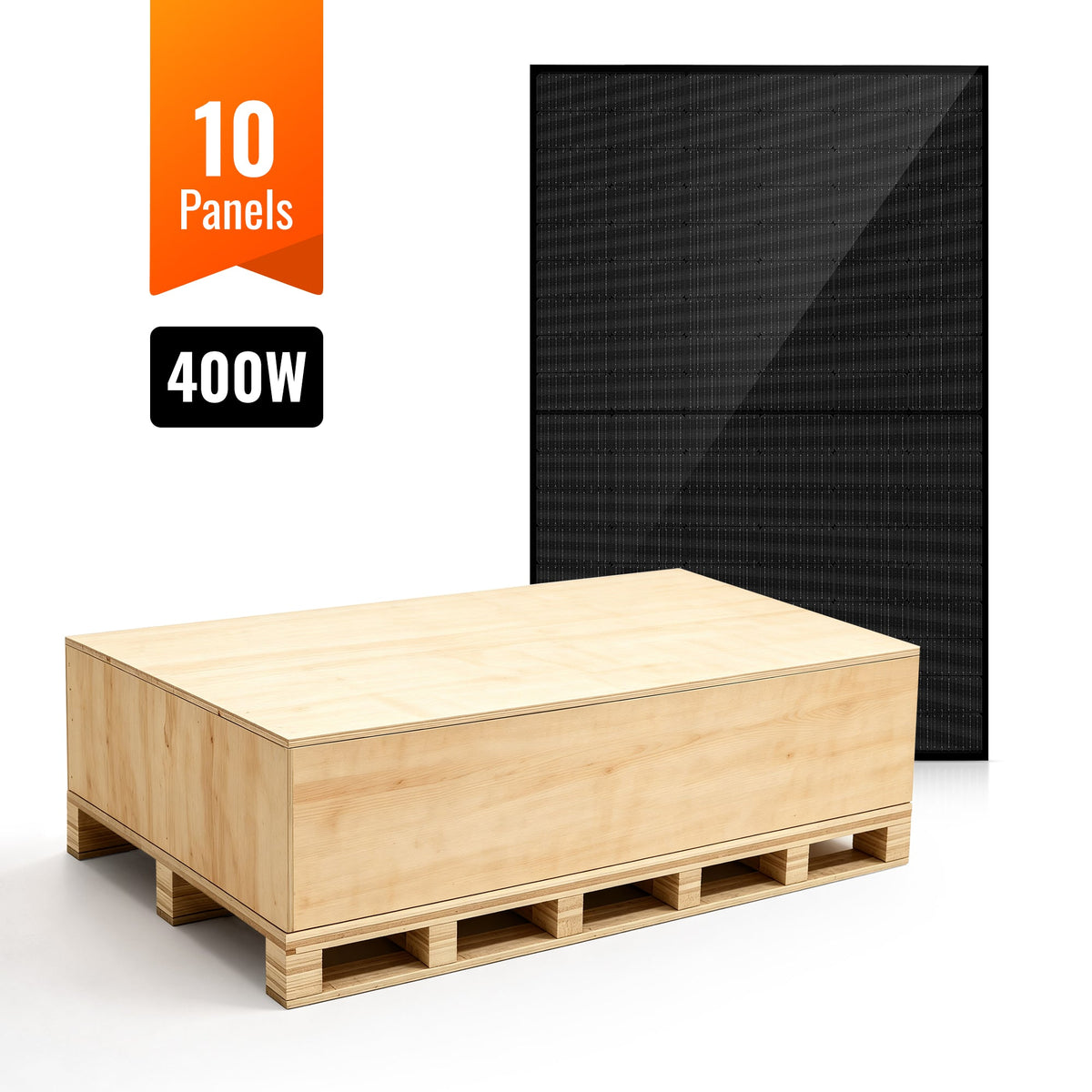

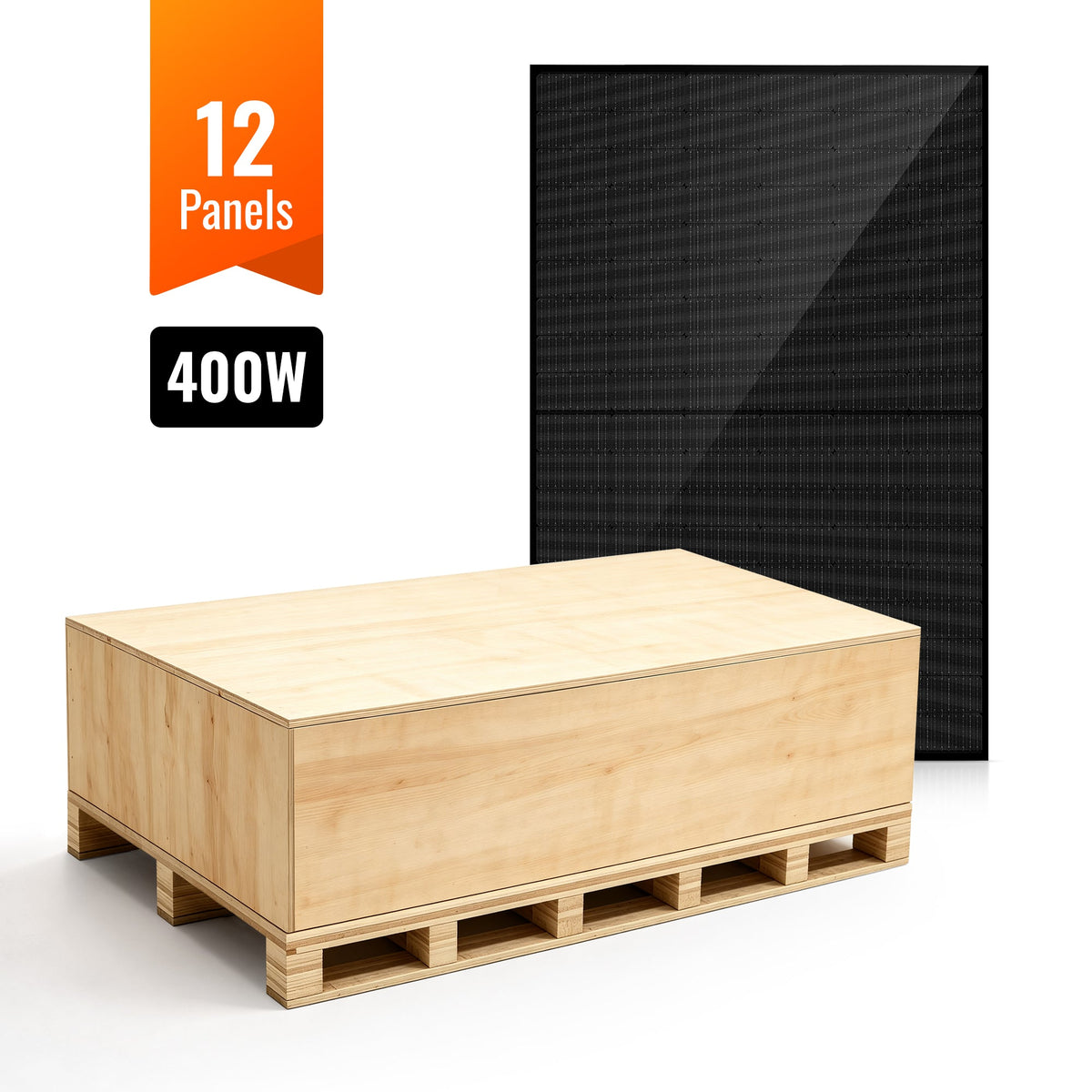

Part numbers: RS-M400-8, RS-M400-10, RS-M400-12 (UPC 650380716376, 650380716369, 650380716352)
