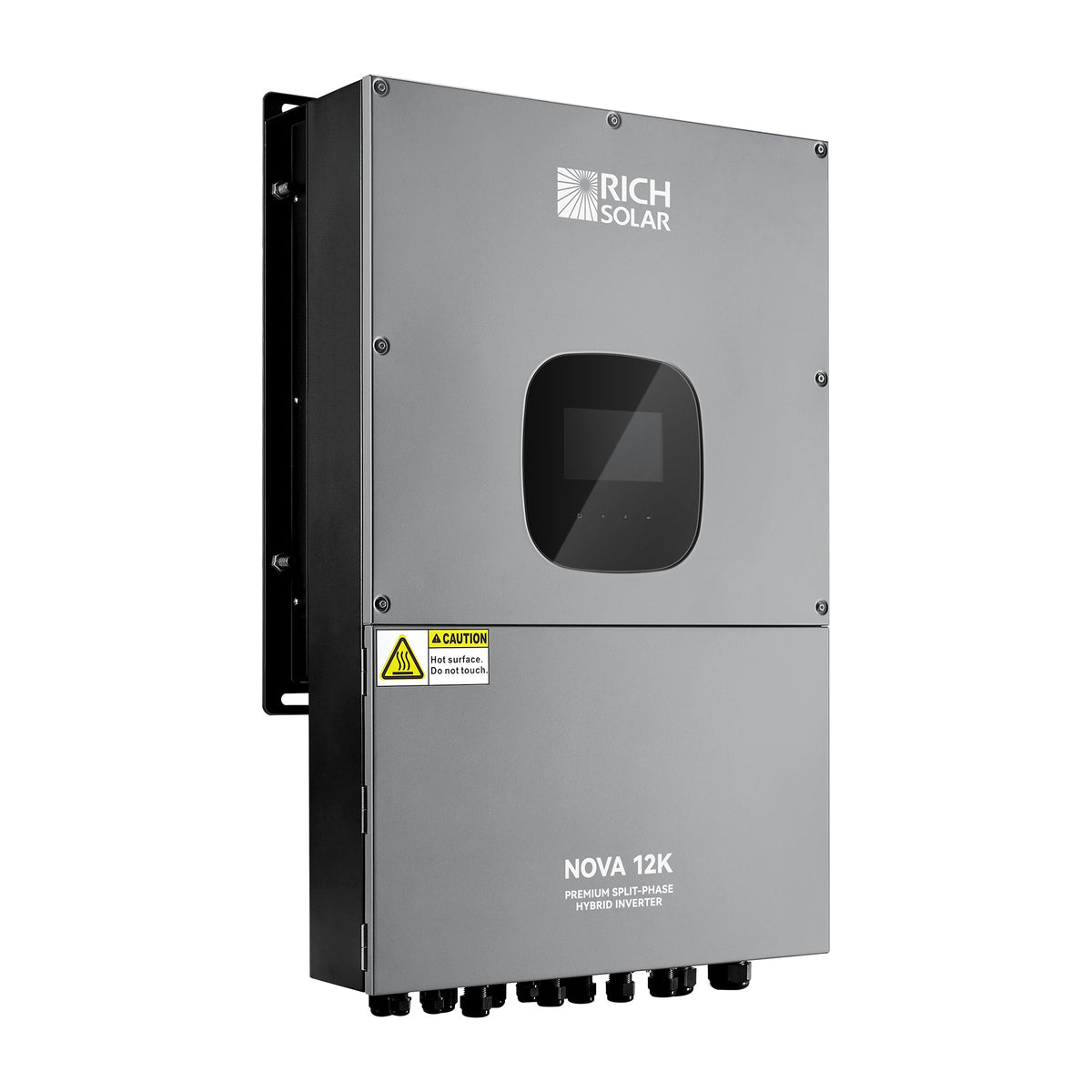

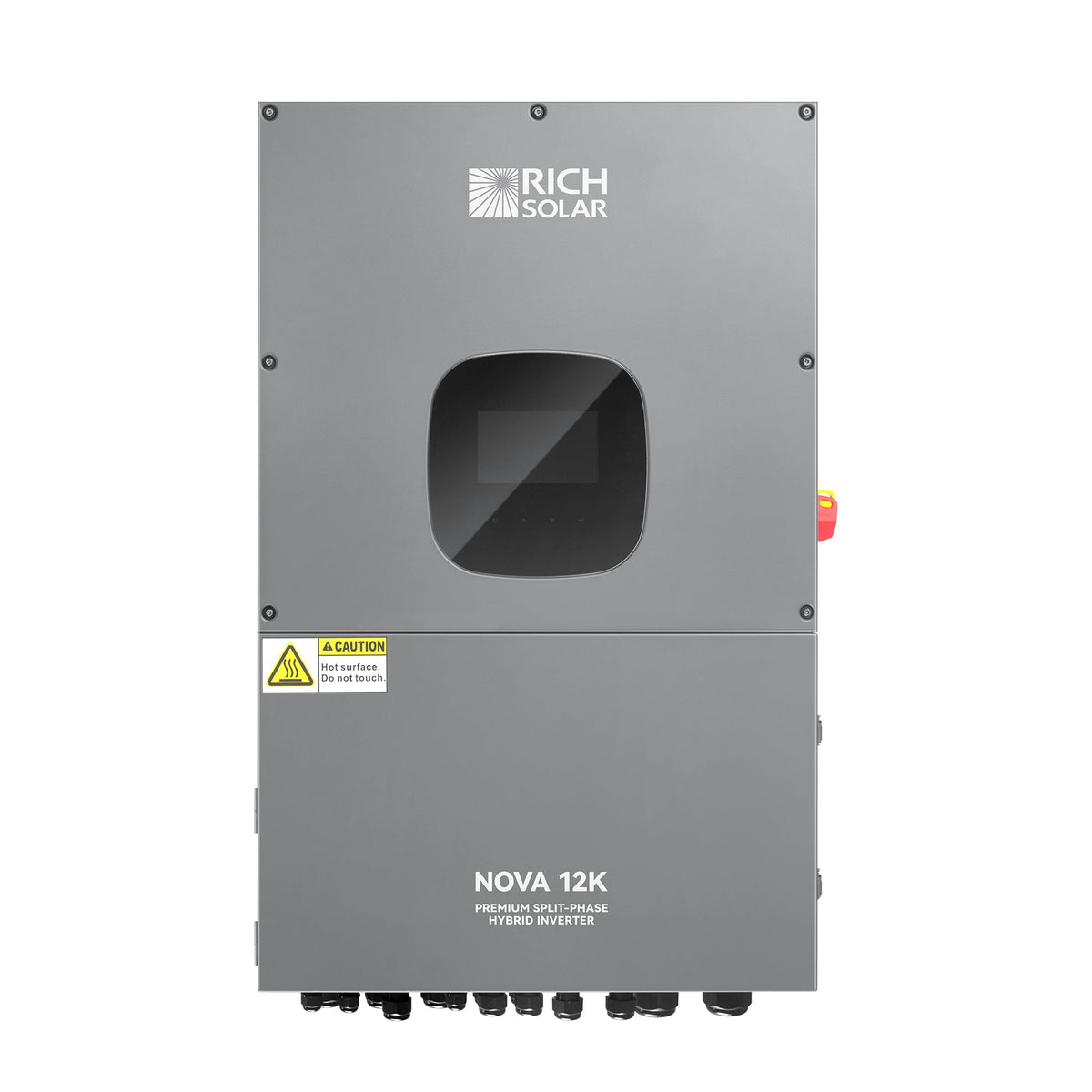

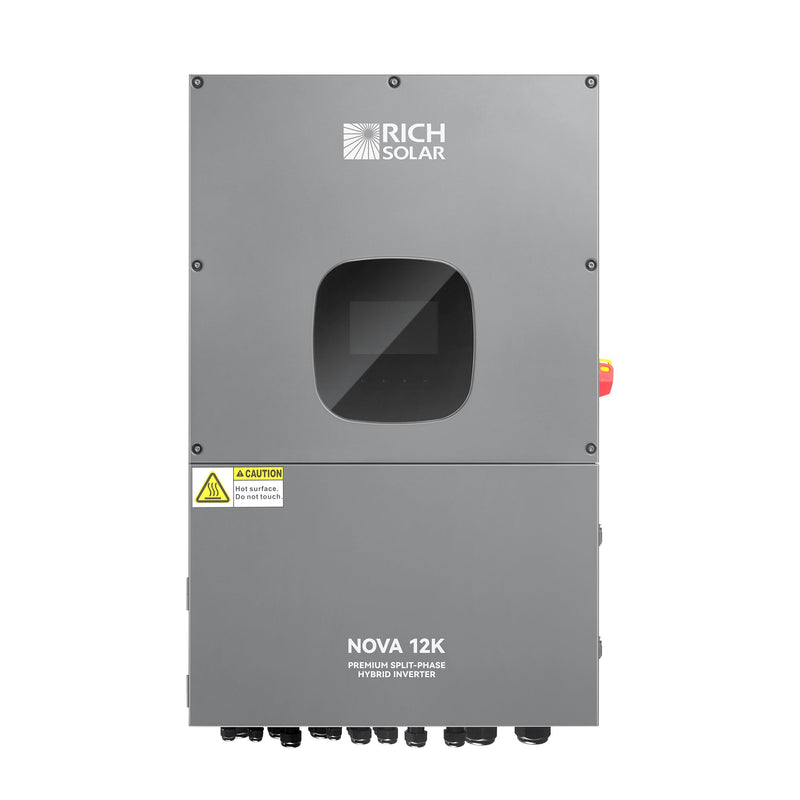

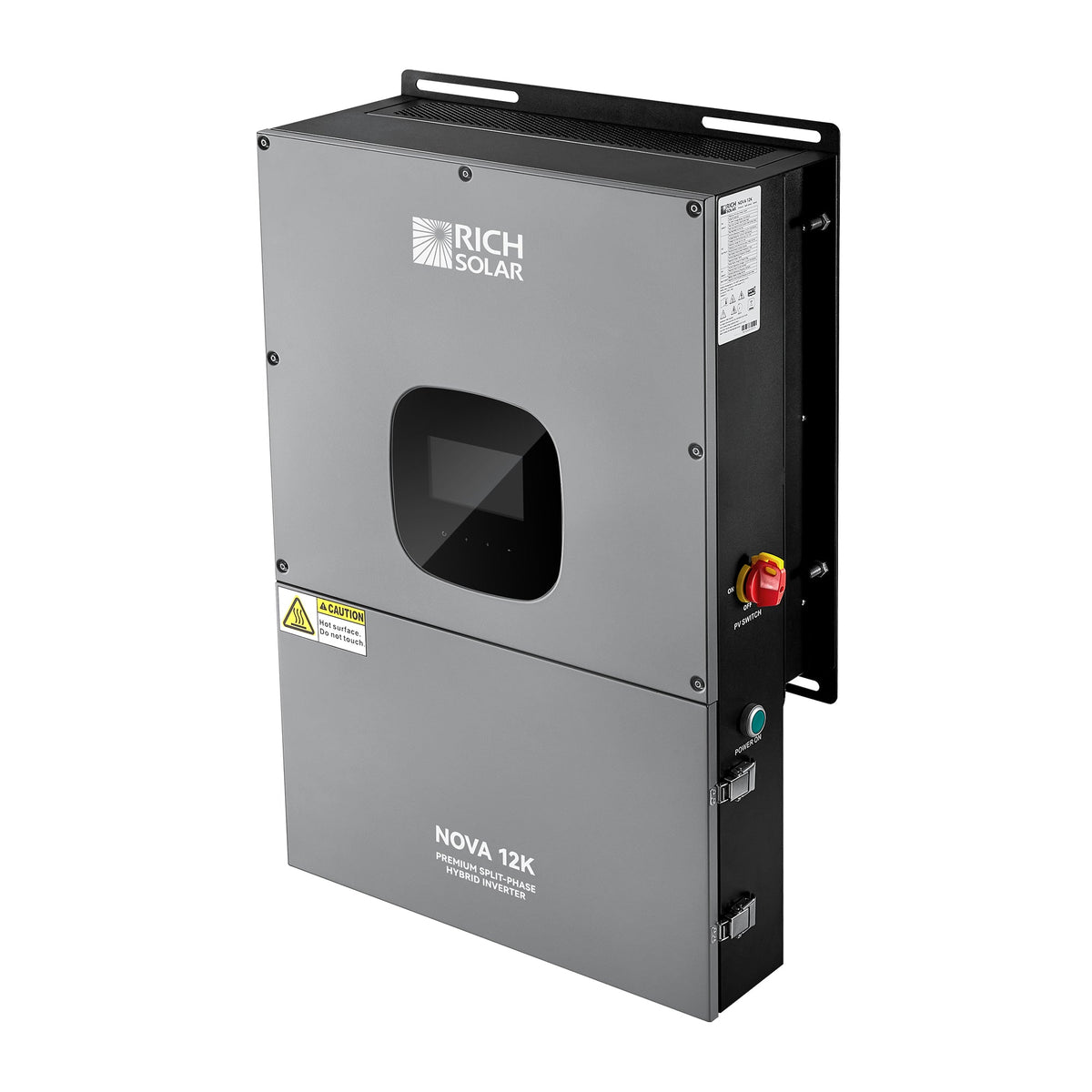

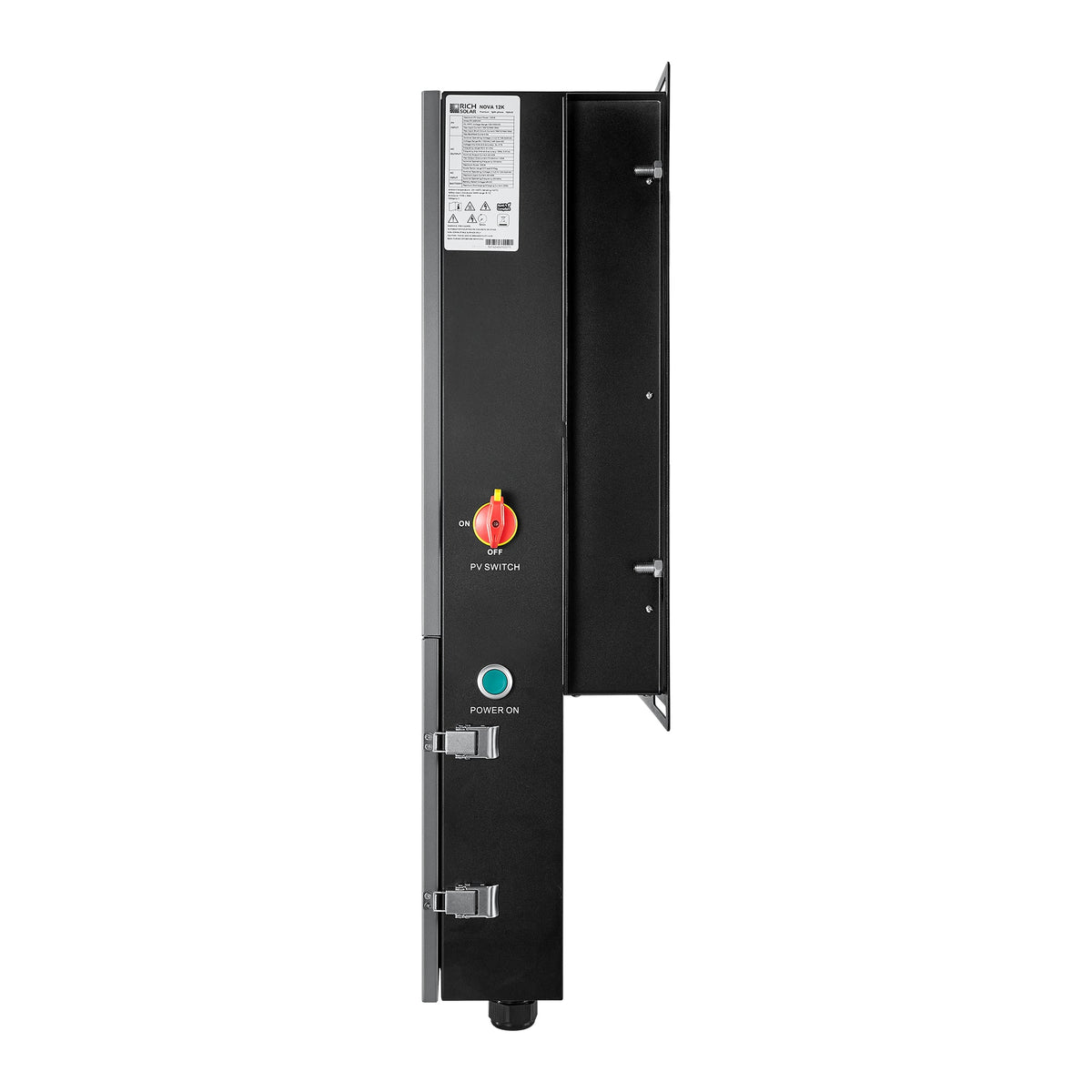

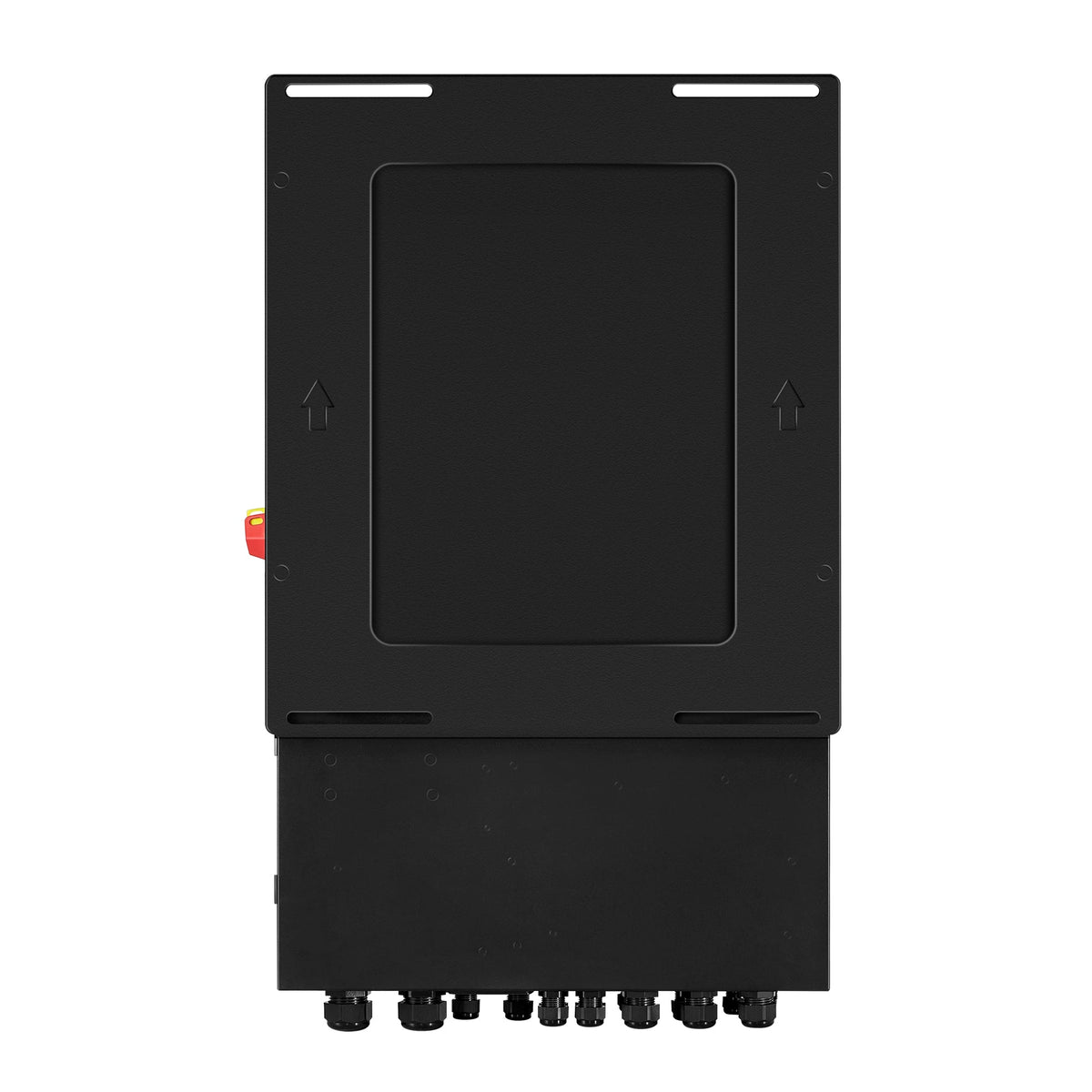

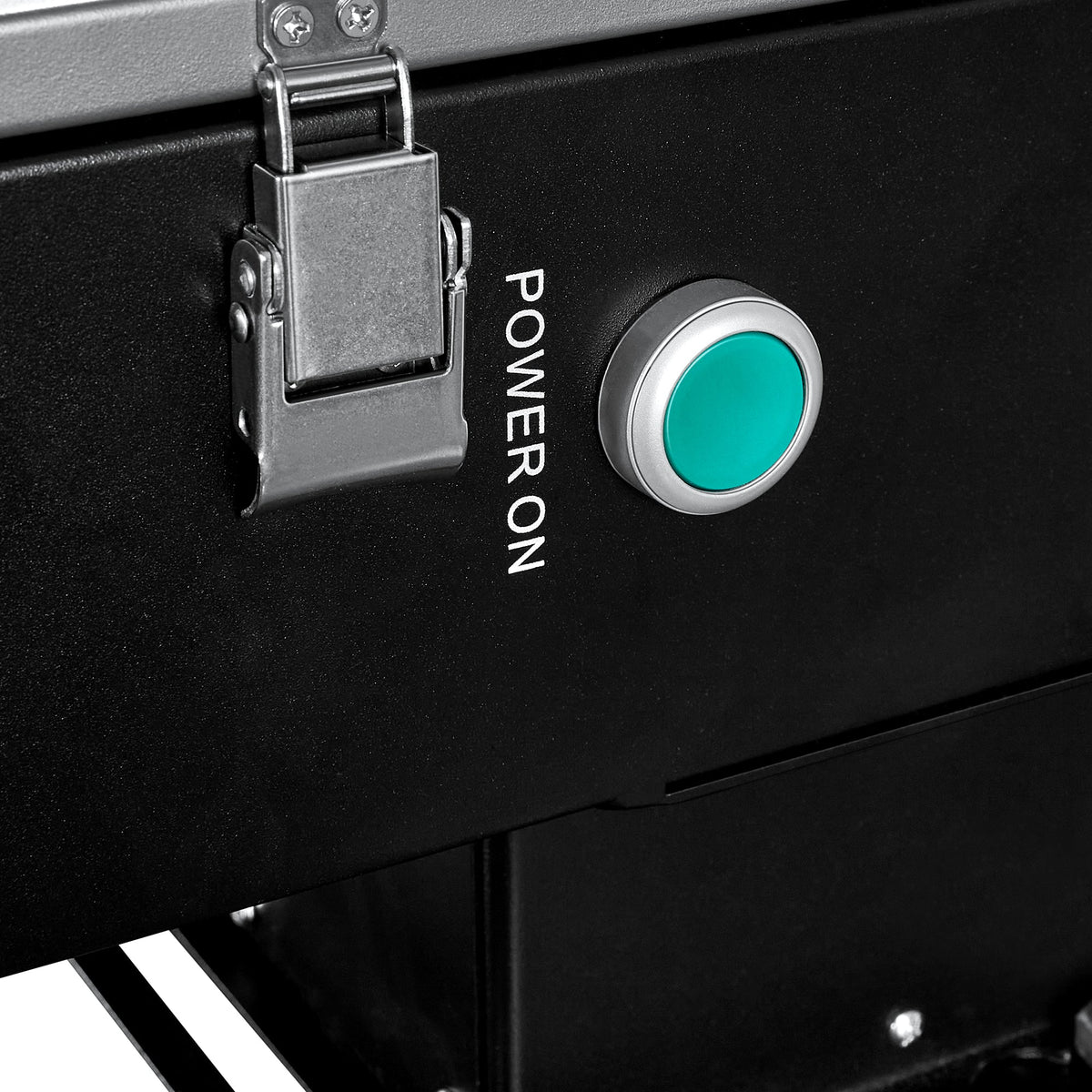

Rich Solar NOVA 12K 12000 Watt 48V Split Phase Hybrid Inverter

Features

High-Power Hybrid Energy Solution

• 10,000W continuous output provides reliable power for whole-home backup, cabins, and off-grid applications.

• 120/208V and 120/240V split-phase output supports a wide range of residential and commercial electrical systems.

• Multiple operating modes support grid-tie, off-grid, and hybrid energy configurations.

Advanced Solar & Battery Management

• 12,000W PV input capacity maximizes solar energy harvesting for large-scale systems.

• Dual MPPT inputs (2 × 18A, 30A peak) provide flexible solar array configuration and optimized energy harvesting.

• Supports solar, battery, utility grid, and generator integration for maximum energy flexibility.

Flexible System Expansion & Smart Control

• Parallel connection supports up to 6 units for increased system capacity.

• Built-in WiFi monitoring enables real-time system status tracking through the mobile app.

• RS485 communication supports intelligent BMS integration with compatible lithium batteries.

Reliable Protection & Compliance

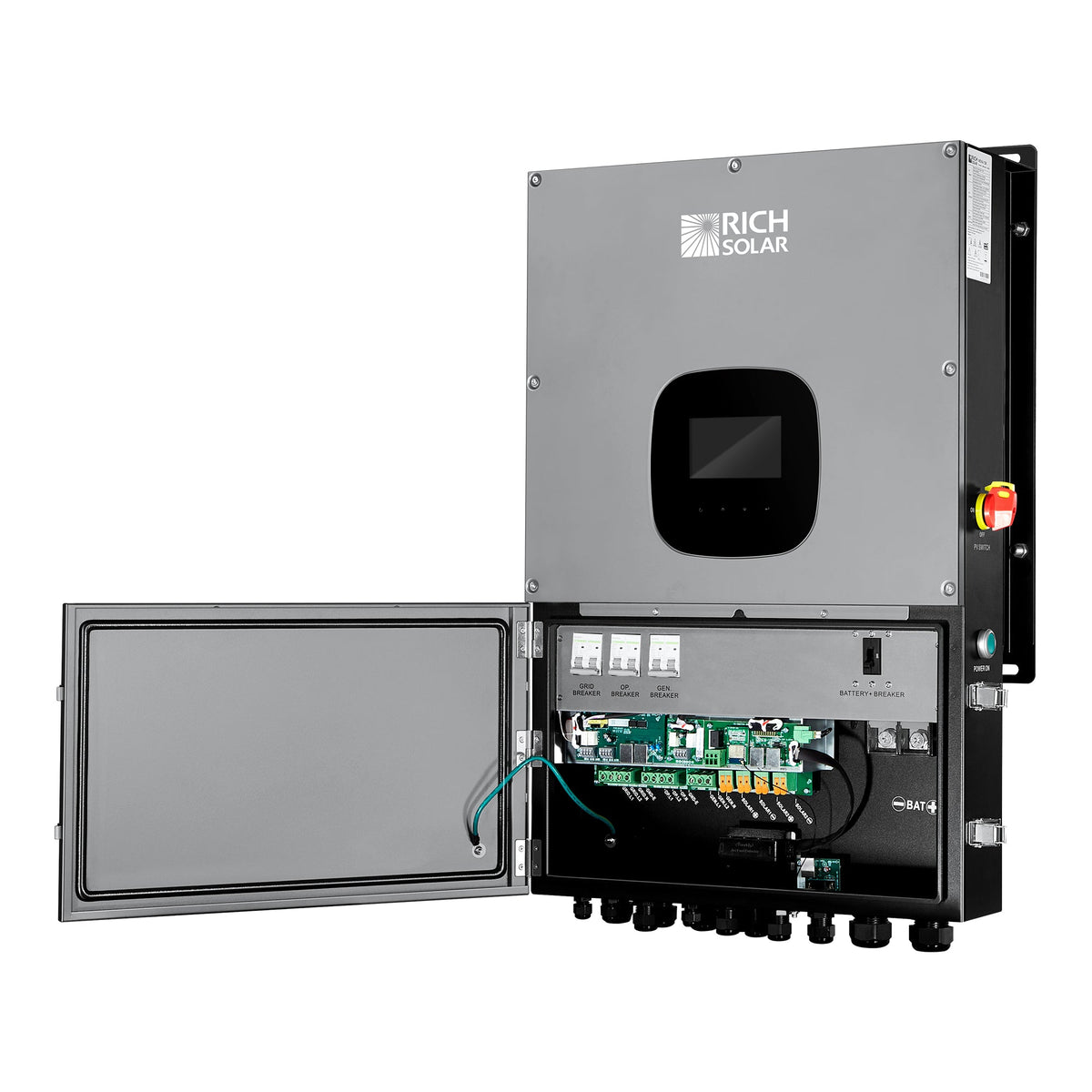

• 300A DC and 60A AC integrated circuit breakers provide built-in overcurrent protection and simplify installation.

• Advanced safety features include AFD (NEC 690.11), RSD (NEC 690.12), ground fault detection (NEC 690.5), and PV input lightning protection.

• Certified to UL 1741SA/SB, CSA C22.2 No. 107.1, and IEEE 1547 to meet North American safety and grid interconnection standards.

Specifications

PV Input

• Maximum DC Power: 12,000W

• Working DC Voltage Range: 120–550VDC

• Maximum DC Voltage: 600VDC

• Start-up Voltage: 125VDC

• MPPT: Dual Inputs – 2 × 18A (30A Max)

AC Input

• AC Start-up Voltage: 85VAC per Phase

• Auto Restart Voltage: 90VAC per Phase

• Acceptable Input Voltage Range: 85–140VAC per Phase

• Nominal Frequency: 50Hz / 60Hz

• AC Input Power: 10,000VA / 10,000W

• Maximum AC Input Current: 60A

AC Output

• Rated Power: 10,000VA / 10,000W

• Output Voltage: 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P)

• Output Frequency: 50Hz / 60Hz (Auto Sensing)

• Output Current: 41.7A per Phase

• Output Waveform: Pure Sine Wave

• Efficiency (DC to AC): 91%

Battery & Charger

• Nominal DC Voltage: 48VDC

• Maximum Battery Discharging Current: 200A

• Maximum Charging Current: 200A

Certifications & Compliance

• Safety Standards: UL 1741SA/SB, CSA C22.2 No. 107.1, IEEE 1547

• Regulatory Compliance: CEC Listed, FCC Part 15 Class B

• Grid Compliance: CA Rule 21 and HECO Rule 14H

General

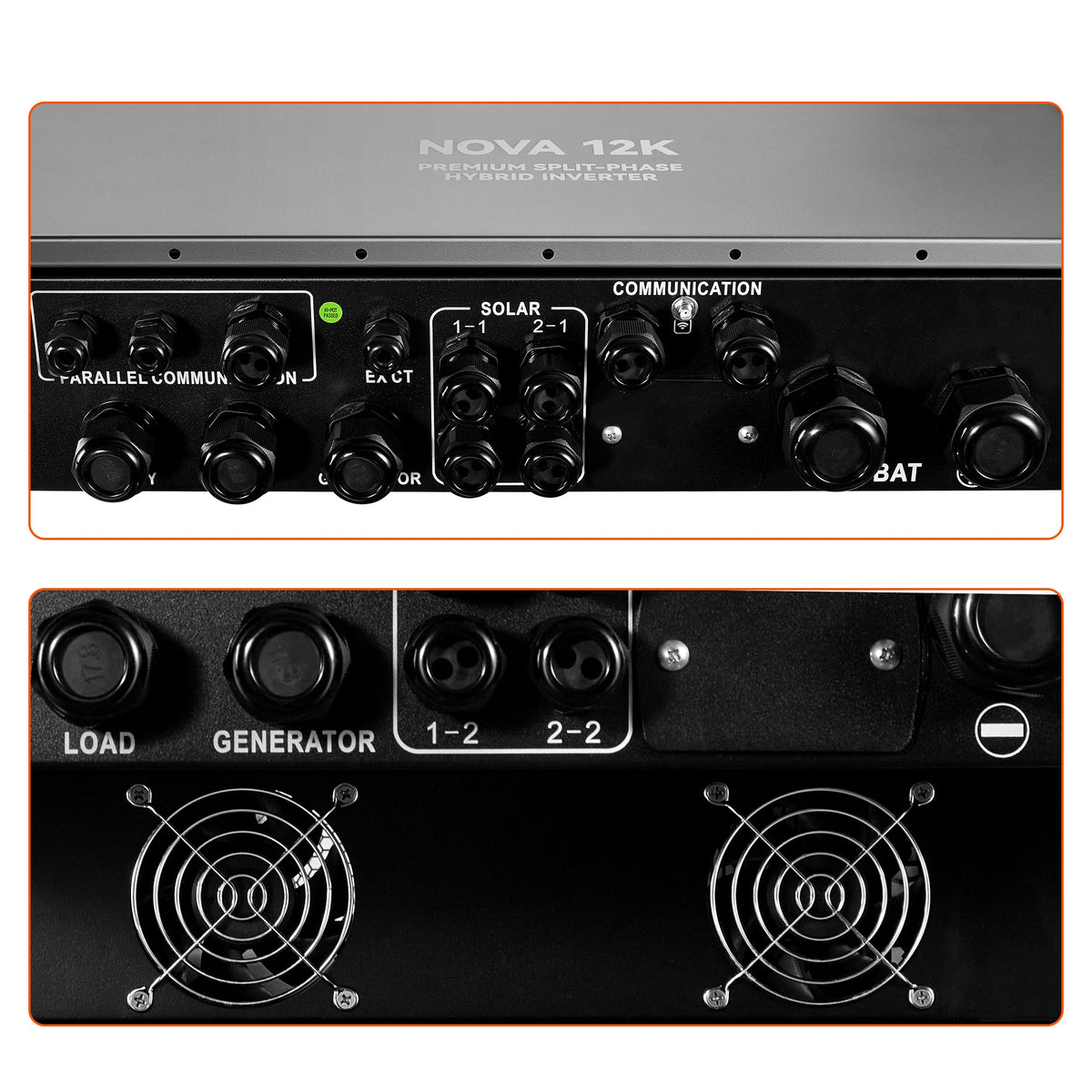

• Communication Interface: RS232, USB, BMS, WiFi

• Ingress Protection: IP65

• Operating Temperature: -13°F to 140°F

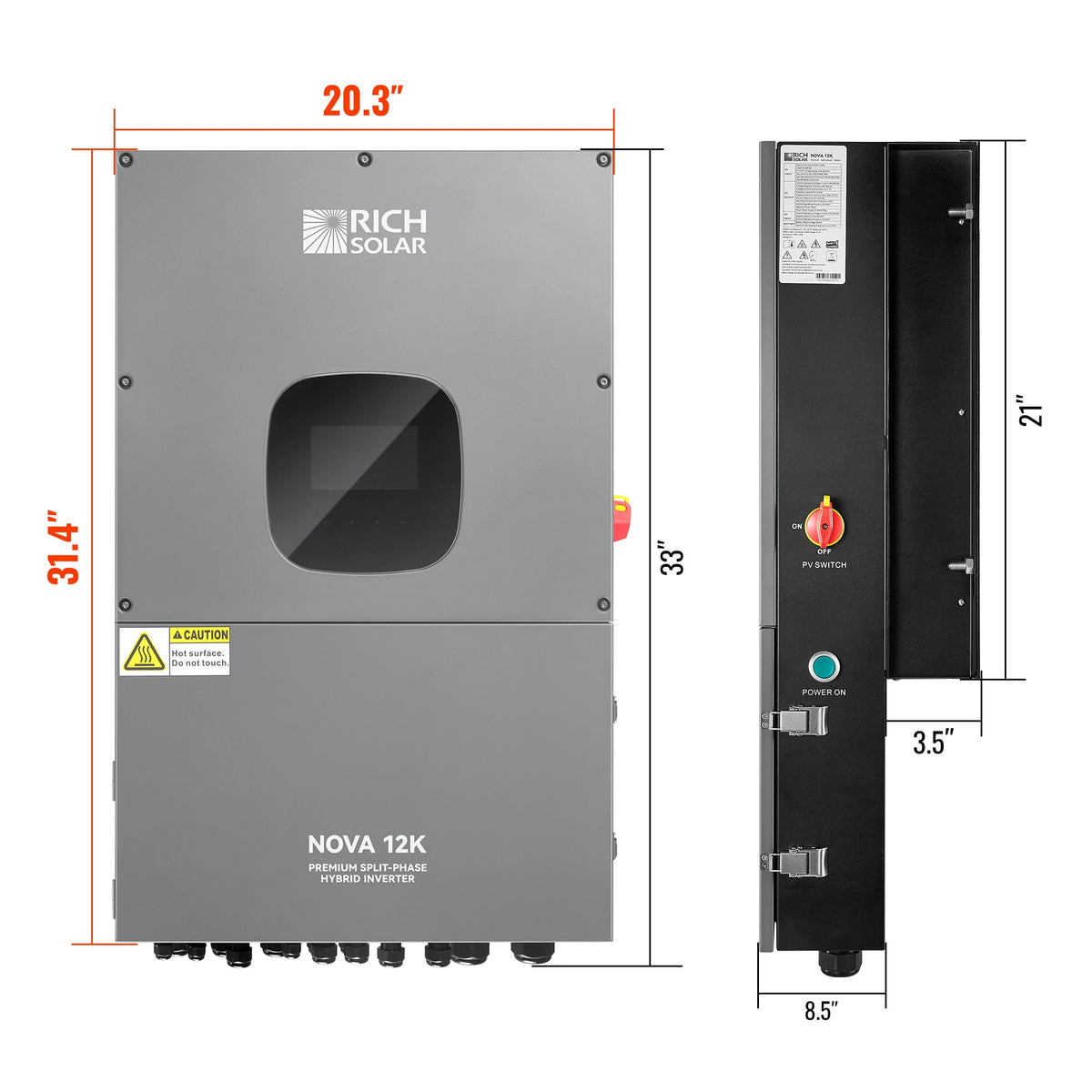

• Dimensions: 8.5 × 20.3 × 28.1 in

• Net Weight: 112lb

Part numbers: RS-H12K (UPC 774533743016)

Ships from our Upland, CA warehouse to the lower 48 states.
