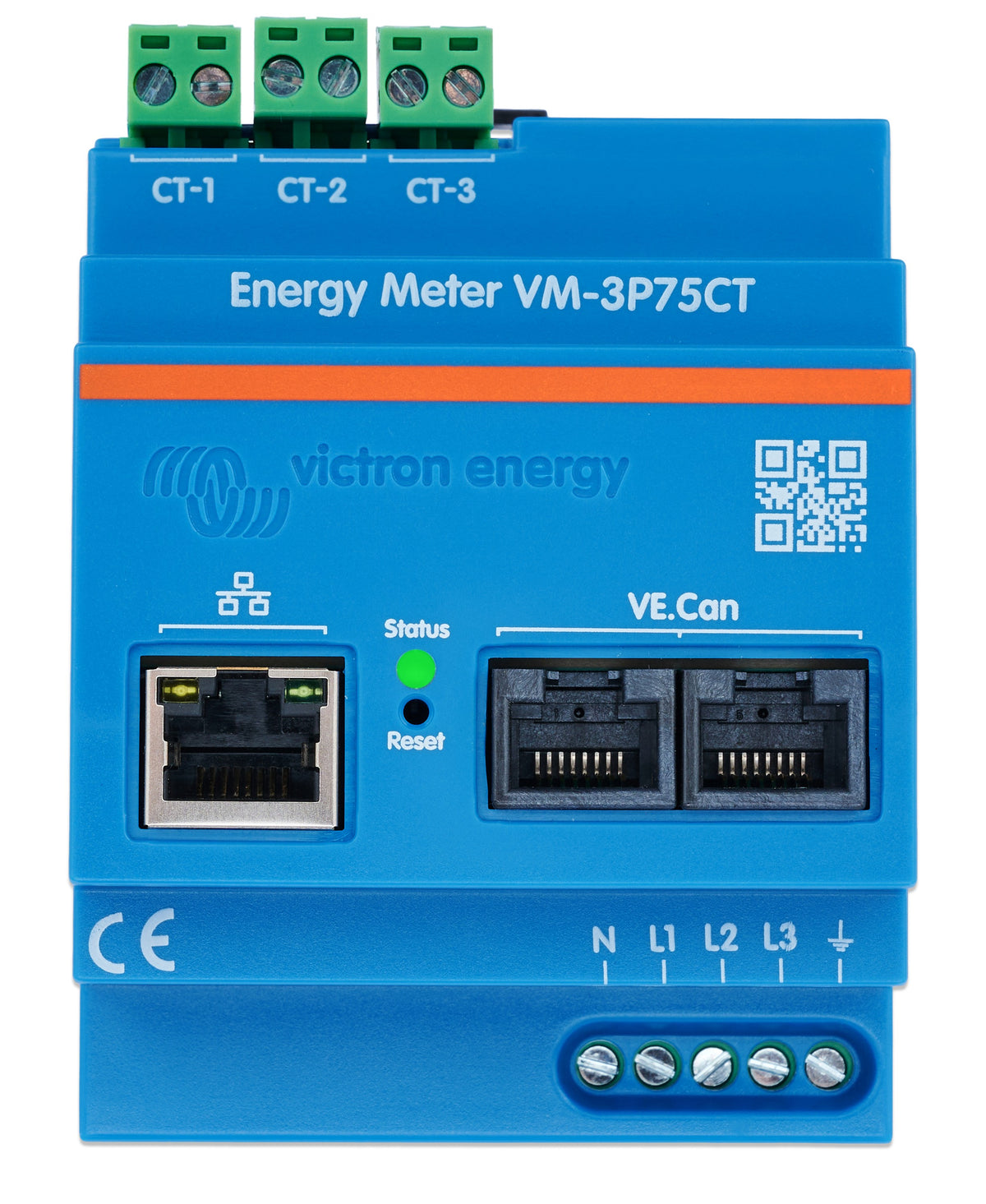

Victron Energy Meter VM-3P75CT
- Regular price
- $237.00
- Sale price
- $237.00
- Regular price
-
$293.00
Victron list $293.00 · you save $56.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships in 3–5 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty
Energy Meter VM-3P75CT — Victron part number REL200300100.
Genuine Victron Energy Charge & convert, shipped free within the U.S. with the full Victron warranty. Every Victron item we sell is covered by our Price-Beat Guarantee: found it cheaper from an authorized U.S. dealer? We'll beat it.
Part of the Victron GX monitoring family: it connects to a Cerbo GX, Ekrano GX or other GX device so you can see your RV or boat's batteries, solar, shore power and inverter on one screen and remotely through the free VRM portal.
Specifications
| Connections | |
| Current Transformer connection | Pluggable screw terminals (included) |
| Voltage Connection | Screw terminals 0.25 - 1.5 mm² (24 - 16 AWG) |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Width | 71 mm |
| Weight | 0.37 kg |
| Protection category | IP20 |
| Material | polycarbonate |
| Depth | 59 mm |
| Height | 90 mm |
| Environmental | |
| Maximum relative humidity (non-condensing) | 90 % |
| Altitude | 2,000 m |
| Indoor or outdoor usage | Indoor only |
| Operating temperature range | [-10, 55] °C |
| Overvoltage category | Cat.III |
| Pollution degree | 2 |
| Mains Voltage Fluctuations | ±0.1 Vin |
| Storage temperature range | [-20, 70] °C |
| Standards | |
| Safety | EN-IEC 61010-1 |
| Technical | |
| Type | Self-power supply via L1-N |
| Input AC voltage range L - N | [85, 265] V |
| Consumption in VA | 3.1 VA |
| Consumption in W | 1.45 W |
| Voltage Connection | Direct |
| VE.Can communication port | Two RJ45 connectors (VE.Can terminators included) |
| Current connection | Via current transformers (included - wire length 640 mm) |
| Frequency | 50Hz or 60Hz |
| Rated current | 75 A |
| Refresh rate | 100 ms |
| Input AC voltage range L - L | [150, 460] V |
| Ethernet communication port | One RJ45 connector, Modbus UDP |
| Frequency | 50Hz or 60Hz |
Datasheets
- Energy Meter ABB B21 B23 and B24 (PDF)
- Energy Meter EM24 Ethernet (PDF)
- Energy Meter EM24 RS485 (PDF)
- Energy Meter EM540 (PDF)
Part numbers: REL200300100 · GTIN 8719076059462
