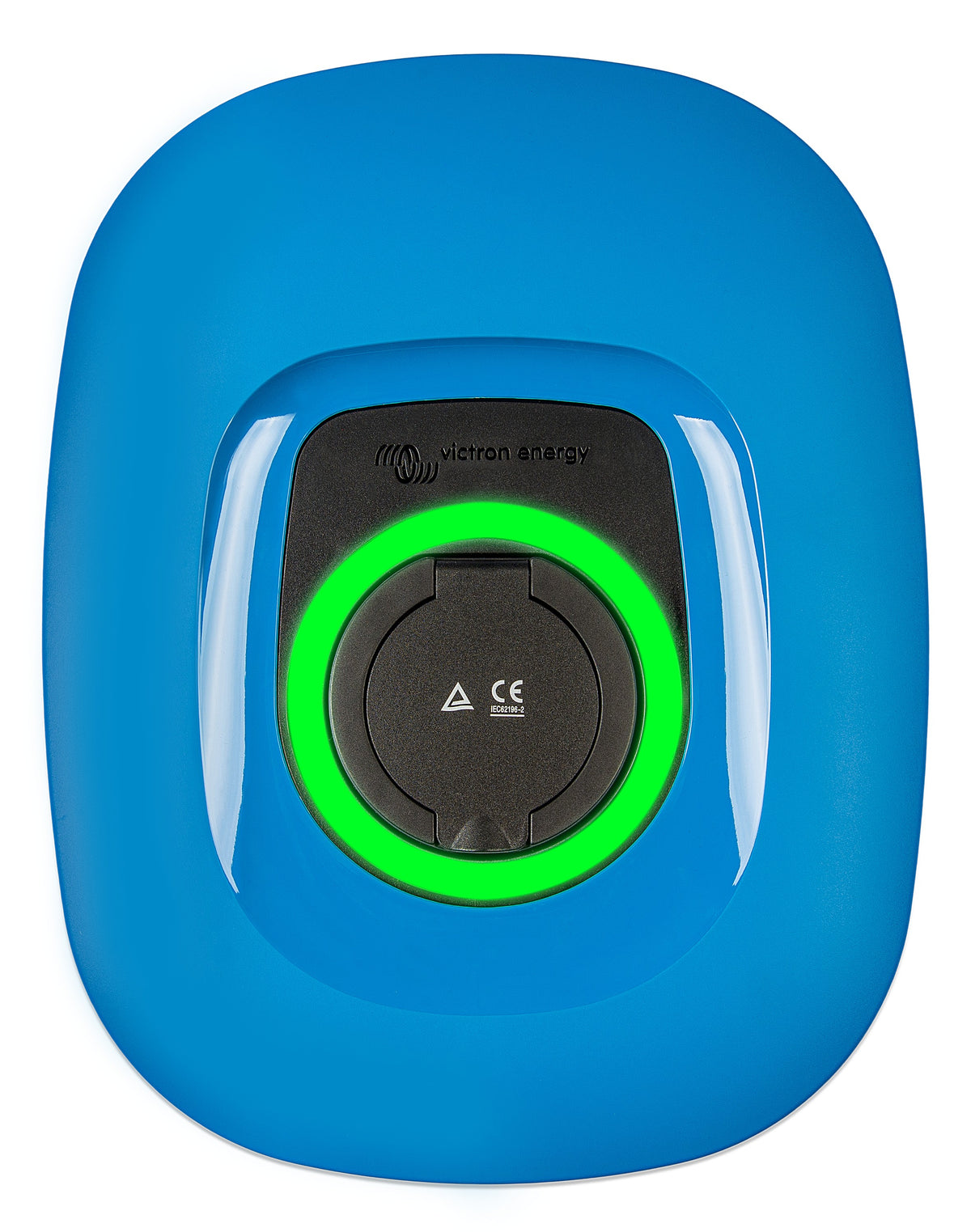

Victron EV Charging station NS - Blue
- Regular price
- $838.00
- Sale price
- $838.00
- Regular price
-
$1,037.00
Victron list $1,037.00 · you save $199.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships in 3–5 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty
EV Charging station NS - Blue — Victron part number EVC200300200.
Genuine Victron Energy Charge & convert, shipped free within the U.S. with the full Victron warranty. Every Victron item we sell is covered by our Price-Beat Guarantee: found it cheaper from an authorized U.S. dealer? We'll beat it.
Victron EV charging for homes, farms and off-grid sites that already run a Victron system, with charging managed from the GX device.
Specifications
| Connections | |
| Connector type | IEC 62196 Type 2 |
| Power terminals | Screw terminals 6-10 mm² (10 AWG) |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Optional colours | Black (RAL 9017),White (RAL 9016) |
| Width | 122 mm |
| Weight | 3 kg |
| Length | 292 mm |
| Protection category | IP44 |
| Height | 372 mm |
| Standards | |
| Safety | IEC 61851-1,IEC 61851-22 |
| Technical | |
| Modbus over WiFi communication | True |
| Maximum current (adjustable) | [10, 32] A |
| Nominal power | 22 kW |
| Operating temperature range | [-25, 50] °C |
| Protections | Welded relay contact detection,Missing protective conductor detection,Missing ground detection,Shorted CP detection |
| Rated charge current per phase | 32 A |
| Self-consumption at 230VAC | 15 mA |
| Storage temperature range | [-40, 80] °C |
| Wifi standards | WiFi 802.11 b/g/n (2.4 Ghz only) |
| Minimum current (adjustable 1A below maximum value) | 6 A |
| Maximum humidity (non-condensing) | 95 % |
| AC Input voltage range | [170, 265] V |
| Light Ring, configurable light effects | True |
| External RCD required | True |
| External 40A circuit breaker required | True |
| Enegry cost calculator, default value (adjustable) | 0.13 EUR/kWh |
| Current output range | [6, 32] A |
| Control via web page | True |
| Control via VictronConnect app | True |
| Control via Modbus TCP | True |
| Control via GX device | True |
| Bluetooth communication | True |
Datasheets
- EV Charging Station NS
- EV Charging Station NS
- EV Charging Station NS (3D)
- Certificate - EN/IEC 61851-1 EV Charging Station
Part numbers: EVC200300200 · GTIN 8719076058274
