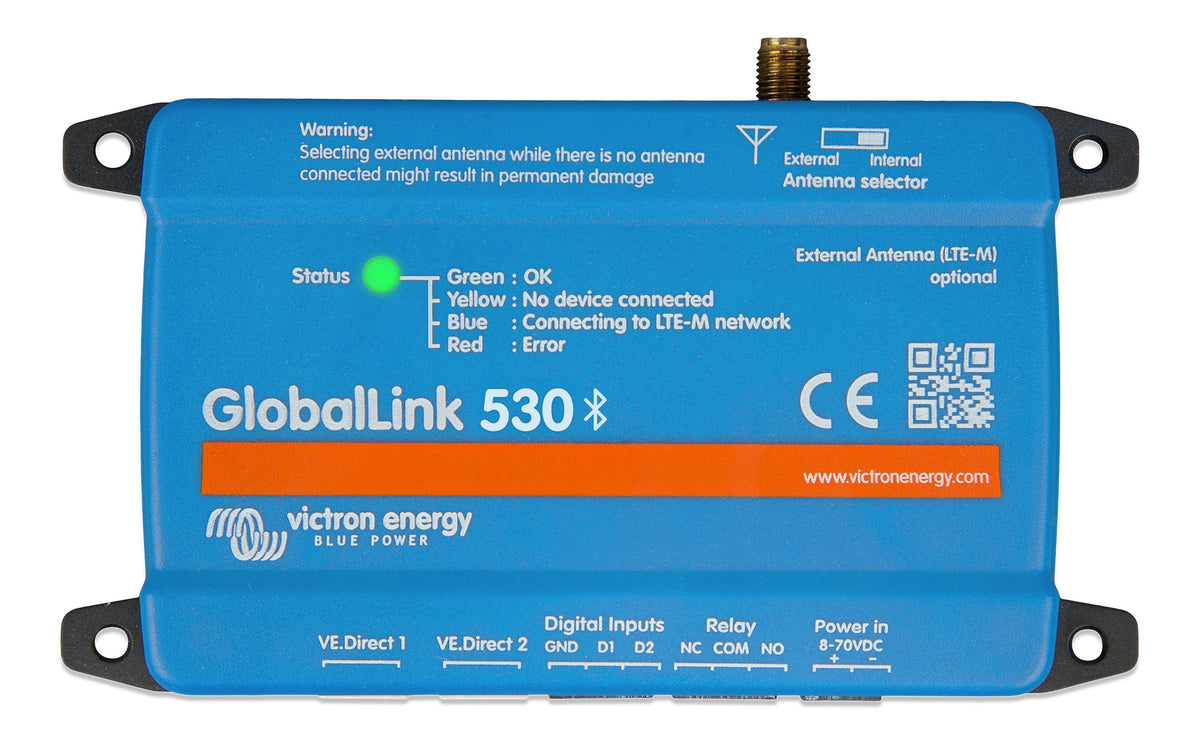

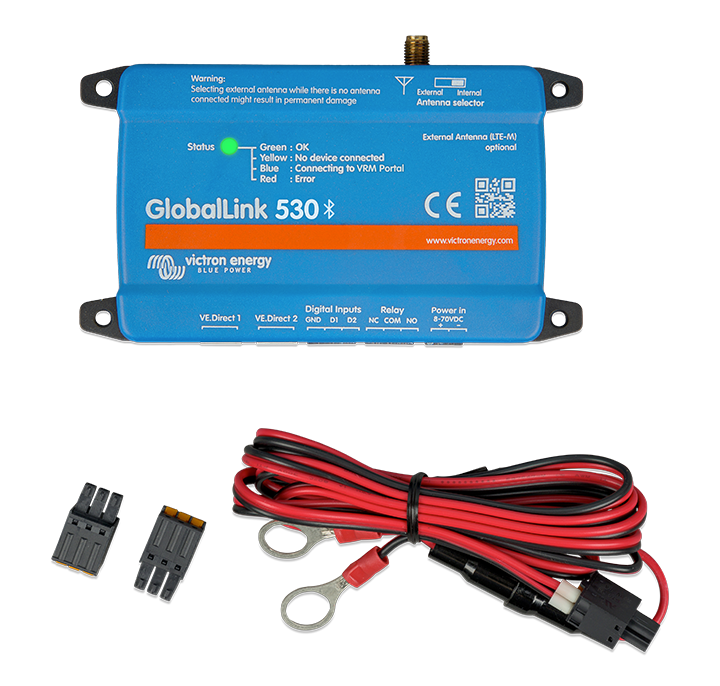

Victron GlobalLink 530
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
$370.00
Victron list $370.00 · you save $71.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships in 3–5 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty
GlobalLink 530 — Victron part number ASS030543030.
Genuine Victron Energy GlobalLink 520 & 530, shipped free within the U.S. with the full Victron warranty. Every Victron item we sell is covered by our Price-Beat Guarantee: found it cheaper from an authorized U.S. dealer? We'll beat it.
Gives you a dashboard or remote control for your Victron system in the RV, van or boat, so you can check charge state and switch equipment without opening the electrical bay.
Specifications
| Enclosure | |
| Width | 67 mm |
| Colour | Blue (RAL 5012) |
| Depth | 23 mm |
| Height | 123 mm |
| Protection category | IP20 |
| Technical | |
| Ethernet | No |
| Power draw at 12V relay closed | 40 mA |
| Power draw at 12V | 50 mA |
| Operating temperature range (fan assisted cooling) | [-20, 50] °C |
| Mounting | Wall |
| MicroSD Card Slot | No |
| Instant deadout via Bluetooth | Yes, connect up to 10 additional Smart devices via BLE |
| Factory included SIM | Prepaid 1nce data SIM with 5 years of connectivity |
| Power draw at 12V relay open | 50 mA |
| Digital Inputs | 2 |
| Custom SIM support | Yes |
| Cellular | CAT M1 (LTE-M), 17 bands supported from 699Mhz to 2690Mhz (Total world-wide support). Bands supported are currently: 1, 2, 3, 4, 5, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 66 |
| Power draw at 24V relay closed | 34 W |
| Power draw at 48V relay closed | 19 mA |
| Antenna | Internal and SMA connector for optional external antenna |
| Power draw at 24V relay open | 26 mA |
| Power draw at 48V relay open | 14 W |
| Relays | 1 |
| Relay Type | NO/NC, DC up to 30VDC: 2A, AC: 0.5A, 125VAC |
| RuuviTag support | Yes |
| Supply DC voltage range | [8, 70] VDC |
| USB | No |
| VE.Bus | No |
| VE.Can | No |
| VE.Direct | 2x isolated |
| WiFi | No |
| BMS-Can | No |
| Bluetooth | Yes |
Datasheets
Part numbers: ASS030543030 · GTIN 8719076063025
