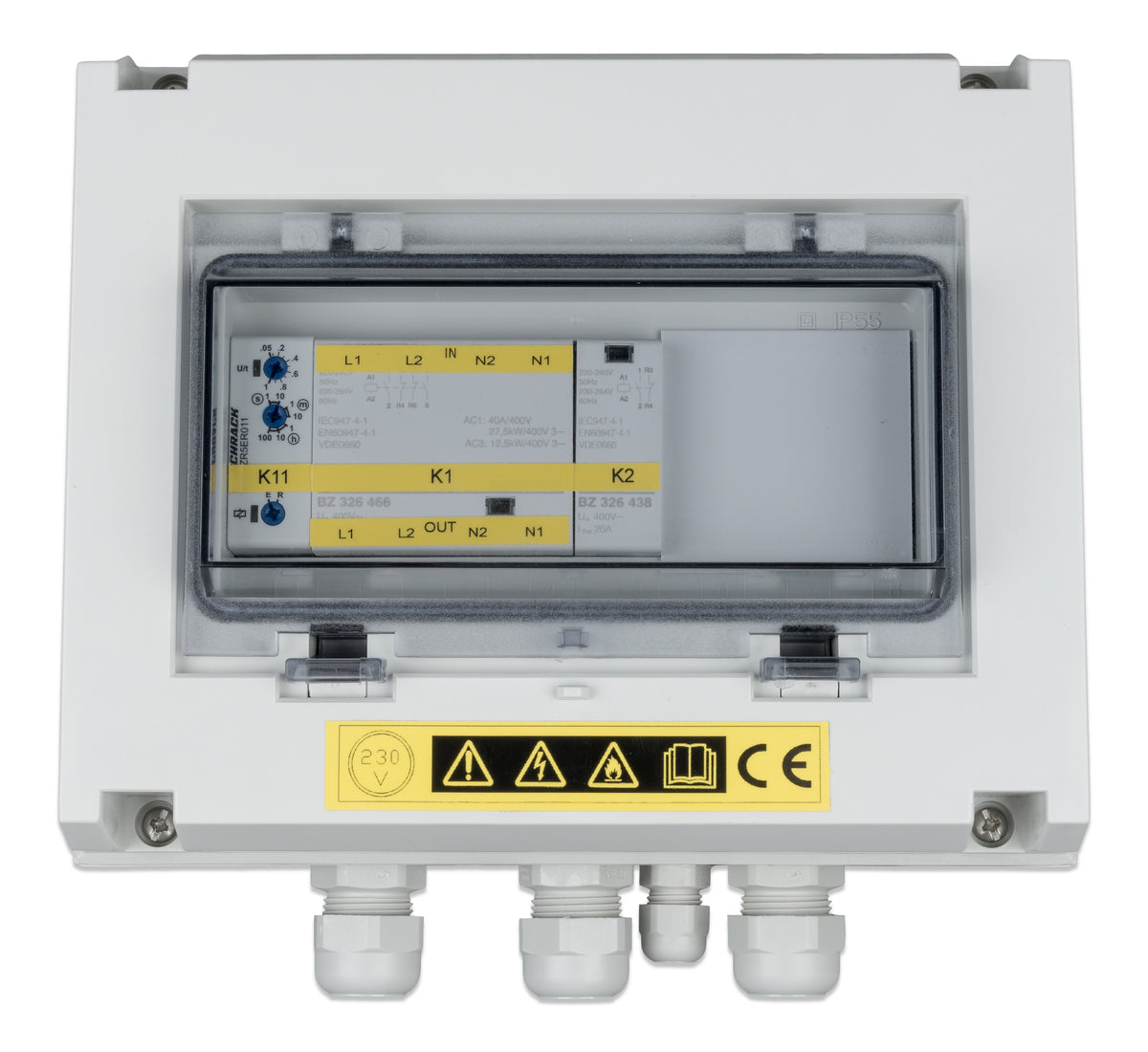

Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac
Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac
    Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac
    Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac
Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac
Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac

Victron VE Transfer Switch 10KVA, 1ph, 200-250Vac

$606.00
$606.00
$750.00

Victron list $750.00 · you save $144.00

✓ Lowest Price Guaranteed  ·  We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.
★ Authorized Victron dealer  ·  Victron-trained support team
↻ 30-day price protection  ·  If our price drops after you buy, we email you the difference as store credit. Details
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.
✓ Free Shipping  ·  ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Free Shipping (ships in 3–5 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details

Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty

VE Transfer Switch 10KVA, 1ph, 200-250Vac — Victron part number COS230103100.

Genuine Victron Energy Charge & convert, shipped free within the U.S. with the full Victron warranty. Every Victron item we sell is covered by our Price-Beat Guarantee: found it cheaper from an authorized U.S. dealer? We'll beat it.

Switches automatically between shore or generator power and the inverter, so the RV or boat keeps running when the source changes.

Specifications

Connections
connections Screw terminals
Enclosure
Width 215 mm
Weight 1.65 kg
Protection category IP54
Material ABS
Colour Light grey (RAL 7035)
Height 175 mm
Depth 120 mm
Technical
Ac Input Voltage Range [200, 250] V
Maximum electromotor (air-conditioner) power rating 8 kW
Auxiliary contact 200 - 240Vac - 20A - cos phi = 1
Transfer time by closing contacts [10, 20] ms
Contacts delay input 1 Approximately 10s (adjustable)
Input 1 current rating 40 A
Input 2 current rating 40 A
Maximum humidity (non-condensing) 95 %
Power consumption input 1 6 VA
Output current rating 40 A
Operating temperature range [-5, 60] °C
Transfer time by opening contacts [5, 30] ms

Datasheets

Part numbers: COS230103100 · GTIN 8719076022084
