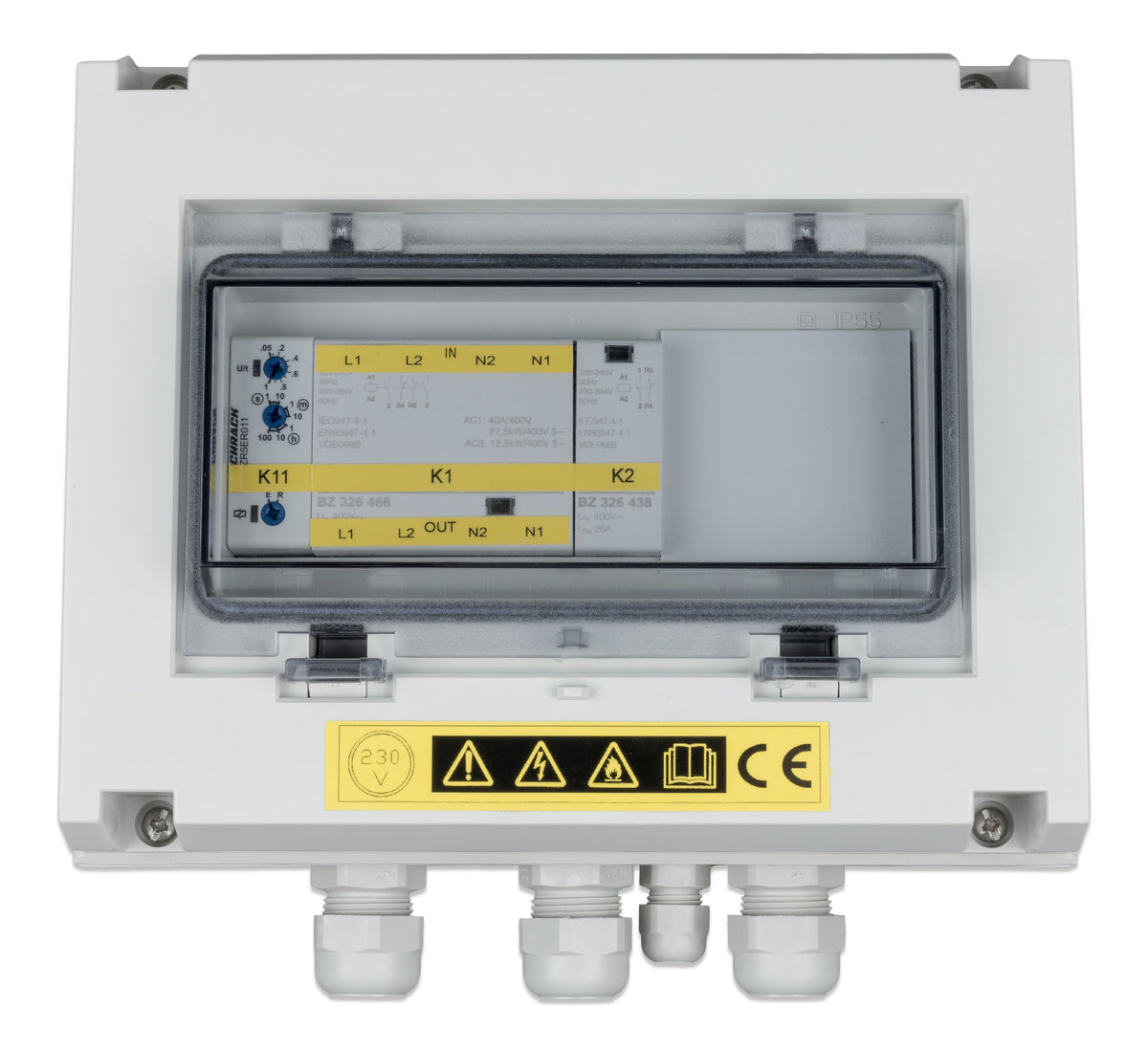

Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac
Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac
    Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac
    Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac
Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac
Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac

Victron VE Transfer Switch 5KVA, 1ph, 200-250Vac

$490.00
$490.00
$607.00

Victron list $607.00 · you save $117.00

✓ Lowest Price Guaranteed  ·  We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.
★ Authorized Victron dealer  ·  Victron-trained support team
↻ 30-day price protection  ·  If our price drops after you buy, we email you the difference as store credit. Details
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.
✓ Free Shipping  ·  ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Free Shipping (ships in 3–5 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details

Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty

VE Transfer Switch 5KVA, 1ph, 200-250Vac — Victron part number COS230502100.

Genuine Victron Energy Charge & convert, shipped free within the U.S. with the full Victron warranty. Every Victron item we sell is covered by our Price-Beat Guarantee: found it cheaper from an authorized U.S. dealer? We'll beat it.

Switches automatically between shore or generator power and the inverter, so the RV or boat keeps running when the source changes.

Specifications

Connections
connections Screw terminals
Enclosure
Width 215 mm
Weight 1.85 kg
Protection category IP54
Material ABS
Height 175 mm
Depth 120 mm
Colour Light grey (RAL 7035)
Technical
Power consumption input 1 6 VA
Output current rating 20 A
Operating temperature range [-5, 60] °C
Transfer time by opening contacts [5, 20] ms
Maximum electromotor (air-conditioner) power rating 1.3 kW
Maximum humidity (non-condensing) 95 %
Input 2 current rating 20 A
Input 1 current rating 20 A
Contacts delay input 1 Approximately 10s (adjustable)
Transfer time by closing contacts [10, 20] ms
Auxiliary contact 200 - 240Vac - 20A - cos phi = 1
Ac Input Voltage Range [200, 250] V

Datasheets

Part numbers: COS230502100 · GTIN 8719076022091

Eligible unused and uninstalled physical products may be returned
within 30 days after delivery.

Regular sale and discounted products are eligible for return.
Only products clearly marked “Final Sale” before purchase are
non-returnable.

Conditions and exclusions apply. See our Return and Refund Policy.

Free standard shipping is available on eligible physical-product orders delivered within the contiguous United States, with no minimum order amount.

Black Series generic replacement parts and products or orders that are oversized, require freight shipping, are special-order, contain hazardous materials, or are delivered to remote or limited-access areas are excluded. Any applicable shipping charge will be displayed at checkout before you submit your order.

In-stock products are generally processed within 1–2 business days. Estimated delivery is approximately 4–12 business days, depending on the product, destination, carrier, and delivery method.

Alaska, Hawaii, U.S. territories, and international destinations are not included in the contiguous United States free-shipping offer. See our Shipping Policy for complete details.
