A trailer jack does not get much attention until the campsite is uneven, the trailer is fully loaded, and the coupler will not line up with the tow vehicle. At that moment, the jack becomes one of the most important tools on the trailer.

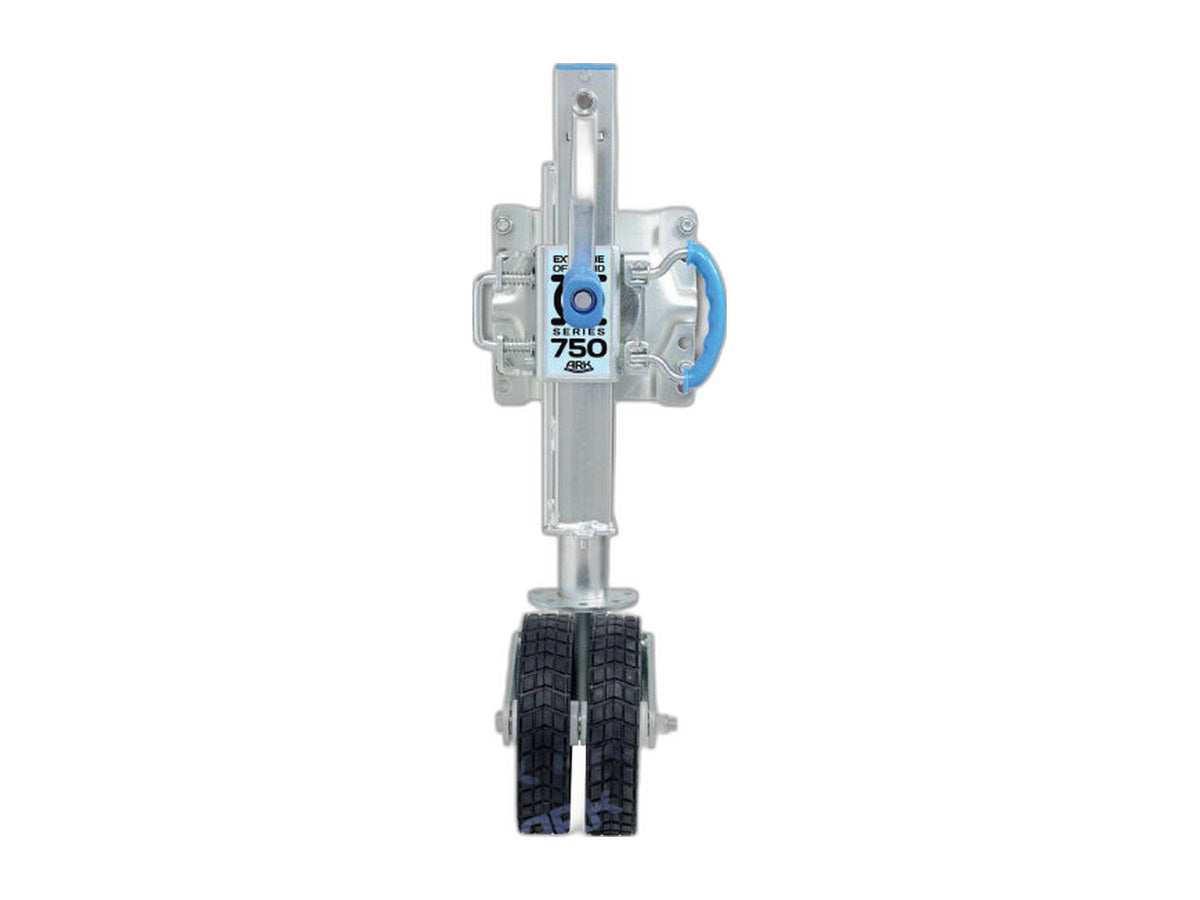

The ARK XO750 Trailer Jack is built for heavy off-road campers, tandem-axle trailers, and fully loaded caravans. With a 1,650 lb static load rating, 1,100 lb dynamic rating, dual sealed-bearing off-road wheels, four height positions, and a removable magnetic side-wind handle, it is designed for real campsite use rather than smooth-pavement storage lots.
This guide focuses on how to use the XO750 in the field: hitching, unhitching, leveling, repositioning, storage, and post-trip care.
Why Heavy Off-Road Campers Need a Stronger Jack
A standard trailer jack may work on pavement, but off-road campers ask much more from the tongue jack. The trailer may be loaded with water, batteries, tools, recovery gear, propane, outdoor kitchen equipment, and storage boxes. Campsites are often gravel, sand, mud, grass, or uneven dirt.
That creates real stress on the jack.
A heavy-duty off-road trailer jack needs to:
- Support loaded tongue weight
- Lift high enough for tall couplers
- Roll over rough campsite surfaces
- Resist dust, grit, and water
- Stay secure during travel
- Survive repeated use
- Help one person make small alignment corrections
The ARK XO750 is designed for this heavier-duty role.
Key ARK XO750 Features
The ARK XO750 product page lists several important field-use specs:
- Static load rating: 1,650 lb
- Dynamic load rating: 1,100 lb
- Four height positions
- Maximum height: 28 inches
- Dual sealed-bearing off-road wheels
- Magnetic removable side-wind handle
- Heavy-duty square body
- Swivel clamp
- Salt-spray tested to 600 hours
- Box includes XO750 jack and removable handle
The static rating matters when the trailer is parked and supported. The dynamic rating matters when you are moving or repositioning the trailer on the jack wheels.
Static vs Dynamic Rating: The Spec That Matters in Use
Many owners look only at the highest load rating. For trailer jacks, that can be misleading.
Static load is the weight the jack can support when the trailer is stationary. Dynamic load is the weight the jack can support while the trailer is moving or being repositioned.
For the XO750:
- Static rating: 1,650 lb
- Dynamic rating: 1,100 lb
If you only use the jack to lift and hold the tongue, the static rating is the key number. If you use the jack to roll the trailer slightly into position, the dynamic rating becomes very important.
Best Uses for the ARK XO750
The XO750 is best suited for heavy trailers that need more strength and control than a light-duty jack can provide.
Best use cases include:
- Heavy off-road campers
- Tandem-axle camper trailers
- Fully loaded caravans
- Overland trailers with front storage
- Trailers used on gravel, sand, or dirt
- Campsites that require small hand-positioning adjustments
- Tall coupler setups
- Owners who want stronger campsite hardware
If your trailer is lighter, ARK XO500 or XO350 models may be more appropriate. The XO750 is the heavy-duty option in the range.
Hitching with the XO750
Hitching is easier when the jack gives you enough lift and smooth height control.
Basic hitching routine:
- Park the tow vehicle on stable ground.
- Chock the trailer wheels if needed.
- Use the side-wind handle to raise or lower the coupler.
- Align the coupler with the tow vehicle hitch or pin system.
- Make small positioning adjustments carefully.
- Lower the coupler into place.
- Confirm the hitch or coupler is fully locked.
- Attach safety chains and electrical connections.
- Raise the jack fully.
- Secure the jack for travel.
Do not rush the locking check. The jack helps position the trailer, but the coupling must be confirmed separately before towing.
Unhitching at Camp
Unhitching on uneven ground takes planning. The goal is to keep the trailer stable while removing load from the tow vehicle.
Unhitching routine:
- Choose the flattest available spot.
- Chock trailer wheels before disconnecting.
- Lower the XO750 until the wheels or base are firmly planted.
- Raise the tongue slightly to unload the hitch.
- Disconnect the coupler only when the trailer is stable.
- Move the tow vehicle forward carefully.
- Adjust the jack height for front-to-back leveling.
- Add stabilizers only after the trailer is positioned.
A trailer jack is not a stabilizer system. Use stabilizer legs for parked comfort, but use the jack for tongue height and hitching.
Repositioning a Heavy Trailer by Hand
One of the XO750’s advantages is its dual off-road wheel design. This can help when the trailer needs a small position correction during hitching or campsite setup.
Use caution. A heavy trailer can move quickly on a slope.
Safe repositioning tips:
- Work on level ground whenever possible
- Keep wheel chocks nearby
- Move only short distances
- Do not push downhill
- Avoid soft sand or deep mud if the trailer is heavily loaded
- Keep feet clear of wheels
- Do not exceed the dynamic rating
- Stop if the jack flexes, binds, or sinks
- Use a spotter when available
The jack can help with small alignment corrections, but it is not a substitute for safe towing or recovery equipment.
Using the Four Height Positions
The ARK XO750 includes four height positions and reaches up to 28 inches. That extra range is helpful on off-road campers because tow vehicle hitch height, coupler height, and ground angle can vary.
Use height adjustment when:
- The tow vehicle sits high
- The trailer is parked nose-down
- The campsite is uneven
- You need extra lift to clear the coupling
- You need better travel clearance
- The jack wheel needs a better operating position
Choose the lowest practical travel position that gives proper ground clearance and keeps the jack secure.
Magnetic Side-Wind Handle: Storage and Use
The XO750 includes a removable magnetic side-wind handle. This is useful because handles can catch on gear, get damaged, or become awkward during storage.
Best practices:
- Remove the handle before travel if recommended by your setup
- Store it where it is easy to find
- Keep it away from loose cargo
- Check the magnetic attachment before use
- Keep the handle clean and dry
- Do not use damaged handles
A removable handle is only useful if it is not lost. Store it in the same place every trip.
Sand, Mud, and Gravel Use
The XO750’s dual off-road-tread wheels are much better suited to rough ground than small narrow jack wheels. Still, surface conditions matter.
On gravel:
- Clear sharp rocks before rolling
- Move slowly
- Watch for wheel binding
On sand:
- Use boards or traction support if needed
- Avoid heavy side loads
- Do not force the jack if it sinks
On mud:
- Clean the wheels after use
- Avoid dragging mud into bearings and moving parts
- Rinse and dry after the trip
On hard dirt:
- Check for hidden ruts or holes
- Keep the trailer from rolling unexpectedly
- Use chocks before unhitching
Travel Storage Checklist
Before towing, confirm the jack is properly stored and will not reduce clearance or hit obstacles.
Travel checklist:
- Jack fully raised
- Swivel clamp secure
- Handle removed or secured
- Wheels clear of the ground
- No loose hardware
- No interference with coupler
- No contact with storage boxes
- No reduced turning clearance
- No dangling straps or cords
- Final visual check before departure
Off-road vibration can punish loose parts. A quick storage check prevents damage.
Maintenance After Off-Road Trips
A trailer jack lives close to dust, water, mud, and road salt. Maintenance helps extend service life.
After rough trips:
- Rinse mud from wheels and body
- Dry before storage when possible
- Inspect sealed-bearing wheels
- Check for wobble or cracking
- Inspect the swivel clamp
- Check the handle
- Look for bent parts
- Inspect mounting hardware
- Clean sand from moving areas
- Watch for corrosion
The XO750’s 600-hour salt-spray testing is a helpful durability feature, but salt and mud should still be cleaned off after exposure.
Common Mistakes to Avoid
Avoid these mistakes when using the XO750:
- Choosing a jack without checking tongue weight
- Moving the trailer on a slope
- Ignoring the dynamic load rating
- Leaving the handle unsecured during travel
- Using the jack as a stabilizer leg
- Letting the wheels sink into soft ground
- Forgetting to chock the trailer
- Towing with the jack partly lowered
- Ignoring wheel or bearing damage
- Skipping post-trip cleaning
A strong jack still needs safe handling.
Who Should Buy the ARK XO750?
The ARK XO750 is a good fit for:
- Heavy off-road camper owners
- Tandem-axle trailer owners
- Fully loaded caravan users
- Overland travelers
- Campers who reposition trailers by hand
- Owners with tall off-road couplers
- RVers who camp on rough terrain
- Buyers replacing a bent or weak jack
- Trailer builders needing a heavy-duty jack
It may be more jack than needed for small teardrops, lightweight utility trailers, or compact campers with low tongue weight. For those, compare lighter ARK options.
Related RV Parts Giant Resources
Useful links:
- ARK XO750 Trailer Jack
- ARK XO350 vs XO500 vs XO750: Off-Road Trailer Jacks
- Off-Road Trailer Jack Guide
- How to Replace a Trailer Jockey Wheel
FAQ
What is the ARK XO750 Trailer Jack rated for?
The XO750 has a 1,650 lb static load rating and a 1,100 lb dynamic load rating.
What kind of trailer is the XO750 best for?
It is best for heavier off-road campers, tandem-axle trailers, fully loaded caravans, and overland trailers that need stronger tongue support.
How high does the XO750 lift?
The product page lists four height positions with a maximum height of 28 inches.
Does the XO750 have off-road wheels?
Yes. It uses dual sealed-bearing off-road wheels.
Does it include the handle?
Yes. The box includes the XO750 jack and removable handle.
Can I use the XO750 to move my trailer?
Yes, for careful short-distance repositioning within its dynamic rating. Do not use it to move a heavy trailer on slopes or unsafe surfaces.
Is the XO750 overkill for a small trailer?
It may be. Smaller trailers may be better matched to the XO500 or XO350, depending on tongue weight and usage.
