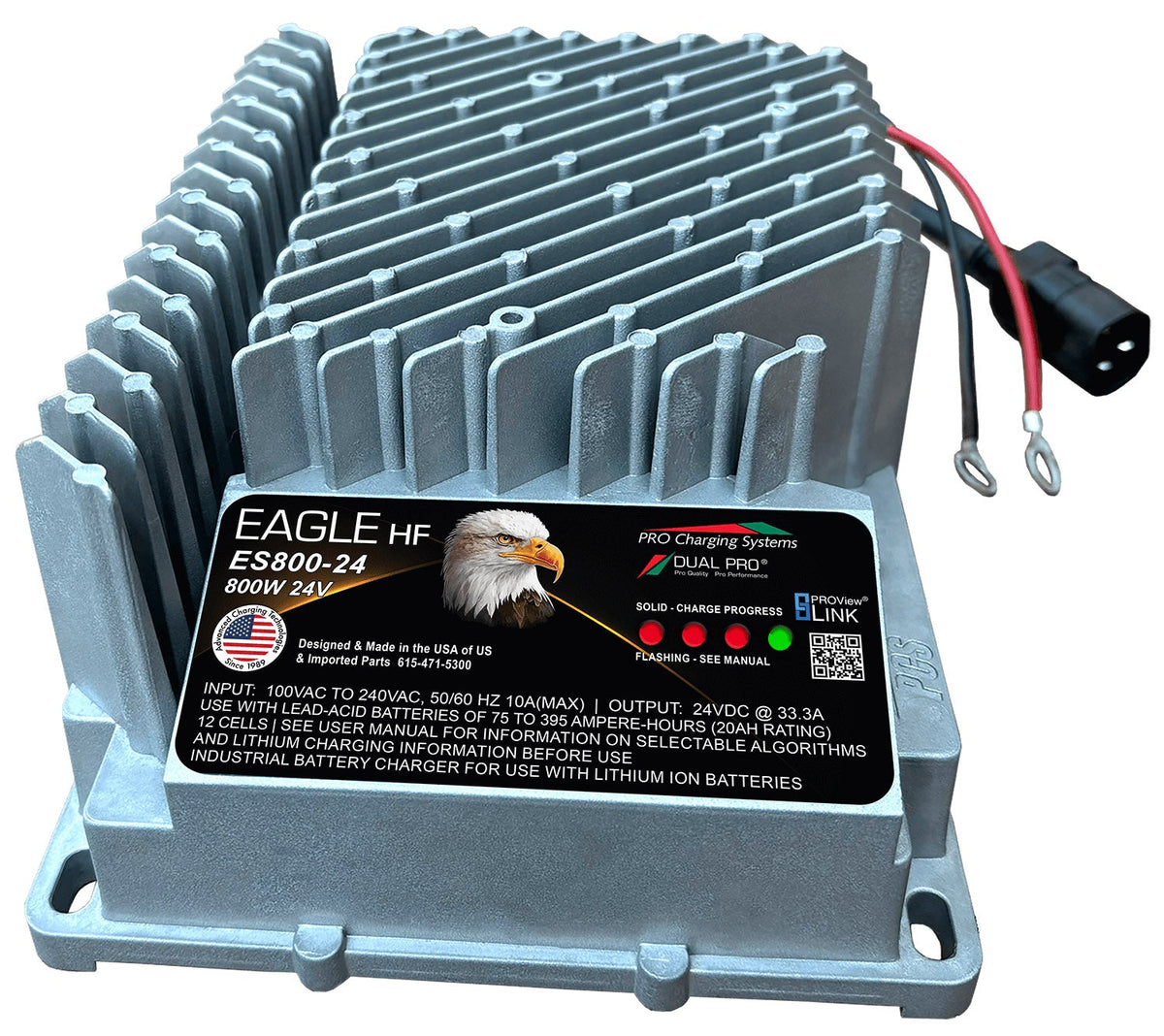

DualPRO Eagle HF ES800 24V 33A 800W Aerial Lift On-Board Battery Charger, Ring Terminals and Interlock
    DualPRO Eagle HF ES800 24V 33A 800W Aerial Lift On-Board Battery Charger, Ring Terminals and Interlock
DualPRO Eagle HF ES800 24V 33A 800W Aerial Lift On-Board Battery Charger, Ring Terminals and Interlock

DualPRO Eagle HF ES800 24V 33A 800W Aerial Lift On-Board Battery Charger, Ring Terminals and Interlock | ES0800-24V005

$904.00
$904.00
$951.00
✓ Lowest Price Guaranteed  ·  We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.
↻ 30-day price protection  ·  If our price drops after you buy, we email you the difference as store credit. Details
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.
✓ Free Shipping  ·  ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Shipping: Ships from Upland in 3–7 days.

The DualPRO Eagle HF ES0800-24V005 is an 800W high-frequency charger for 24V battery packs, delivering 33A with a universal 85-270 VAC input. It charges Wet Cell, AGM, Gel and Lithium batteries with selectable charge profiles, is CAN capable and PROView Link app enabled for monitoring and over-the-air updates, and can be paralleled when more output is needed. IP67 rated, 11 lb, US designed and assembled, and convertible between on-board and portable use with the optional handle kit.

Genuine DualPRO (PRO Charging Systems) product, sold new by RV Parts Giant. Ships free to the lower 48 states. Covered by the manufacturer's warranty (3 Years).

Key features

  • 800W high-frequency output: 33A at 24V
  • Universal AC input 85-270 VAC, 50/60 Hz
  • Selectable profiles for Wet Cell, AGM, Gel and Lithium
  • CAN capable; PROView Link app enabled with over-the-air updates
  • Can be paralleled for higher output
  • IP67 rated, 11 lb, 10 x 7.15 x 4 in
  • Convertible on-board / portable with optional 40576KIT handle kit
  • US designed and assembled

Specifications

  • Series: Eagle HF Series (ES0800)
  • System voltage: 24 V
  • Total output: 33 A
  • Output banks: 1
  • Output per bank: 33 A
  • Charge profile: PROVolt Multi Stage
  • Battery chemistry: Flooded / AGM / Gel/Li via ProView Link
  • App: ProView
  • Connectivity: Bluetooth
  • AC input: Universal 85-270 VAC 50/60HZ
  • Operating / storage temperature: Operating: -30°C to 70°C; Safe Storage: -40°C to 85°C
  • Maintenance charging: Yes
  • Mounting: Portable/On-board convertible (handle kit optional)
  • IP rating: IP67
  • AC cable length: 17 in
  • Connector / terminals: Ring Terminals
  • Certifications: FCC 15 Parts A & B compliant, ignition protected
  • Country of origin: USA
  • Warranty: 3 Years
  • Dimensions (L x W x H): 10 x 7.15 x 4 in
  • Weight: 11 lb
  • Shipping weight: 12.1 lb

What's included

  • Charger
  • Manual
  • Ac power cord adaptor

Part number: ES0800-24V005; UPC 738562003336

Shop the full DualPRO range at RV Parts Giant.

Is the ES0800-24V005 the right ES800?

  • Battery system: 24V, connected with ring terminals and an interlock.
  • Made for: aerial lifts (DualPRO cross-references 105739, 105739GT, 826563 and 1264372GT).
  • Battery types: flooded, AGM, gel or lithium, selected in the free PROView Link app. Check your battery maker's charge settings first.

More: which Eagle HF ES800 version; all DualPRO.
