In a Victron lithium battery system, the big components usually get all the attention. Owners compare batteries, inverter/chargers, solar charge controllers, and monitors. But sometimes the reliability of the whole system depends on one small cable doing the right job at the right moment.

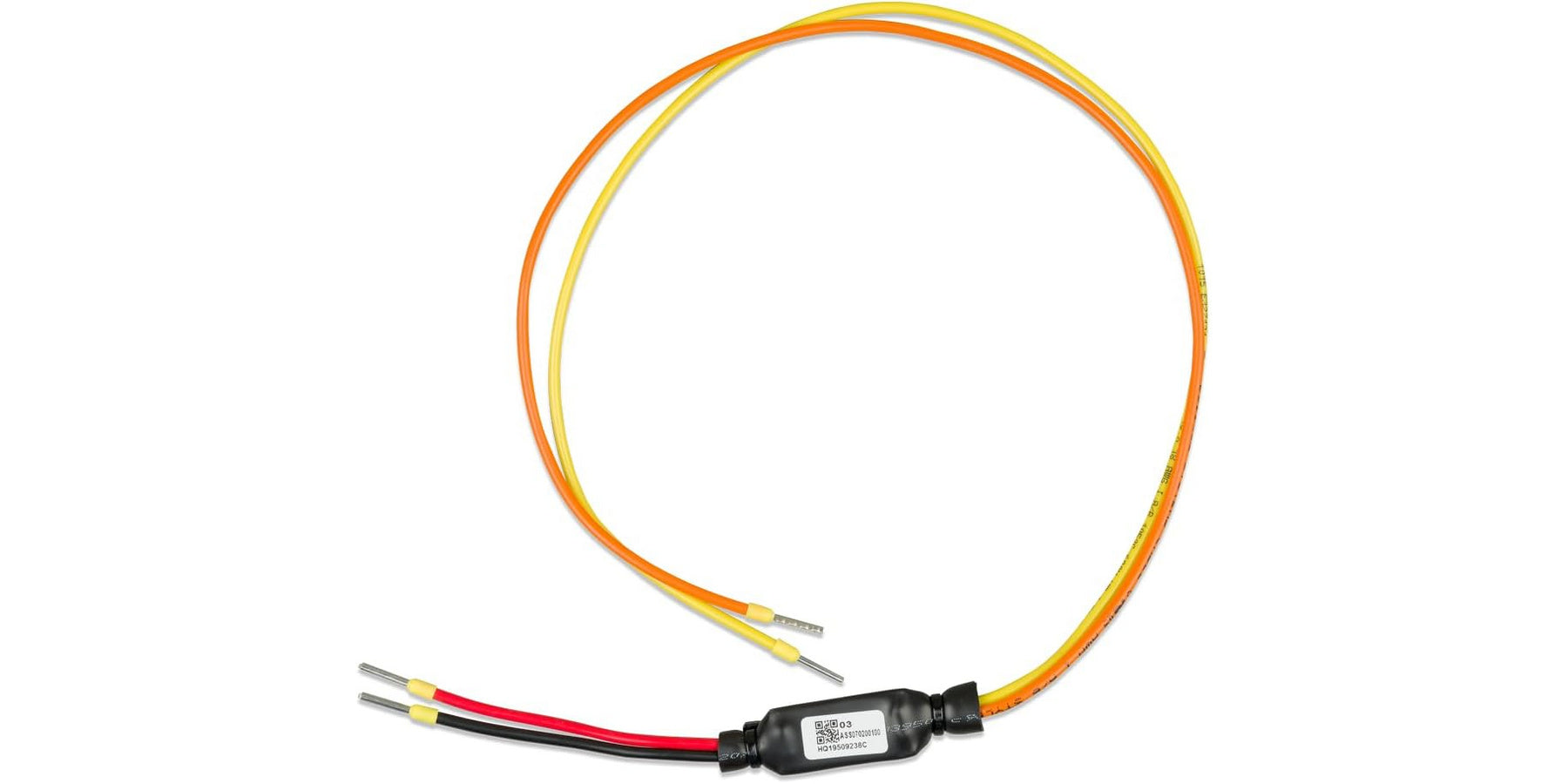

The Victron Energy - Cable for Smart BMS CL 12/100 to MultiPlus is designed to connect a non-VE.Bus BMS, such as the Smart BMS CL 12-100 or smallBMS, to a Victron MultiPlus, MultiPlus Compact, or MultiPlus-II inverter/charger.
Its job is simple but important: when the BMS detects a lithium battery alarm condition, the cable allows the BMS to switch the MultiPlus off. Once the alarm condition clears, the BMS can allow the MultiPlus to turn back on.
Why This Cable Matters
Lithium batteries need protection from conditions that can damage the cells. In a Victron system using Lithium Battery Smart batteries, the BMS monitors the battery bank and reacts when the system reaches unsafe limits.
Those limits may include:
- Low cell voltage
- High cell voltage
- High temperature
- Charging or discharging conditions outside the safe range
The BMS can detect the problem, but other devices must respond correctly. If an inverter/charger keeps running when the BMS is trying to protect the battery, the system design is incomplete.
That is where the Smart BMS CL to MultiPlus cable becomes useful. It gives the BMS a way to control the MultiPlus through the remote on/off connection.
What This Cable Connects
This cable is intended for systems where the BMS does not use VE.Bus communication.
Compatible BMS-side use cases include:
- Victron Smart BMS CL 12-100
- Victron smallBMS
Compatible inverter/charger-side use cases include:
- Victron MultiPlus
- Victron MultiPlus Compact
- Victron MultiPlus-II
This makes it useful for RV owners who are building a Victron lithium system but are not using a VE.Bus BMS architecture.
What Happens During a Battery Alarm
When the compatible BMS detects a serious lithium battery condition, it can shut down the MultiPlus through this cable. That helps stop the inverter/charger from continuing to charge or discharge the battery bank during a protection event.
In practical RV terms, this can help protect the battery when:
- The battery is too low
- A cell voltage alarm occurs
- Temperature protection is triggered
- The system needs the inverter/charger to stop operating
After the alarm condition is cleared, the BMS can allow the MultiPlus to operate again.
Why This Is Important in RV Lithium Builds
RV electrical systems often combine several charging and load sources:
- Shore power
- Solar charging
- Alternator charging
- Inverter loads
- DC appliances
- Battery monitors
- Battery chargers
- Inverter/chargers
When everything is working normally, the system feels seamless. But when a battery protection condition happens, the system needs clear control logic. The BMS must be able to tell high-power devices when to stop.
A MultiPlus can be one of the most important devices in the system because it can both invert DC power into AC power and charge the battery bank from AC input. That makes correct shutdown control especially important.
When You Need This Cable
You may need this cable if your RV system includes:
- Victron Lithium Battery Smart batteries
- A Victron Smart BMS CL 12-100 or smallBMS
- A Victron MultiPlus, MultiPlus Compact, or MultiPlus-II
- A lithium system that needs BMS-controlled inverter/charger shutdown
- A non-VE.Bus BMS setup
This cable is not just a convenience accessory. In the right system, it is part of the battery protection path.
When You May Not Need It
This cable is not universal for every Victron system.
You may not need this cable if:
- Your system uses a VE.Bus BMS instead
- Your lithium battery has a different built-in BMS architecture
- You are not using a Victron MultiPlus inverter/charger
- Your inverter/charger uses a different control method
- Your system design uses another approved Victron shutdown path
Always match the cable to the BMS and MultiPlus model being installed.
Installation Planning
Before installing this cable, review the complete wiring plan. Do not treat control wiring as an afterthought.
Check these items first:
- BMS model
- MultiPlus model
- Battery type
- Remote on/off terminal location
- Load disconnect wiring
- Charge disconnect wiring
- Charger behavior after shutdown
- Inverter loads connected to the system
- Access to the MultiPlus terminal area
- Proper documentation for your exact model
Victron’s documentation includes model-specific connection details. Follow the correct wiring instructions for the MultiPlus version being used.
Common Installation Mistakes
Avoid these mistakes:
- Using the cable with the wrong BMS
- Using the cable with an incompatible inverter/charger
- Wiring to the wrong remote on/off terminals
- Ignoring BMS alarm behavior
- Leaving other chargers uncontrolled
- Assuming Bluetooth monitoring replaces protection wiring
- Installing without testing shutdown behavior
- Forgetting to document the wiring
- Making the cable impossible to access later
- Mixing different Victron system architectures
The system should be tested after installation so the owner understands what happens when the BMS disables the MultiPlus.
How It Fits With Smart BMS CL 12-100
The Smart BMS CL 12-100 is designed for 12V Victron Lithium Battery Smart systems with alternator current limiting. When paired with a MultiPlus, the BMS needs a way to control whether the inverter/charger is allowed to run.
This cable helps complete that relationship. The BMS protects the battery, and the cable carries the shutdown control to the MultiPlus remote on/off input.
For RV owners, this is especially useful in systems that combine:
- Victron Smart LiFePO4 batteries
- Smart BMS CL 12-100
- MultiPlus inverter/charger
- Solar charging
- Alternator charging
- Shore power charging
How It Fits With smallBMS
The Victron smallBMS is another non-VE.Bus BMS option. It is often used in simpler systems that still need lithium battery protection and control outputs.
When a smallBMS is used with a compatible MultiPlus, this cable can allow the BMS to control the inverter/charger in response to battery alarm conditions.
This can be useful for compact RVs, vans, and smaller off-grid builds where the owner wants Victron lithium protection without a more complex VE.Bus BMS setup.
Why Documentation Matters
Control wiring must be exact. A cable like this is simple in appearance, but it affects how the inverter/charger behaves during battery protection events.
Before installation, read the Victron manual for:
- The cable
- The BMS
- The MultiPlus model
- The lithium battery bank
- Any charger or inverter control accessories
If a technician is installing the system, keep a copy of the wiring notes with the RV electrical records. Future troubleshooting becomes much easier when the control wiring is documented.
Testing After Installation
After the cable is installed, the system should be checked carefully.
Test checklist:
- Confirm the MultiPlus powers on normally
- Confirm the remote on/off function responds correctly
- Confirm BMS wiring is secure
- Check for system warnings
- Confirm charging behavior
- Confirm inverter behavior
- Review VictronConnect or GX device status if applicable
- Label the cable and terminals
- Record the installation date
- Keep manual references with the RV
Testing should be done by someone who understands Victron lithium system behavior. Do not intentionally create unsafe battery conditions just to test the system.
Maintenance Tips
This cable does not require much maintenance, but it should be inspected during electrical service.
Check for:
- Loose terminals
- Damaged insulation
- Strain on the cable
- Abrasion points
- Corrosion near terminals
- Heat damage
- Poor routing
- Missing labels
- Accidental disconnection during other service work
RV vibration can affect wiring over time, especially in off-road trailers and vans. Secure, protected routing helps prevent future issues.
Who Should Buy This Product?
The Victron Smart BMS CL 12/100 to MultiPlus cable is a good fit for:
- RV owners building Victron lithium systems
- Van owners using Smart BMS CL 12-100
- Off-grid trailers with Victron Smart LiFePO4 batteries
- Installers connecting smallBMS to MultiPlus
- Systems using MultiPlus, MultiPlus Compact, or MultiPlus-II
- Owners who need proper BMS-controlled inverter/charger shutdown
- Technicians completing a Victron battery protection layout
It may not be the right product for systems using a different BMS architecture or non-compatible inverter/chargers.
Related RV Parts Giant Resources
Useful links for planning a Victron lithium system:
- Victron Energy - Cable for Smart BMS CL 12/100 to MultiPlus
- Victron Energy - Smart BMS CL 12-100
- Victron Smart BMS 12-200
- Victron RV Inverter Sizing and Installation Guide
- How to Build a Victron 12V System for Your RV, Van, or Off-Road Trailer
FAQ
What does the Victron Smart BMS CL to MultiPlus cable do?
It connects a compatible non-VE.Bus BMS, such as Smart BMS CL 12-100 or smallBMS, to a Victron MultiPlus inverter/charger so the BMS can control the MultiPlus remote on/off function.
Why would the BMS turn off the MultiPlus?
The BMS may turn off the MultiPlus when it detects lithium battery alarm conditions such as low voltage, high voltage, or temperature-related protection events.
Does this cable work with every Victron BMS?
No. It is intended for specific non-VE.Bus BMS products such as the Smart BMS CL 12-100 and smallBMS. Confirm compatibility before ordering.
Does it work with MultiPlus-II?
Yes, Victron lists MultiPlus-II among the compatible MultiPlus product families for this cable.
Is this cable required for every MultiPlus lithium system?
No. Some systems use other Victron BMS architectures or control methods. The correct cable depends on the BMS, battery, and inverter/charger design.
Can I install it myself?
Experienced RV electrical installers may be able to install it, but the wiring must follow Victron documentation for the exact MultiPlus model. If unsure, use a qualified technician.
Should I label the cable after installation?
Yes. Labeling control wiring makes future troubleshooting and service much easier.
Final Takeaway
The Victron Energy - Cable for Smart BMS CL 12/100 to MultiPlus is a small part with an important job. In the right Victron lithium system, it allows a compatible BMS to control a MultiPlus inverter/charger during battery protection events.
For RV owners using Victron Lithium Battery Smart batteries, Smart BMS CL 12-100 or smallBMS, and a compatible MultiPlus, this cable helps complete the shutdown and restart logic that keeps the system safer and more controlled.
Before ordering, confirm your BMS model, MultiPlus model, wiring plan, and system architecture. Install it according to Victron documentation, test the system carefully, and keep the wiring labeled. In a serious RV lithium setup, small control cables like this can make the difference between a system that simply powers on and a system that protects itself properly.
