Victron Cerbo GX MK2
- Regular price
- $316.00
- Sale price
- $316.00
- Regular price
-
$467.00
Victron list $467.00 · you save $151.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships in 3–5 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty

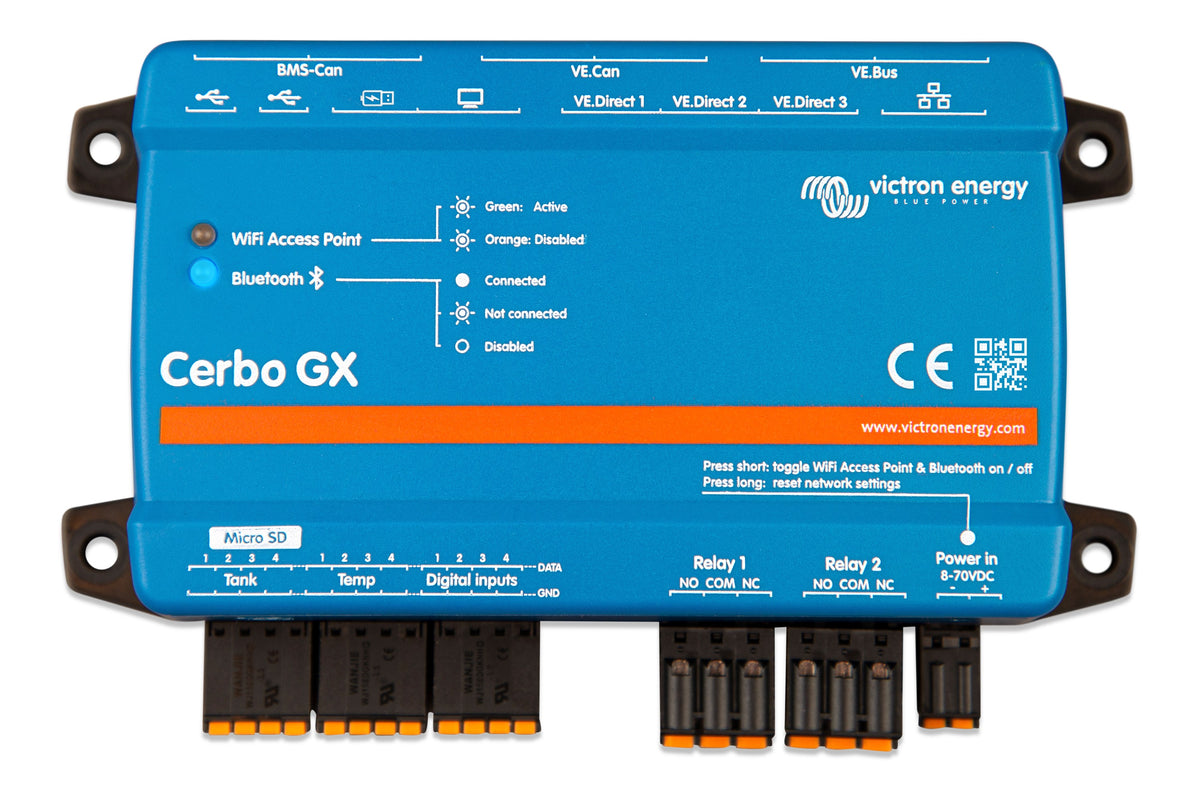

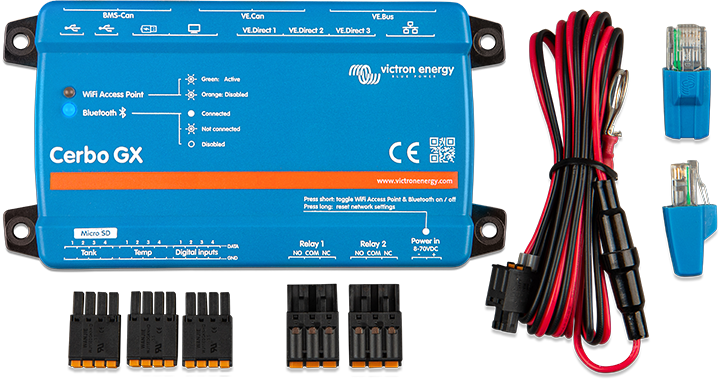

Cerbo GX MK2 — Victron part number BPP900450110.
Genuine Victron Energy Cerbo GX, shipped free within the U.S. with the full Victron warranty. Every Victron item we sell is covered by our Price-Beat Guarantee: found it cheaper from an authorized U.S. dealer? We'll beat it.
Part of the Victron GX monitoring family: it connects to a Cerbo GX, Ekrano GX or other GX device so you can see your RV or boat's batteries, solar, shore power and inverter on one screen and remotely through the free VRM portal.
Specifications
| Enclosure | |
| Width | 154 mm |
| Colour | Blue (RAL 5012) |
| Depth | 48 mm |
| Protection category | IP20 |
| Height | 78 mm |
| Standards | |
| Emission | EN 3011489-1,EN 3011489-17 |
| Automotive directive | ECE R10-6 |
| Safety | IEC 62368-1 |
| Technical | |
| Resistive Tank Level Inputs | 4 |
| Power draw at 12V with GX Touch, backlight max on | 4.8 W |
| RuuviTag support | Yes |
| Supply DC voltage range | [8, 70] V |
| Temperature Sense Input | 4 |
| USB | 3 USB Host ports |
| VE.Bus | 2 paralleled RJ45 sockets |
| VE.Can | Yes VE.Can 1 isolated VE.Can 2 non-isolated |
| VE.Direct | 3 (max. possible VE.Direct devices: 15) |
| WiFi | Built-in |
| Relay Type | NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC |
| Relays | 2 |
| Power draw at 12V with GX Touch, backlight off | 3.8 W |
| Power draw at 12V | 2.8 W |
| Operating temperature range (fan assisted cooling) | [-20, 50] °C |
| Mounting | Wall or DIN rail 35mm (optiona ac |
| Ethernet | 10/100 RJ45 socket - isolated except shield |
| Digital Inputs | 4 |
| Buzzer | True |
| BMS-Can | Yes – see VE.Can |
| Bluetooth | Yes |
Datasheets
- Automatic Generator start-stop (PDF)
- Energy Storage System (PDF)
- 1 - 3 Phase Quattro system with Cerbo GX Touch 50 Blue Nova BN52V 690 36K Smart Solar MPPTs
- 1 - 3 Phase Quattro system with Cerbo GX Touch 50 BYD-LVL Smart Solar MPPT's
Part numbers: BPP900450110 · GTIN 8719076062257
