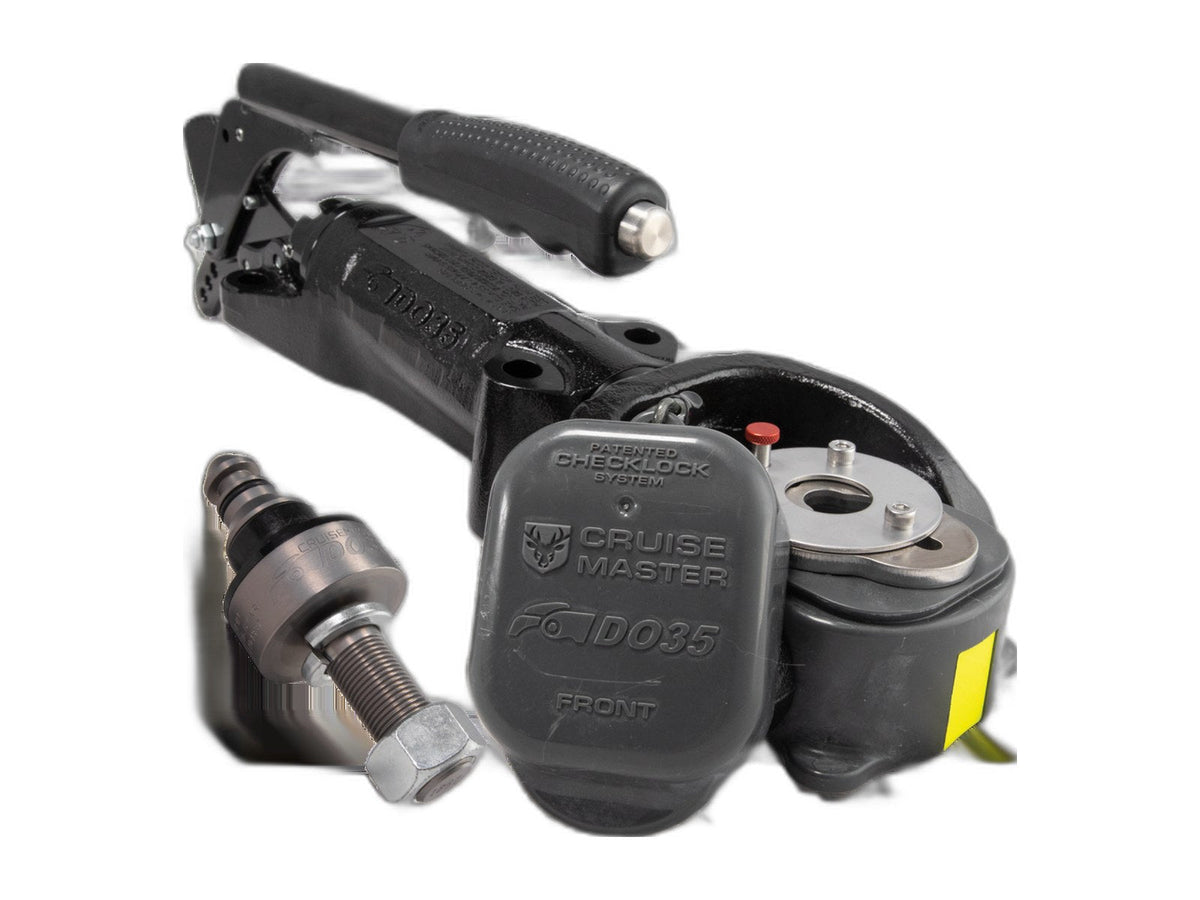

The Cruisemaster DO35 is one of the most popular off-road couplings in Australia, and for good reason: it offers full 360-degree articulation, a clean pin-style connection, and a reputation for reliability on rough tracks. But its performance and safety depend entirely on correct installation. A misaligned or under-torqued coupling can fail in the field, and that's not something you want happening on a remote trail with a loaded van behind you. This guide walks through the installation process step by step so you can fit your DO35 with confidence. If you're not comfortable working on towing components, have the job checked by a qualified fitter before you hit the road.
Before You Start: Tools and Safety Checks
Gather everything before you begin. You'll need a quality torque wrench capable of reaching the manufacturer's specified figures, a set of spanners and sockets to suit the DO35 bolts, a drill with the correct bit if your drawbar isn't pre-drilled, thread-locking compound, and a measuring tape and square for alignment. Have the official Cruisemaster fitting instructions for your specific model on hand, because torque values and bolt patterns can vary between variants.
Safety first: chock the trailer wheels, make sure the van is on level ground, and support the drawbar securely. Never work under an unsupported drawbar. Confirm that your drawbar material and thickness are rated to accept the DO35 and that the coupling's rating matches or exceeds your van's aggregate trailer mass. Mixing an under-rated coupling with a heavy van is dangerous and illegal.
Step 1: Position and Mark the Coupling
Offer the DO35 base plate up to the drawbar in its intended position. The coupling height should leave the drawbar sitting level with the van coupled to your tow vehicle, so check this against your tow ball height. Use a square to make sure the coupling sits perfectly straight and centred on the drawbar; even a small angle will cause uneven wear and poor articulation.
Once happy with the position, mark the bolt holes accurately through the base plate onto the drawbar. Double-check your measurements before drilling. The old rule of measure twice, drill once is exactly right here. If your drawbar already has a matching hole pattern, simply confirm alignment and move on.
Step 2: Drill and Prepare the Mounting Holes
If you need to drill, start with a pilot hole and step up to the final bolt diameter. Drilling slowly with a sharp bit keeps the holes clean and round, which matters for a tight, rattle-free fit. Deburr both sides of each hole so the base plate sits flush against the drawbar with no high spots. Any gap or burr can let the coupling work loose over time.
Clean the mating surfaces of grease, paint flakes, and swarf. A clean, flat interface between the coupling base and the drawbar is essential for the clamping force of the bolts to hold properly. Wipe everything down before assembly.
Step 3: Bolt Up and Torque to Spec
Fit the DO35 using the correct grade of bolts supplied or specified by Cruisemaster. Do not substitute hardware-store bolts, as the coupling relies on high-tensile fasteners to handle towing loads. Apply thread-locking compound to the threads as directed. Fit the bolts, nuts, and washers, then bring them up hand-tight while keeping the coupling square.
Now torque each bolt to the manufacturer's specified figure using your torque wrench, working in a cross pattern so the base plate clamps down evenly. Even torque prevents the plate from being pulled out of alignment. Do not guess this step. Under-torquing risks the coupling loosening, and over-torquing can stretch or damage the bolts. Once torqued, give the whole assembly a visual check to confirm it's seated flat and straight.
Step 4: Fit the Coupling Pin and Test Operation
With the base mounted, connect the DO35 to its matching tow vehicle pin or hitch. Slide the pin home and confirm it locks fully. Cycle the coupling through its full range of articulation by hand to make sure it moves freely with no binding. Check that the locking mechanism engages and disengages cleanly and that the safety pin or clip is fitted. A coupling that doesn't lock positively must not be used.
Finally, fit and test your safety chains and any breakaway or override systems so the complete connection is roadworthy. Take the van for a short, slow test drive over a bumpy surface, then stop and re-check all bolts for movement. It's normal practice to re-torque the bolts after the first short tow as everything settles.
The Practical Takeaway
A DO35 installation is well within the reach of a confident DIYer, but the details matter: correct height, dead-straight alignment, clean surfaces, the right high-tensile bolts, and accurate torque to the manufacturer's spec. Re-check the bolts after your first tow and inspect the coupling periodically as part of your maintenance routine. When in doubt, get the installation verified by a qualified fitter. You can find genuine DO35 couplings, pins, and off-road towing components in our Cruisemaster collection to make sure every part of your setup is rated for the conditions you tow in.
