If you're building, upgrading, or towing an off-road trailer, the Cruisemaster DO35 and DO45 are the two couplers that come up in every serious discussion. Both are premium articulating off-road couplings — but they're designed for different trailer weights, and picking the wrong one is an expensive mistake.
Here's everything you need to know to make the right call.
What Makes Cruisemaster Different
Standard ball couplings don't allow the lateral (side-to-side) and axial (rotational) movement that off-road towing demands. When your tow vehicle and trailer are traversing different terrain angles — one wheel up, the other down — a rigid coupling binds and can damage your vehicle's towbar, the trailer chassis, or both.
Cruisemaster's DO (Disc Off-road) couplers use a polyurethane disc system that allows controlled flex in all directions while maintaining positive tow-ball engagement. They articulate so your vehicle and trailer can move independently without stress on either chassis.

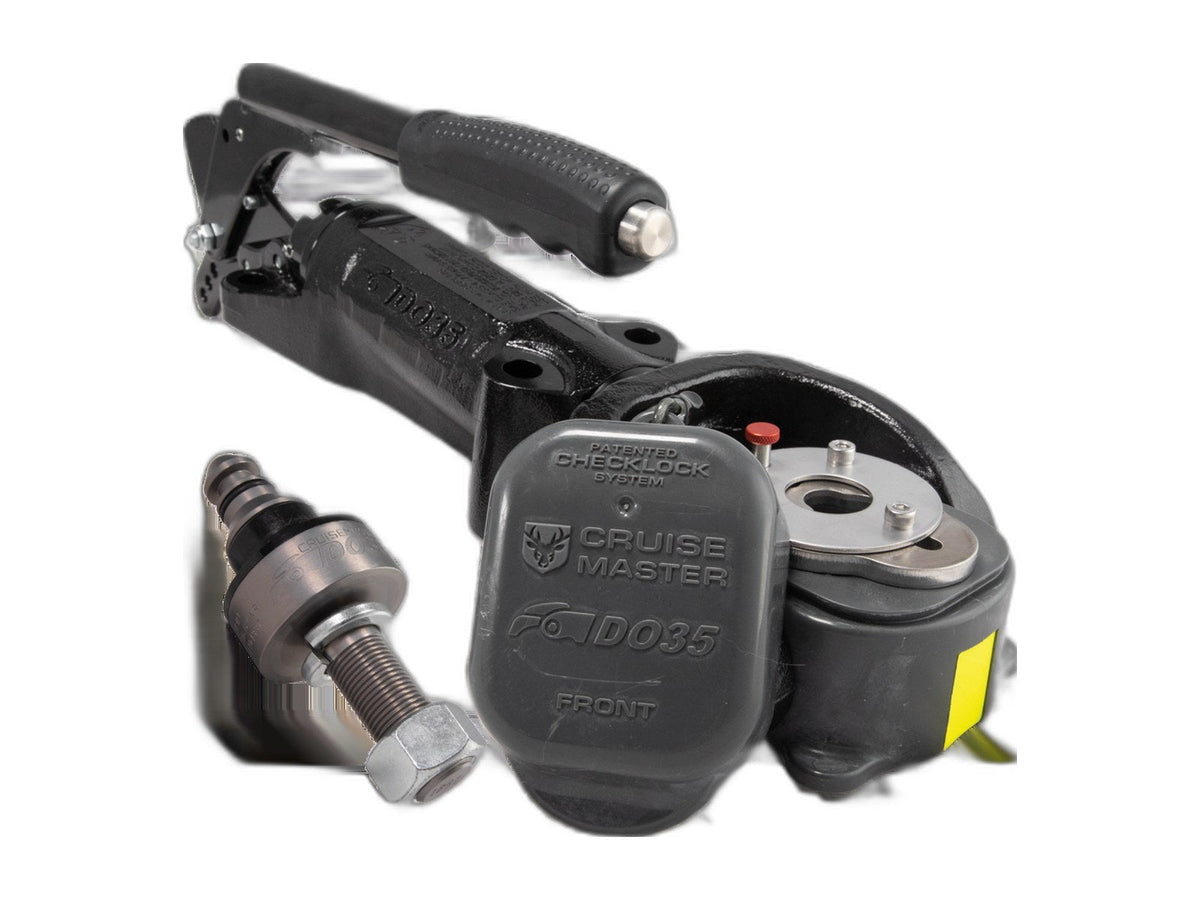

Cruisemaster DO35 — Specifications
- Tow ball load rating: 3,500 kg GTM (Gross Trailer Mass)
- Ball coupling: Standard 50mm ball
- Articulation: 25° in all directions
- Body: Alloy housing with polyurethane disc
- Weight: ~3 kg
- Suitable for: Light to medium off-road trailers up to 3,500 kg GTM
The DO35 fits the vast majority of off-road camper trailers — Black Series HQ/TH series, MDC Xtreme, Opus OP4/OP15, and most trailers in the 1,500–3,500 kg GTM range.
Cruisemaster DO45 — Specifications
- Tow ball load rating: 4,500 kg GTM
- Ball coupling: Standard 50mm ball
- Articulation: 25° in all directions
- Body: Heavy alloy housing with polyurethane disc
- Weight: ~4.5 kg
- Suitable for: Heavy-duty trailers 3,500–4,500 kg GTM
The DO45 is for heavier setups — large expedition trailers, fully loaded dual-axle builds, trailers carrying big water tanks, generators, and full camping gear that push toward the 4,500 kg GTM rating.
DO35 vs DO45 — The Simple Decision Guide
| Your Setup | Choose |
|---|---|
| Trailer GTM under 3,500 kg (most camper trailers) | DO35 |
| Trailer GTM 3,500–4,500 kg (heavy expedition builds) | DO45 |
| Black Series HQ12, HQ15, HQ17, HQ19, HQ21 | DO35 |
| Black Series TH19, TH22 fully loaded | DO35 or DO45 — check GTM |
| MDC Xtreme, Base Camp, Cub | DO35 |
| Opus OP4, OP15 | DO35 |
| Large dual-axle custom build over 3,500 kg GTM | DO45 |
When in doubt, DO35 is the right answer for 90% of off-road camper trailer owners. Unless your trailer is genuinely heavy (large water tanks + full gear + generator taking you close to 4,500 kg), the DO35 has more than enough capacity.
What About the Tow Pin Kits?
Both the DO35 and DO45 require a separate tow pin kit to complete the coupling assembly. The tow pin is the 1" UNF bolt that secures the ball inside the coupler housing.
- DO35 Tow Pin Kit — includes the 1" UNF pin, nut, and split pin. Required if your existing tow pin is worn or missing.
- DO45 Tow Pin Kit — same concept, heavier spec for the DO45 housing.
We stock both couplers and both tow pin kits. If you're replacing a complete worn-out coupling, order the coupler + tow pin kit together.
Installation Notes
Both DO series couplers mount to a standard 50mm ball on your vehicle's towbar. Installation requires removing the existing coupler and fitting the DO35/DO45 — no welding or modification to the trailer chassis is required in most cases. The polyurethane disc can be replaced without replacing the entire coupler body when it eventually wears.
The Bottom Line
For most off-road camper trailer owners — Black Series, MDC, Opus, or custom builds under 3,500 kg GTM — the DO35 is the right coupler. It gives you full Cruisemaster articulation, 3,500 kg capacity, and direct fitment to a standard 50mm ball.
Only go DO45 if your trailer GTM is genuinely between 3,500–4,500 kg.
