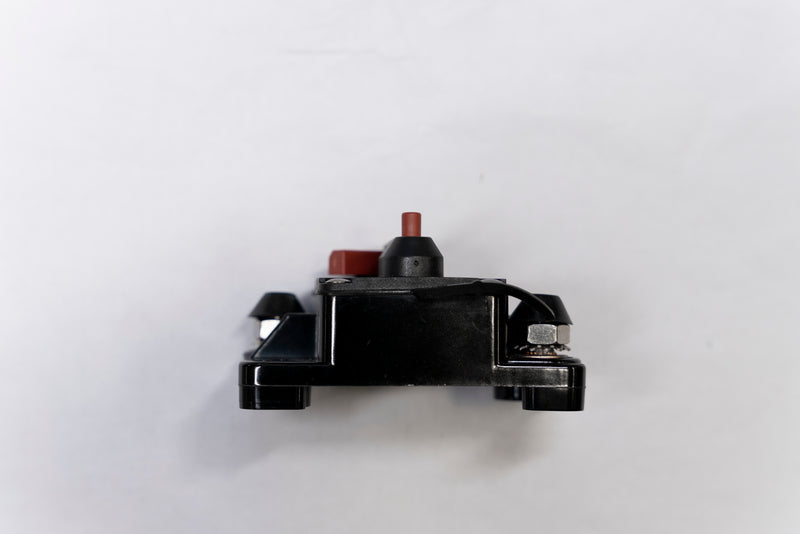

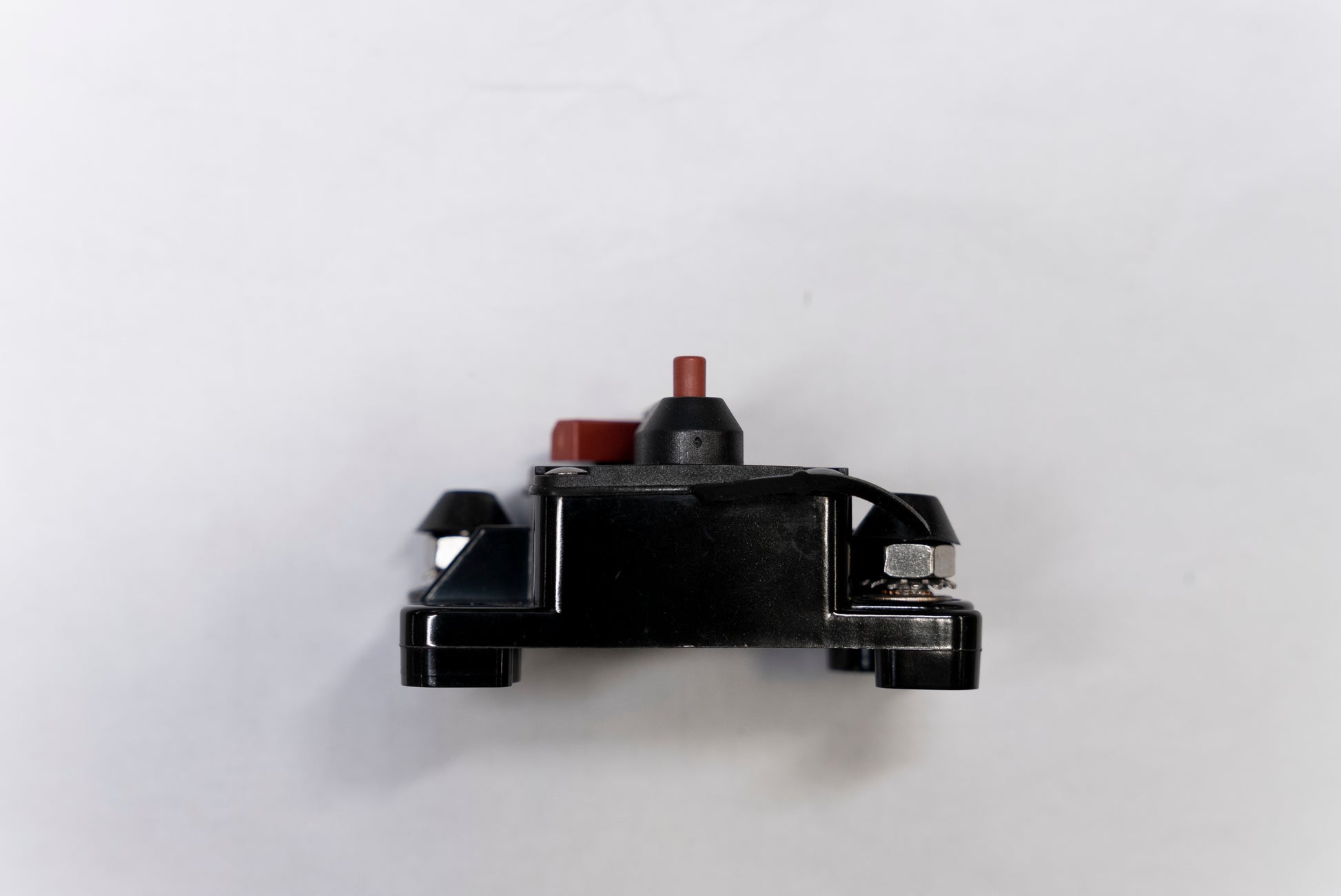

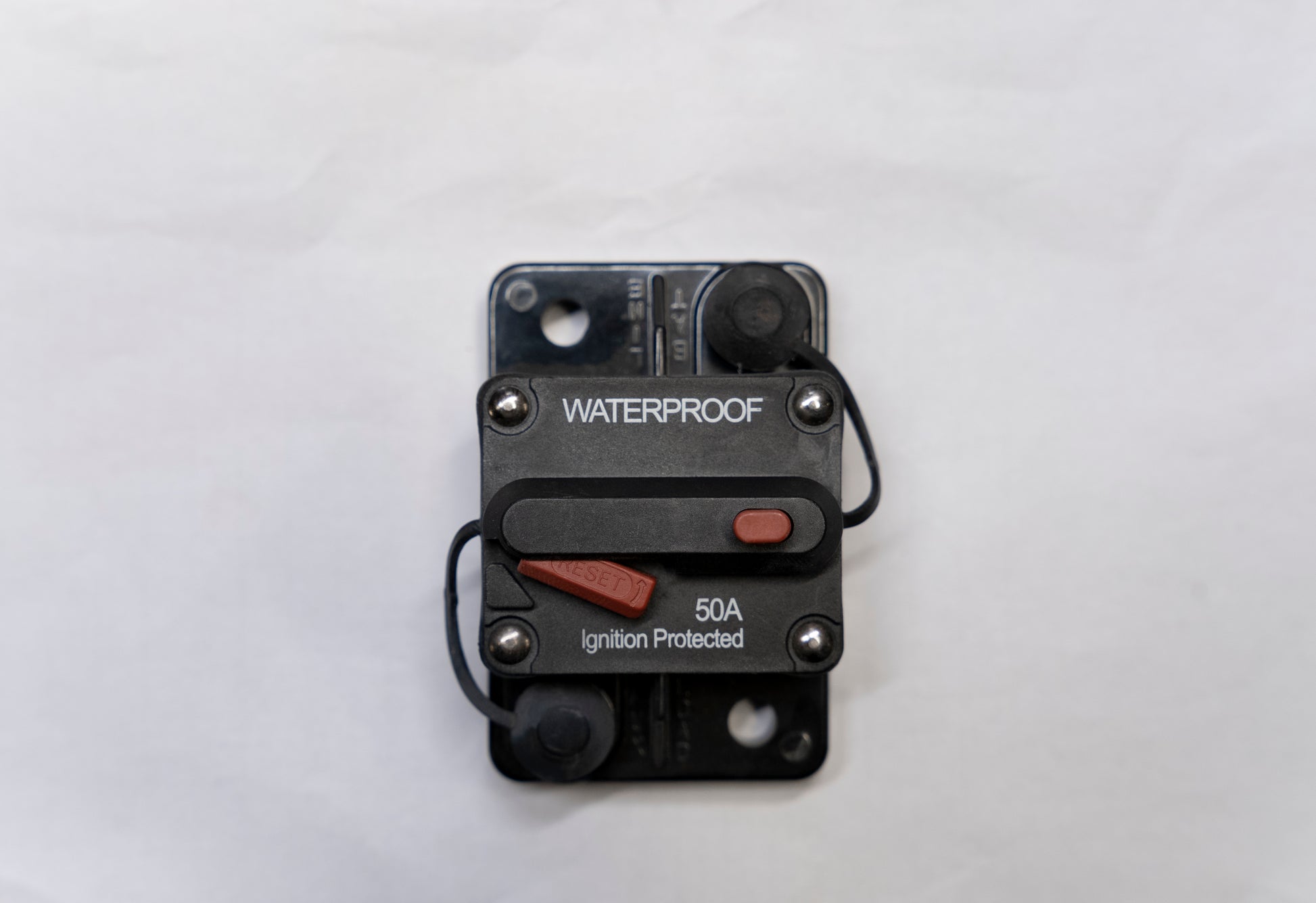

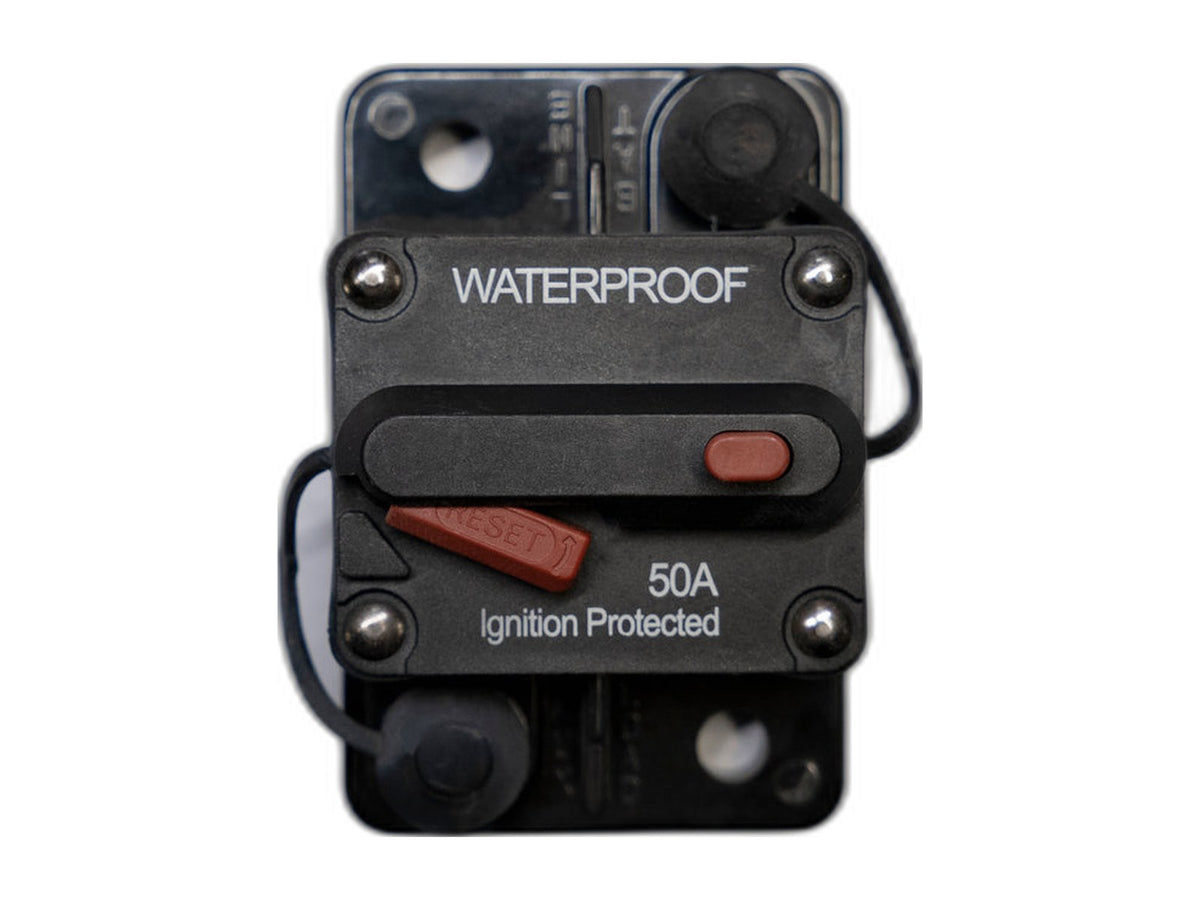

Heavy-Duty 50A Main Breaker
Critical safety component for your RV's electrical system. This 50-amp breaker provides primary overcurrent protection for your main power feed, preventing damage from overloads and shorts.
Safety Features:
- Thermal-magnetic trip mechanism
- Visual trip indicator
- Manual test button
- UL listed for RV use
- 10,000A interrupt capacity
Specifications:
| Current Rating: | 50A continuous |
| Voltage: | 120/240V AC |
| Poles: | Double pole |
| Mounting: | DIN rail or surface |
| Terminals: | Box lug for 14-2 AWG |
| Weight: | 1.76 lbs (798g) |
Application Notes:
- Main disconnect for 50A shore power
- Protects converter and distribution panel
- Required by electrical code
- Replace every 10 years
- Test monthly for proper operation
Installation: Must be accessible and properly labeled
Compliance: Meets NEC Article 551 for RVs
