Victron Busbar | DC Distribution
- Regular price
- $17.99
- Sale price
- $17.99
- Regular price
-
$24.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

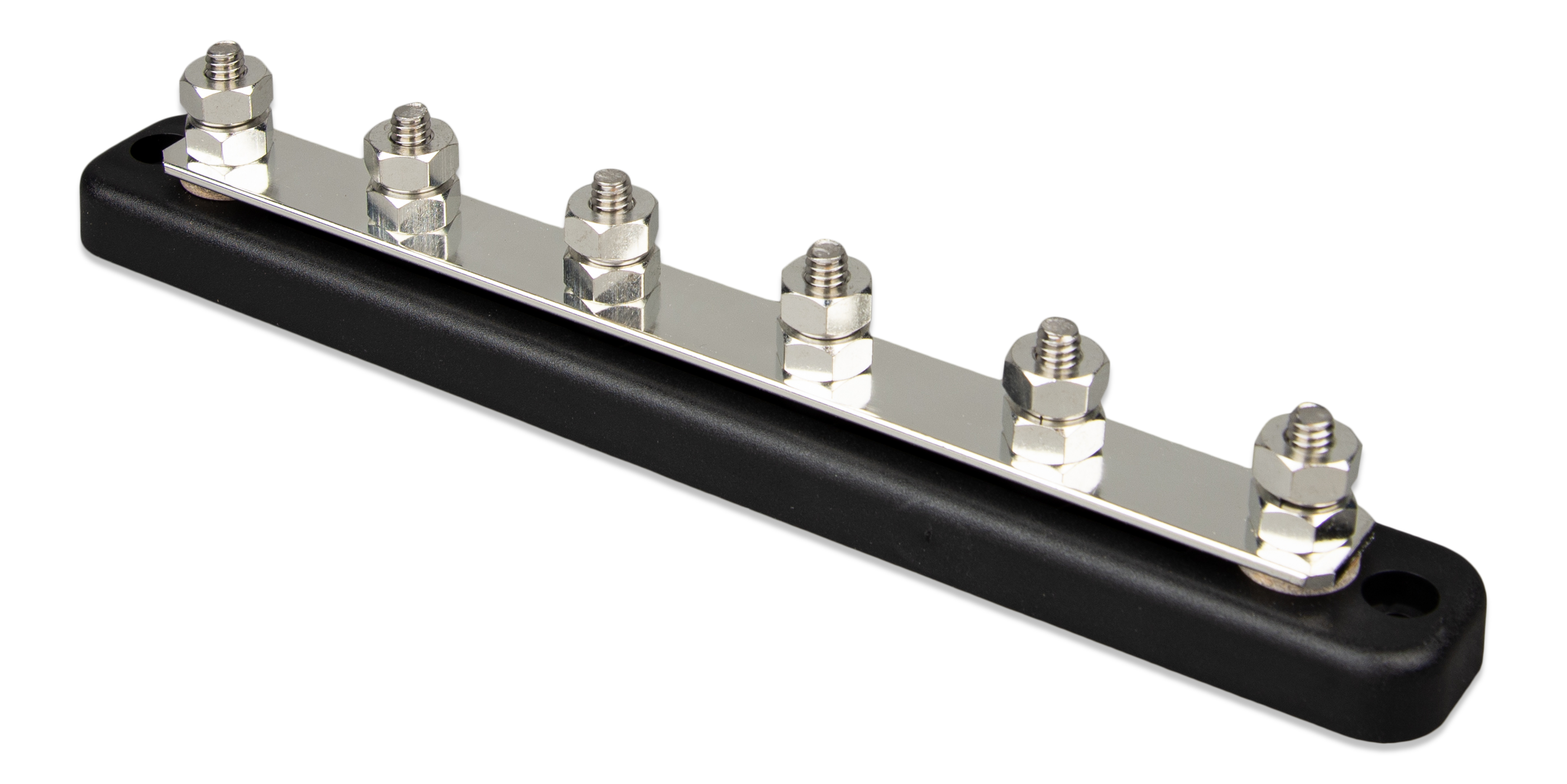

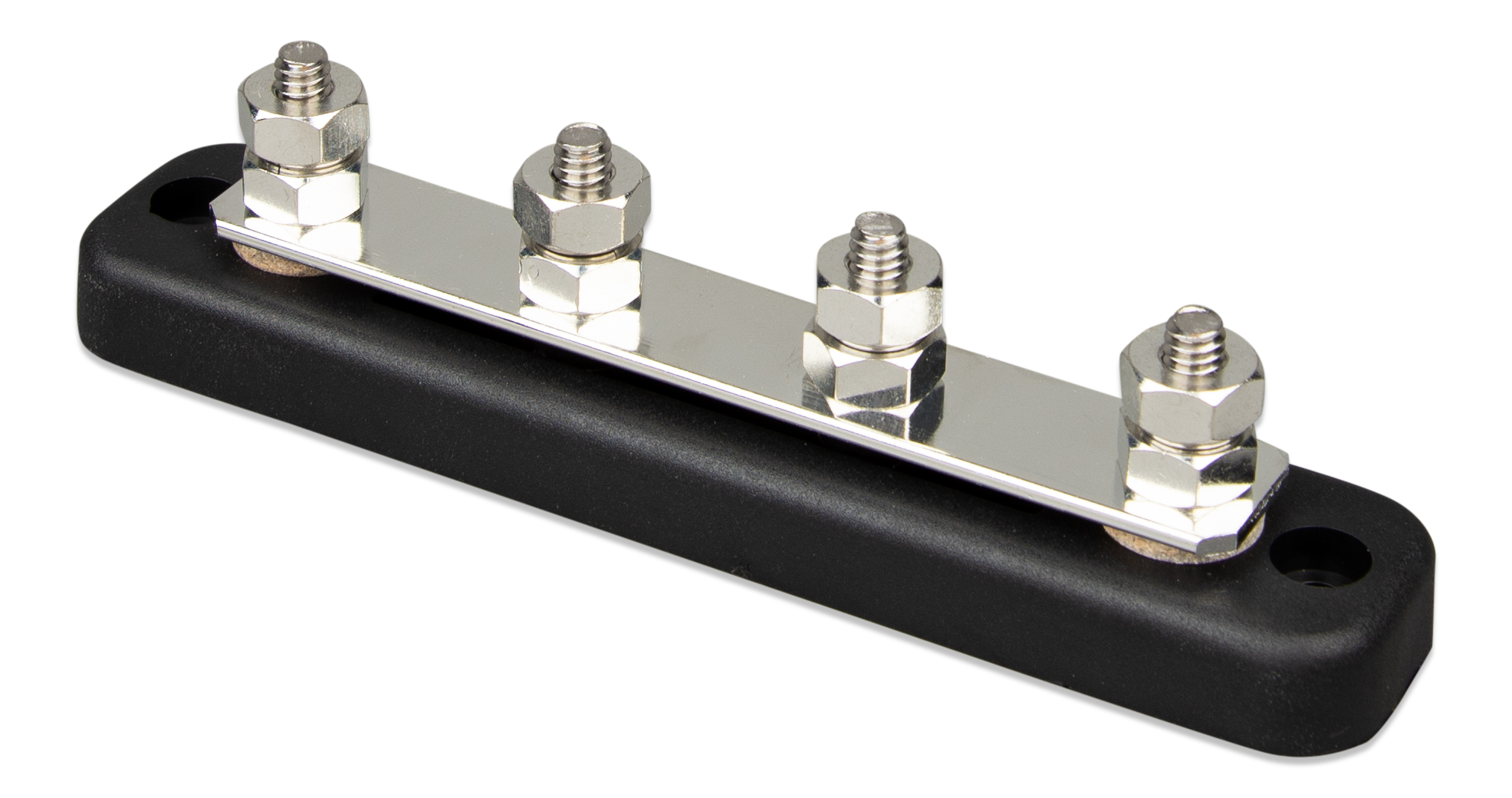

Busbar 150 A with cover
Max. current: 150 A
Max. Voltage: 70 VDC
Terminal diameter: ¼ inch / 6.35 mm
Terminal height: 0.67 inch / 17 mm
Terminal material: Stainless steel
Hex nut material: Tin-plated copper
Recommended torque: 60 lbf·inch / 7 N·m
Busbar strip material: Tin-plated copper (1.4 x 18 mm)
Base material: ABS, black, UL 94 V-0
Cover material: Clear Polycarbonate, UL 94 HB
Weight, 4 terminals: 0.4 lb / 0.2 kg
Dimensions (HxWxD)(with cover):
1.8 x 6.0 x 1.25 inch
45 x 152.4 x 31.8 mm
Weight, 6 terminals: 0.6 lb / 0.27 kg
Dimensions (HxWxD)(with cover):
1.8 x 9.1 x 1.25 inch
45 x 231.7 x 31.8 mm

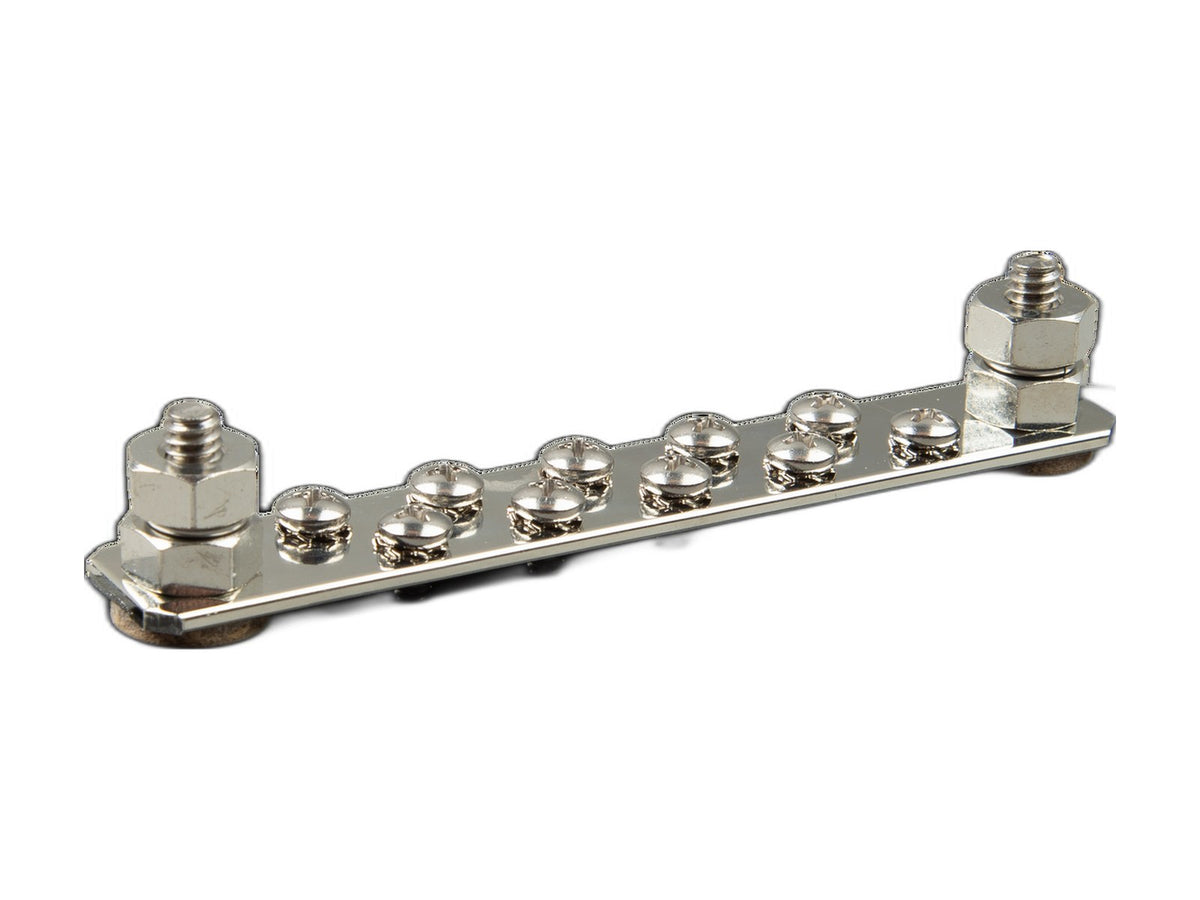

Busbar 150 A 2P with 10 or 20 screws, with cover
Max. current: 150 A
Max. Voltage: 70 VDC
Terminal diameter: ¼ inch / 6,35 mm
Terminal height: 0.67 inch / 17 mm
Terminal material: Stainless steel
Hex nut material: Tin-plated copper
Recommended torque: 60 lbf·inch / 7 N·m
Terminal screws: 8-32 / 4,2 mm
Terminal material: Stainless steel
Busbar strip material: Tin-plated copper (2,4 x 19 mm)
Base material: ABS, black, UL 94 V-0
Cover material: Clear Polycarbonate, UL 94 HB
Weight, 10 screws: 0,7 lb / 0,3 kg
Weight, 20 screws: 2,2 lb / 1 kg
Dimensions 10 screws(HxWxD) (with cover):
1.8 x 6.0 x 1.25 inch
45 x 152,4 x 32 mm
Dimensions 20 screws(HxWxD) (with cover):
1.8 x 9.1 x 1.25 inch
45 x 232 x 32 mm

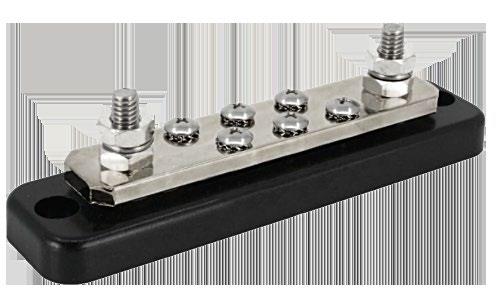

Busbar 250 A 2P with 6 or 12 screws, with cover
Max. current rating: 250 A
Max. Voltage rating: 70 VDC
Terminal stud diameter: 5/16 inch / 8 mm
Terminal height: 0.67 inch / 17 mm
Terminal material: Stainless steel
Hex nut material: Tin-plated copper
Recommended torque: 110 lbf·inch / 13 N·m
Terminal screws: 10-24 / 4,8 mm
Terminal material: Stainless steel
Busbar strip material: Tin-plated copper (6,35 x 25 mm)
Base material: ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight (6 screws): 0,55 lb / 0,25 kg
Weight (12 screws): 0,77 lb / 0,35 kg
Dimensions (6 screws)(HxWxD) (without cover):
1.6 x 6 x 1.5 inch
42 x 153 x 38 mm
Dimensions (12 screws)(HxWxD) (without cover):
1.6 x 7.9 x 1.5 inch
41 x 201 x 38 mm
Dimensions (6 screws)(HxWxD) (with cover):
1.9 x 9.4 x 2.8 inch
65 x 216 x 86 mm
Dimensions (12 screws)(HxWxD) (with cover):
1.9 x 9.4 x 2.8 inch
48 x 237 x 70 mm

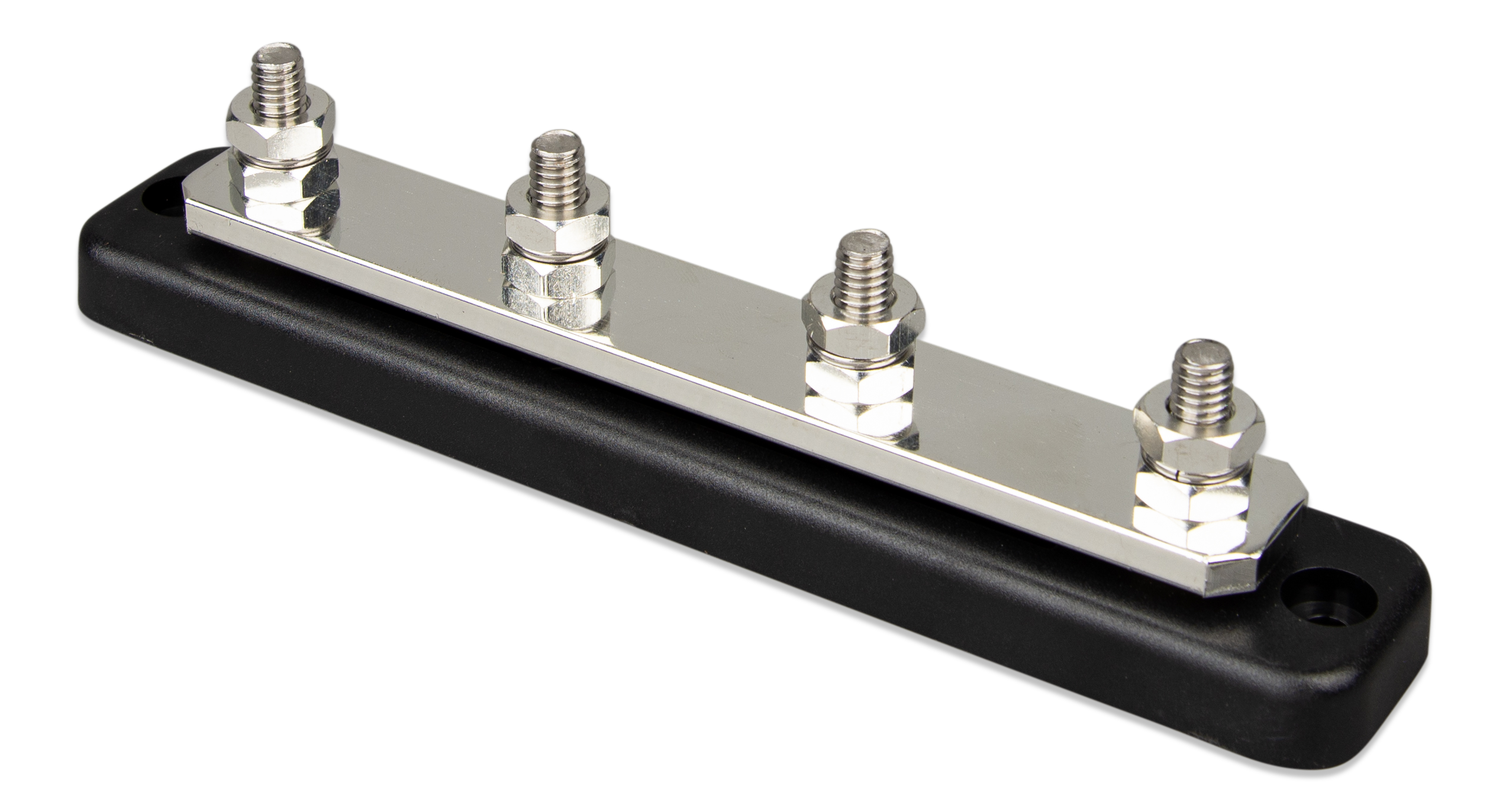

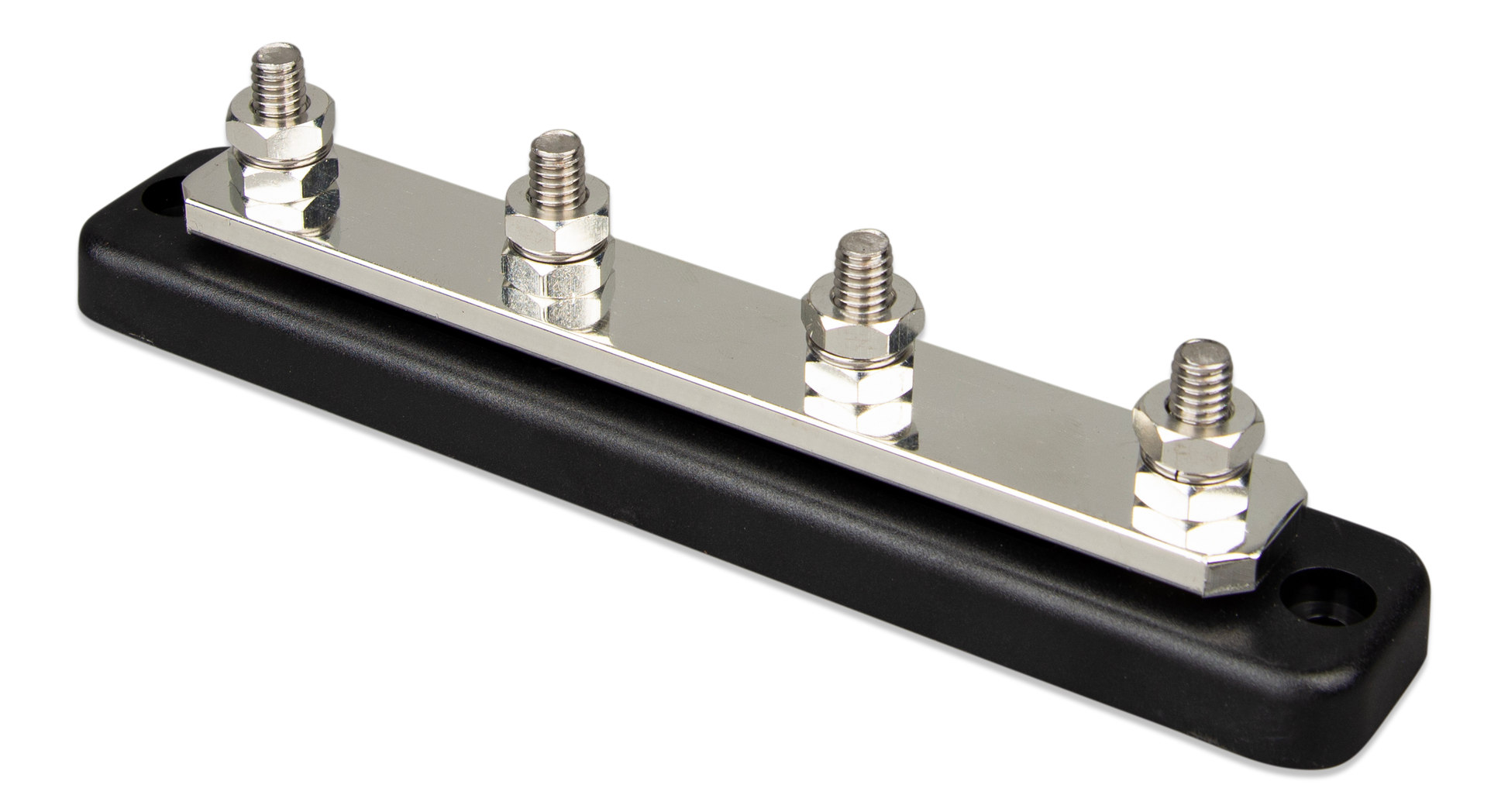

Busbar 250 A 4P and 6P with cover
Max. current rating: 250 A
Max. Voltage rating: 70 VDC
Terminal diameter: 5/16 inch / 8 mm
Terminal height: 0.67 inch / 17 mm
Terminal material: Stainless steel
Hex nut material: Tin-plated copper
Recommended torque: 110 lbf·inch / 13 N·m
Busbar strip material: Tin-plated copper (5 x 24 mm)
Base material: ABS, black, UL 94 V-0
Cover material: ABS, black, UL 94 V-2
Weight, 4 terminals: 0,5 lb / 0,24 kg
Dimensions (HxWxD)(with cover):
1.9 x 9.4 x 2.8 inch
48 x 237 x 70 mm
Weight, 6 terminals: 1.0 lb / 0,43 kg
Dimensions (HxWxD)(with cover):
1.9 x 9.4 x 2.8 inch
48 x 237 x 70 mm

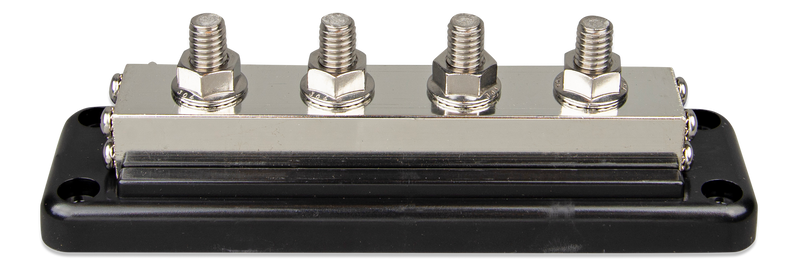

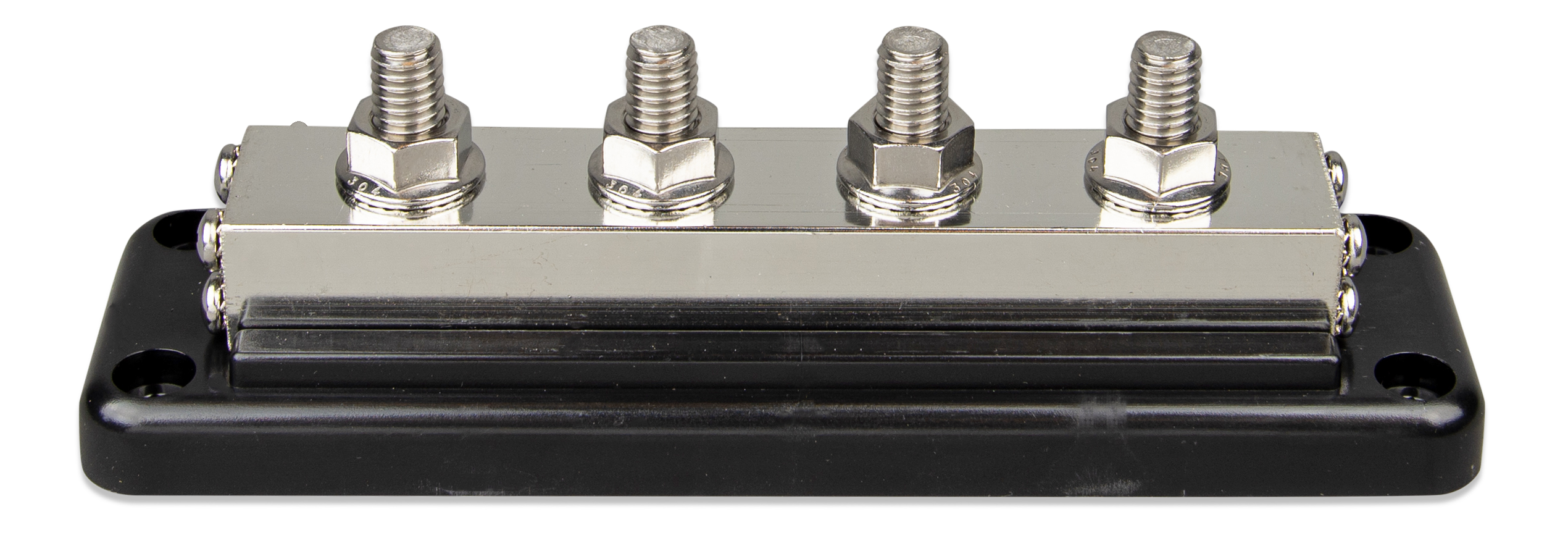

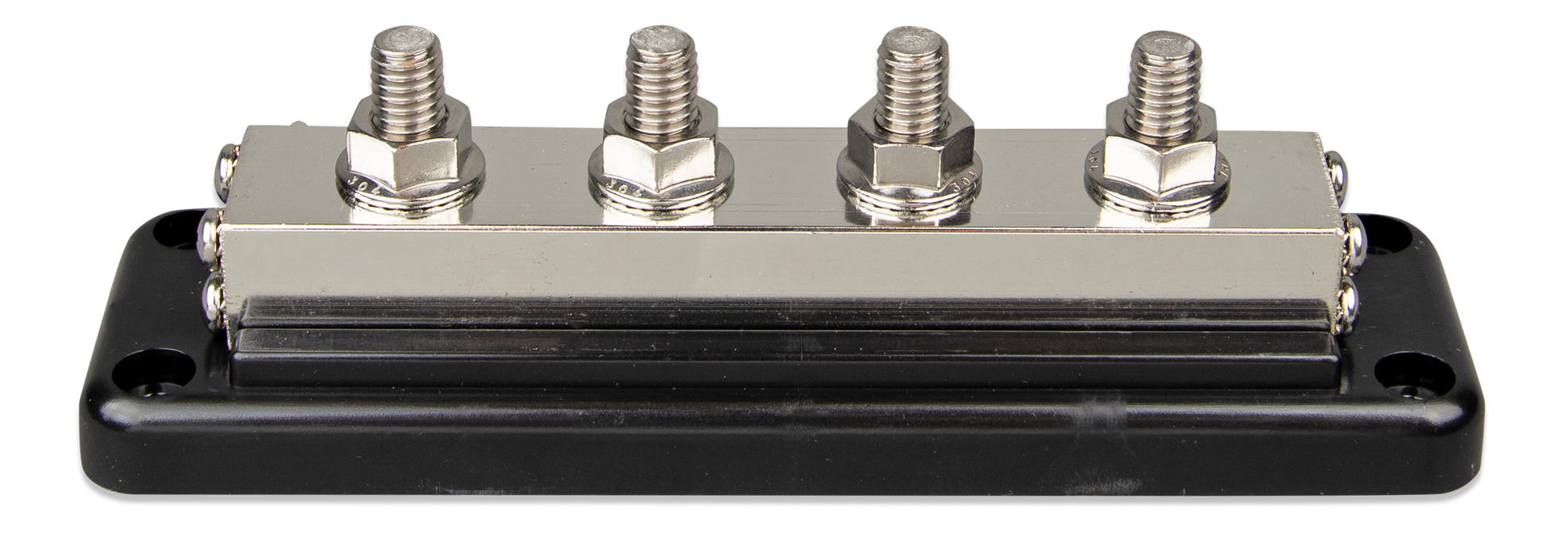

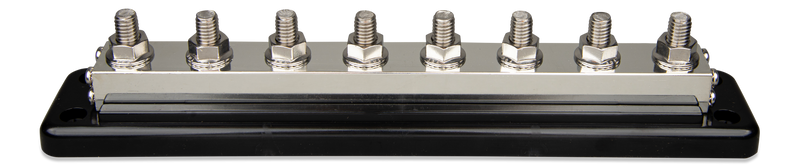

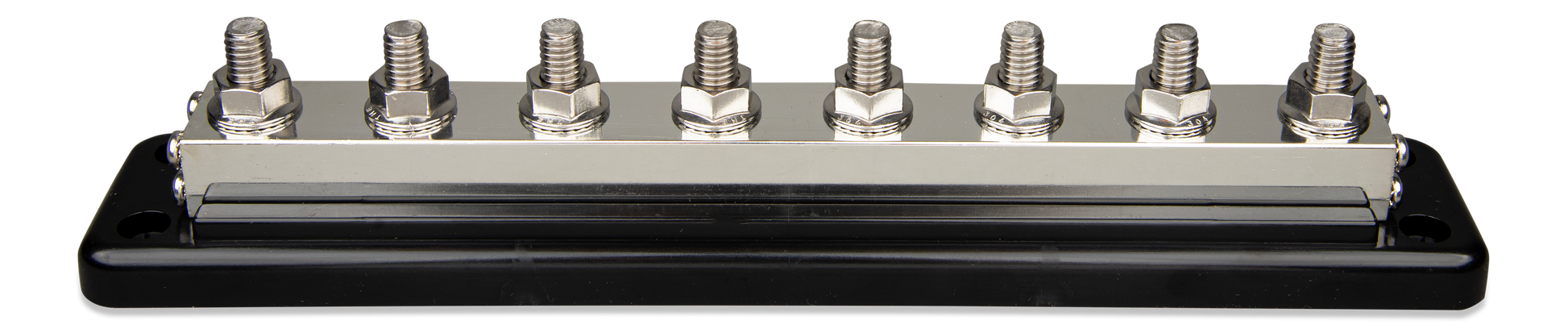

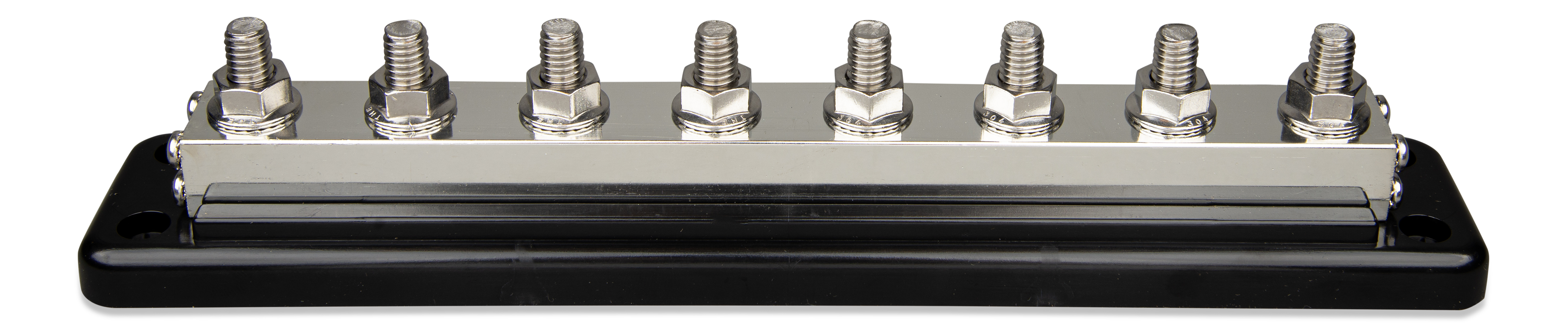

Busbar 600 A with cover
Max. current: 600 A
Max. Voltage: 70 VDC
Terminal diameter: 3/8 inch / 9.53 mm
Terminal height: 0.76 inch / 19 mm
Terminal material: Stainless steel
Flange nut material: Stainless steel
Recommended torque: 180 lbf·inch / 20 N·m
Screw terminals: diameter #8 (0.164 inch) / 4.2 mm
Screw material: Stainless steel
Recommended torque: 17 lbf-inch / 2 N·m
Busbar material: Tin-plated copper (19 x 24 mm)
Base material: ABS, black, UL 94 V-0
Cover material: ABS, black, UL 94 V-2
Weight, 4 terminals: 1.7 lb / 0.75 kg
Dimensions (hxwxd)(with cover):
2.6 x 8.5 x 3.4 inch
65 x 216 x 86 mm
Weight, 8 terminals 2.9 lb / 1.3 kg
Dimensions (hxwxd)(with cover):
2.6 x 12.9 x 3.4 inch
65 x 327 x 86 mm
Available models:
- 150A / 70V - 4 high current connections
- 150A / 70V - 6 high current connections
- 150A / 70A - 2P with 10 screws +cover
- 150A / 70A - 2P with 20 screws +cover
- 250A / 70V - 4 high current connections
- 250A / 70V - 6 high current connections
- 250A / 70A - 2P with 6 screws +cover
- 250A / 70A - 2P with 12 screws +cover
- 600A / 70V - 4 high current connections and 8 low current connections
- 600A / 70V - 8 high current connections and 8 low current connections
