Heat can build up quickly inside an RV cabinet, entertainment compartment, electrical enclosure, or enclosed storage bay. Limited airflow may cause equipment to operate in a warmer environment, which can reduce reliability and make troubleshooting more difficult.

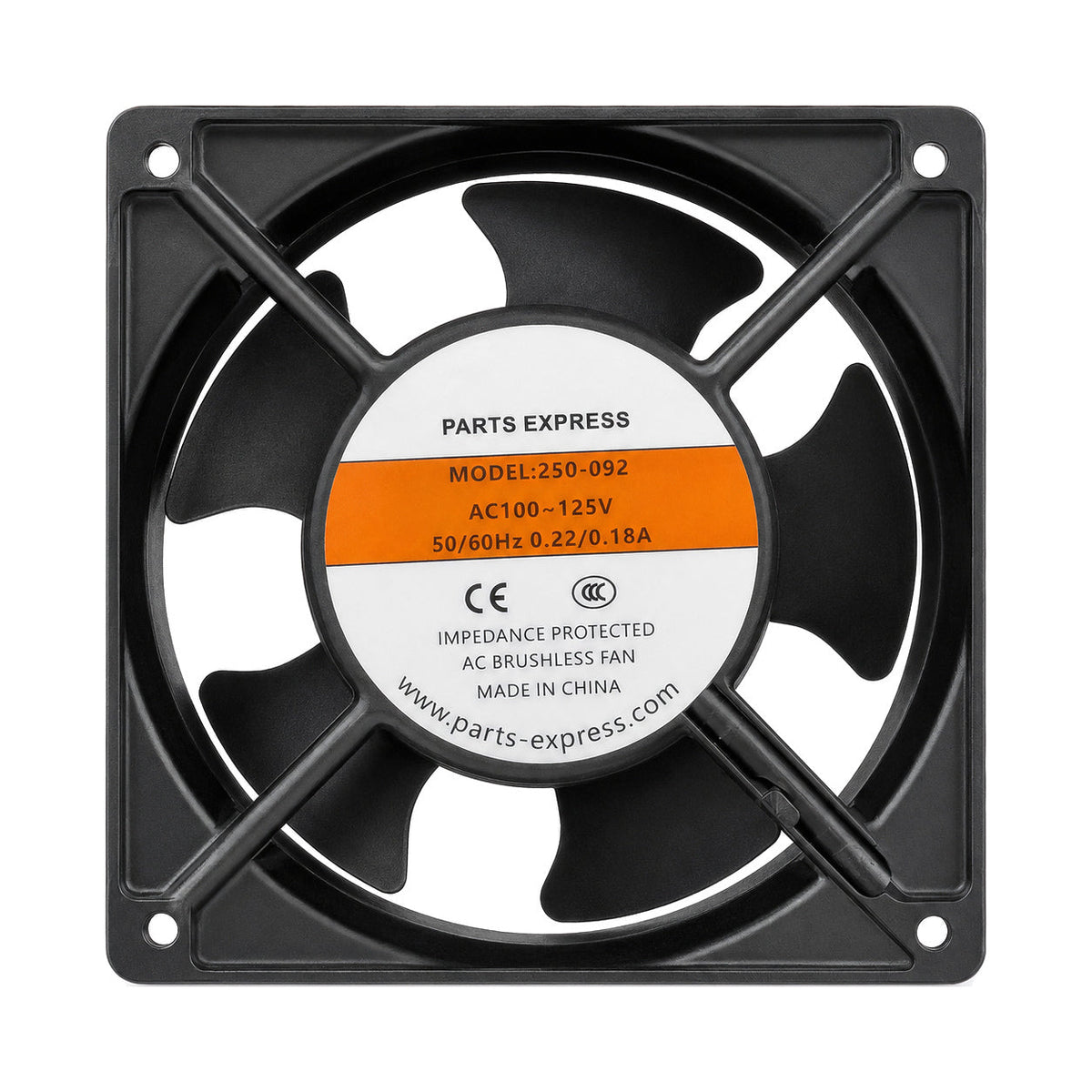

The Parts Express 250-092 120V AC Brushless Cooling Fan is a 120mm fan listed with 100 CFM airflow. Its brushless design and 120V AC operation make it a possible option for compatible RV installations where a suitable AC power source is already available.
The most important part of adding a cooling fan is not simply creating more airflow. The fan must be installed in the correct location, oriented properly, protected from dust and moisture, and connected to a power source that matches its requirements.
Product Details at a Glance
| Feature | Product Information |
|---|---|
| Brand | Parts Express |
| Model | 250-092 |
| Product type | AC brushless cooling fan |
| Fan size | 120mm |
| Rated power system | 120V AC |
| Listed airflow | 100 CFM |
| Typical purpose | Equipment cooling and cabinet ventilation |
| Important note | Verify mounting, wiring, noise, and environmental requirements before installation |
The product title identifies the 120mm size, 120V AC operation, brushless construction, and listed 100 CFM airflow. Confirm the exact electrical current, connector type, mounting-hole spacing, operating noise, temperature limits, and protection rating before installation.
Why RV Enclosures Need Ventilation
An enclosed compartment can trap warm air from equipment such as:
-
Inverters
-
Chargers
-
Audio amplifiers
-
Network equipment
-
Television components
-
Power supplies
-
Refrigeration controls
-
Battery monitoring hardware
-
Small electrical control systems
Not every compartment requires a fan. Passive vents may be sufficient for low-heat equipment. A powered fan becomes more useful when warm air remains trapped or when equipment manufacturers specify additional ventilation.
The first step is to identify where heat collects and whether the compartment has a clear path for air to enter and leave.
Intake Air and Exhaust Air
A fan works best when it is part of an airflow path.
Exhaust configuration
An exhaust fan removes warm air from the compartment. This is often useful when heat accumulates near the top of a cabinet or enclosure.
Intake configuration
An intake fan brings cooler surrounding air into the compartment. This may be useful when the equipment area has an outlet path for warm air.
Intake and exhaust together
Larger compartments may benefit from a planned intake and exhaust arrangement. The exact design depends on the equipment, enclosure size, vent openings, and fan capacity.
Do not install a fan in a sealed compartment and expect it to create effective cooling. Air must be able to enter or exit through an appropriate opening.
How to Plan the Fan Location
Before cutting or drilling, inspect the complete area.
Check for:
-
Wiring behind the panel
-
Plumbing lines
-
Structural framing
-
Insulation
-
Moving doors or hinges
-
Existing vents
-
Dust or water exposure
-
Access for future maintenance
-
Clearance around the fan blades
-
A suitable path for the power cable
A 120mm fan requires more than a 120mm-wide visual opening. The actual cutout, mounting holes, guard, grille, and airflow clearance must match the product dimensions and installation instructions.
Do not cut an RV wall, cabinet, or equipment enclosure until the area has been inspected carefully.
Choosing Between Intake and Exhaust
Use the surrounding conditions to decide the airflow direction.
An exhaust setup may be appropriate when:
-
Warm air collects near the top of the compartment
-
The equipment already has a lower intake opening
-
You want to move heat away from an inverter or charger
-
The fan can discharge into a ventilated area
An intake setup may be appropriate when:
-
The surrounding air is cooler
-
The enclosure has a clear warm-air exit
-
The equipment area needs a steady supply of fresh air
-
Dust control can be managed at the intake point
Avoid drawing air from areas containing exhaust fumes, fuel vapors, battery gases, or excessive dust.
100 CFM and Real-World Airflow
The fan is listed with 100 CFM airflow. This rating describes the product specification, but real-world airflow can be lower depending on installation conditions.
Factors that affect performance include:
-
Narrow vents
-
Dust filters
-
Protective grilles
-
Long ducts
-
Sharp bends
-
Restricted openings
-
Hot surrounding air
-
Fan orientation
-
Enclosure design
A short, unobstructed path usually allows better airflow than a long route with several restrictions.
Do not use the CFM number by itself to determine whether the fan can cool a specific inverter, charger, or appliance. Check the equipment manufacturer’s ventilation requirements.
Connecting a 120V AC Fan in an RV
The Parts Express 250-092 is listed as a 120V AC fan. It should not be connected directly to a 12V battery system unless a suitable approved conversion system is used and the electrical design specifically supports it.
Before installation, verify:
-
The available AC voltage
-
The fan’s current requirement
-
The connector or termination method
-
Circuit protection
-
Cable size
-
Switch or thermostat requirements
-
Grounding requirements
-
Enclosure and strain relief
-
Local electrical standards
If the fan will be powered through an inverter, confirm that the inverter can support the fan and any other devices operating at the same time. This RV inverter sizing guide explains how to compare appliance loads with inverter capacity.
AC wiring can be hazardous. If you are not qualified to work with mains-voltage circuits, use a licensed electrician or RV technician.
Mounting and Protecting the Fan
A cooling fan should be mounted securely so that vibration does not loosen the housing or wiring.
Consider adding:
-
A suitable fan grille
-
A protective guard
-
Strain relief for the power cable
-
A dust filter on the intake side
-
Vibration-reducing mounting hardware
-
A removable access panel
-
A clearly labeled switch
A filter can help reduce dust entering the compartment, but it also restricts airflow and requires cleaning. Inspect the filter regularly and replace it when it becomes clogged.
Keep the fan away from direct water exposure. The product’s 120V AC rating does not confirm weather resistance or suitability for exterior mounting.
Temperature Control Options
The simplest setup uses a manual switch. This allows the owner to turn the fan on when equipment is operating or when the compartment feels warm.
Other options may include:
-
A thermostat-controlled switch
-
A timer
-
A temperature sensor
-
An equipment-controlled output
-
A smart relay approved for the circuit
Any control system must be compatible with the fan’s voltage and current requirements. Do not install an unapproved controller or relay simply because it fits physically.
Manual operation may be sufficient for occasional use. Automatic control may be more convenient for equipment that operates for long periods, but it adds wiring and configuration requirements.
Cooling Inverters and Chargers
Inverters and chargers often need adequate clearance and ventilation. A cooling fan may help move air around the compartment, but it should not replace the ventilation requirements stated by the equipment manufacturer.
Do not:
-
Block an inverter’s built-in vents
-
Mount the fan directly against a hot surface
-
Route warm exhaust air back into the intake
-
Place the fan where water can reach it
-
Put the fan in a battery compartment unless specifically approved
-
Use a fan to compensate for an overloaded system
The fan can support airflow, but it cannot correct an undersized inverter, poor cable connection, excessive electrical load, or incorrect installation.
Noise and Vibration Considerations
A fan may be mechanically suitable but still inconvenient if it creates too much noise inside the living area.
Before final mounting, consider:
-
Distance from the sleeping area
-
Cabinet resonance
-
Mounting surface thickness
-
Vibration transfer
-
Fan operating schedule
-
Door and panel movement
-
Air turbulence around grilles
A brushless fan may be suitable for continuous cooling applications, but the product’s actual noise level should be confirmed before installation if quiet operation is important.
Maintenance Checklist
Inspect the cooling fan regularly:
-
Remove dust from the grille
-
Clean or replace the intake filter
-
Check for unusual noise
-
Confirm that the fan starts reliably
-
Inspect the power cable
-
Check mounting screws
-
Look for heat discoloration
-
Confirm that intake and exhaust openings remain clear
-
Verify that warm air is not recirculating
For broader RV ventilation and moisture management, see this RV roof vent fan buying guide.
The fan should be disconnected from power before cleaning or servicing.
Common Installation Mistakes
Installing the fan without an airflow path
A fan cannot move useful air if the compartment has no suitable intake or exhaust opening.
Connecting a 120V fan directly to 12V power
The fan’s listed voltage must match the power source. Use only an approved conversion or inverter arrangement when necessary.
Cutting the opening before checking behind the panel
Hidden wires, pipes, framing, and insulation may be damaged during installation.
Blocking equipment vents
A fan should supplement, not obstruct, the ventilation built into an inverter, charger, or appliance.
Ignoring dust and filters
A clogged filter or grille can greatly reduce airflow.
Installing near water or fuel
Keep the fan and electrical connections away from water leaks, fuel vapors, propane equipment, and battery compartments unless the installation is specifically approved.
Using a fan to hide an overheating problem
If equipment becomes excessively hot, shuts down, or smells like burning insulation, disconnect it and investigate the source.
Frequently Asked Questions
What voltage does the Parts Express 250-092 use?
The product title identifies it as a 120V AC cooling fan. Confirm the exact electrical specifications and connection method before installation.
How much airflow does it provide?
The product is listed with 100 CFM airflow. Actual performance depends on grilles, filters, ducts, openings, and enclosure design.
Is the fan suitable for a 12V RV battery?
Not directly. It is listed as a 120V AC fan. A compatible approved power arrangement would be required for use with a 12V battery system.
Can I install it in an inverter cabinet?
Possibly, if the inverter manufacturer allows additional ventilation and the fan can be mounted safely. Do not block the inverter’s built-in vents.
Does a 120mm fan need a 120mm cutout?
Not necessarily. Confirm the manufacturer’s actual cutout and mounting-hole dimensions before cutting the panel.
Can I use it outdoors?
Do not assume exterior suitability or weather resistance. Verify the product’s environmental specifications before outdoor installation.
Should the fan blow in or out?
The correct direction depends on the enclosure design. Use exhaust to remove trapped warm air or intake to supply cooler air when a suitable outlet is available.
How often should I clean the fan?
Inspect it regularly and clean it whenever dust, lint, or debris begins to restrict the grille or filter. Disconnect power before service.
Final Takeaway
The Parts Express 250-092 120V AC Brushless Cooling Fan provides a compact 120mm solution with listed 100 CFM airflow for compatible RV equipment and storage-area ventilation projects.
The best installation starts with airflow planning. Identify the heat source, create a clear intake or exhaust path, verify the 120V AC power requirements, and provide enough clearance around the fan.
Mount the unit securely, protect it from dust and moisture, inspect it regularly, and never use it as a substitute for correcting an overloaded or improperly installed electrical system. When planned correctly, an RV cooling fan can help improve airflow around enclosed equipment and support a more reliable camper interior.
