Introduction
Electrical outlets in an RV often serve kitchens, bathrooms, outdoor equipment, and other areas where moisture may be present. Because these locations combine electricity with water exposure, the correct protection and regular testing are important parts of camper maintenance.

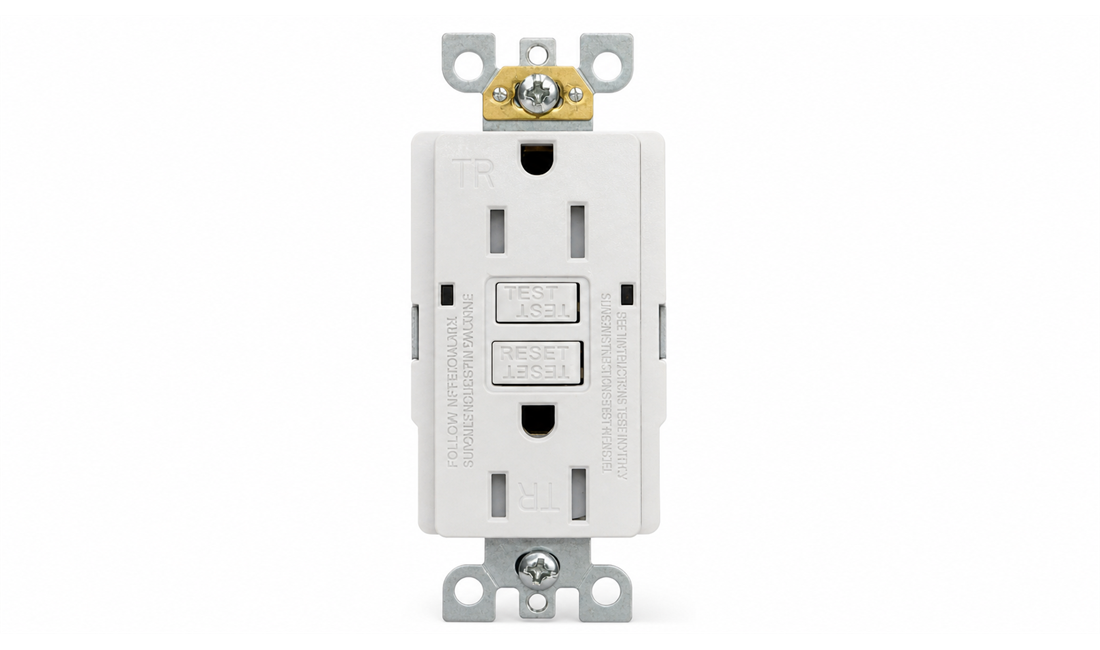

The 15-Amp Tamper-Resistant GFCI Duplex Receptacle with Test/Reset Buttons and Status Indicators is designed to provide ground-fault protection in a duplex outlet format. It includes test and reset buttons, status indicators, and a tamper-resistant design.
A GFCI outlet is not simply a standard receptacle with extra buttons. It monitors the electrical flow and can interrupt power when it detects an imbalance. Understanding how to test and troubleshoot it can help RV owners recognize normal protection behavior and identify problems that require attention.
Product Details at a Glance
| Feature | Product Information |
|---|---|
| Product type | GFCI duplex receptacle |
| Rated current | 15 amps |
| Safety design | Tamper-resistant |
| Controls | Test and reset buttons |
| Status feedback | Status indicators |
| Color | White |
| RV application | Compatible RV electrical installations |
| Important note | Verify voltage, wiring, box size, and code requirements before installation |
The product title identifies the 15-amp rating, duplex format, tamper-resistant design, test/reset buttons, status indicators, and white finish.
Before purchasing or installing, confirm that the receptacle matches the existing electrical system, enclosure, wire size, breaker, and local requirements.
What Does a GFCI Outlet Do?
A GFCI receptacle is designed to monitor current flowing through a circuit. If the current leaving the circuit does not match the current returning, the device can interrupt power.
This type of protection is particularly relevant in areas such as:
-
RV kitchens
-
Bathrooms
-
Exterior receptacles
-
Wet utility areas
-
Outdoor cooking spaces
-
Laundry or sink areas
-
Locations near water connections
A GFCI outlet is not a replacement for correct wiring, proper grounding, an appropriate circuit breaker, or safe electrical practices.
Why Tamper Resistance Matters
The tamper-resistant feature is designed to help prevent unintended objects from being inserted into the receptacle openings. This can be useful in RVs used by families or in compact interiors where outlets are close to living areas.
Tamper resistance does not make an outlet waterproof or safe to touch with wet hands. Keep the receptacle dry, use suitable covers where appropriate, and follow the product instructions.
What Do the Test and Reset Buttons Do?
Test button
The test button is used to check whether the GFCI protection can interrupt power. Pressing it should cause the protected outlet to turn off when the circuit is energized and the device is operating correctly.
Reset button
The reset button restores power after the GFCI has tripped, provided the underlying issue has been resolved.
Status indicators
The status indicators provide visual information about the device condition. The exact meaning of each indicator depends on the product design, so review the included instructions rather than relying on color assumptions.
How to Test an RV GFCI Outlet
Test the outlet according to the manufacturer’s instructions and applicable electrical requirements.
1. Connect a suitable test device
Use a small lamp or an approved receptacle tester to confirm whether power is present. Do not use damaged equipment.
2. Press the reset button
Confirm that the outlet supplies power after resetting. If the reset button will not remain engaged, another issue may be present.
3. Press the test button
The connected device should lose power when the test function operates correctly.
4. Press reset again
After testing, restore power by pressing the reset button. Confirm that the connected device operates normally.
5. Test regularly
Include GFCI testing in your RV electrical maintenance routine. The RV maintenance checklist includes electrical and safety checks that can help owners organize recurring inspections.
If the GFCI does not trip during testing or will not reset afterward, stop using the outlet and seek qualified assistance.
Why Does an RV GFCI Keep Tripping?
Repeated tripping should not be ignored. Common causes include:
Moisture
Water or condensation around the outlet, plug, appliance, or wiring may create a fault condition.
Damaged appliance
A connected appliance may have an internal insulation or wiring problem.
Faulty extension cord
An outdoor cord exposed to moisture, cuts, crushed sections, or damaged connectors can cause the GFCI to trip.
Circuit overload
A 15-amp outlet and circuit should not be used beyond their intended capacity. High-power appliances may draw enough current to trip the breaker or create heat.
Wiring problems
Loose, reversed, damaged, or incorrectly connected wiring can affect GFCI operation.
Downstream fault
If the GFCI protects additional outlets, a problem farther along the circuit may cause the first device to trip.
Defective receptacle
GFCI devices can wear out or fail. If testing produces inconsistent results, replacement may be necessary.
A Safe Troubleshooting Sequence
When the outlet trips, use a simple process:
-
Unplug all devices from the affected outlet.
-
Inspect plugs and cords for damage or moisture.
-
Check nearby outlets and appliances.
-
Press the reset button once.
-
Reconnect devices one at a time.
-
Identify whether a specific appliance causes the trip.
-
Stop using any device that repeatedly triggers the GFCI.
-
Contact a qualified technician if the outlet trips with nothing connected.
Do not repeatedly reset the GFCI without identifying the cause.
GFCI Outlet Installation Considerations
Replacing a GFCI receptacle involves electrical hazards. If you are not qualified to work on RV wiring, use a licensed electrician or RV technician.
Before installation, a professional should verify:
-
Circuit voltage
-
Breaker rating
-
Wire size
-
Grounding arrangement
-
Electrical box dimensions
-
Line and load conductors
-
Downstream outlet protection
-
Polarity
-
Local electrical requirements
-
Compatibility with the RV’s power system
Power must be disconnected and verified before any wiring work begins. Turning off a switch is not enough. The circuit should be de-energized at the correct disconnect, and the absence of voltage should be confirmed with an appropriate tester.
Line and Load Connections
Many GFCI receptacles have separate terminals for incoming line power and protected downstream load power. Connecting conductors to the wrong terminals can prevent the device from operating correctly or affect downstream protection.
Always follow the receptacle instructions and the RV wiring diagram. Do not rely on wire color alone, especially in older or modified campers.
After installation, the circuit should be checked for:
-
Correct polarity
-
Proper grounding
-
Secure terminals
-
Correct device operation
-
Functional test and reset buttons
-
Expected protection of downstream outlets
Best Locations for a 15-Amp GFCI Receptacle
A 15-amp GFCI duplex receptacle may be appropriate for compatible RV circuits serving:
-
Kitchen counters
-
Bathroom areas
-
Exterior outlets
-
Utility compartments
-
Outdoor cooking spaces
-
Sink-adjacent locations
The exact location and circuit design must comply with the RV manufacturer’s wiring plan and applicable electrical codes.
Do not install the receptacle in a location exposed to direct water unless the enclosure and installation are specifically designed for that environment.
GFCI Outlet vs. Circuit Breaker
| Component | Main Function |
| GFCI receptacle | Detects ground-fault current imbalance and interrupts power |
| Circuit breaker | Protects wiring from excessive current and short circuits |
| Fuse | Protects a circuit by opening when current exceeds its rating |
| Surge protector | Helps manage certain voltage surge conditions |
| Smoke or CO detector | Detects specific safety hazards in the RV |
These devices serve different purposes. A GFCI outlet does not replace a circuit breaker, fuse, surge protector, smoke detector, or carbon monoxide detector.
Building a Safer RV Electrical System
A GFCI outlet works best as part of a complete electrical safety plan. RV owners should also inspect:
-
Shore-power connections
-
Extension cords
-
Breakers and fuses
-
Battery terminals
-
Inverter wiring
-
Ground connections
-
Outlet covers
-
Appliance cords
-
Signs of heat or discoloration
When upgrading batteries, inverters, solar equipment, or other electrical systems, the entire circuit should be evaluated. The RV solar and lithium battery upgrade guide provides additional information about wiring, protection, and installation planning.
Signs That Require Professional Attention
Stop using the outlet and seek professional help if you notice:
-
Burning smells
-
Melted plastic
-
Discoloration
-
Buzzing or crackling
-
Warm outlet covers
-
Repeated nuisance tripping
-
A reset button that will not engage
-
A test button that does not interrupt power
-
Sparks or visible arcing
-
Water inside the electrical box
Do not continue operating an outlet that shows heat damage or inconsistent protection.
Common Mistakes to Avoid
Using the outlet with wet hands
GFCI protection does not eliminate basic electrical risks.
Repeatedly pressing reset
A tripping device is providing information about a possible fault. Resetting it continuously does not solve the cause.
Installing without verifying power is off
Always disconnect and test the circuit before electrical work.
Replacing a 15-amp device with a higher-rated outlet
The replacement must match the wiring and circuit protection. Do not change ratings without professional evaluation.
Ignoring downstream outlets
A single GFCI device may protect additional receptacles. Check the entire circuit when troubleshooting.
Using an outdoor cord with damage
Cuts, crushed insulation, moisture, and loose connectors can cause trips or unsafe conditions.
Frequently Asked Questions
What is an RV GFCI outlet?
An RV GFCI outlet is a receptacle designed to interrupt power when it detects a ground-fault imbalance. It is commonly used in areas where moisture may be present.
How often should I test a GFCI outlet?
Follow the manufacturer’s instructions and include testing in regular RV electrical maintenance. Test the outlet after installation and whenever its operation seems unusual.
Why will my GFCI outlet not reset?
Possible causes include no incoming power, a downstream fault, moisture, incorrect wiring, an overloaded circuit, or a defective receptacle.
Can a GFCI outlet replace a circuit breaker?
No. A GFCI receptacle and circuit breaker provide different types of protection and should not be treated as interchangeable.
Can I install this receptacle myself?
Electrical installation can be hazardous. Use a qualified electrician or RV technician unless you have the required training and can verify the circuit safely.
Does a GFCI outlet protect every RV appliance?
Only the devices connected to the protected circuit are covered, and the exact arrangement depends on the wiring configuration.
What does tamper-resistant mean?
Tamper resistance is designed to help prevent unintended objects from entering the receptacle openings. It does not make the outlet waterproof.
Final Takeaway
The 15-Amp Tamper-Resistant GFCI Duplex Receptacle with Test/Reset Buttons and Status Indicators can be a practical safety component for compatible RV electrical circuits, especially in kitchens, bathrooms, and other areas where moisture may be present.
Use the test and reset functions regularly, investigate repeated tripping, keep the outlet dry, and inspect connected appliances and cords. Any replacement or wiring work should be completed only after the circuit has been properly disconnected and verified as de-energized.
A GFCI outlet is most effective when combined with correct circuit protection, sound wiring, routine inspections, and professional attention when warning signs appear.
