A trailer breakaway system is designed for an emergency situation: if the trailer separates from the tow vehicle, the system is intended to activate the trailer’s electric brakes independently.

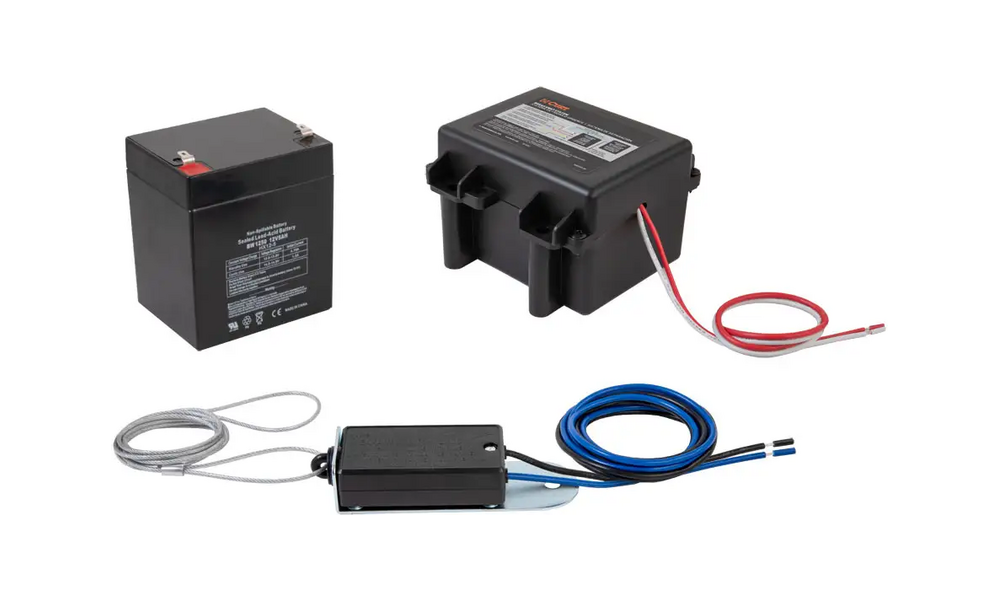

The CURT 12V Trailer Breakaway Kit provides a dedicated 12V emergency braking setup for compatible trailers. The associated listing identifies a breakaway battery, switch, and LED test light, but the exact installation should always follow the product instructions and trailer wiring diagram.
Many owners check the breakaway system only when installing it. The more important habit is ongoing maintenance. Battery condition, switch movement, wiring, connectors, and mounting hardware can all be affected by storage, vibration, water, dust, and corrosion.
Product Details at a Glance
| Feature | Product Information |
|---|---|
| Brand | CURT |
| Product type | 12V trailer breakaway kit |
| Main function | Emergency trailer brake activation |
| Key components | Dedicated battery, breakaway switch, and test indicator |
| Typical application | Compatible trailers with electric brakes |
| Maintenance focus | Battery, switch, wiring, connectors, and mounting |
| Important note | Confirm exact contents and specifications before installation |
A breakaway kit is not the same as a normal trailer brake controller. The brake controller manages braking during normal connection to the tow vehicle. The breakaway system is intended for emergency activation if separation occurs.
For a complete explanation of how the circuits work together, see the reliable trailer emergency braking circuit guide.
Why the Breakaway Battery Matters
The breakaway battery is the emergency power source for the system. It must be available even if the trailer’s normal connection to the tow vehicle is lost.
A weak or discharged battery may cause:
-
The LED test indicator to show a problem
-
The brakes to apply weakly
-
The system to fail its inspection
-
Unreliable emergency response
-
Confusing results during troubleshooting
A battery can appear physically clean and still have insufficient capacity. Regular testing and charging checks are therefore important.
Do not assume that the trailer’s main battery automatically replaces the dedicated breakaway battery. The system should be wired according to the kit and trailer manufacturer’s instructions.
Pre-Trip Breakaway Inspection
Perform a basic inspection before every significant trip.
Check:
-
Breakaway battery condition
-
Battery mounting
-
Breakaway switch position
-
Pull-pin and lanyard condition
-
Wiring insulation
-
Ground connections
-
Terminals and connectors
-
LED test indicator
-
Trailer brake response
-
Signs of water or corrosion
The breakaway lanyard should be attached to a suitable point on the tow vehicle according to the manufacturer’s instructions. It should not be routed in a way that can drag on the ground or become trapped during turns.
How to Check the Battery
Visual inspection
Look for:
-
Cracked housing
-
Swelling
-
Leaking
-
Corroded terminals
-
Loose mounting
-
Damaged cable insulation
-
Water intrusion
Do not use a damaged battery.
Check the charging path
Many breakaway batteries are maintained through the trailer’s electrical system. Confirm that the charger or maintainer is connected correctly and that the battery receives charging when the trailer is connected to its intended power source.
A battery that repeatedly goes flat may indicate:
-
A failed charger
-
A loose connection
-
A blown fuse
-
A damaged wire
-
A battery nearing the end of its service life
-
Long-term storage without maintenance
Test according to the instructions
Use the kit’s LED indicator or an appropriate meter if the manufacturer provides a testing procedure. An LED check is useful, but it may not reveal every battery or brake problem.
Do not activate the brakes for an extended period during testing unless the instructions specifically require it.
Inspecting the Breakaway Switch
The breakaway switch should be mounted securely and positioned so that the pull-pin can be removed if the trailer separates.
Inspect:
-
Switch housing
-
Pull-pin
-
Mounting bracket
-
Lanyard attachment
-
Wire connections
-
Corrosion
-
Physical damage
-
Movement around the mounting point
The lanyard should have enough length for normal turns but should not be so loose that it can drag or catch on the road.
Do not attach the lanyard to a point that may separate with the hitch ball. Follow the manufacturer’s recommended attachment method.
Wiring and Ground Inspection
The emergency circuit depends on reliable wiring. Off-road travel can expose wires to dust, mud, water, vibration, and abrasion.
Check for:
-
Exposed copper
-
Loose crimp connectors
-
Broken insulation
-
Chafing against the frame
-
Poorly supported wires
-
Corroded terminals
-
Loose grounds
-
Pinched wires
-
Unprotected splices
Keep wiring away from suspension movement, sharp frame edges, exhaust heat, and road debris.
A clean connection should be mechanically secure and protected from the environment. Do not rely on twisting wires together or using temporary exposed splices.
Testing the Complete System
A complete test should include more than checking the LED.
A qualified owner or technician should verify:
-
The trailer battery has suitable charge.
-
The breakaway switch is mounted securely.
-
The lanyard can pull the pin correctly.
-
The emergency circuit activates as intended.
-
The trailer brakes respond appropriately.
-
The system resets correctly after testing.
-
No wires heat up or move dangerously.
-
The normal trailer brake system still operates correctly.
Follow the kit’s instructions and local requirements. If you are unsure how to test electric brakes safely, use a qualified trailer technician.
Breakaway Kit During Off-Road Travel
Rough roads can affect the system even when highway towing has been trouble-free.
Before an off-road trip:
-
Inspect the battery box
-
Secure all wiring
-
Check the lanyard path
-
Confirm the switch cannot contact moving parts
-
Protect connectors from mud and water
-
Check the trailer frame near the mounting points
-
Inspect after water crossings
-
Recheck the system after corrugated roads
The off-road camper maintenance checklist includes brake, battery, coupling, and wiring checks that can be added to a pre-trip routine.
Corrosion Prevention
Corrosion can affect the battery terminals, switch, connectors, and trailer frame.
To reduce corrosion:
-
Keep connections dry where possible
-
Use suitable terminal protection
-
Seal exposed splices correctly
-
Avoid trapping mud around the battery
-
Inspect after saltwater or winter-road exposure
-
Replace badly corroded connectors
-
Keep the battery box secure
-
Prevent water from pooling around terminals
Do not cover a connection with a product that is incompatible with the terminal, wire insulation, or manufacturer instructions.
Storage and Winter Preparation
Long-term storage can be hard on a breakaway system. The battery may slowly discharge, and moisture may remain around terminals and connectors.
Before storage:
-
Clean dirt and mud from the system.
-
Inspect the battery and switch.
-
Check the charging or maintenance circuit.
-
Confirm the battery is stored according to its type.
-
Protect the system from water intrusion.
-
Keep the lanyard and pull-pin accessible.
-
Record any parts that need replacement.
-
Test the kit before the next towing trip.
Do not leave a damaged or leaking battery installed during storage.
If the trailer is stored in freezing conditions, follow the battery manufacturer’s temperature and charging guidance.
Common Symptoms and Possible Causes
| Symptom | Possible Cause |
| LED does not illuminate | Low battery, fuse, wiring, or indicator problem |
| Battery repeatedly discharges | Charging fault, wiring issue, or aged battery |
| Brakes do not activate | Switch, battery, wiring, ground, or brake problem |
| Weak emergency braking | Low battery, poor connection, or brake adjustment issue |
| Lanyard will not pull correctly | Poor routing or damaged switch |
| Corroded terminals | Moisture, road salt, or inadequate protection |
| System does not reset | Damaged switch or incorrect testing procedure |
Use these symptoms as starting points, not final diagnoses. A trailer brake technician should inspect problems that cannot be resolved through basic checks.
Breakaway System vs. Normal Trailer Braking
| System | Main Function |
| Tow vehicle brake controller | Controls normal electric trailer braking |
| 7-way connector | Carries normal towing electrical signals |
| Trailer battery | Supports selected trailer electrical loads |
| Breakaway kit | Provides emergency brake activation after separation |
| Battery charger or maintainer | Helps keep the breakaway battery ready |
These systems may share parts of the trailer wiring layout, but they do not perform the same job.
A battery disconnect switch or electrical upgrade should not disable the breakaway circuit. Verify the wiring before changing the battery or charging arrangement.
Safety Precautions
Do not work on the brake circuit while the trailer is unsecured.
Before service:
-
Park on a stable surface
-
Chock the wheels
-
Disconnect power when appropriate
-
Avoid creating short circuits
-
Use insulated tools where suitable
-
Keep metal objects away from battery terminals
-
Follow the product instructions
-
Use professional service for uncertain wiring
Never use the breakaway system as a parking brake or leave the pin pulled during normal storage.
Frequently Asked Questions
What is the purpose of the CURT 12V Trailer Breakaway Kit?
It provides a dedicated emergency circuit intended to activate compatible trailer brakes if the trailer separates from the tow vehicle.
Does the kit include a battery?
The associated product information identifies a 12V battery as part of the kit. Confirm the exact contents on the product page before ordering.
How often should I inspect the breakaway battery?
Check it before major trips and include it in routine trailer maintenance. Inspect it more often after long storage, wet travel, or off-road use.
Why does the LED test light not work?
Possible causes include a discharged battery, blown fuse, loose wiring, damaged switch, poor ground, or a faulty indicator.
Can the main trailer battery replace the breakaway battery?
Do not assume so. The emergency system should use the battery arrangement specified by the kit and trailer manufacturer.
Can I use a battery disconnect switch with the kit?
Possibly, but the wiring must be reviewed carefully. A disconnect arrangement should not unintentionally disable emergency braking.
Why is the breakaway lanyard important?
The lanyard pulls the breakaway switch pin if separation occurs. It must be attached and routed so it can operate correctly without dragging or becoming trapped.
Can I test the system myself?
Basic checks may be possible by following the manufacturer’s procedure, but brake wiring and activation tests should be handled by a qualified technician if you are unsure.
Final Takeaway
The CURT 12V Trailer Breakaway Kit is an important emergency component for compatible electric-brake trailers. Its reliability depends on the condition of the dedicated battery, breakaway switch, lanyard, wiring, connectors, and trailer brakes.
Inspect the system before towing, check the battery after storage, protect connections from corrosion, and look for damage after rough or wet travel. Do not confuse the breakaway circuit with normal trailer braking or assume that a battery disconnect switch isolates every circuit.
A consistent maintenance routine helps ensure that the breakaway system remains ready when it is needed most.
