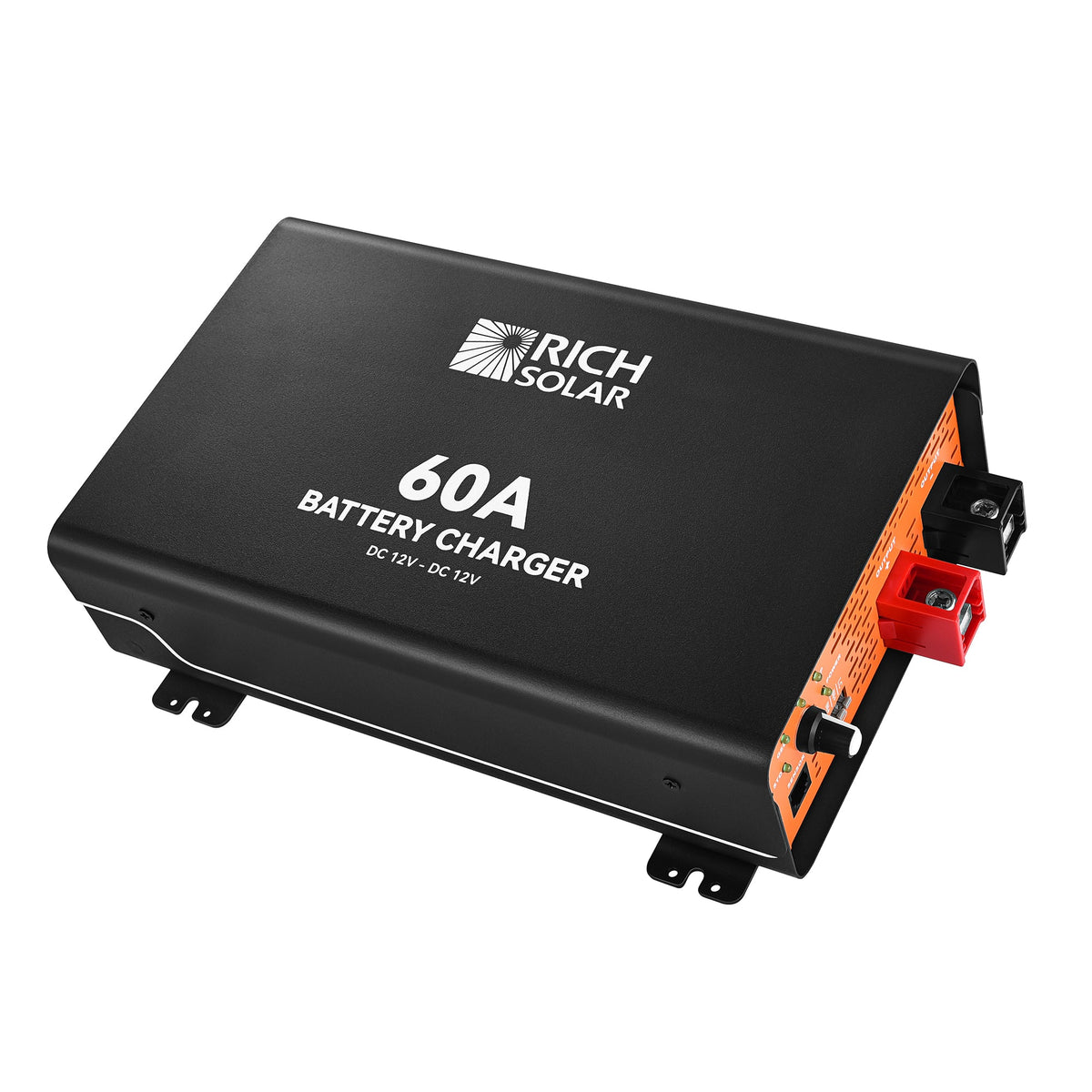

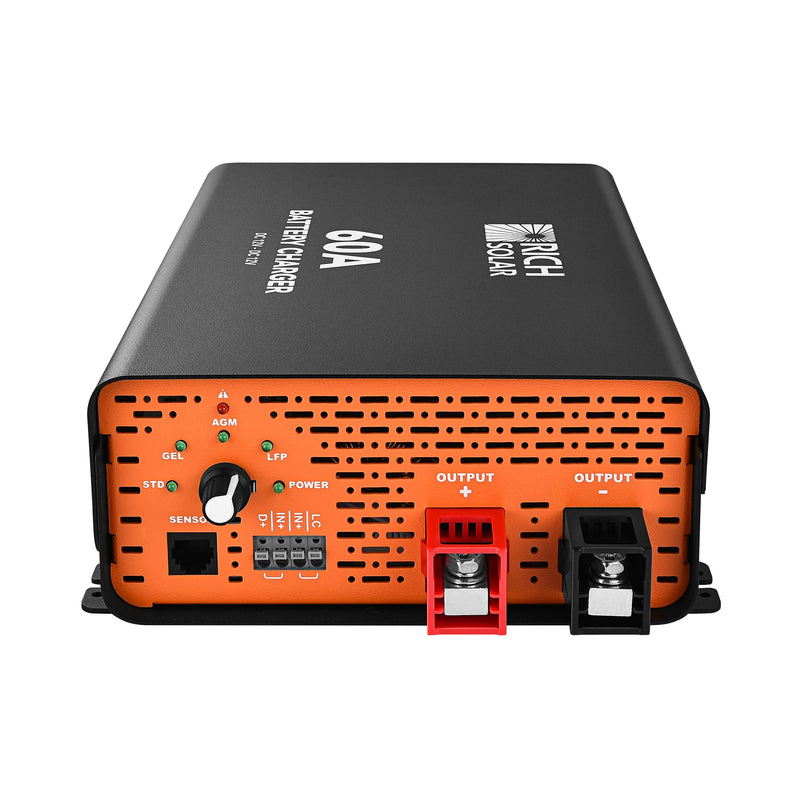

Rich Solar 12V 60A DC-DC Battery Charger for RVs, Vans, Boats & Off-Grid Systems

Features

• 60A DC-DC Charging: Delivers up to 60A charging current from a 12V vehicle electrical system to the auxiliary battery.

• Multi-Battery Ready: Compatible with 12V AGM, Flooded, Gel, LiFePO₄, and Lithium batteries with selectable charging modes.

• Smart & Traditional Alternator Compatible: Works with both smart and conventional alternators for reliable charging.

• 2-Stage & 3-Stage Charging: Uses 2-stage charging for lithium and 3-stage charging for lead-acid batteries to maximize charging performance.

• Battery Isolation Protection: Prevents reverse current between the starter and auxiliary batteries.

• Comprehensive Circuit Protection: Protects against over-voltage, over-temperature, and reverse polarity.

• D+ Ignition Control: Charges only when the engine is running to help protect the starter battery.

• Temperature-Adaptive Charging: Supports an optional RJ11 temperature sensor for automatic charging compensation on lead-acid batteries.

Specifications

Input

• Nominal Input Voltage: 12V DC

• Operating Voltage Range: 10–16V DC

• Input current limiting: ≤100A

Output

• Rated Output Power: 500W

• Rated Output Current: 60A

• Operating Current Range: 56–65A

• Battery Compatibility: AGM, Flooded, Gel, Sealed, LiFePO₄ (LFP), Lithium-ion

General

• Charging Mode: 2-Stage (Lithium) / 3-Stage (Lead-Acid)

• Peak Efficiency: >85% (@14V DC, 30% Load)

• Net Weight: 6.2 lb

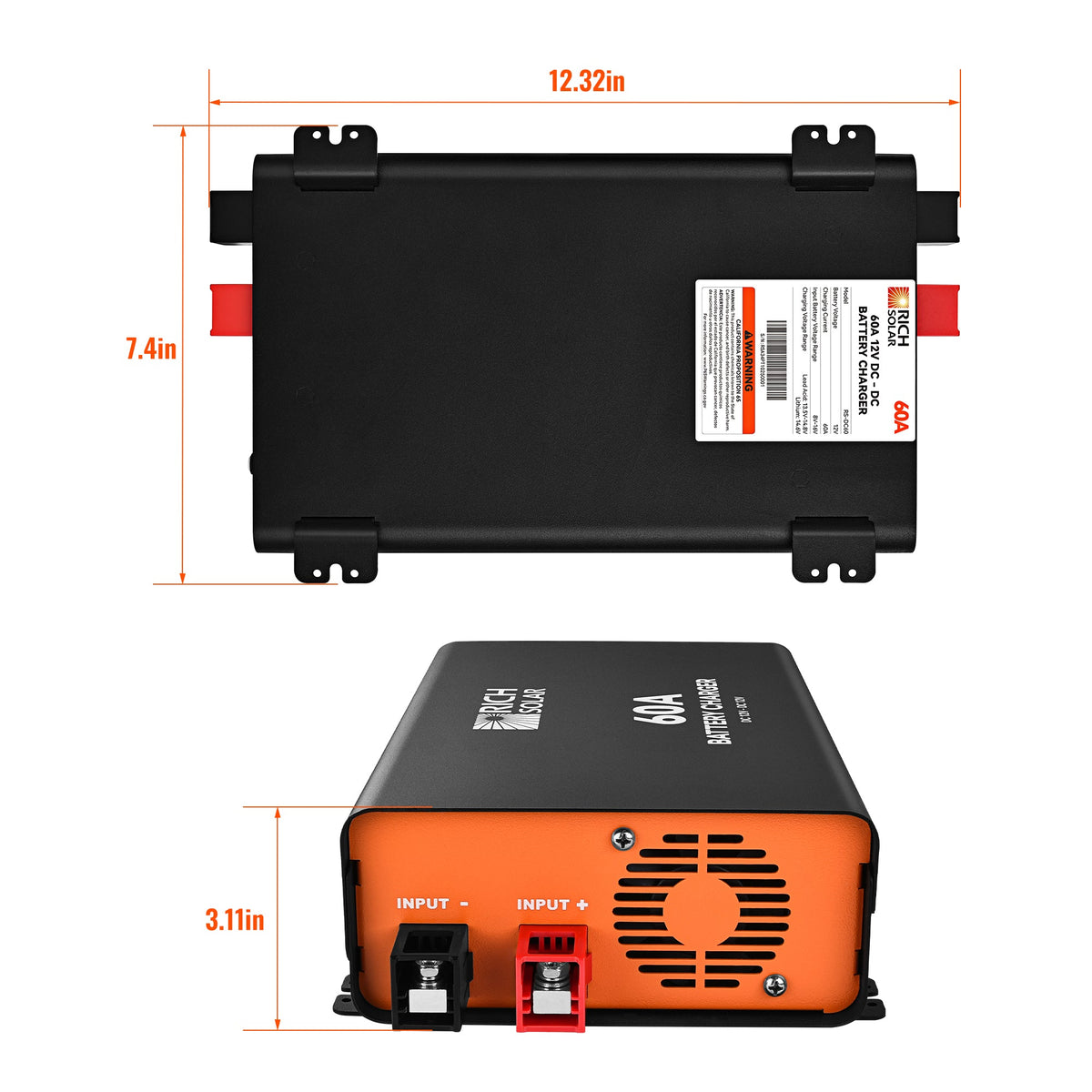

• Dimensions: 12.3 × 7.4 × 3.1 in

• Certifications: CE, RoHS

• Package Dimensions: 14 × 9 × 5 in

• Gross Weight: 8 lb

Part numbers: RS-DC60 (UPC 650380714723)
