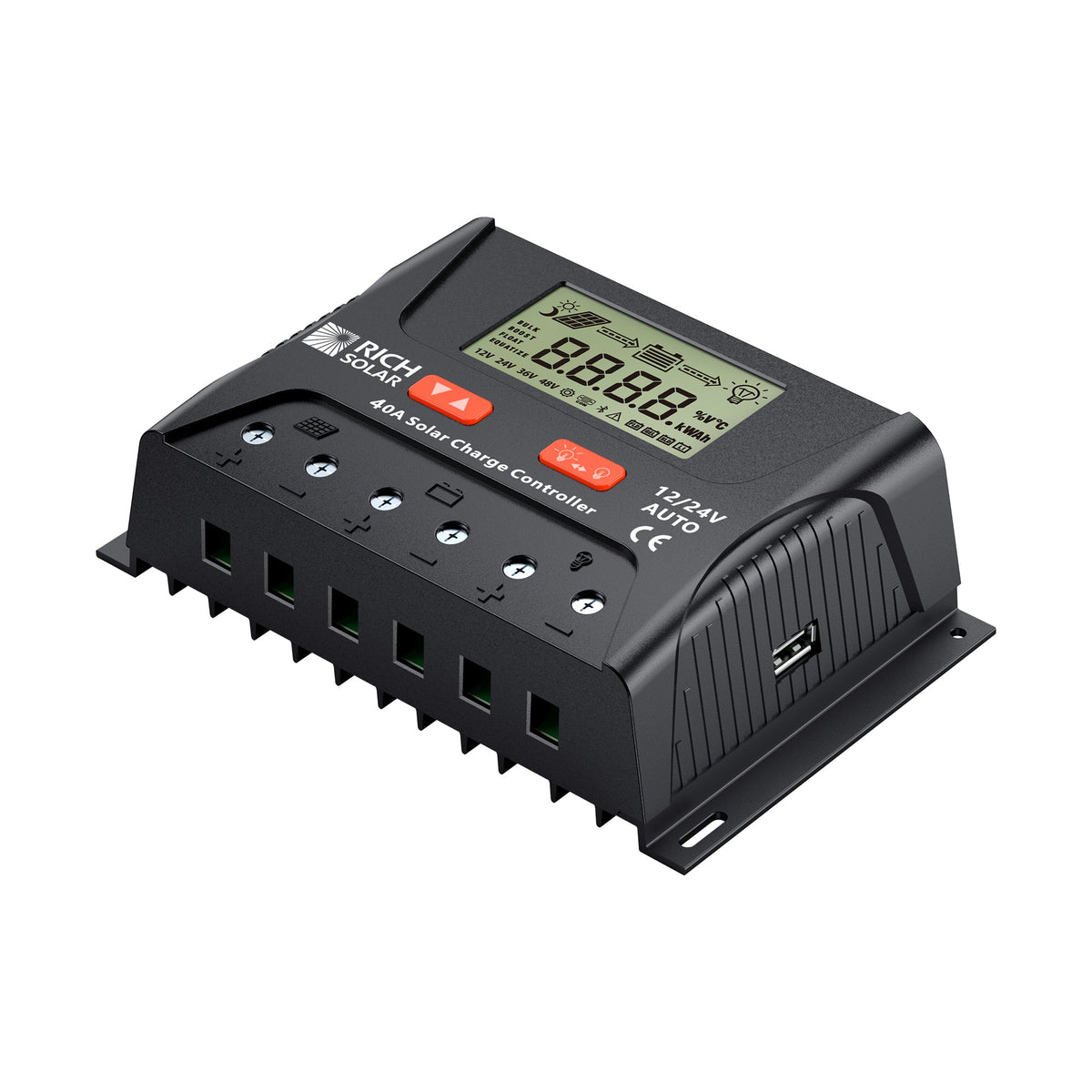

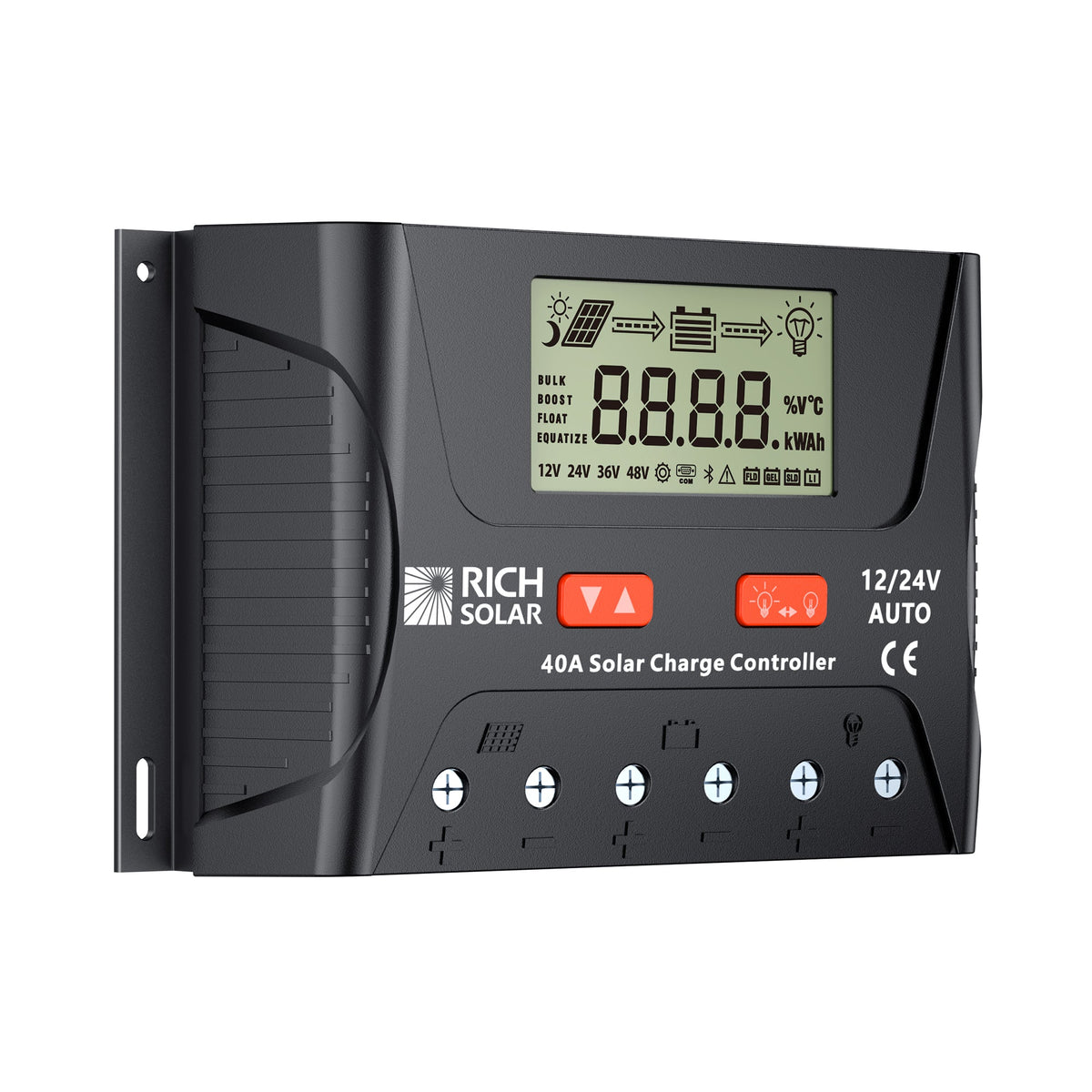

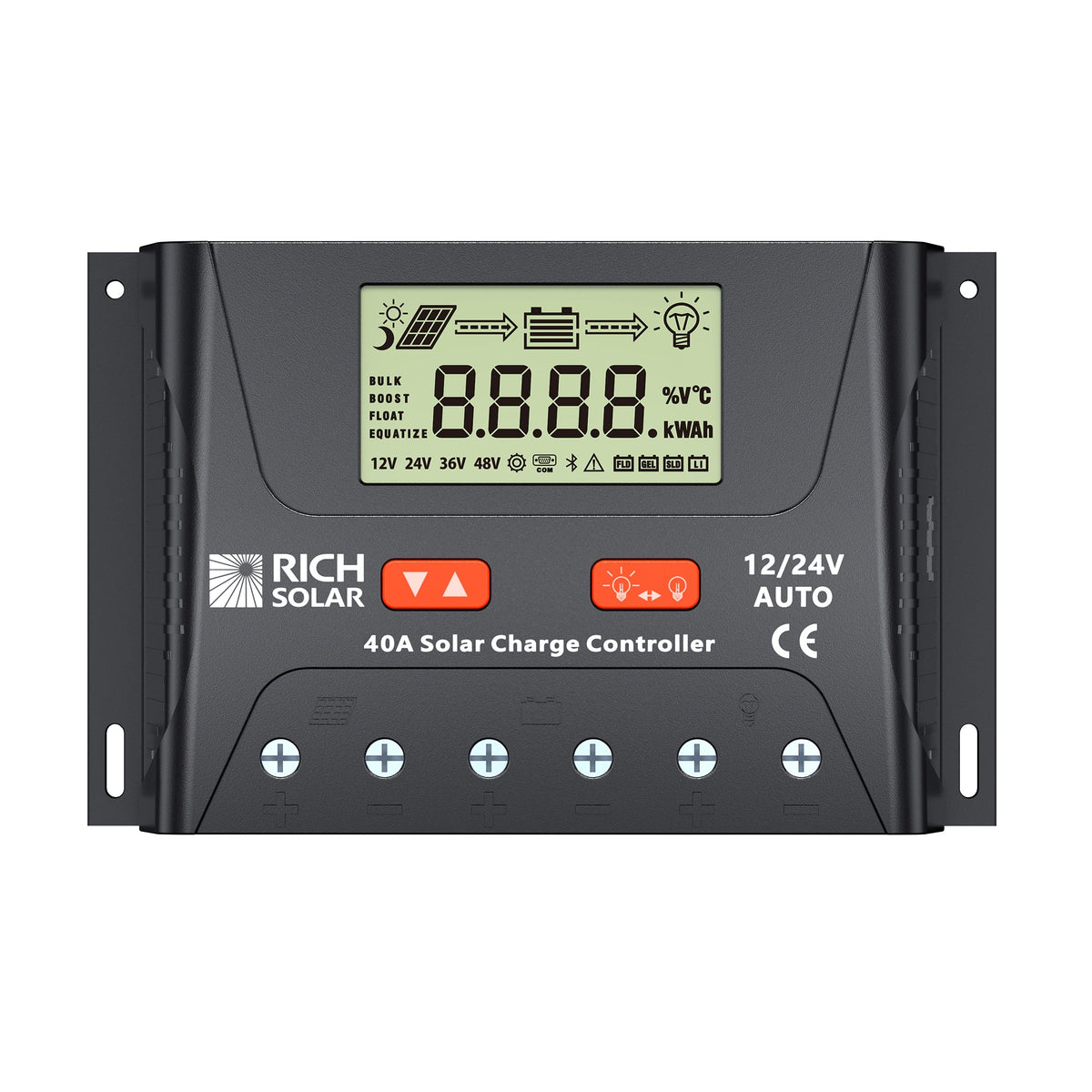

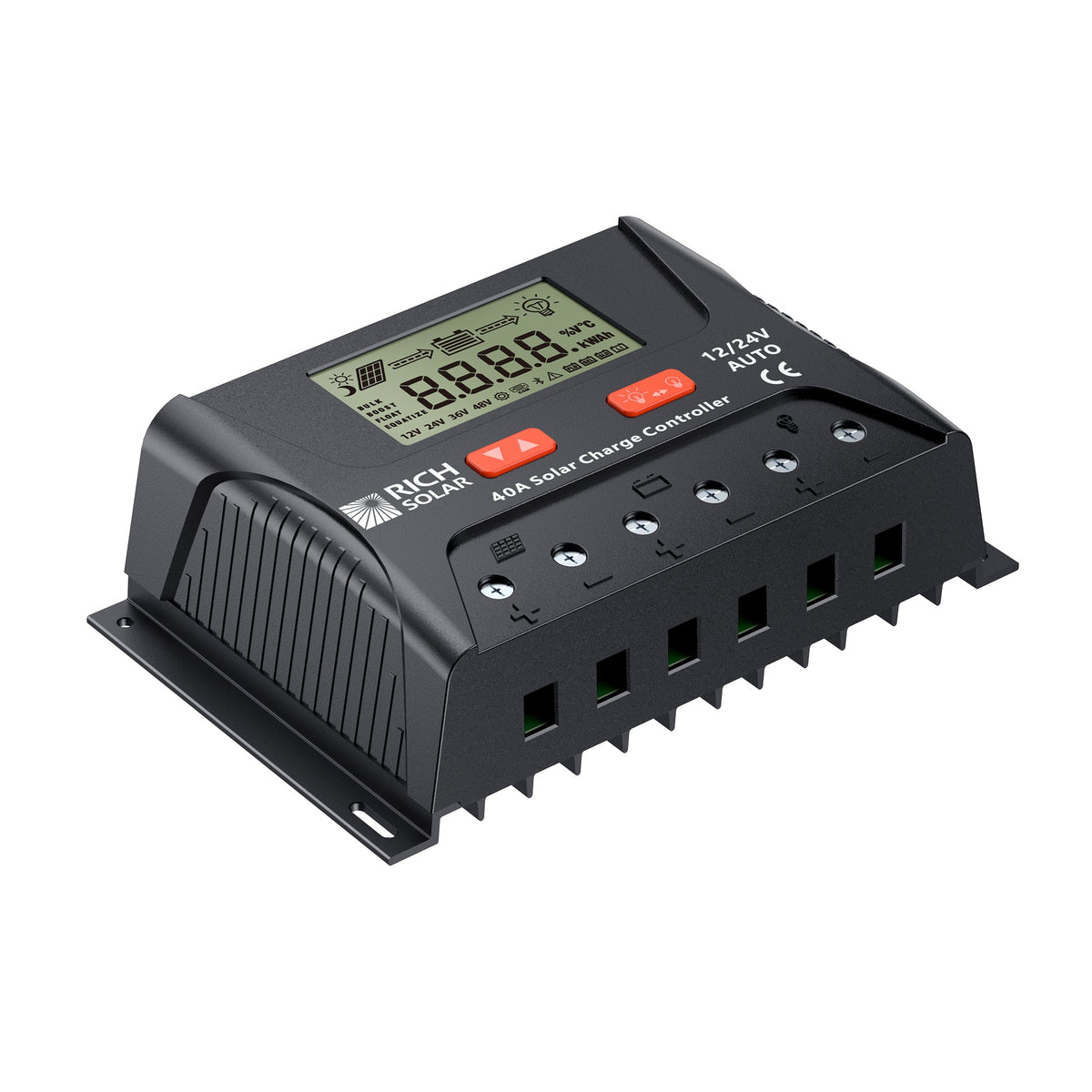

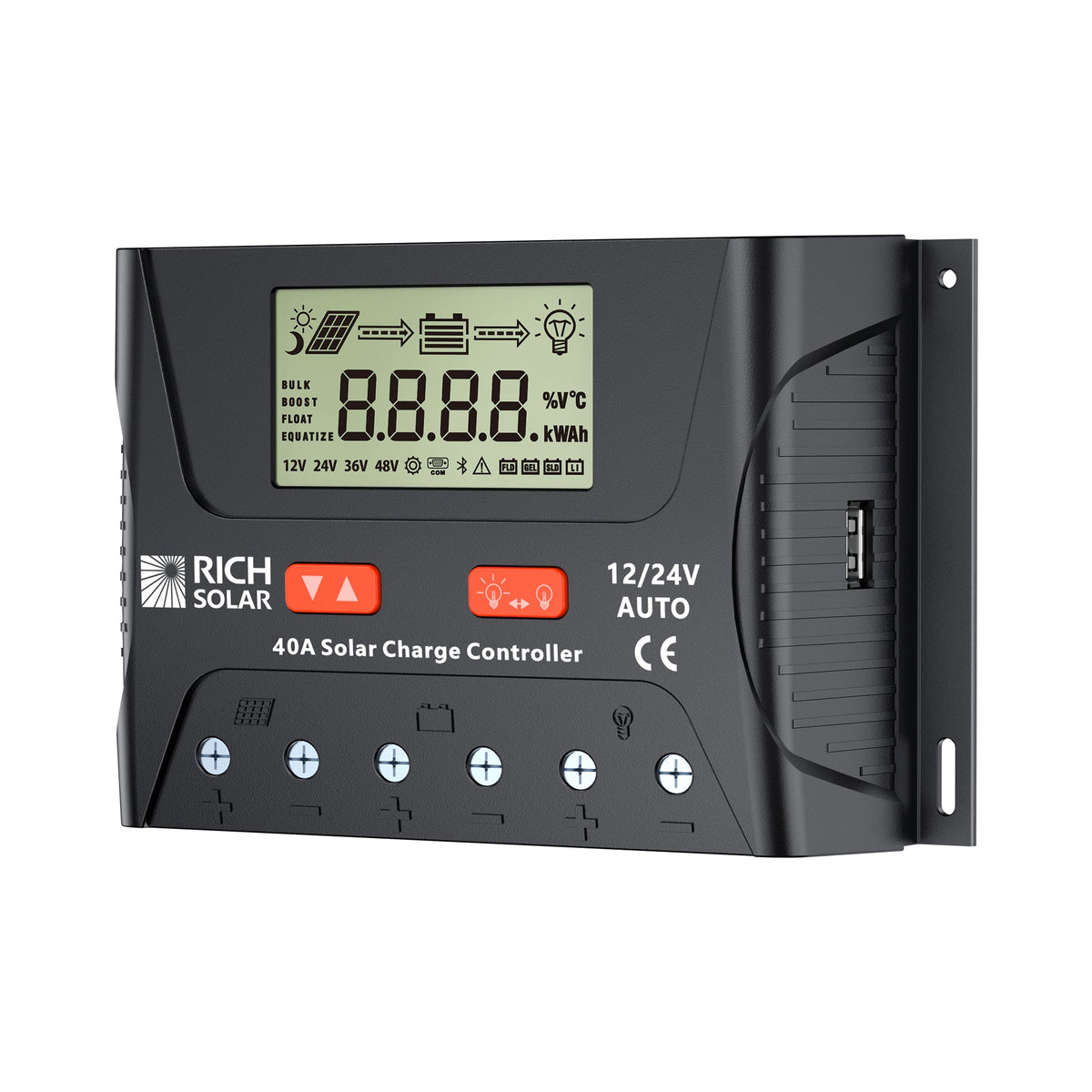

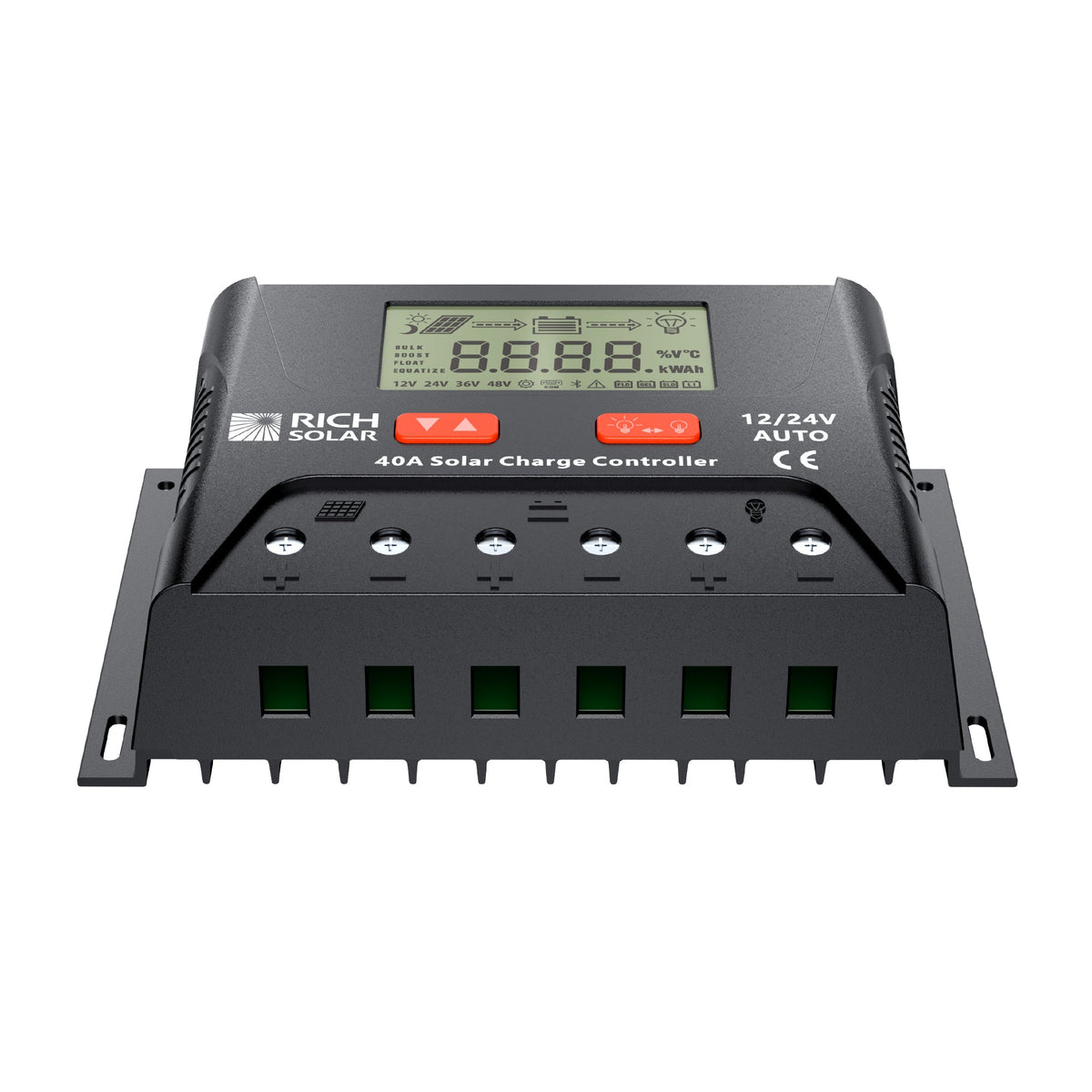

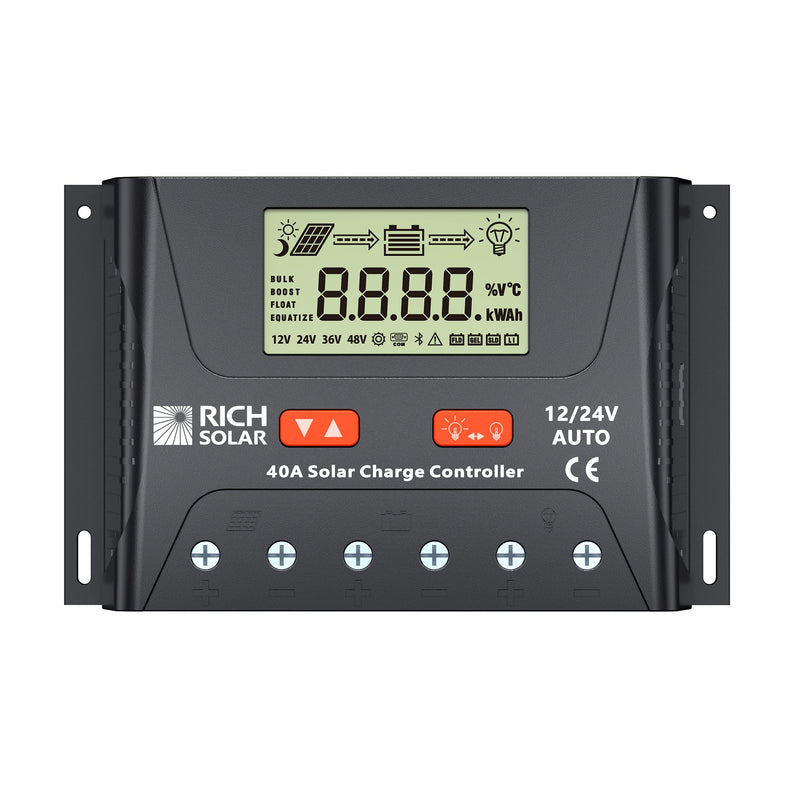

Rich Solar BRAVO LEGEND 40 40 Amp PWM Solar Charge Controller

Rich Solar BRAVO LEGEND 40 40 Amp PWM Solar Charge Controller

Regular price: $55.99
Sale price: $55.99
Regular price: ~~$59.99~~

✓ Lowest Price Guaranteed · We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.

↻ 30-day price protection · If our price drops after you buy, we email you the difference as store credit. Details

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Product variants

Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.

✓ Free Shipping · ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Features

Efficient Solar Charging

Advanced 3-Stage PWM Charging: Boost, Float, and Equalization charging; Equalization helps prevent sulfation in lead-acid batteries (excluding GEL and lithium).
Automatic Temperature Compensation: Automatically adjusts charging voltage based on ambient temperature (-3.0 mV/°C/2V; excludes lithium).

Flexible System Compatibility

12V/24V Auto Detection: Automatically detects 12V or 24V battery systems.
Supports Multiple Battery Types: Compatible with Sealed, GEL, Flooded, and lithium batteries.
55V Max Solar Input Voltage: Supports solar panel configurations with up to 55V PV input.

Safe & Reliable Operation

Five Operating Modes: Light Control (10-min Delay), Light Control + Timer Control (1–14 h), Manual, Debug, and Normal On.
Electronic Protection: Protects against overcharge, over-discharge, overload, short circuit, and reverse polarity.
TVS Lightning Protection: Helps protect the controller from lightning-induced voltage surges.
UL 1741 Certified: Certified for trusted safety and reliable performance.

Specifications

Rated Current: 40A
System Voltage: Auto recognition: 12V/24V (Manual setup optional)
Rated Power: 600W @12V / 1200W @24V
Max. Solar Input Voltage: < 55V
Max. Battery Voltage: < 34V
No-load Loss: <13mA @12V / <15mA @24V
Battery Compatibility: Lithium / Sealed / GEL / Flooded
Operating Temperature: –13°F to +131°F (–25°C to +55°C)
Protection Rating: IP30 (Dust/Splash Resistant)
Grounding: Positive Ground
Dimensions: 6.46 × 4.07 × 1.85 in
Net Weight: 0.86 lb
Package Dimensions: 8 × 6 × 4 in
Gross Weight: 2 lb

Part numbers: RS-PWM40P (UPC 650380715119)

Ships from our Upland, CA warehouse to the lower 48 states.

Shop the full Rich Solar range at RV Parts Giant.
