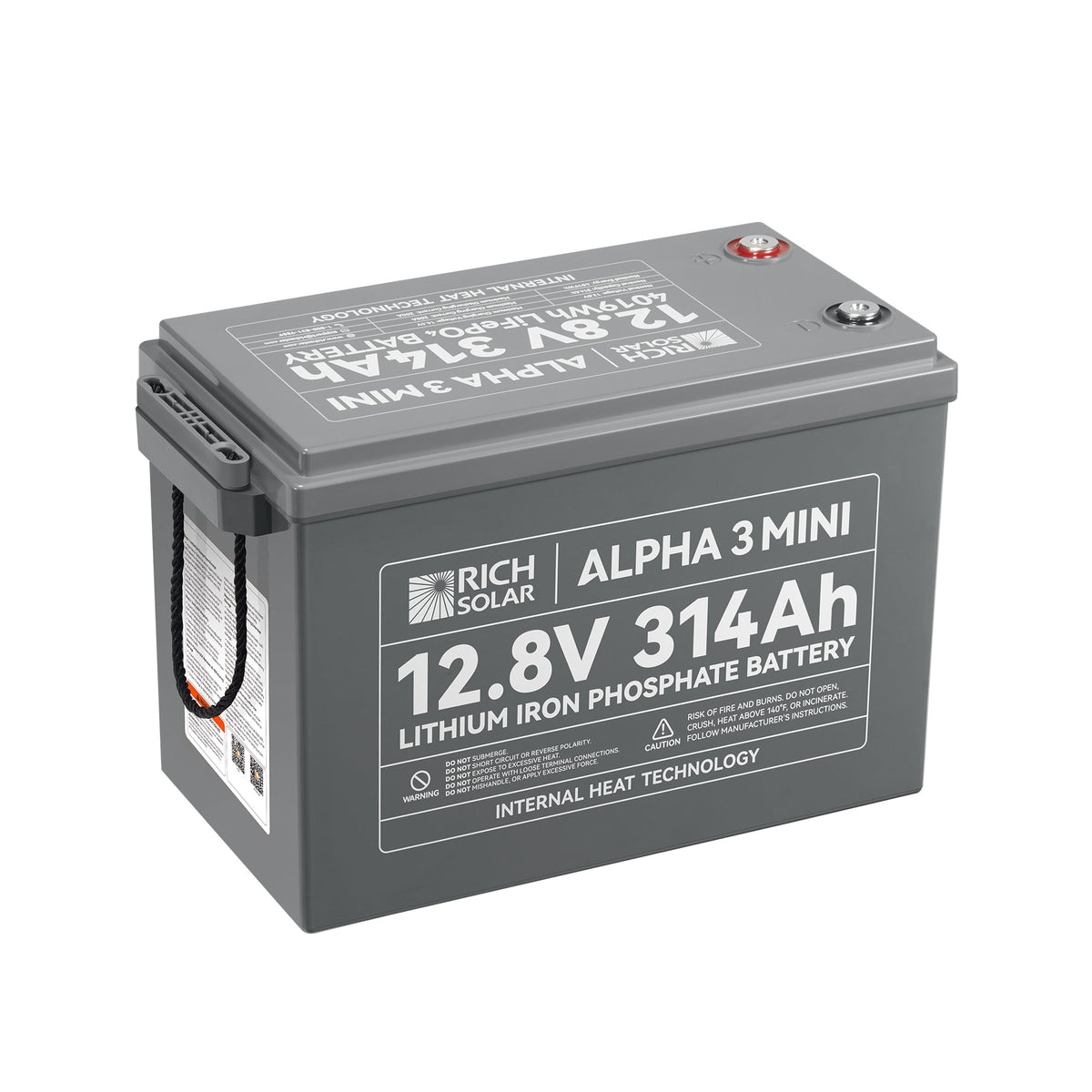

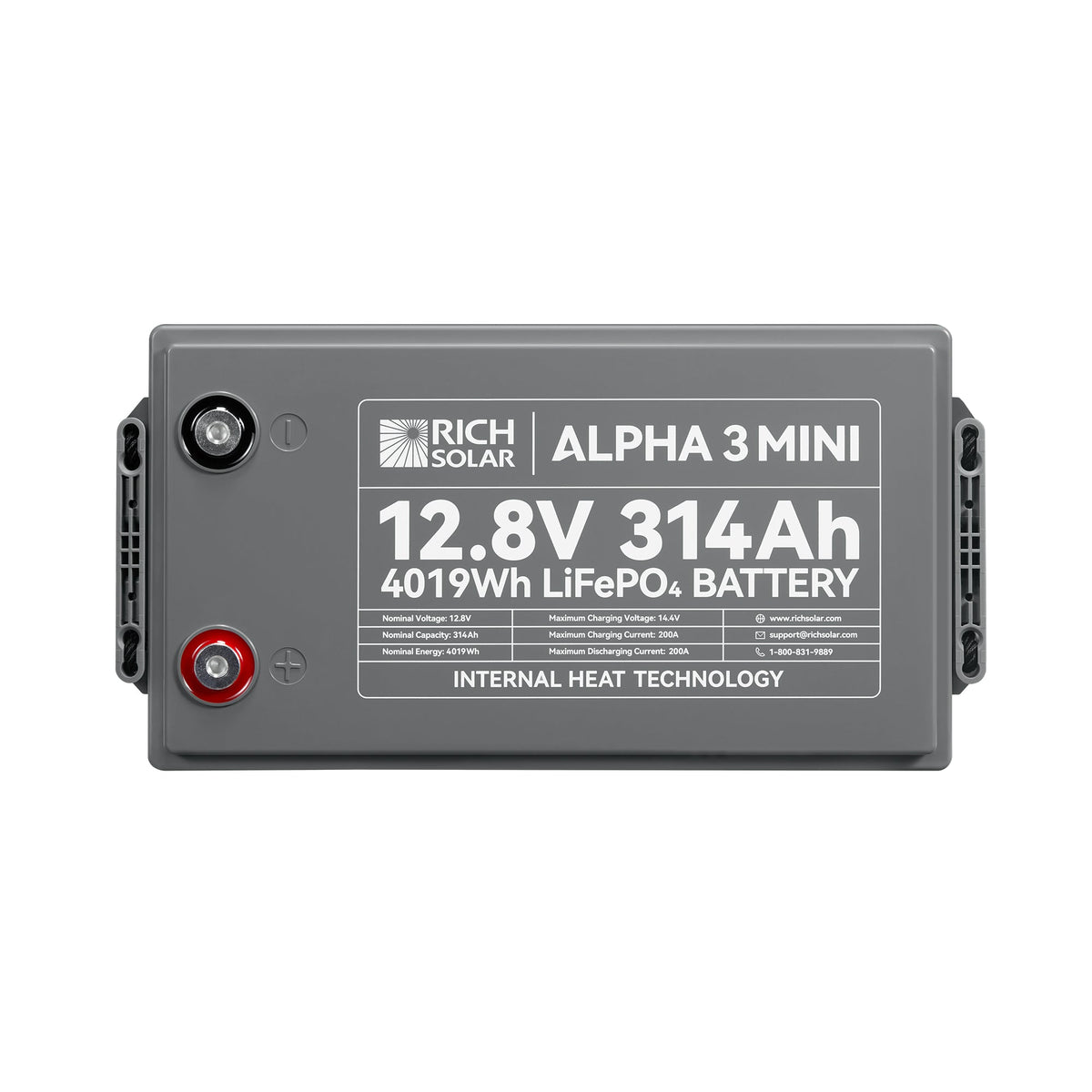

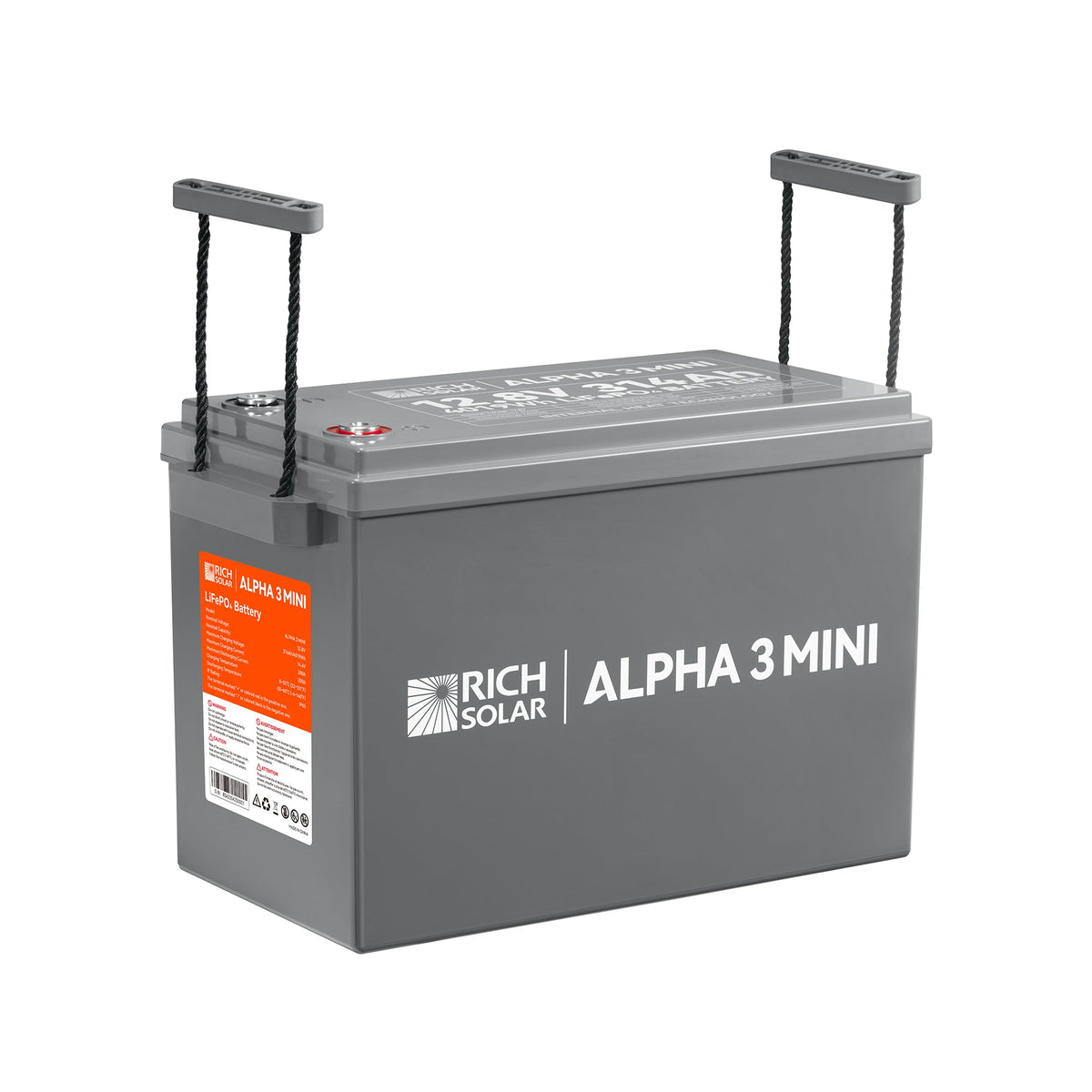

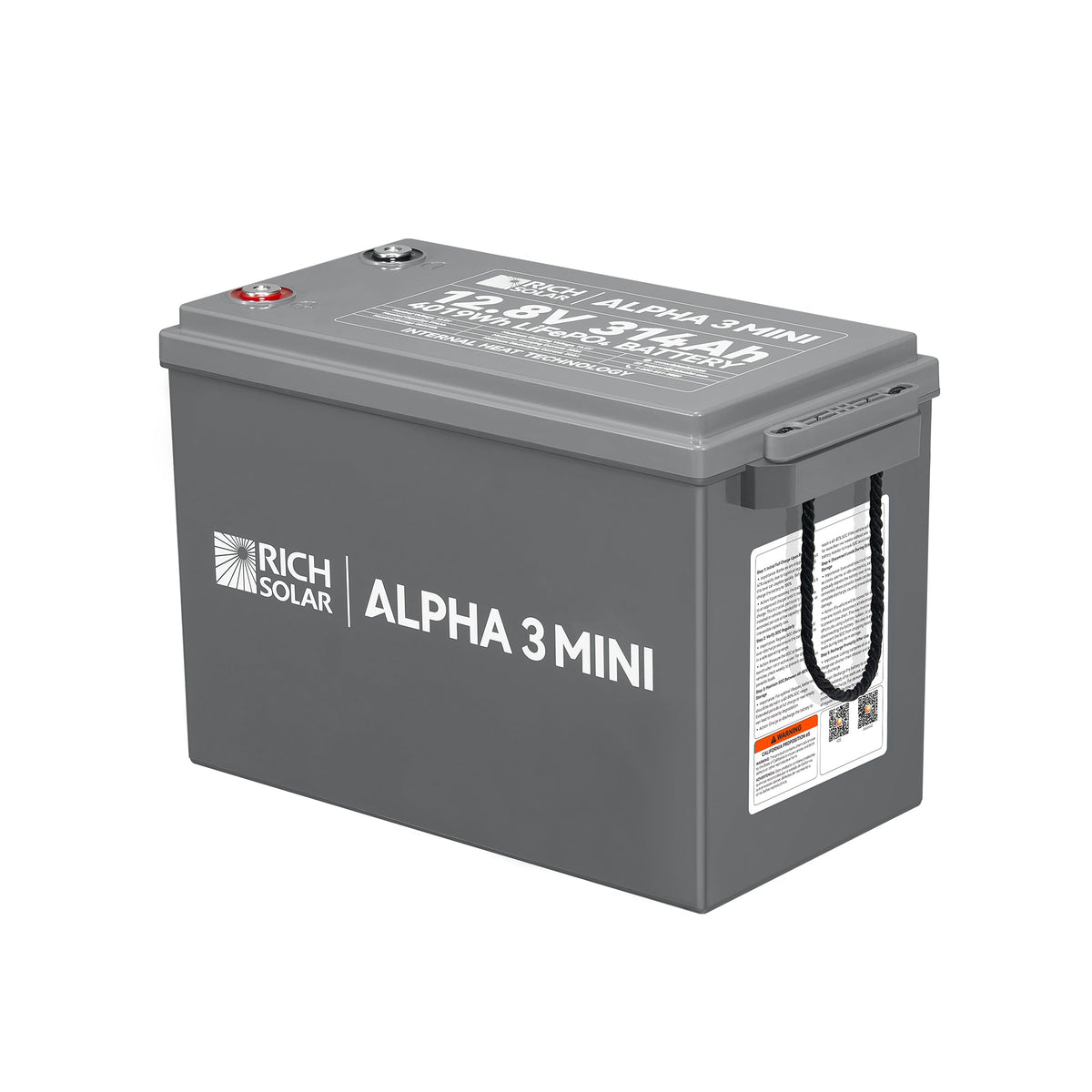

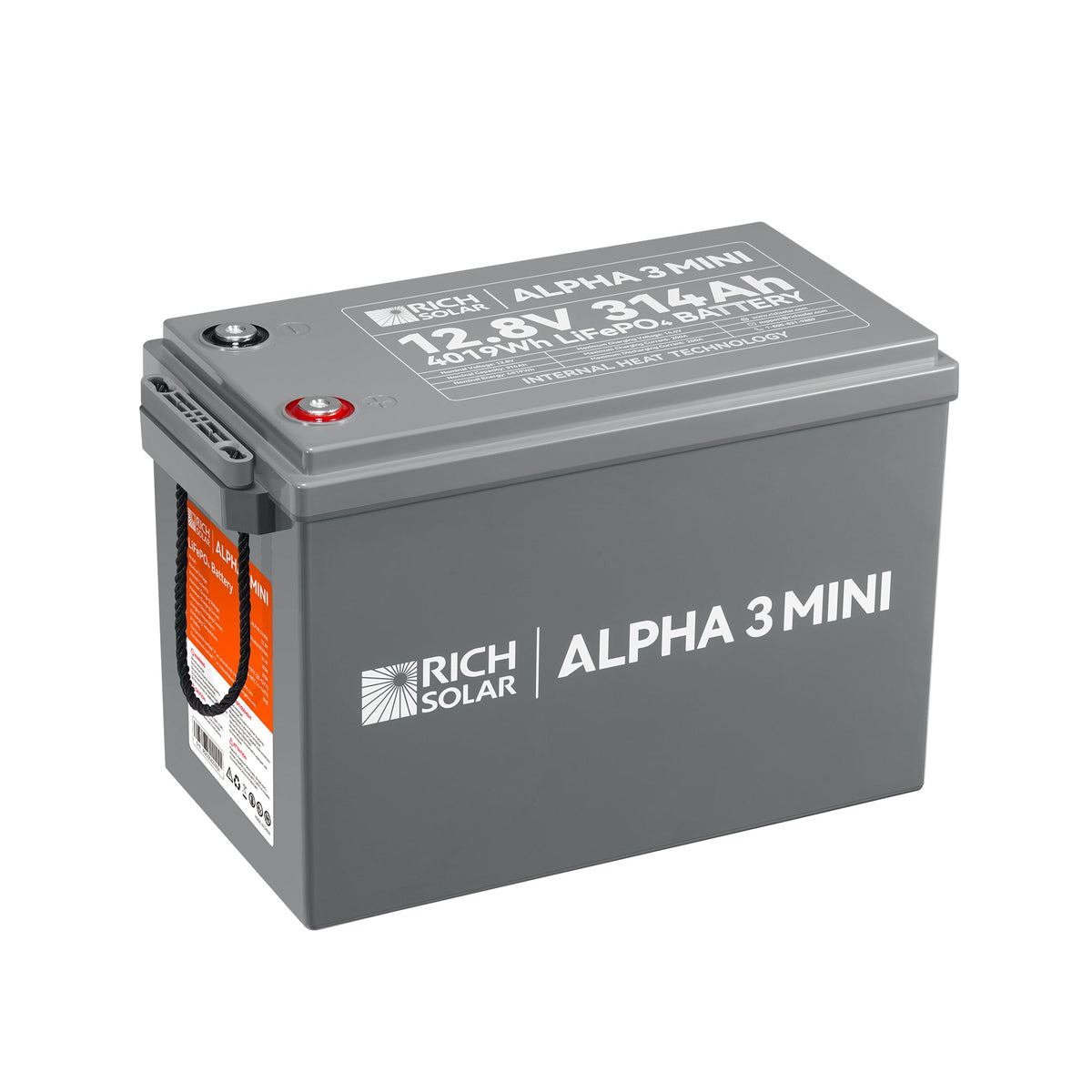

Rich Solar ALPHA 3 MINI 12V 314Ah LiFePO4 Battery
- Regular price
- $1,044.99
- Sale price
- $1,044.99
- Regular price
-
$1,099.99
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features

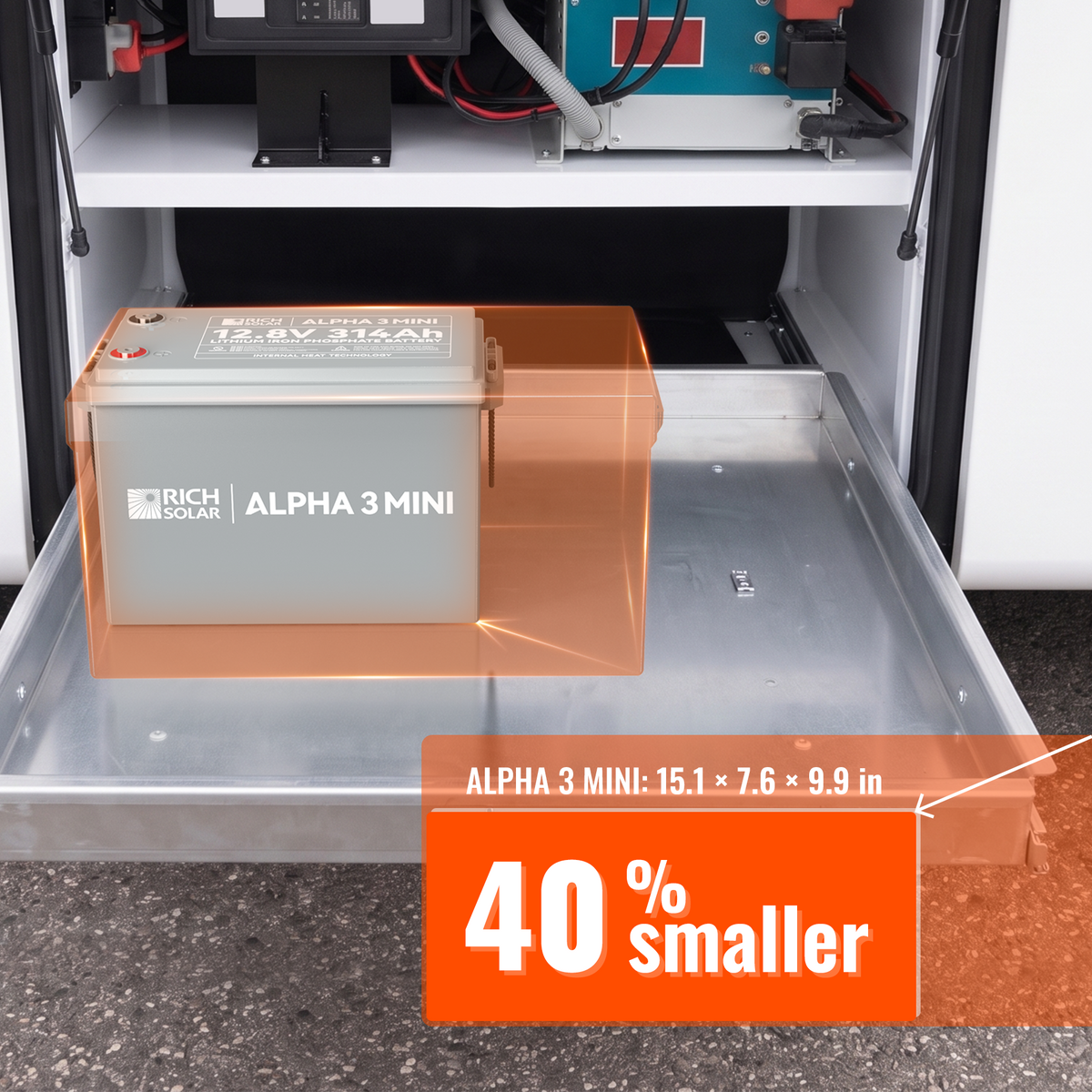

Compact MINI Design
- Approximately 40% smaller in volume than standard 12V 314Ah batteries.
- The compact MINI design enables easier installation and greater system flexibility.
Long Lifespan & Efficient Power
- 4,019Wh high-capacity energy storage for reliable, long-lasting power.
- 5,000+ cycle LiFePO₄ cells help reduce replacement costs over time.
- Maintenance-free design with a low monthly self-discharge rate.
Advanced Safety & All-Weather Performance
- Smart BMS provides comprehensive electrical and thermal protection.
- Internal Heating Technology enables safe charging in low-temperature conditions.
- IP65 waterproof and UL94 V-0 flame-retardant housing for outdoor durability.
Smart Monitoring & Expandability
- Bluetooth monitoring for real-time battery status through the RICH SOLAR App.
- Supports up to four batteries in parallel (4P) for higher system capacity.
- Ideal for RV, marine, off-grid, and backup power applications.
Specifications
-
Nominal Voltage: 12.8V
-
Rated Capacity: 314Ah
-
Nominal Energy: 4,019Wh
-
Cycle Life: 5,000+ Cycles
-
Charging Voltage: 14.4V
-
Max Charge Current: 200A
-
Max Continuous Discharge Current: 200A
-
Bluetooth: Yes
-
Internal Heating: Yes (100W)
-
Parallel Expansion: Up to 4 Units
-
Ingress Protection: IP65
-
Housing Material: UL94 V-0 Flame-Retardant Plastic
-
Charge Temperature: 32–131°F
-
Discharge Temperature: -4–140°F
-
Dimensions (L × W × H): 15.1 × 7.6 × 9.9 in
-
Net Weight: 61.7 lbs
-
Certifications: UN38.3, MSDS
- Warranty: 5 Years
Part numbers: RS-B123M (UPC 650380714365)
Ships from our Upland, CA warehouse to the lower 48 states.
Will it fit, and what will it run?
- Size: 15.1 x 7.6 x 9.9 in, 61.7 lb. That is about half the footprint of a full-size ALPHA 3, but 1.2 in taller, so measure the height.
- Usable energy: about 3,600Wh (90% of 4,019Wh).
- Inverter: 200A continuous supports about 2,000W of AC load. For 3000W, add a second battery or choose the 300A ALPHA 3.
