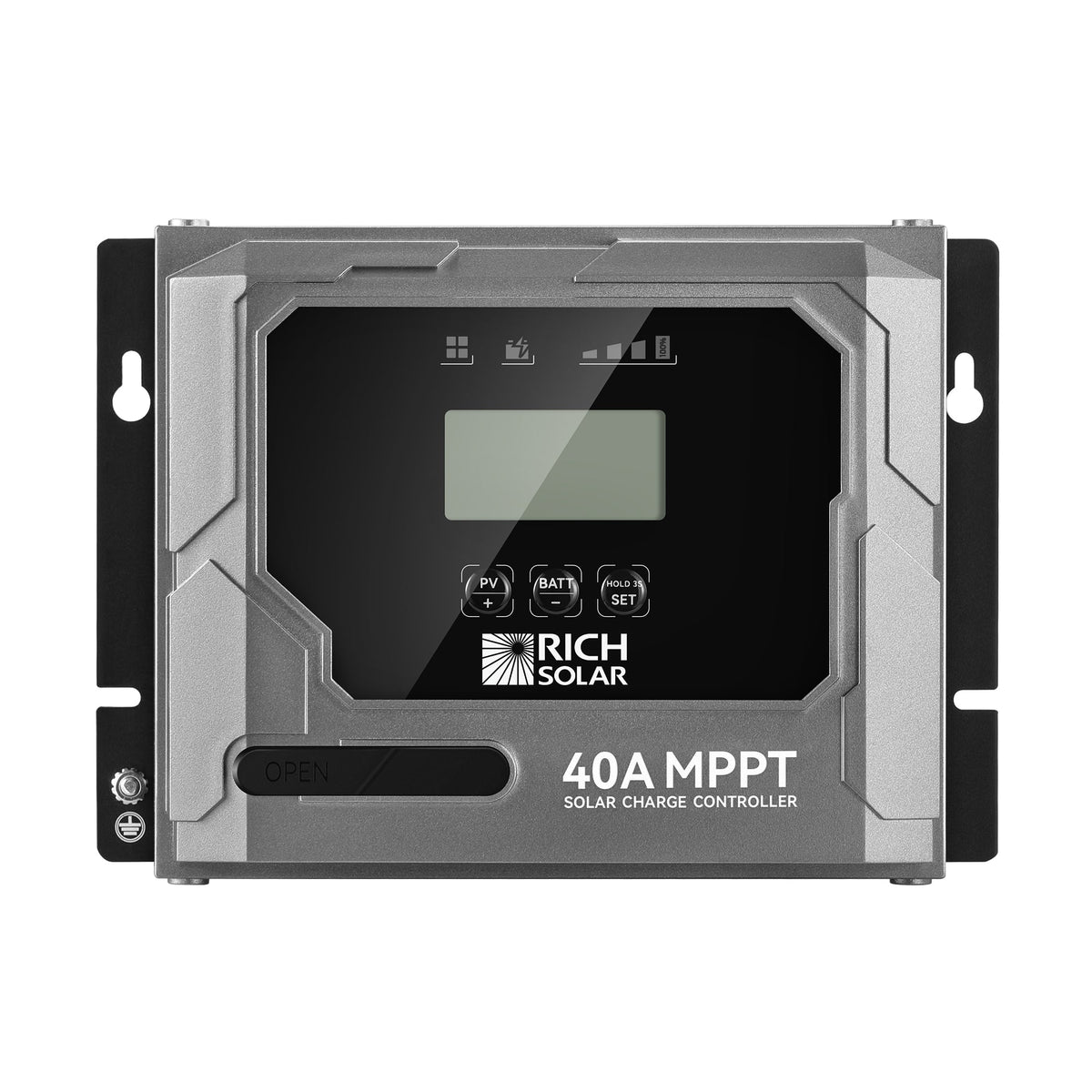

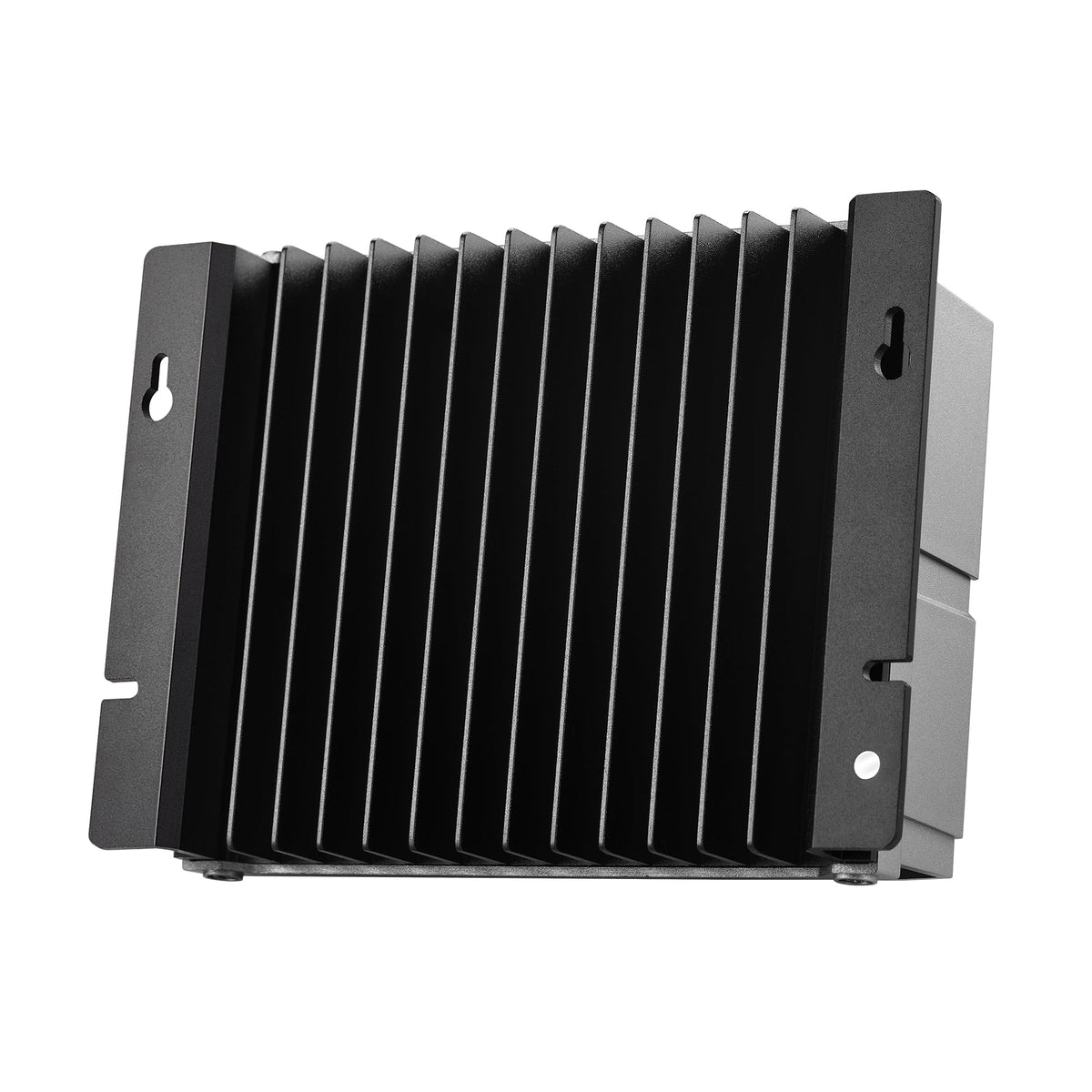

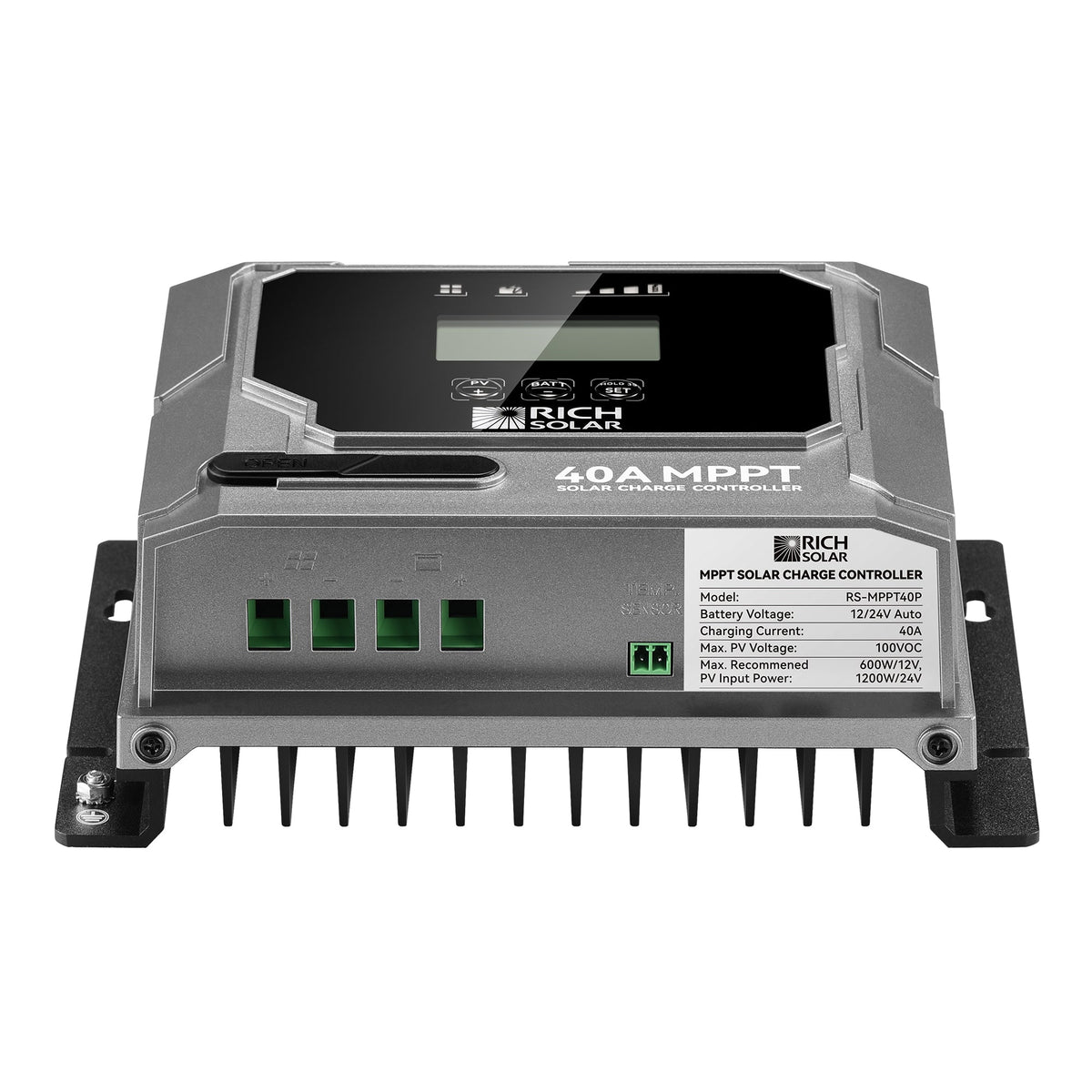

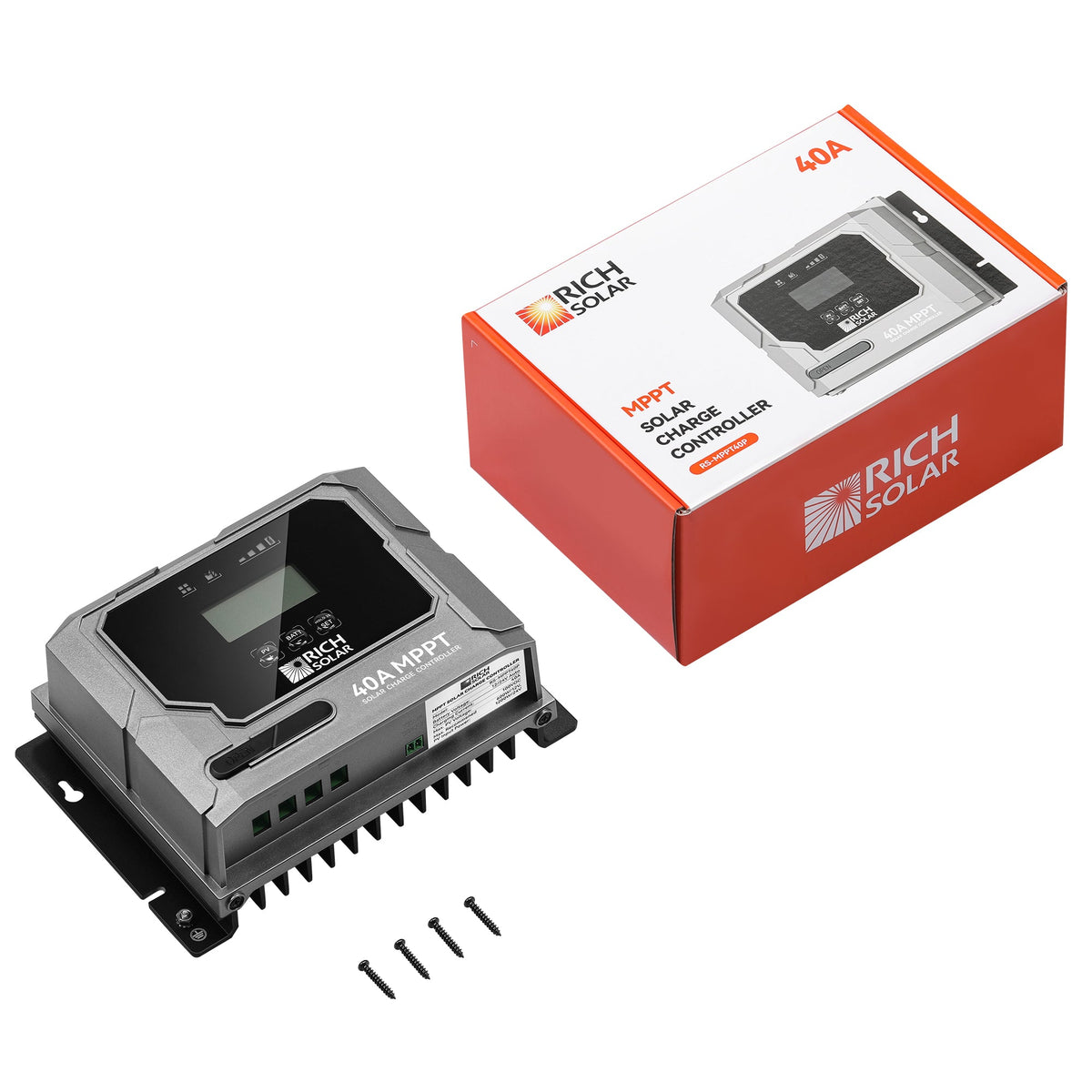

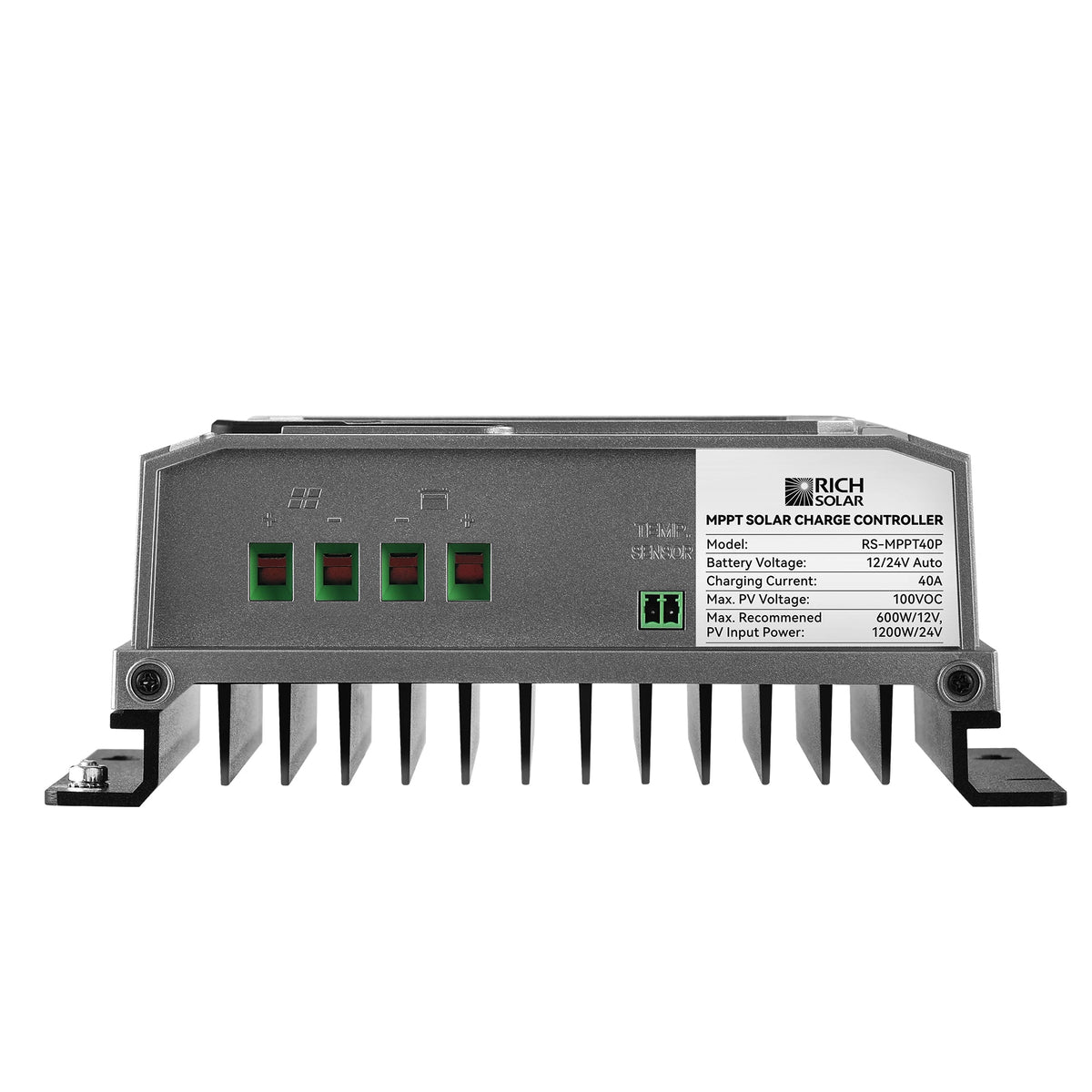

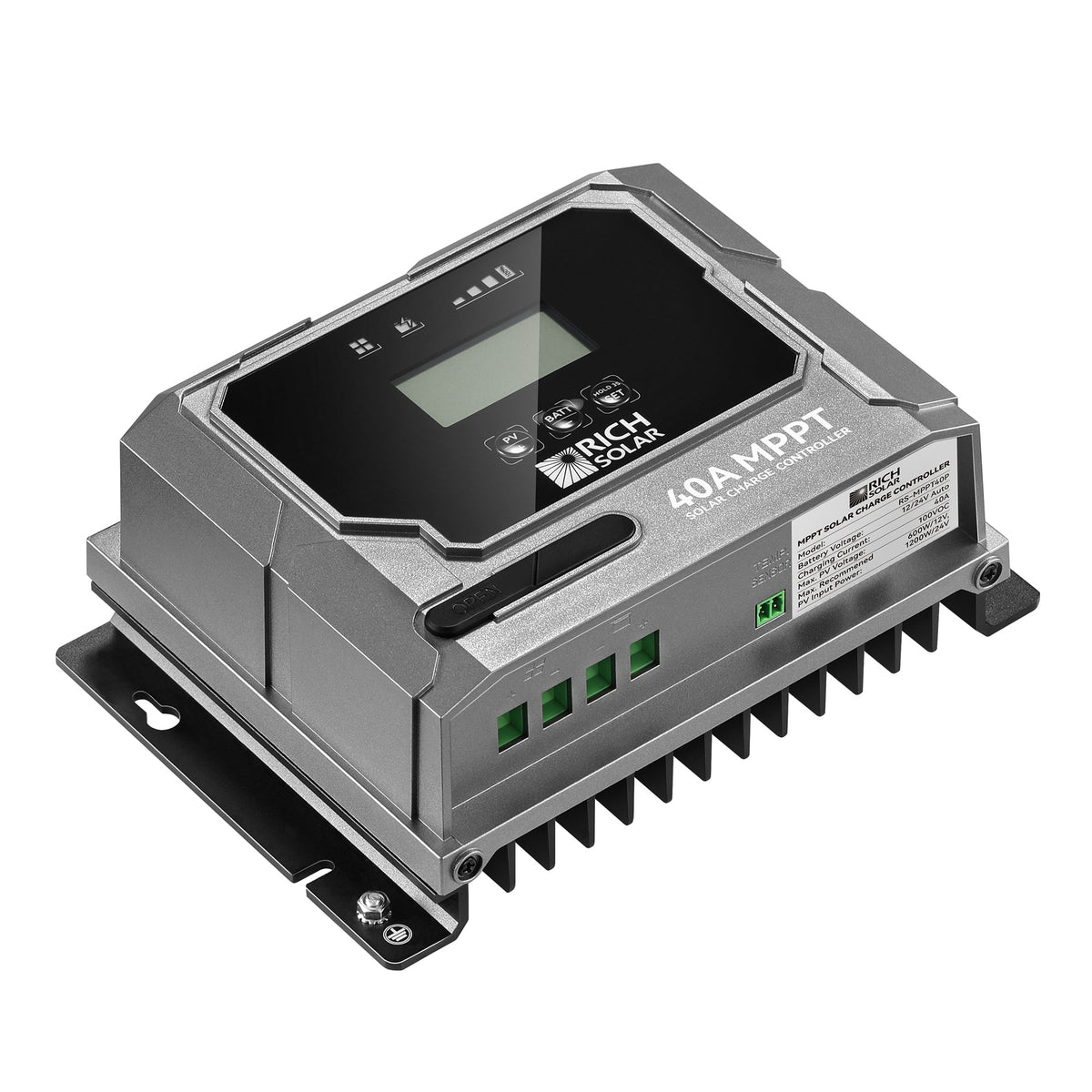

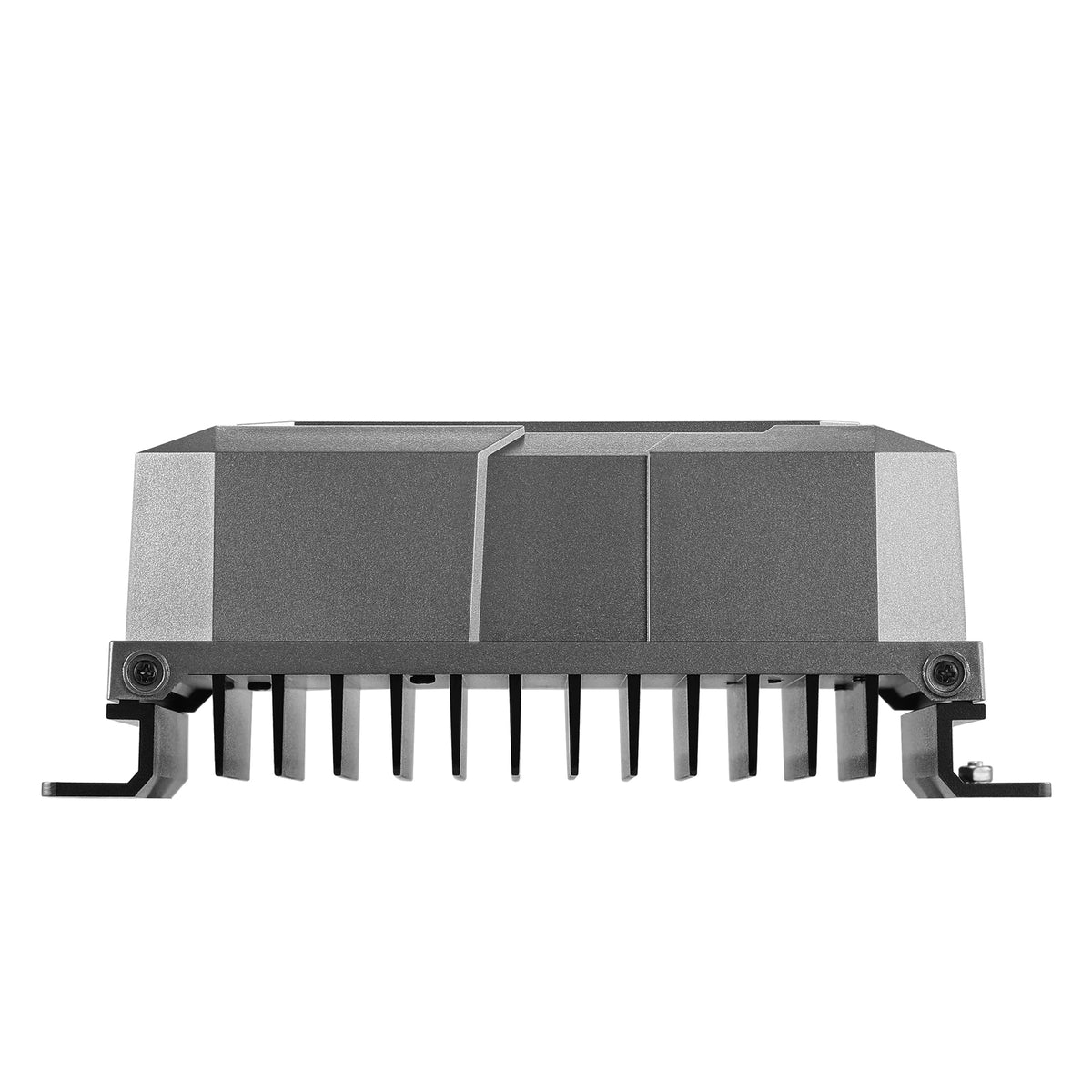

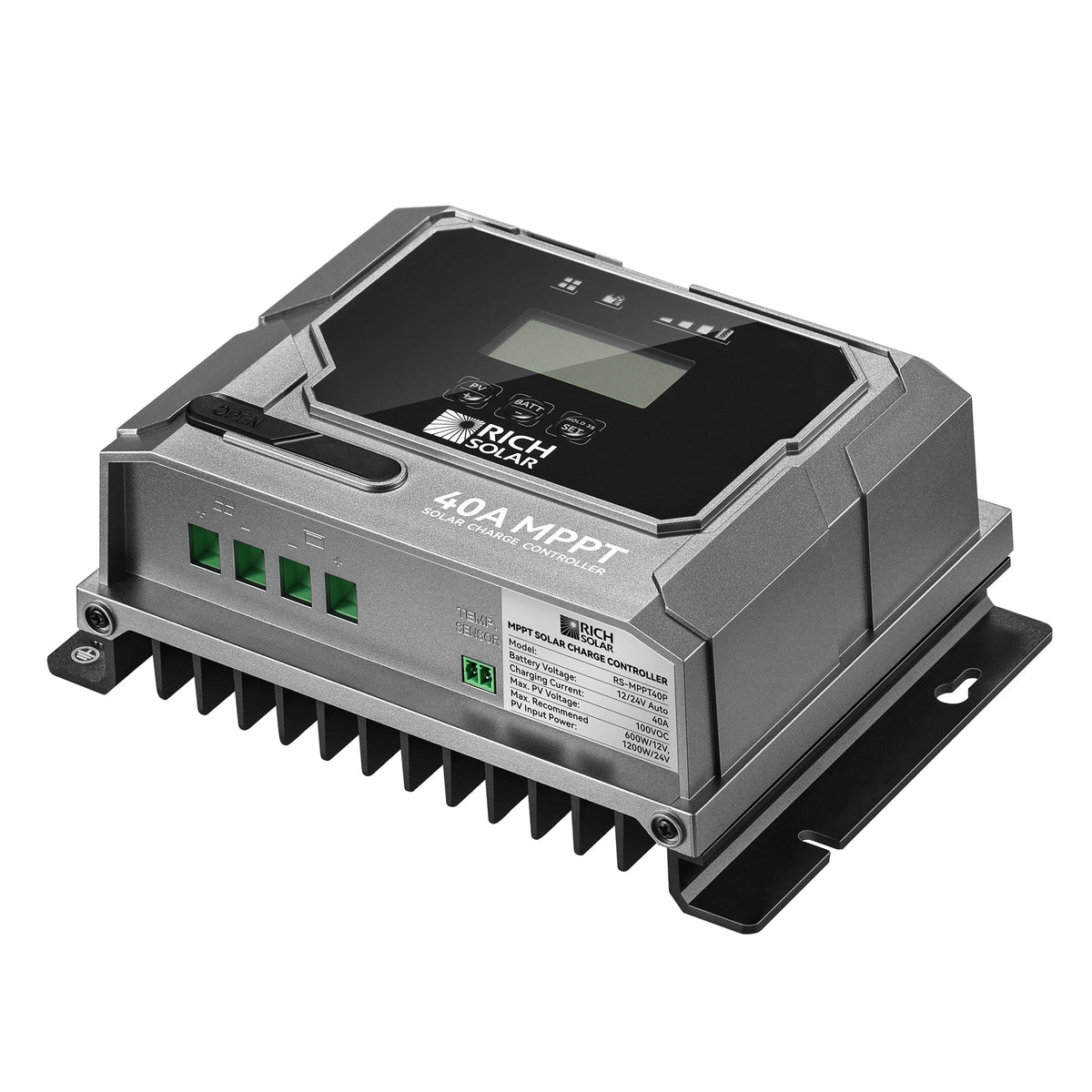

Rich Solar BRAVO 40 40 Amp MPPT Solar Charge Controller

Rich Solar BRAVO 40 40 Amp MPPT Solar Charge Controller

Regular price: $134.99
Sale price: $134.99
Regular price: ~~$159.99~~

✓ Lowest Price Guaranteed · We check U.S. dealer prices every week. Found it cheaper? We’ll beat it.

↻ 30-day price protection · If our price drops after you buy, we email you the difference as store credit. Details

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Product variants

Not sure this is the right size? Answer a few quick questions and we’ll size your battery, solar and inverter — use the free calculator.

✓ Free Shipping · ✓ Free 30-Day Returns
Prepaid return label, no restocking fee. Details

Features

Efficient Solar Charging

Over 99.5% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
Up to 98% Charge Conversion Efficiency: Converts more solar power into usable battery charging energy.
Supports up to 1200W PV Input: Handles larger solar arrays for faster battery charging.

Flexible System Compatibility

12V/24V Auto Detection: Automatically identifies the system voltage during installation.
100V Max PV Open Circuit Voltage: Supports flexible solar panel configurations and system expansion.
Supports Multiple Battery Types: Compatible with Crystal, GEL, AGM, Flooded (WET), Calcium, LCO, LFP, and LTO batteries.

Smart Monitoring

Built-In Bluetooth Monitoring: Monitor real-time charging status on your smartphone via the Smart Life App.
LCD Display: View solar input, battery status, and charging information.
Optional Accessories: Compatible with an optional remote meter and battery temperature sensor.

Comprehensive Reliability

Certified to UL 1741, FCC, CE, and RoHS standards.
Advanced Electronic Protection: Protects against over-voltage, reverse discharge, and circuit faults.
Conformal Coated Circuit Board: Improves long-term durability in demanding environments.

Specifications

System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100V DC
Charging Technology: MPPT
Max PV Charging Current: 40A
Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
Charge Conversion Efficiency: ≤98%
MPPT Tracking Efficiency: >99.5%
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Dimensions (L × W × H): 7.7 × 5.5 × 2.9 in
Net Weight: 2.58lb
Package Dimensions: 10 × 7 × 5 in
Gross Weight: 4 lb

Part numbers: RS-MPPT40P (UPC 650380715683)
