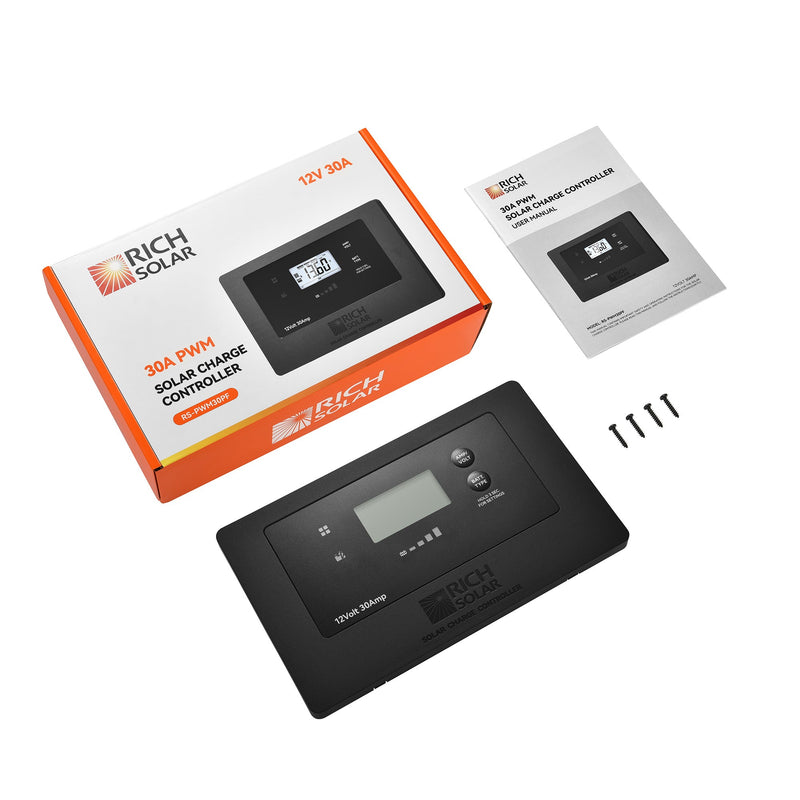

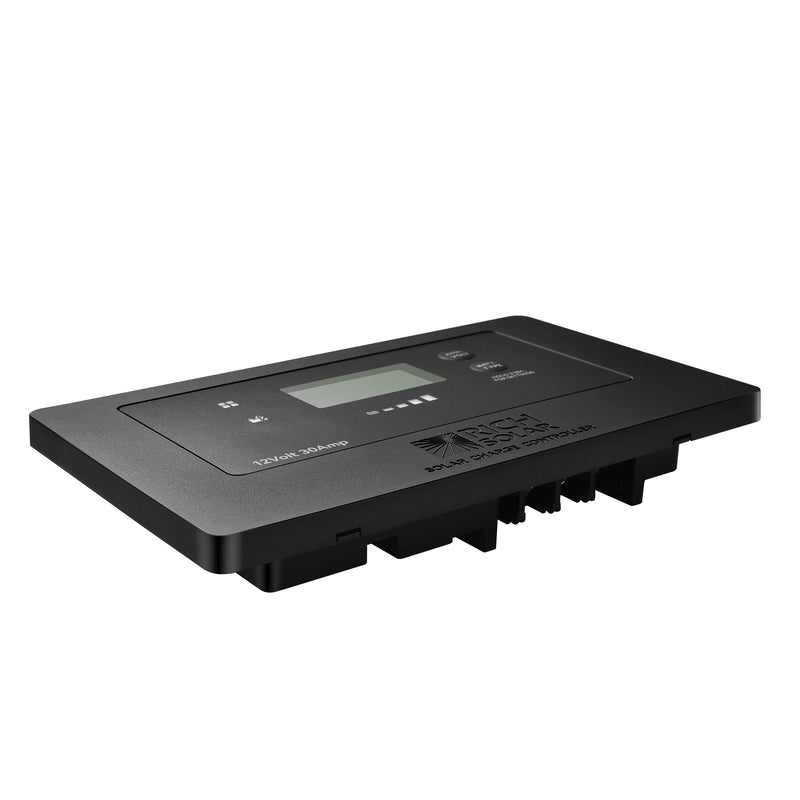

Rich Solar BRAVO AIR 30 30A Flush Mount PWM Solar Charge Controller
- Regular price
- $74.99
- Sale price
- $74.99
- Regular price
-
$79.99
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Features
Intelligent Battery Charging
- PWM + MOSFET Charging Technology: Delivers efficient and stable battery charging.
- Intelligent Multi-Stage Charging: Bulk, Absorption, Equalization, and Float charging for optimized battery performance.
- Automatic Temperature Compensation: Automatically adjusts charging voltage based on ambient temperature (external BTS supported).
Flexible System Compatibility
- 12V Battery System: Designed for 12V battery systems.
- Supports Multiple Battery Types: Compatible with Gel, AGM, Flooded, Calcium, LTO, and LiFePO₄ batteries.
- 25V Max Solar Input Voltage: Supports solar panel configurations with up to 25V PV input.
Smart Monitoring & Installation
- Built-in Bluetooth Monitoring: Monitor charging status and battery information through the RICH SOLAR App.
- Flush-Mount Design: Installs flush with panels for a clean, professional appearance.
- LCD Display with LED Indicators: Displays real-time system status and charging information.
Reliable Protection
- Automatic BMS Activation: Reactivates protected LiFePO₄ batteries automatically.
- Advanced Electronic Protection: Protects against reverse polarity, short circuit, over-temperature, over-voltage, and overload.
- UL1741, FCC, CE, EMC & RoHS Certified: Meets recognized safety and compliance standards.
Specifications
Electrical Parameters
- Rated solar panel amps: Max. 30 A
- Normal input solar cell array voltage: Max. 5~22 VDC
- Maximum solar cell array voltage (output has no load): Max. 25 VDC
- The controller's lowest operating voltage at the solar or battery side: Min. 8 VDC
- Standby current consumption at night: Max. 10 mA
- Maximum voltage drop – Solar panel to battery: Max. 0.25 VDC
- Grounding: Positive Ground
Protection
- Against reverse polarity or short circuit at the panel or battery
- Over temperature protection during charging: 185°F / 85°C
Environmental Characteristics
- Operating temperature: -13 ~ 122°F / -25 ~ 50°C
- Storage temperature: -40 ~ 185°F / -40 ~ 85°C
- Operating humidity range: 0–85% RH
Physical Parameters
- Controller material: Plastic (PC)
- Power terminal max. wire size: #8 AWG stranded – 0.2 in²
- Power terminal torque: 6.2–7.1 in-lb (0.7–0.8 N·m)
- Mounting: Vertical wall mounting
- IP grade: IP22
-
Package Dimensions: 9 × 6 × 3 in
- Gross Weight: 1 lb
Part numbers: RS-PWM30PF (UPC 650380715263)
