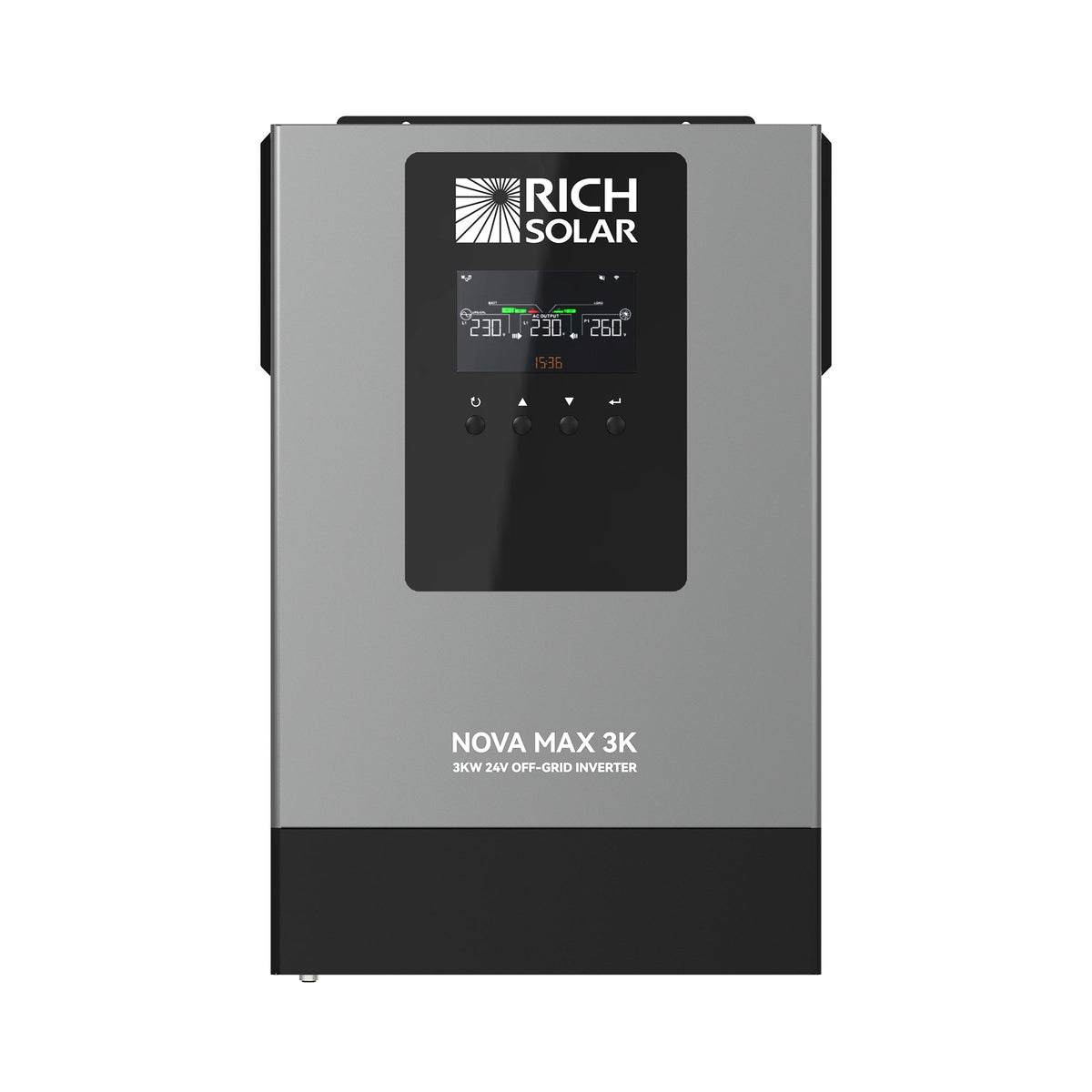

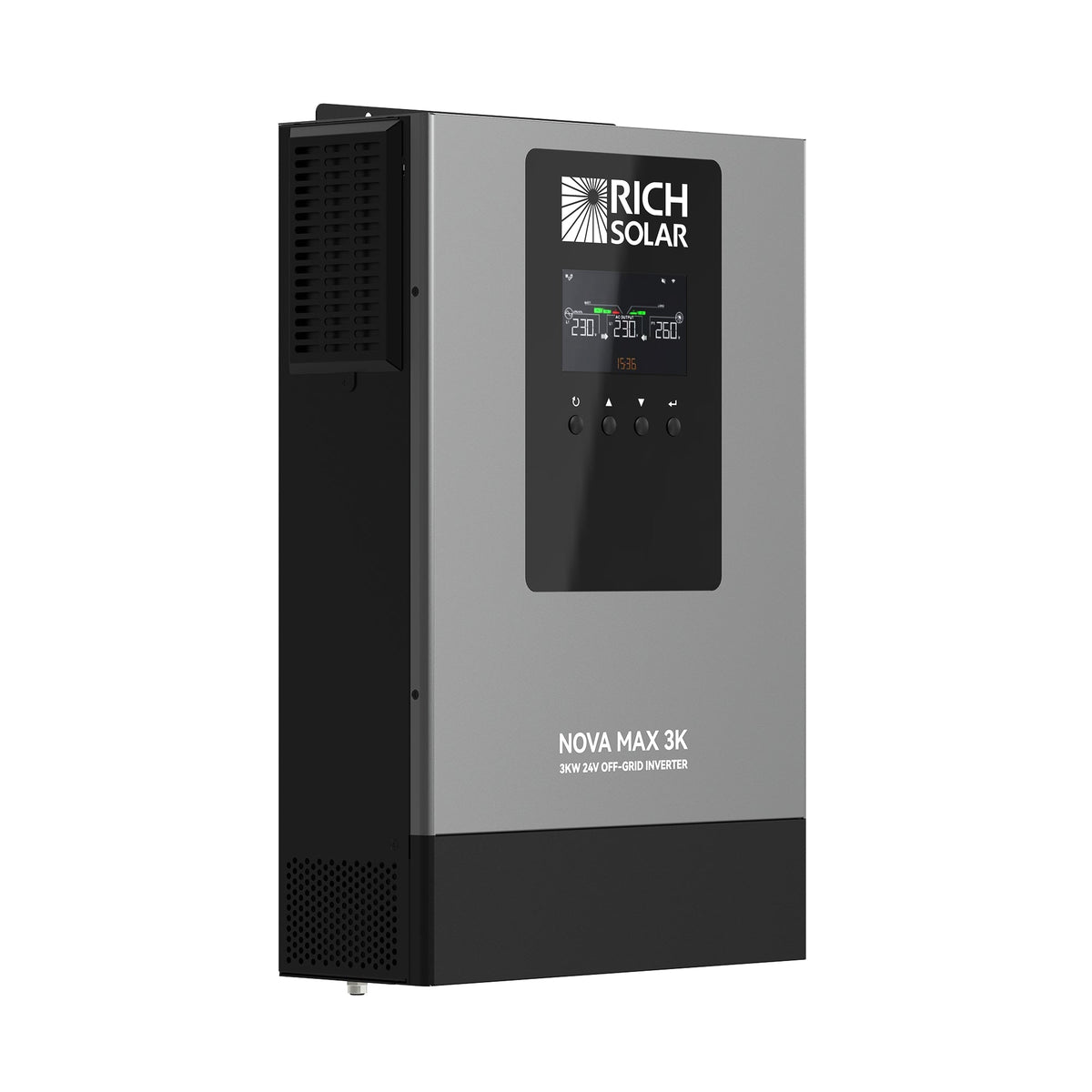

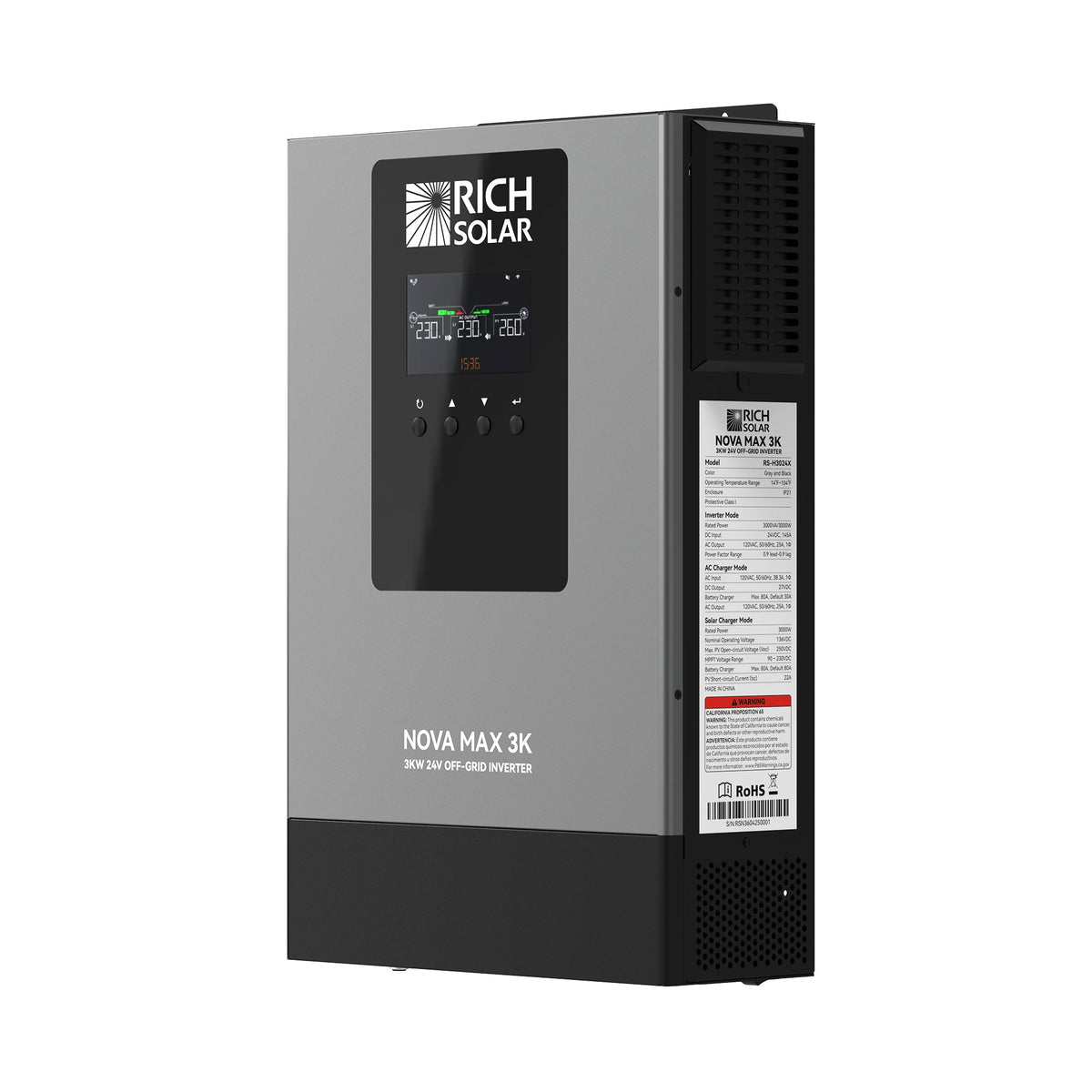

Rich Solar NOVA MAX 3K 2026 24V 3000W Off-Grid Hybrid Inverter

Features

All-in-One Hybrid Power Solution

• 3,000W pure sine wave inverter with 6,000W surge capacity delivers reliable power for RVs, cabins, boats, homes, and off-grid applications.

• Built-in 80A MPPT solar charge controller and battery charger simplify installation while maximizing solar charging efficiency.

• Supports solar, battery, utility, and generator integration for flexible off-grid power management.

Advanced Solar & Battery Management

• Three charging modes—Solar First, Solar & Utility, and Only Solar provide flexible charging options for different energy scenarios.

• Compatible with AGM, Gel, Flooded, and lithium batteries for flexible energy storage.

• Cold-start capability and battery equalization enhance system reliability and extend battery life.

Smart Control & Reliable Operation

• Ultra-fast transfer time (<20ms) keeps critical loads running seamlessly during power outages.

• Supports parallel operation with up to 9 units for single-phase, split-phase, or three-phase systems.

• Built-in Wi-Fi app monitoring enables remote system monitoring and control from anywhere.

Intelligent Protection & Reliable Design

• Built-in protection against overload, over-temperature, short circuits, battery reverse polarity, and abnormal operating conditions.

• Pure sine wave output ensures safe operation for sensitive electronics and household appliances.

• Automatic AC recovery restores operation automatically after utility power returns.

Specifications

PV Input

• Rated PV Power: 3000W

• Maximum PV Open Circuit Voltage: 250V DC

• PV Array MPPT Voltage Range: 90V DC–230V DC

• Maximum Input Current: 22A

• Start-up Voltage: 80V ± 5V DC

AC Input

• Input Voltage Waveform: Sinusoidal (Utility or Generator)

• Nominal Input Voltage: 120V AC

• Maximum AC Input Voltage: 150V AC

• Nominal Input Frequency: 50Hz / 60Hz (Auto Detection)

• Transfer Time: 10ms (UPS) / 20ms (Appliances)

• Efficiency (Line Mode): >95%

AC Output

• Rated Power: 3000W

• Surge Power: 6000W (5 Seconds)

• Output Voltage: 120V AC ±5%

• Output Waveform: Pure Sine Wave

• Output Frequency: 50Hz / 60Hz

• Peak Efficiency: 91%

Battery & Charger

• Nominal DC Input Voltage: 24V DC

• MPPT Charge Controller: 80A

• Bulk Charging Voltage: 29.2V DC (Flooded) / 28.8V DC (AGM / Gel)

• Float Charging Voltage: 27.6V DC

• Overcharge Protection: 33V DC

• Compatible Battery Types: AGM, Gel, Flooded, and Lithium Batteries

General

• Operating Temperature: 14°F to 104°F

• Storage Temperature: 5°F to 140°F

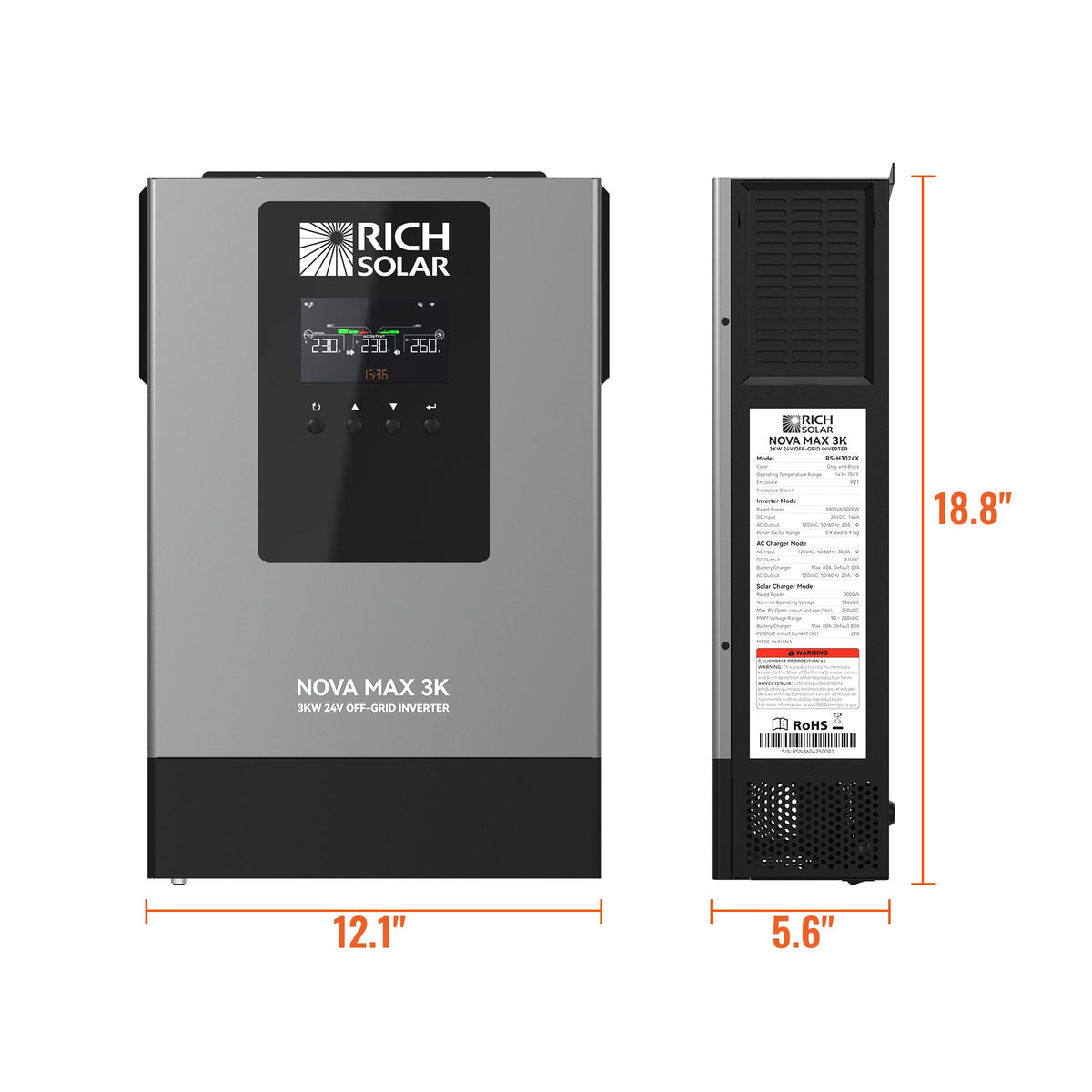

• Dimensions: 5.61 × 12.12 × 18.80 in

• Net Weight: 26.5 lb

• Package Dimensions: 24 × 8 × 16 in

• Gross Weight: 30 lb

Part numbers: RS-H3024X (UPC 650380714778)

Ships from our Upland, CA warehouse to the lower 48 states.
