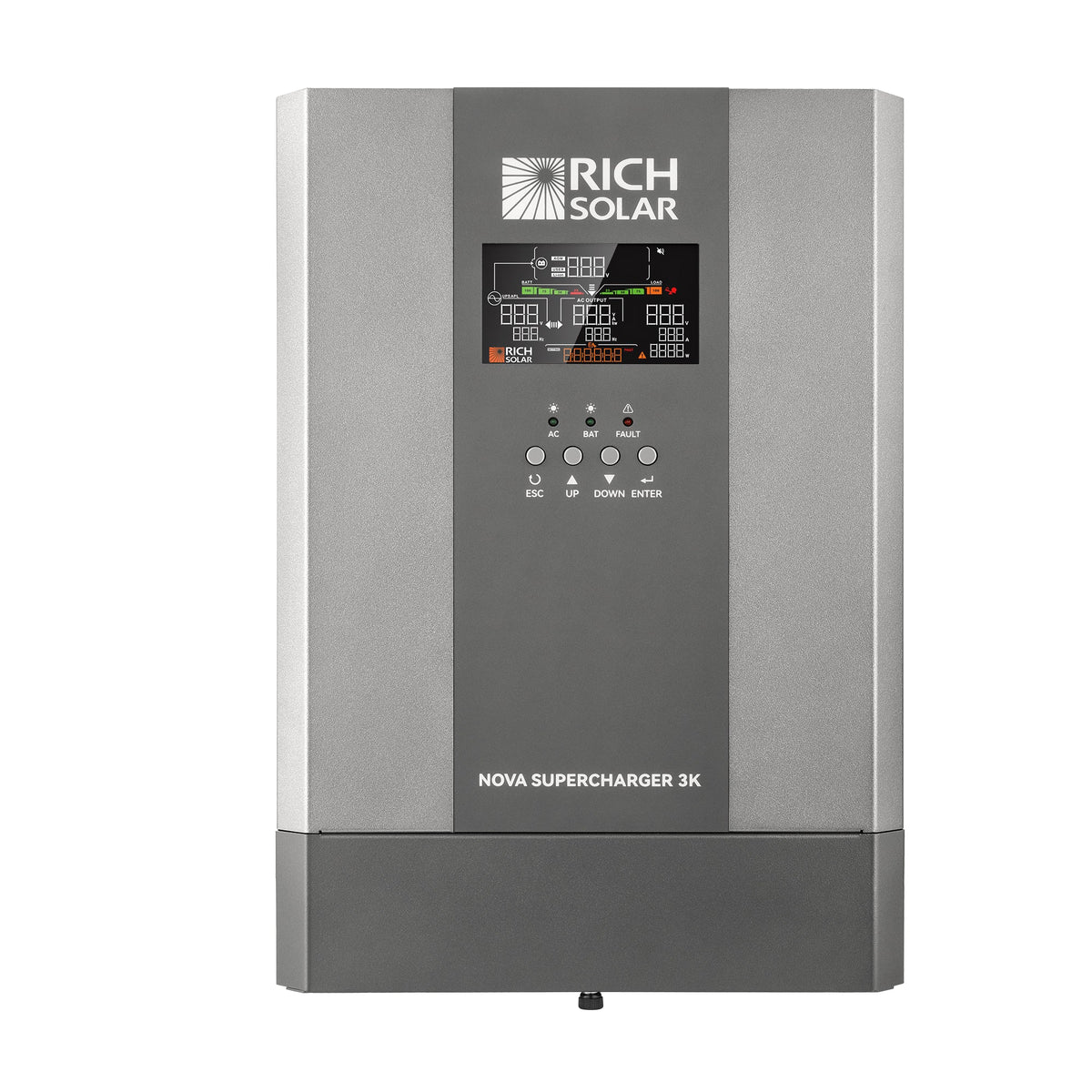

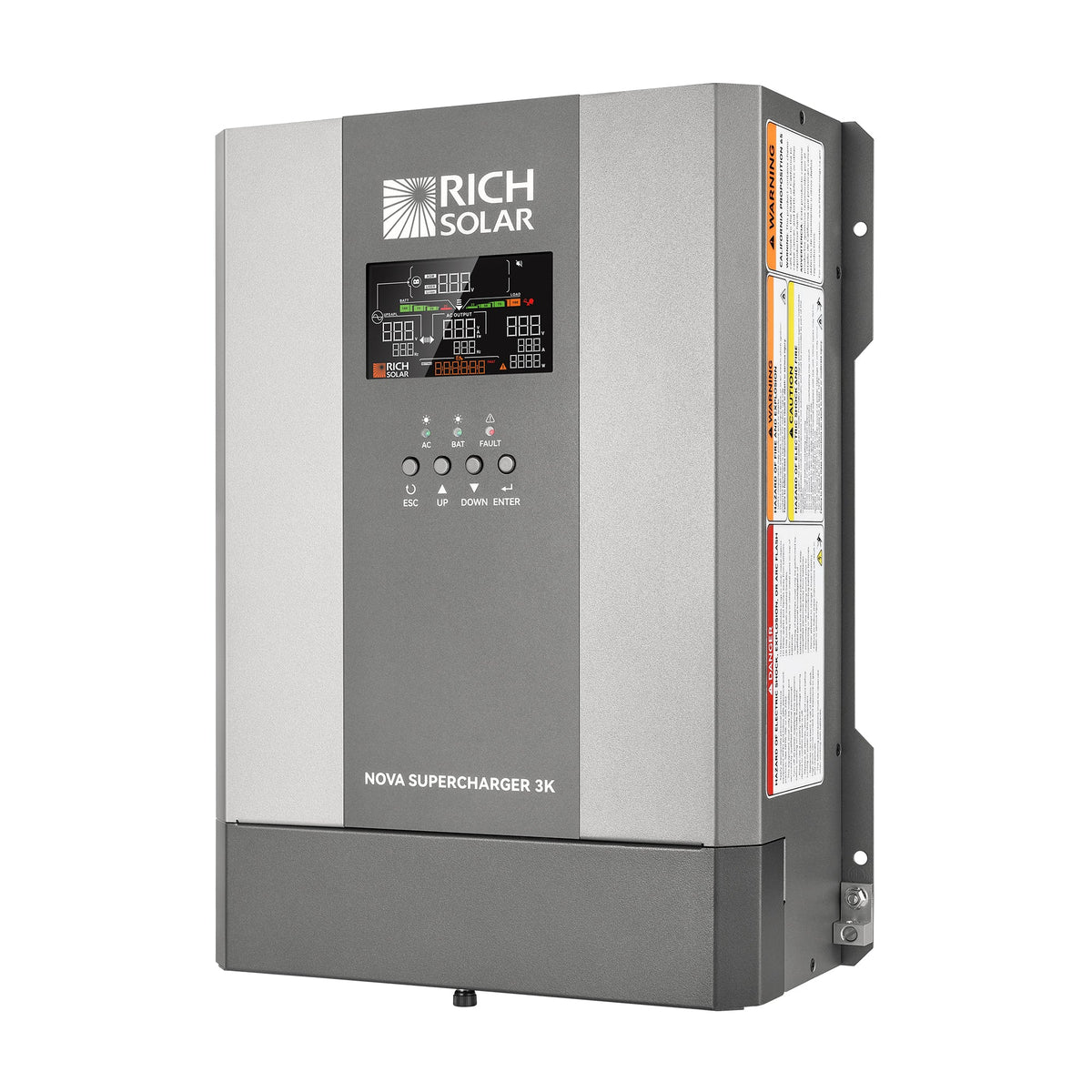

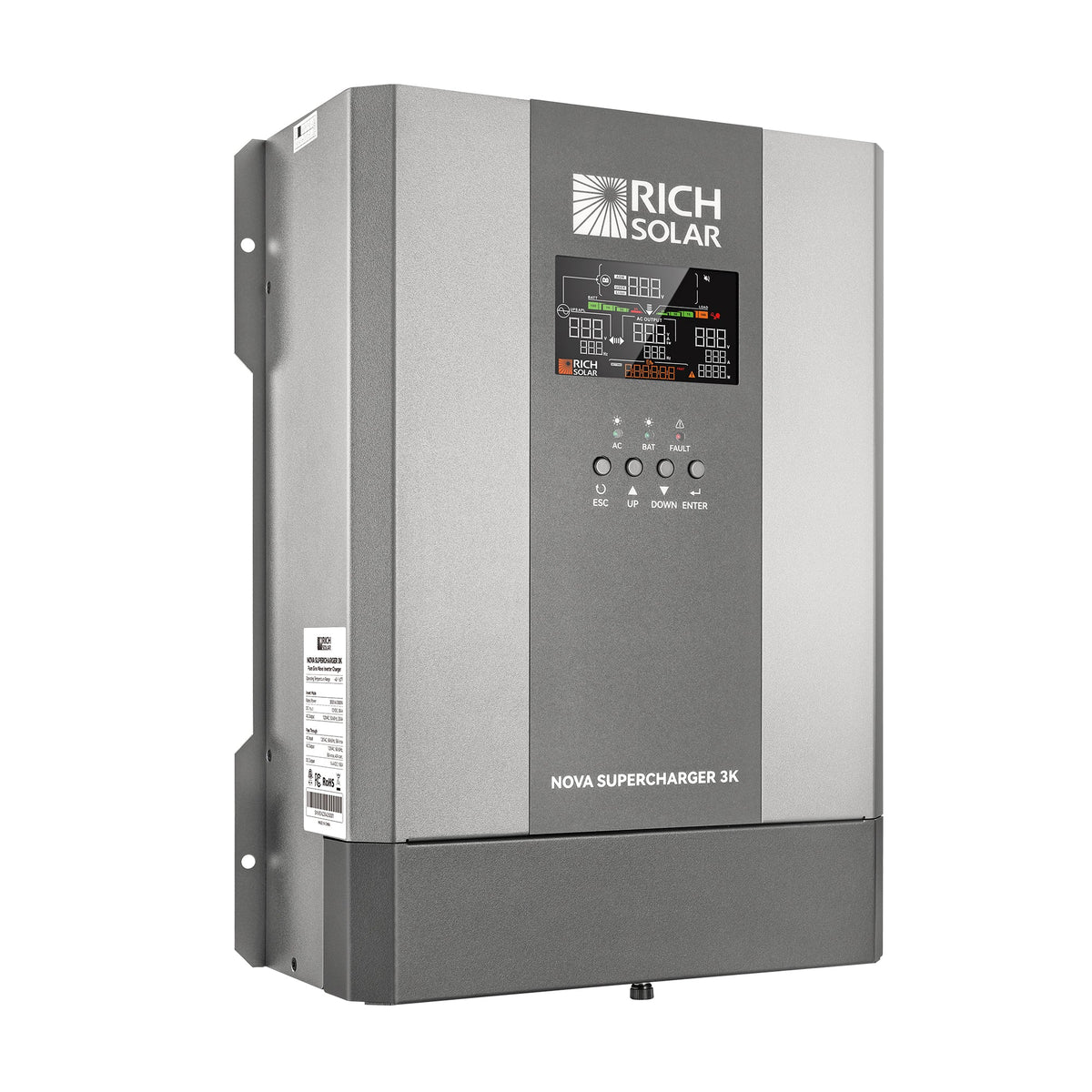

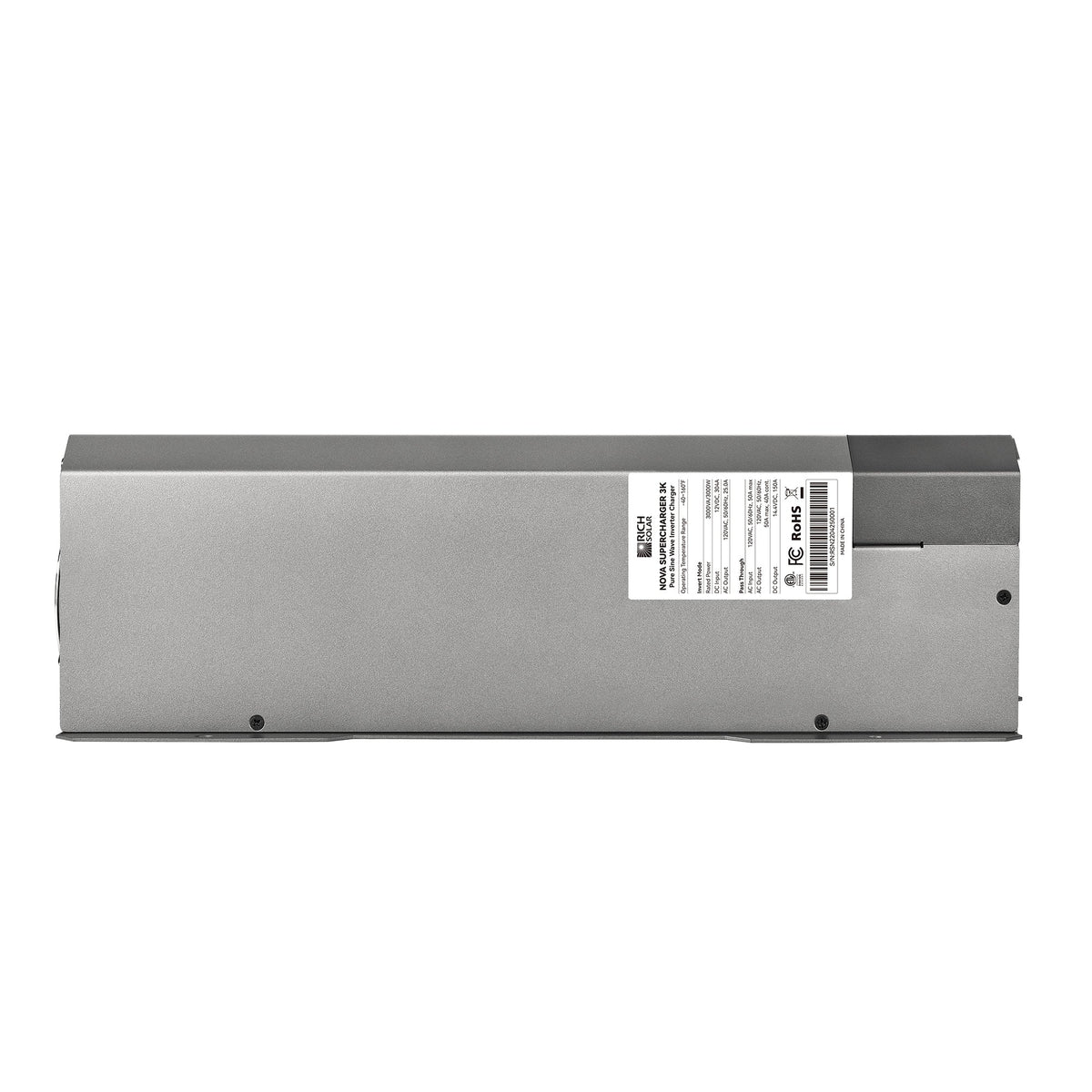

Rich Solar NOVA SUPERCHARGER 3K 3000W 12V Pure Sine Wave Inverter Charger

Features

Power Conversion

• Supports shore power, generator, and battery power sources for reliable AC power anytime, anywhere

• 3,000W pure sine wave inverter with 6,000W surge capacity delivers reliable AC power for RVs, boats, cabins, and off-grid applications.

• Up to 91% conversion efficiency maximizes battery runtime and overall system performance.

• Ultra-Fast Source Switching (< 20ms) – Automatic transition between AC power and battery backup

Smart Battery Charging

• Selectable charging current from 5A to 150A optimizes charging performance for different battery capacities.

• Fast charging and battery recovery quickly recharge batteries, even from over-discharged states (OVDC).

• Power Share technology intelligently adjusts charging current based on connected AC loads.

• Compatible with 12V deep-cycle, AGM, and LiFePO₄ (with BMS) batteries for flexible energy storage.

Reliable Protection

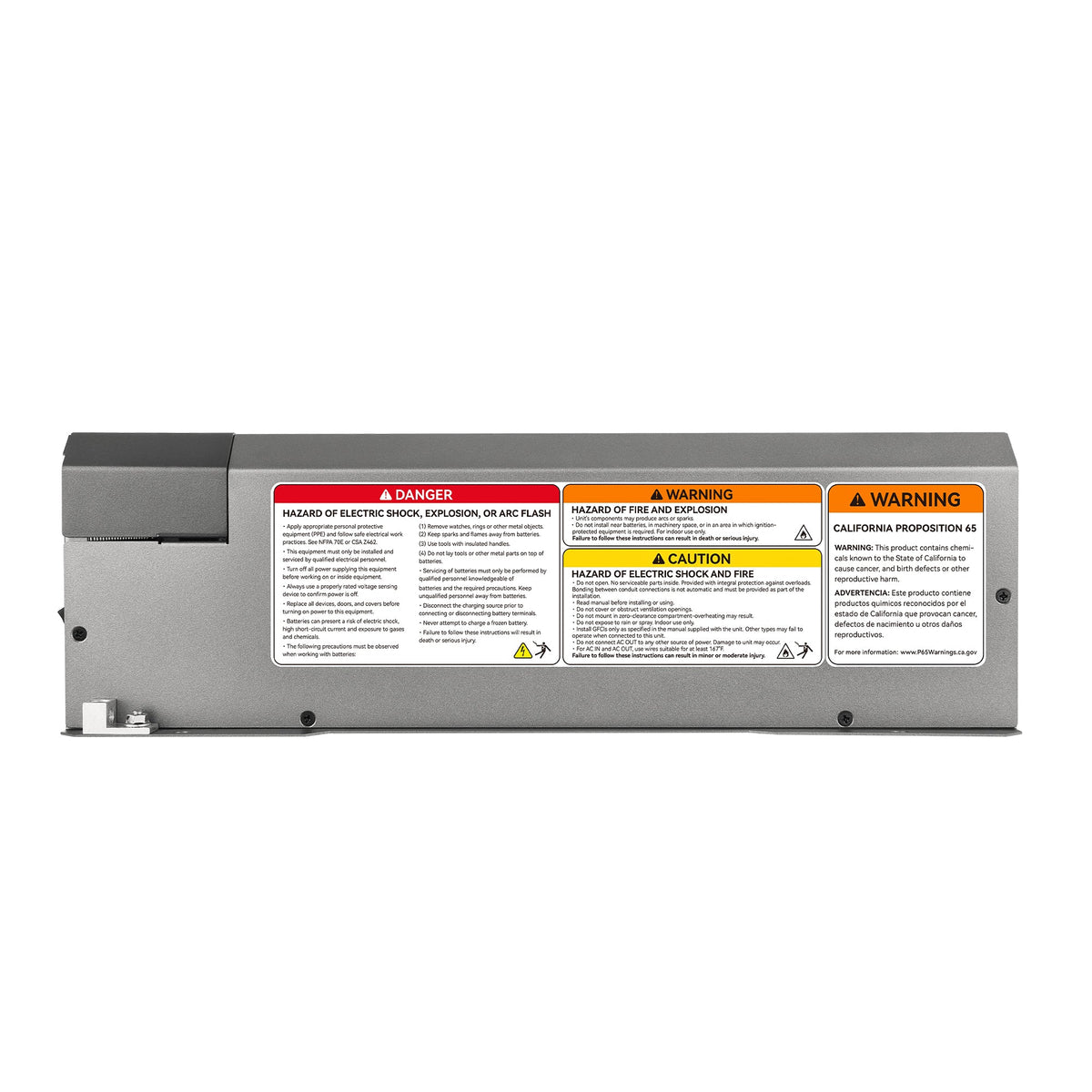

• Integrated safety protections against overload, short circuit, over-temperature, over-voltage, and low battery voltage.

• Certified to UL 458, FCC, CE, and RoHS standards.

• Rugged marine-grade housing is corrosion-resistant, vibration-tested, ABYC compliant, and supports an optional drip shield.

Specifications

DC Input

• Nominal Voltage: 12.0V DC

• Operating Voltage Range: LBCO – 18.0V DC

• Nominal Current at Full Load: 288A DC

AC Input

• Operating Voltage Range: 100–130V AC

• Safe Non-Operating Voltage Range: Up to 240V AC

• Full Load Current (RMS): 24A

• Nominal Frequency: 60Hz (or 50Hz)

• Power Factor at Full Charge: >98%

AC Output

• Output Voltage Options: 120V AC, 110V AC, 108V AC

• Continuous Power: 3000W

• Surge Power: 6000W (5 sec)

• Continuous Current: 25A
• Frequency: 60Hz or 50Hz

• Output Waveform: True Sine Wave

• Peak Efficiency: 91%

• Full Load Efficiency: >85%

Battery Charger

• Nominal Output Voltage: 12.0V DC

• Maximum Output Voltage: 18.0V DC (Custom Battery Type)

• Selectable Charging Current: 5A–150A

• Efficiency at Nominal Output: >89%

Certifications & Compliance

• Safety Certification: UL 458, FCC, CE, RoHS

General

• Operating Temperature Range: -40°F to 160°F, with output derated above 122°F

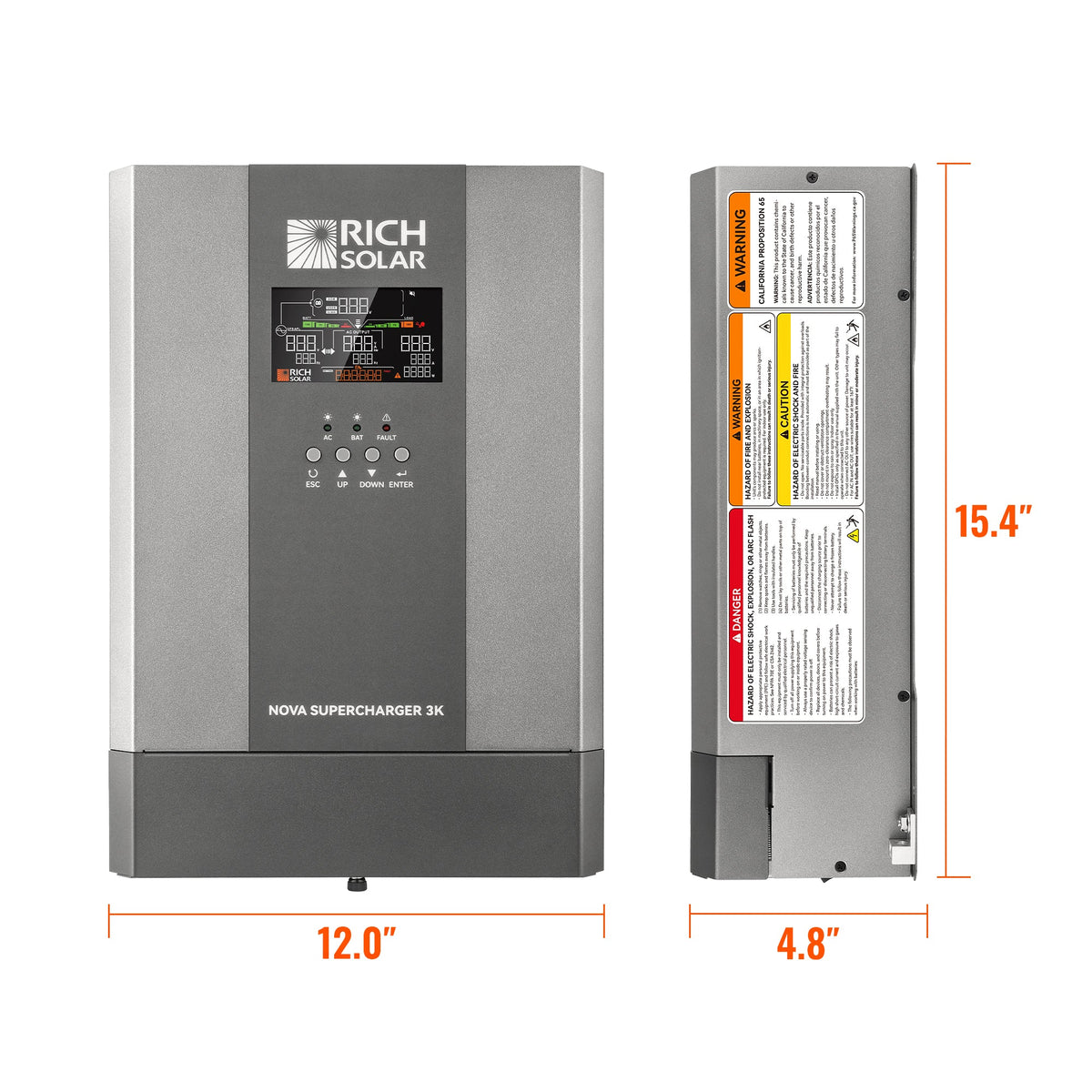

• Dimensions: 15.4 x 12.0 x 4.8 in

• Net Weight: 18.5 lb

• Package Dimensions: 20 × 9 × 17 in

• Gross Weight: 22 lb

Part numbers: RS-V3P12C (UPC 650380714754)
