A trailer breakaway system is designed for one critical emergency: applying the trailer brakes if the trailer becomes separated from the tow vehicle. The CURT 12V Trailer Breakaway Kit includes a 12V battery and LED test light, making it easier to check whether the emergency braking circuit is ready before travel.
The most important point is simple: a breakaway kit should not be treated as a “fit and forget” component. The battery needs to remain charged, the wiring must stay secure, and the breakaway switch must be connected correctly every time the trailer is towed.

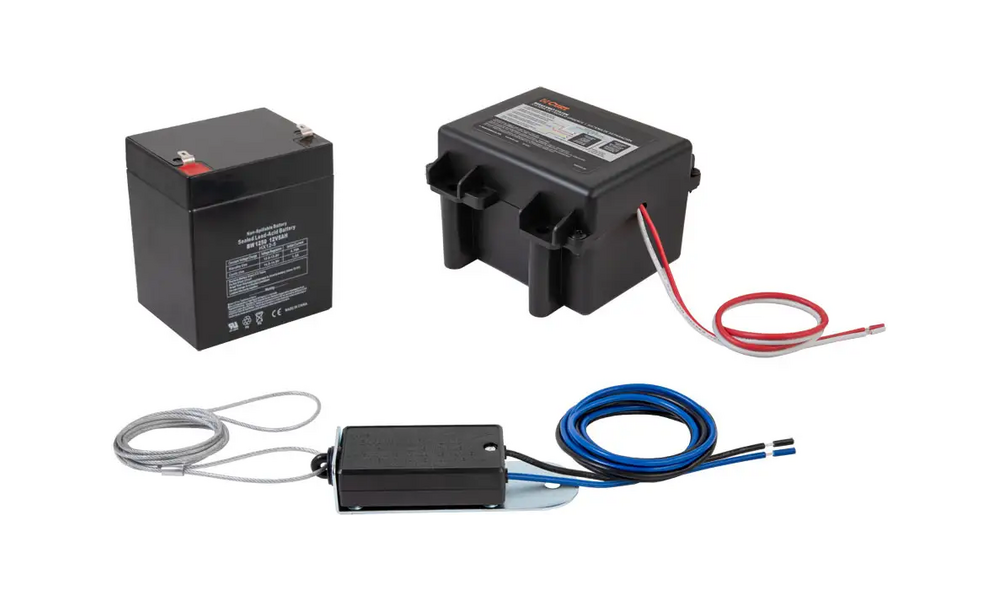

CURT 12V Trailer Breakaway Kit with LED Test Light
What Does a Trailer Breakaway System Do?
A trailer breakaway system provides an independent emergency braking function. Under normal towing conditions, the trailer brakes are controlled through the tow vehicle’s brake controller and the trailer wiring connection.
If the trailer separates from the tow vehicle, the breakaway system is intended to activate the trailer brakes using its own battery supply. This can help reduce uncontrolled trailer movement and give the separated trailer a better chance of stopping.
The system usually includes several important parts:
-
A breakaway battery
-
A breakaway switch
-
A pull pin or lanyard
-
Wiring to the trailer brake circuit
-
A test indicator or LED
-
Mounting hardware and electrical connections
Every component matters. A fully charged battery cannot compensate for a damaged switch, loose wire, corroded terminal, or incorrectly routed lanyard.
Why Testing Matters Before Towing
Many trailer owners check tire pressure, lights, hitch locking, and safety chains before departure. The breakaway system deserves the same attention because it may remain unused for months.
A system can appear fine while still having a problem:
-
The battery may have lost charge during storage.
-
A terminal may have developed corrosion.
-
The breakaway cable may be too short or incorrectly attached.
-
The switch may be mounted where the pin cannot pull freely.
-
A wire may have been damaged by road debris.
-
A previous repair may have left a weak connection.
-
The LED may not indicate the expected test condition.
The included LED test light provides a quick visual reference, but it should be used as part of a broader inspection. A light alone does not prove that every component is correctly installed or that the trailer brakes will operate exactly as expected.
For a wider trailer inspection routine, the Black Series Camper Annual Maintenance Checklist is a useful reference for organizing towing, electrical, coupling, and service checks.
How to Perform a Basic Breakaway System Test
Testing should be completed while the trailer is parked safely and disconnected from traffic. Follow the product instructions and local requirements for your trailer.
1. Park and Secure the Trailer
Choose level ground and prevent the trailer from moving. Chock the wheels if necessary. Keep people clear of the trailer brakes and wheels during the test.
Do not perform an emergency brake test while driving on a public road. The purpose of a stationary test is to confirm the basic circuit response without creating a towing hazard.
2. Inspect the Breakaway Battery
Check that the included 12V battery is securely mounted and connected. Look for:
-
Loose terminals
-
Corrosion
-
Damaged insulation
-
Swollen or leaking battery casing
-
Broken mounting brackets
-
Signs of water intrusion
-
Wires rubbing against sharp metal
A battery that has been stored for a long period may need charging or replacement. Do not assume that a battery is ready simply because it was installed recently.
3. Check the LED Test Indicator
Use the LED test light according to the manufacturer’s instructions. The indicator should provide information about the condition of the breakaway circuit, but the meaning of the light depends on the specific kit and wiring arrangement.
If the LED does not behave as expected, stop and inspect the battery, fuse protection, wiring, ground path, and switch connection.
4. Inspect the Breakaway Switch and Pin
Make sure the breakaway switch is firmly mounted to the trailer frame or another approved location. The pull pin should be fully seated, and the switch housing should not move excessively.
Inspect the pull cable or lanyard for:
-
Fraying
-
Kinks
-
Corrosion
-
Excessive slack
-
Poor attachment points
-
Contact with hot or moving parts
The lanyard must be connected to a suitable point on the tow vehicle as directed by the manufacturer. It should not be wrapped around the safety chains in a way that prevents the pin from pulling during a separation event.
5. Confirm Brake Activation
The final test should follow the manufacturer’s procedure. In general, the breakaway switch is activated by removing the pin, which sends power from the dedicated battery to the trailer brake circuit.
Do not leave the pin removed for longer than necessary. Extended activation can discharge the battery and may heat the brake components. After the test, reinstall the pin completely and confirm that the system has returned to its normal state.
If you are unsure whether the trailer brakes responded correctly, have the system inspected by a qualified trailer technician.
What the LED Test Light Can and Cannot Tell You
An LED test light is useful because it gives the owner a quick visual signal. It can help identify whether the system is receiving power or whether the test condition appears normal.
However, it should not be considered a complete diagnostic tool. The LED may not reveal:
-
Incorrect brake adjustment
-
A weak brake magnet
-
Mechanical brake wear
-
A poor ground connection
-
A damaged section of wiring
-
A problem affecting only one wheel
-
A battery that loses capacity under load
The indicator is best used as an early warning feature. If the light shows a problem, investigate before towing. If the trailer has a braking issue despite a normal light, arrange a complete brake inspection.
Building a Pre-Trip Breakaway Checklist
A short routine is easier to follow than an inspection that is too complicated. Before each trip, include the following checks:
Before Connecting the Trailer
-
Inspect the breakaway battery and terminals.
-
Confirm the battery is securely mounted.
-
Check the breakaway switch and pin.
-
Inspect the lanyard for damage.
-
Look for loose or exposed wiring.
-
Verify that the trailer brake wiring is not hanging near the road.
After Connecting the Trailer
-
Lock the coupler or hitch according to the trailer instructions.
-
Attach the safety chains correctly.
-
Connect the main trailer plug.
-
Attach the breakaway lanyard to the tow vehicle.
-
Confirm that the lanyard is not tangled or overly tight.
-
Test the trailer lights.
-
Test the trailer brakes at low speed in a safe area.
Before Entering the Highway
-
Confirm the breakaway pin is fully seated.
-
Make sure the trailer battery remains connected.
-
Check that the trailer brake controller responds normally.
-
Walk around the trailer once more.
-
Confirm that no cable, wire, or chain can drag on the road.
A professional inspection service can be helpful when the trailer has been stored for a long period or has recently undergone brake or wiring work. RV Parts Giant’s Essential Annual Safety Service includes towing-related inspection areas such as electric brakes, coupling, wheel bearings, tires, and the 12V system.
Maintenance During the Camping Season
The breakaway system should also be checked during the season, especially after rough roads, heavy rain, water crossings, or long-distance travel.
After Rough or Off-Road Travel
Inspect the system for:
-
Mud around the switch
-
Water inside the battery box
-
Chafed wiring
-
Loose mounting hardware
-
Damage from rocks or road debris
-
A bent or displaced switch bracket
Off-road vibration can loosen connections that appear secure during a quick visual check. A careful inspection after difficult terrain can prevent an emergency component from being unavailable when it is needed.
During Extended Storage
The battery may gradually lose charge while the trailer is stored. Follow the battery and charger instructions for maintaining the correct charge level.
Before the next trip:
-
Inspect the battery casing.
-
Clean corrosion from approved terminal surfaces.
-
Check the battery connection.
-
Test the LED indicator.
-
Inspect the switch and lanyard.
-
Perform a complete stationary test.
Do not keep charging a battery that is swollen, leaking, cracked, or visibly damaged. Replace it with a compatible battery and confirm the wiring before returning the trailer to service.
Common Breakaway System Problems
The LED Does Not Illuminate
Possible causes include:
-
Discharged battery
-
Loose terminal
-
Blown fuse
-
Damaged wire
-
Poor ground
-
Faulty indicator
-
Incorrect connection
Begin with a visual inspection and verify the battery condition. If the issue is not obvious, avoid guessing at the wiring. A technician can test the circuit safely.
The Breakaway Brakes Do Not Respond
A failure to activate may be caused by the switch, battery, wiring, ground, trailer brake circuit, or brake assemblies themselves.
Do not continue towing until the cause has been identified. The breakaway system is an emergency safety device, so an uncertain result should be treated as a problem requiring attention.
The Battery Keeps Going Flat
Repeated battery discharge can result from:
-
Long-term storage without maintenance charging
-
A short circuit
-
A switch pin that is not fully seated
-
Incorrect wiring
-
Battery age or internal failure
-
Water damage or corrosion
Check whether the pin is fully inserted and whether any component remains powered when the trailer is parked.
The Lanyard Is Too Short
A lanyard that is too short may pull the breakaway pin during normal turns or tight maneuvers. A lanyard that is too long may not activate the switch promptly if the trailer separates.
Route the cable according to the manufacturer’s instructions and make sure it can move freely without dragging, snagging, or wrapping around other equipment.
How Breakaway Maintenance Fits Into Overall Trailer Safety
A breakaway kit is one part of a larger towing system. Safe travel also depends on the coupling, safety chains, tires, wheel bearings, lights, brake assemblies, suspension, and electrical connections.
A trailer can have a perfectly functioning breakaway battery and still be unsafe if the coupler is not locked or the tires are damaged. That is why breakaway testing should be included in a complete pre-trip inspection rather than treated as a separate one-time task.
For off-road campers, the Off-Road Camper Trailer Maintenance Checklist provides a broader inspection framework that includes couplings, safety chains, brakes, battery condition, and other travel-critical components.
Frequently Asked Questions
What is the purpose of a CURT 12V trailer breakaway kit?
It provides an independent emergency braking circuit intended to activate the trailer brakes if the trailer separates from the tow vehicle.
Does the CURT breakaway kit include a battery?
Yes. The product listing identifies the kit as including a 12V battery and an LED test light.
How often should a trailer breakaway system be tested?
Test it before every major trip and after storage, wiring work, brake service, rough off-road travel, or exposure to water and road debris.
Can the LED test light replace a full brake inspection?
No. The LED can provide a quick indication of the circuit condition, but it does not verify every brake component, wiring section, or mechanical adjustment.
Why does the breakaway battery lose charge during storage?
The battery may lose charge because of age, lack of maintenance charging, a wiring fault, moisture damage, or an activated or partially engaged switch.
Where should the breakaway lanyard be attached?
Attach it to a suitable point on the tow vehicle according to the manufacturer’s instructions. It should be independent, secure, and able to pull the switch pin if separation occurs.
Should I tow if the breakaway system fails its test?
No. A failed or uncertain breakaway test should be corrected before towing. Contact a qualified trailer technician if the cause cannot be identified safely.
Final Takeaway
The CURT 12V Trailer Breakaway Kit is most valuable when it is tested and maintained before it is needed. Its included battery and LED test light make routine inspection more practical, but the complete system still depends on secure wiring, a correctly positioned switch, a functional lanyard, and properly serviced trailer brakes.
Make breakaway testing part of every pre-trip routine. Inspect the system after storage and rough travel, respond to warning signs immediately, and arrange professional service whenever the electrical or braking condition is uncertain.
