What size battery cable does a Victron MultiPlus 12/3000 need?

Answered by RV Parts Giant · Upland, CA · September 25, 2026

Short answer: Start with the figure in your unit's manual, which overrides everything else. Working from Victron's own cable table, a 12 V 3,000 VA inverter/charger draws around 250 A at full output, and for a run of up to 5 m total (positive plus negative added together) that calls for 95 mm² (3/0 AWG), or two 50 mm² cables per pole, which is why the unit has doubled battery terminals. Keep the run short and the voltage drop under 2.5 percent.

A 12 V inverter/charger at 3,000 VA is the point where cable stops being a detail. At full output it pulls in the region of 250 A from the battery, and undersized DC wiring is the most common serious fault in owner-built systems. Victron's handbook puts the failure mode plainly: undersized wiring or a bad contact can cause a fire.

The manual wins

Every Victron manual states the recommended battery cable cross-section and fuse for that specific model, usually by run length. Read the page for your unit first. What follows explains why the manual says what it does and lets you check a design against it.

Victron's cable table

The table below is Victron's recommended maximum current per cable size at a voltage drop of 0.259 V. The critical detail: total length is the positive cable plus the negative cable added together. A 2.5 m run out and 2.5 m back is a 5 m total.

Cross-section	Nearest AWG	Up to 5 m total	Up to 10 m total
50 mm²	1/0	150 A	75 A
70 mm²	2/0	210 A	105 A
95 mm²	3/0	285 A	143 A
120 mm²	4/0	360 A	180 A

For 250 A over a 5 m total, that is 95 mm², which is 3/0 AWG. Cable sold as "2 gauge" is only 33.6 mm² and good for about 105 A on that run; it is nowhere near enough.

Doubling up is allowed

Victron explicitly permits two cables per connection instead of one very thick one, provided the combined cross-section meets the requirement. Two 50 mm² cables equal 100 mm², which covers the 95 mm² figure. This is exactly why the larger inverter/chargers have two positive and two negative battery terminals.

Keep the run short

Voltage drop is not just an efficiency loss. On 12 V it eats the headroom the inverter has before it raises a low-battery alarm, which is why a MultiPlus that shuts down under load on a healthy bank is so often a cable problem. Victron's guidance is to keep the drop under 2.5 percent. If you cannot get the run under 5 m total, go up a size or move the inverter closer to the batteries.

Cable and lug rules

Fine-stranded flexible cable only. No solid core, no coarse strands, no AC cable used for DC.
Tinned copper in damp or marine installs.
Crimped lugs, torqued to the manual's figure, and re-checked after a few weeks.
Check conductor size from the cable marking, not by eye. Insulation thickness is misleading.

The fuse

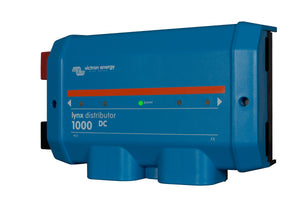

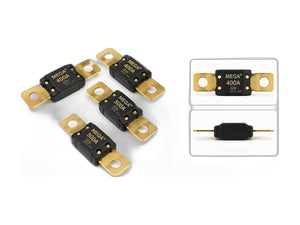

The fuse protects the cable, so it is sized to the cable rating and rated for DC. Inverter feeds want a slow fuse to tolerate inrush; the 400 A and 500 A MEGA fuses are the usual sizes on a 3,000 VA feed, mounted in a Lynx Distributor or a dedicated holder. On a lithium bank, at least one fuse in the DC line must also have an interrupt rating above the bank's short-circuit current, which is a separate question covered in the parent guide.

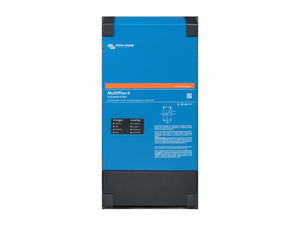

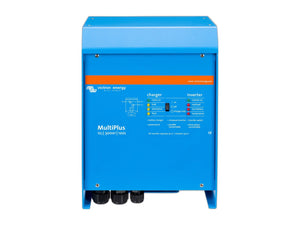

We stock the MultiPlus 12/3000 and 24/3000 and the MultiPlus-II in the 120 V versions. Send us the model, bank and run length and we will size the cable and fuse before you order. Everything ships from Upland, California.
