Renogy Core Mini or Pro Series: which 12V lithium battery should I fit?

Answered by RV Parts Giant · Upland, CA · September 26, 2026

Short answer: Pick the Core Mini when the battery tray is too short for a full-size box — that is what its shortened case exists for. Pick the Pro Series when the rig is used in winter, because it self-heats once charge current exceeds 6A and can therefore take a charge below freezing.

These two solve different problems, and the choice is usually settled by measuring the battery compartment before comparing anything else.

Core Mini — when space decides

The Core Mini is the short-case version of Renogy's 12.8V LiFePO4 house battery, built for installs where the tray or under-bench locker will not take a full-size box. It is the one to specify in a camper van, a truck canopy, or a trailer where you are fitting storage around plumbing and a furnace.

It comes in 100Ah and 300Ah. The 300Ah is worth knowing about if you have been assuming a short case means a small bank — one battery can carry a whole rig without needing a second box and the interconnects that go with it.

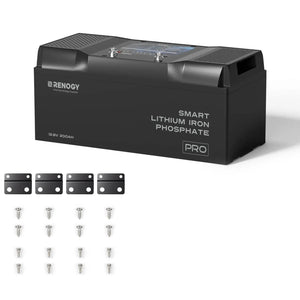

Pro Series — when winter decides

The Pro Series is the all-weather choice. It self-heats automatically once charge current exceeds 6A, so it can accept a charge below freezing, and it pairs to the Renogy DC Home app over Bluetooth for state of charge and fault alerts. It is IP67 rated with an EV-grade BMS carrying more than 60 protections, plus self-control fuses that cut the circuit faster than passive protection if a MOSFET switch fails.

If the rig is used or stored anywhere that goes below freezing while there is still a charge source connected, this is the one. See our separate answer on charging lithium below freezing for why that matters so much.

When neither is the answer

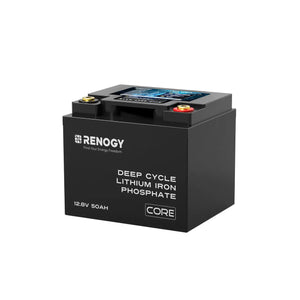

If weight and footprint matter more than reserve capacity — a small teardrop, a boat, a shed, a setup you move between rigs — the Core Series 50Ah is the size people actually reach for, in an IP65 case light enough to carry.

Working order

Measure the tray first. If a full-size case does not fit, the decision is made for you. If it does fit, ask whether the bank will ever need to charge in freezing weather. Only then argue about capacity — and size that from daily consumption, not from what will physically fit.
