Why does my wireless trailer camera cut out or flicker with a newer truck's 7-way plug?
The camera on the back of a trailer is often powered through the tow vehicle's 7-way plug. Older trucks put a steady 12V on those pins. Many newer trucks use variable-voltage systems that don't always give a trailer the steady power a wireless camera needs. The camera may then reboot, flicker or lose the picture while you drive, even though the trailer's lights look fine.
Which trucks
Visionworks' flyer for its 7-way power management adapter lists:
| Tow vehicle | Model years |
|---|---|
| Chevy / GMC | 2019 and newer |
| Ford | 2021 and newer |
| Dodge | 2021 and newer |
If your camera worked behind an older truck and started acting up after you changed trucks, this is the first suspect.
The fix

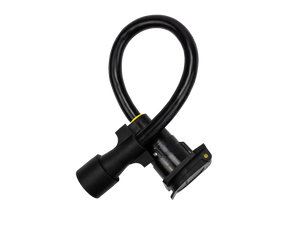

The Visionworks VW7PMA is a plug-and-play heavy-duty adapter that goes in at the 7-way and provides steady 12V to the trailer. It isn't limited to Visionworks: the listing says it works with other wireless camera brands too. Visionworks also says it powers the marker lights and cameras when the RV isn't connected to a tow vehicle.
Rule out the usual causes first
Our backup camera guide lists the causes that look the same on screen:
- Weak ground. A camera feed with a poor ground flickers with every bump. Check the ground at the camera and at the trailer frame.
- Loose or corroded connectors. Wiggle the 7-way plug and the camera connector while someone watches the monitor. If the picture changes, fix the connection before you buy anything.
- Damaged cable. Look for pinched or chafed wiring where it runs along the frame.
If all three check out and the problem only shows up behind the newer truck, it's the variable-voltage supply.
If there's no usable power at the back

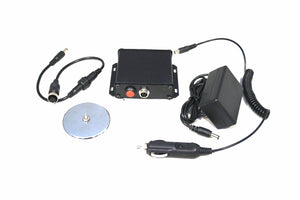

For a camera that only needs to run for a drive, the VWMOBAT rechargeable battery pack runs a Visionworks wireless camera with no wiring at all. It lasts 6 to 8 hours per charge and comes with AC/DC and 12V chargers and a magnet.
For the rest of the setup (monitor mounts, the booster antenna for long trailers and recording), see Visionworks camera setup.
Visionworks parts ship from our Upland, California warehouse. If you aren't sure which part your setup needs, call us and a real person will help.
